1/2-Inch Drive E-Type Offset Wrench for Mercedes M651 Camshaft Access

Brief Overview

This is a purpose-built offset wrench that solves a genuine access problem on Mercedes-Benz M651 engines. The combination of a 1/2-inch drive socket end and an E14 multi-point ring spanner addresses the restricted space around cam chain components—particularly critical when working on Sprinter models where standard tooling won't fit. When you're stocking short hand sockets in E-type profiles, this offset variant fills the gap for jobs requiring both socket and spanner functionality in tight engine bays.

Key Features

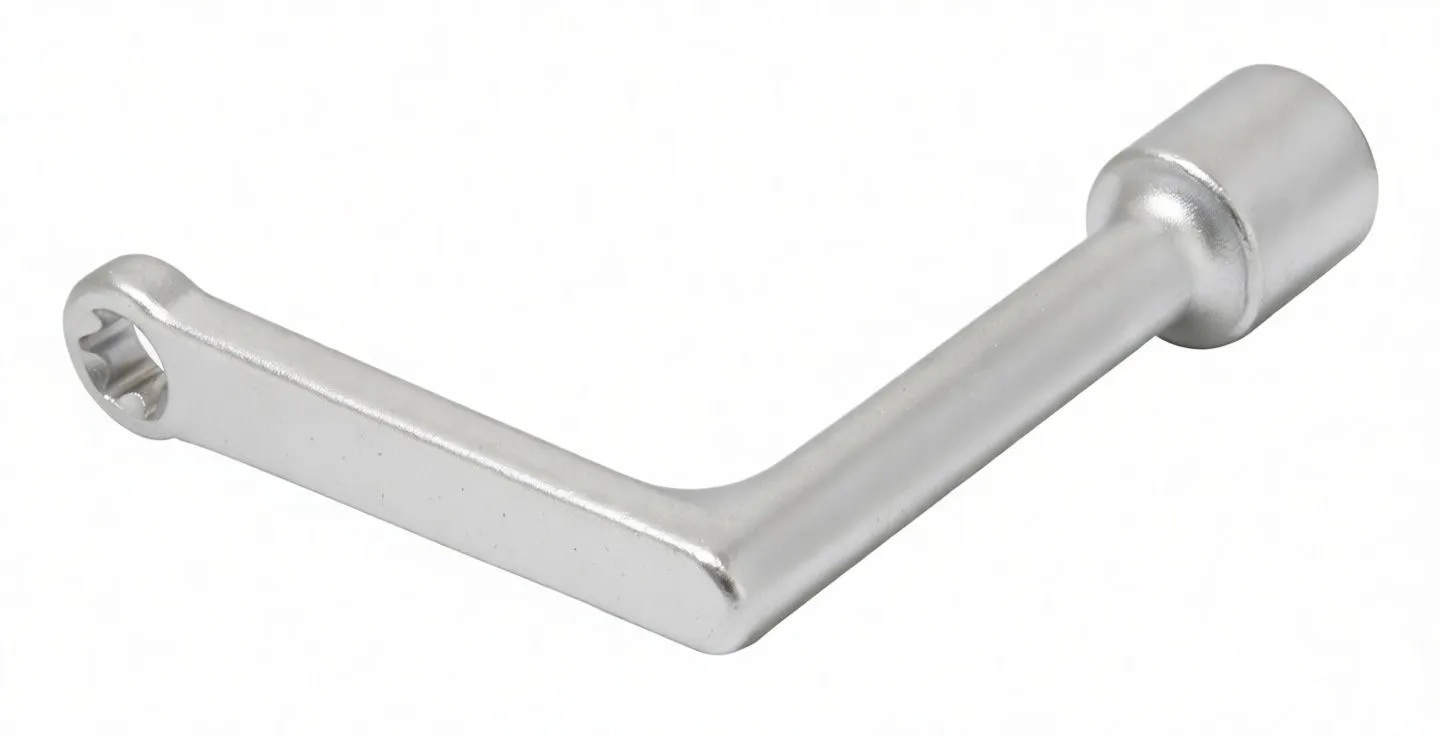

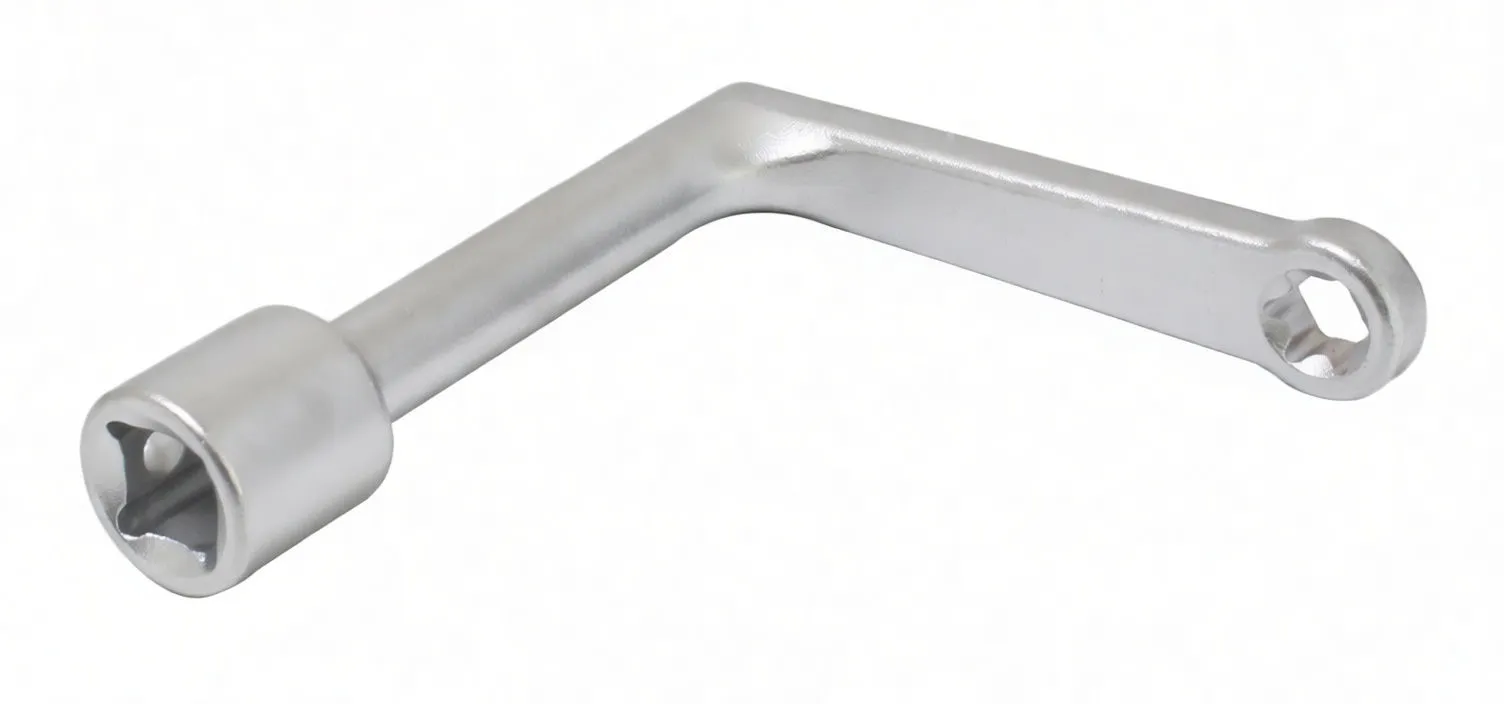

• Dual-Function Design: 1/2" drive square recess on one end; E14 multi-point ring on the opposite end
• Precision L-Shaped Offset: Extended angled shank allows clearance around engine components and fuel lines
• Chrome-Satin Finish: Corrosion-resistant plating suitable for marine, commercial, and heavy-duty environments
• Single-Piece Steel Construction: Eliminates flex and wobble during high-load fastening
• Retaining Pin Port: Small hole through socket wall allows for safety retention during overhead work
• Mercedes M651 Optimized: Specifically engineered for cam sprocket bolt access on Sprinter and other M651-equipped models

Why This Matters for Your Shop

Access Where Standard Tools Fail

M651 cam chains sit at the rear of the engine block. A conventional E14 spanner approaches from one angle; a socket approaches from another. This offset tool lets your technicians work both fasteners without repositioning the engine or removing adjoining components. That's faster diagnoses, shorter labor times, and better customer retention.

Reduce Your Tool Inventory Complexity

Instead of carrying multiple E14 spanners and adapters, one offset wrench covers the M651 job. When your techs move to the next vehicle with different access requirements, you still have versatile socket options in your rack for standard applications.

Scope Specific to M651 Work

This isn't a general-purpose tool. Its design targets the exact geometry of Mercedes' camshaft mounting. That specificity means you're investing in tooling that delivers measurable ROI on Sprinter service contracts and M651 engine overhauls—both high-margin, recurring work.

Technical Specifications

Specification	Detail
Drive Type	1/2" square drive socket end
Ring Spanner Size	E14 (6-lobed multi-point)
Socket Length	Approximately 38 mm (3/4") cup depth
Overall Configuration	L-shaped offset wrench, single-piece construction
Material	Chrome-plated steel
Finish	Satin chrome
Primary Application	Mercedes-Benz M651 camshaft bolt access
Recommended Use	M651 cam chain service, Sprinter engine work
Safety Feature	Retaining pin hole through socket wall

Application Context

Ideal For:

• Mercedes Sprinter cam chain replacement and inspection
• M651 engine overhauls where camshaft access is restricted
• Technicians working in confined engine bays with fuel systems and other components limiting standard tool approach

Not Suitable For:

• General-purpose E14 wrench work (use dedicated multi-size box wrenches for that)
• Applications requiring impact or power assistance
• Non-Mercedes vehicles with different engine architecture

Why Resellers Stock This

You're adding a specialized tool with zero competition from big-box suppliers. M651 engines are common in commercial fleets and specialty automotive shops. Mechanics who work on Sprinters will recognize the value immediately—it's not a convenience item; it's the only efficient way to access those bolts. That's positioning, margins, and customer loyalty.

---

Ready to add specialized Mercedes engine tooling to your catalog? This wrench pairs perfectly with your existing socket inventory and addresses a genuine market gap in M651 service work.
