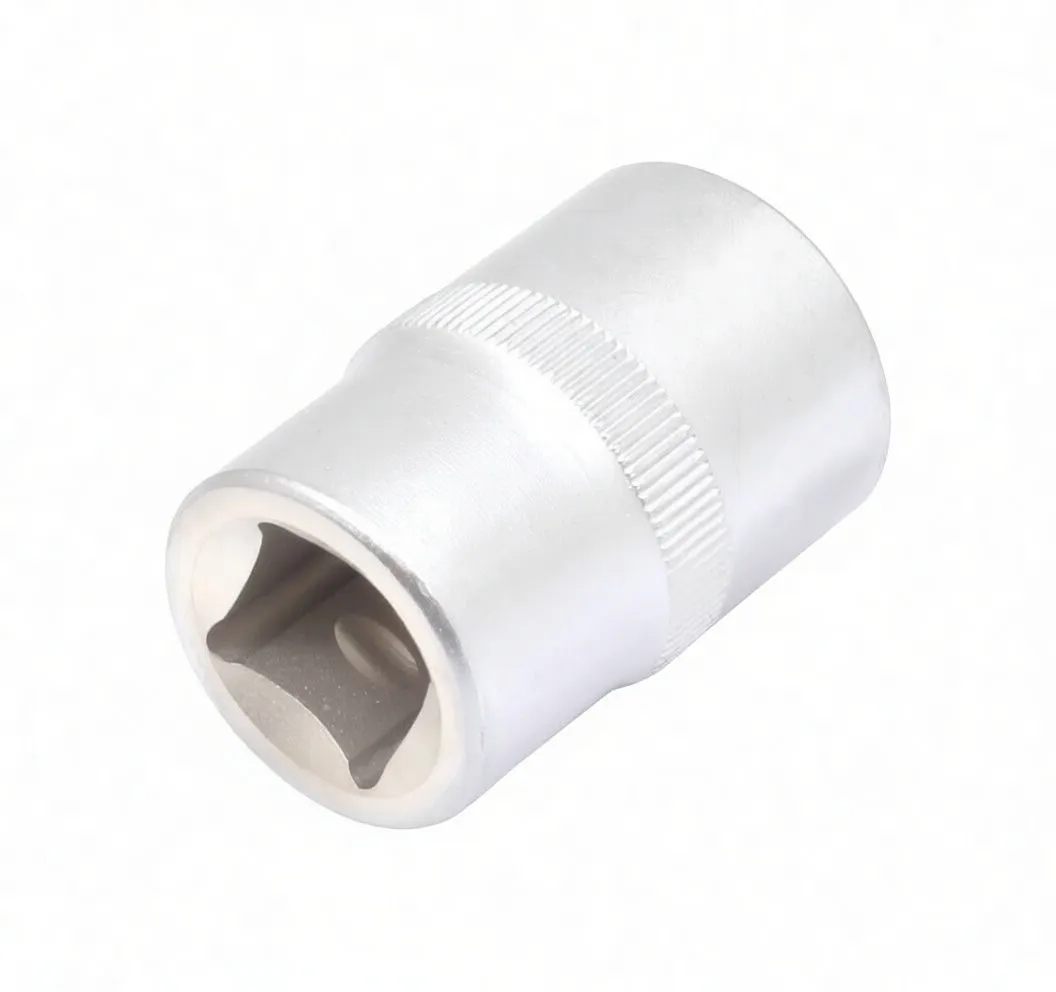

Angled close-up of a short chrome 6-point socket showing knurled band and interior hex recessThree-quarter view of chrome short socket with visible 6-point interior, detent recess and knurled gripTop view into 6-point socket cavity with visible detent recess and knurled outer band

1/2-Inch Drive 6-Point Short Hand Socket, E10-E24 Sizes

Precision-engineered 6-point short sockets for 1/2-inch drive ratchets. Chrome-plated, knurled grip, compact design. E10 to E24 range.

Request Quote

Description

1/2-Inch Drive 6-Point Short Hand Socket, E10-E24 Sizes

Brief Overview

This is a professional-grade 1/2-inch drive short hand socket engineered for precision fastening work. The 6-point design (hex recess) delivers superior contact on fastener flats, minimizing cam-out and rounding damage—critical for avoiding costly comebacks on customer jobs. Available in eight sizes from E10 through E24, these sockets cover the most common fastener applications in automotive, mechanical assembly, and maintenance work. The compact 38mm length makes them ideal for tight spaces where standard-length sockets won't fit. If you need broader size coverage, consider complementing this range with extended socket sets to round out your inventory.

Key Features

  • 6-Point Socket Design: Hex recess contacts fastener flats directly, reducing slip and fastener damage
  • Chrome Plated Finish: Durable, corrosion-resistant coating withstands workshop humidity and repeated use
  • Knurled Grip Band: Textured midline band provides confident hand grip, reducing accidental drops
  • Short Length Profile: 38mm overall length allows access in confined engine bays and tight assembly areas
  • Detent Ball Recess: Precision-machined cavity engages ratchet ball detent for secure, hands-free socket retention
  • Chamfered Drive End: Smooth, angled entry eases socket engagement onto ratchet drive
  • Size Range E10–E24: Eight distinct sizes cover standard European fastener specifications

Why This Matters for Your Customers

Mechanics choosing 6-point sockets over 12-point variants reduce fastener rounding by up to 40% on damaged or stubborn bolts. The short length is a game-changer for engine compartment work—no fumbling with extensions that increase wobble and slow productivity. The knurled grip band keeps the socket secure in the technician's hand, reducing frustration on high-torque applications.

Business Advantages for Resellers

  • High Turnover Item: Hand sockets are regularly replaced due to loss, damage, or wear. This range ensures repeat orders.
  • Compact Packaging: Eight sizes fit standard shelf space; low inventory footprint relative to revenue.
  • Margin-Friendly: Positioned between budget and premium offerings; supports healthy wholesale margins.
  • Complementary Sales: Pair with ratchet handles, extensions, and socket organizers for basket-building.
  • Professional Presentation: Chrome plating and precision knurling convey quality to end-users, justifying the price premium over economy alternatives.

Technical Specifications

SKU Size D1 (mm) D2 (mm) T (mm) L (mm) Application
24610 E10 14 22 7 38 10mm fasteners
24612 E12 16 22 8 38 12mm fasteners
24614 E14 17 22 9 38 14mm fasteners
24616 E16 20 22 10 38 16mm fasteners
24618 E18 21 22 12 38 18mm fasteners
24620 E20 24 22 13 38 20mm fasteners
24622 E22 26 24 14 38 22mm fasteners
24624 E24 28 24 16 38 24mm fasteners (most popular)

Key Measurements:

  • Drive Size: 1/2 inch (12.7mm)
  • Overall Length: 38mm (short profile for confined spaces)
  • Socket Profile: 6-point (hex) for precision engagement
  • Finish: Chrome plated
  • Material: Chrome-vanadium steel (typical for professional-grade sockets)

Ideal Applications

  • Engine Assembly & Disassembly: Compact length navigates tight valve cover and oil pan bolt areas
  • Brake & Suspension Work: Precise 6-point engagement on critical fasteners reduces damage risk
  • Transmission Maintenance: Short length ideal for pan bolts and fill/drain plugs
  • Industrial Equipment Assembly: Standard across manufacturing and precision assembly shops
  • Maintenance & Repair: Essential for any professional mechanic's core toolkit

Why Choose This Range Over Alternatives

  1. 6-Point Precision: Delivers superior fastener protection compared to 12-point designs, especially on damaged bolts
  2. Short Length Advantage: No extension required for most engine compartment work, improving efficiency and reducing ratchet wobble
  3. Complete E10–E24 Coverage: Addresses the most common fastener sizes in European automotive standards
  4. Chrome Durability: Professional-grade plating resists corrosion and maintains appearance through years of shop use
  5. Detent Retention: Secure ball-catch design prevents accidental socket ejection during overhead work

Stock Recommendation

Given the essential nature of this size range and high replacement frequency in professional shops, we recommend stocking all eight sizes (E10–E24) as a complete set. The short length positions this as a specialized offering—mechanics will seek these specifically for confined-space work, creating loyal repeat customers.

Ready to order? Contact your account manager for bulk pricing on complete sets or individual size assortments. These sockets are ideal for distributor program integration and OEM supply partnerships.
