1/2-Inch Drive 6-Point Short Impact Socket

Overview

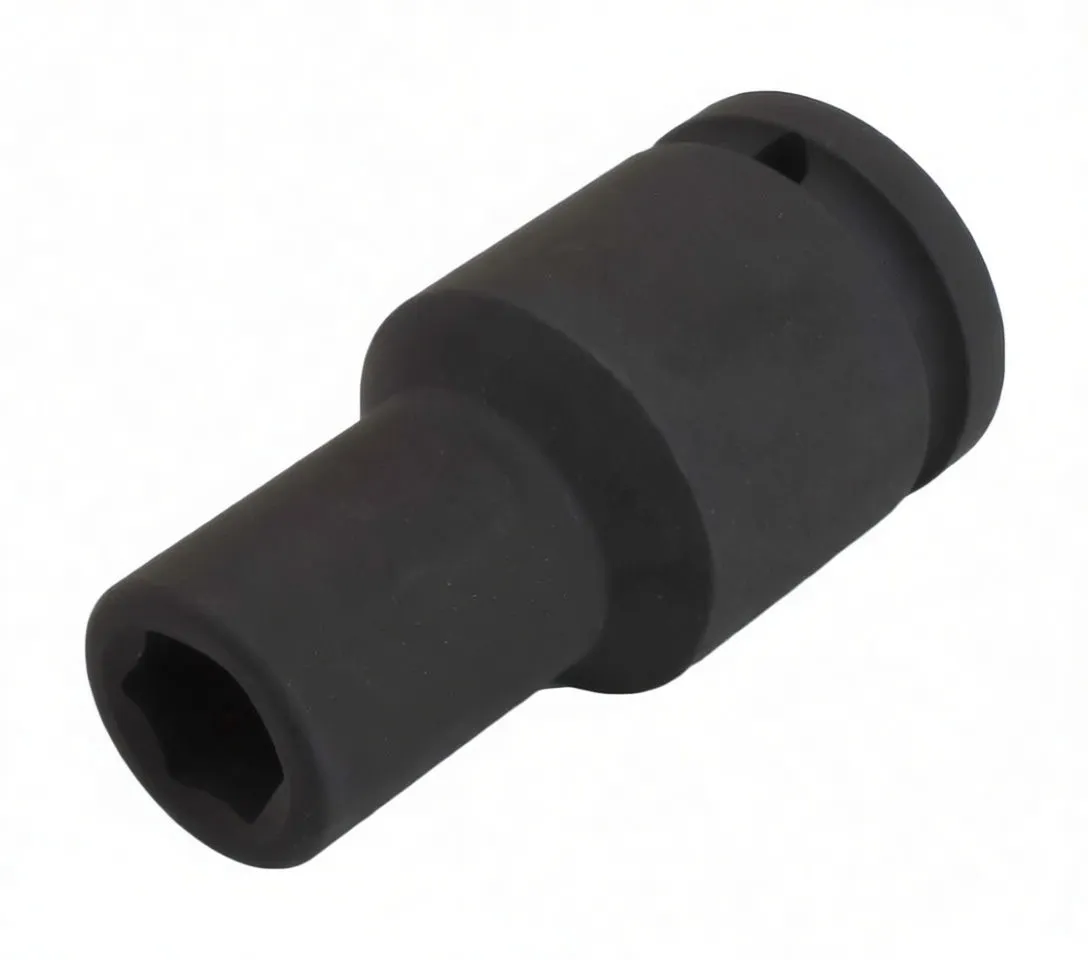

This is a professional-grade impact socket engineered for pneumatic impact wrenches on automotive and industrial assembly lines. The 6-point internal profile delivers superior contact geometry for fasteners, reducing cam-out and rounding during high-torque operations. The short-length design (38–48mm overall) provides superior access in tight engine bays and confined spaces where standard sockets cannot reach. Thick forged walls and impact-rated black coating ensure durability across thousands of cycles. Available in 15 sizes (8–36mm) to cover the full range of fastener applications, with complementary 3/4-inch drive options for heavier-duty work.

Key Features

• 6-Point Internal Profile: Precision geometry eliminates edge rounding; optimal for pneumatic impact wrenches
• Short-Length Design: 38–48mm overall length for tight-access assembly and maintenance
• Forged Impact-Grade Construction: Thick walls absorb shock loads from pneumatic impact tools without cracking
• Matte Black Impact Coating: Corrosion-resistant finish rated for industrial environments
• Detent Pin Hole: Integrated side hole for positive socket retention on drive spindles
• 15-Size Range: 8mm to 36mm covers fasteners from small sensors to larger automotive fasteners
• Square Drive Recess: Standard 1/2-inch square drive (13.3mm) compatible with all pneumatic impact wrenches

Business Advantages

• High-Volume Turnover: Sockets are high-velocity consumables in any professional shop—technicians require replacement sets regularly
• Bulk Margin Potential: Pricing scales favorably at volume; position as a core inventory replenishment item
• Cross-Sell Opportunity: Pair with larger 3/4-inch drive impact sockets to capture multi-drive shop orders
• Low Breakage Rate: Forged construction minimizes warranty returns compared to cast alternatives
• Professional Perception: Impact-rated finish and precision tooling signal premium quality to end-customers

Technical Specifications

Size (mm)	D1 (mm)	D2 (mm)	Wall Thickness (mm)	Overall Length (mm)	Part Number
8	17	24	9.5	38	524608P
10	17	24	9.5	38	524610P
13	21	24	9.5	38	524613P
17	26	26	9.5	38	524617P
18	28	28	9.5	38	524618P
19	28	28	9.5	38	524619P
21	30	30	11	38	524621P
22	32	30	13	38	524622P
23	34	30	13	38	524623P
24	34	30	13	38	524624P
26	38	30	13	40	524626P
27	38	30	13	40	524627P
28	40	30	16.5	42	524628P
30	42	30	16.5	44	524630P
32	44	30	17	44	524632P
34	46	30	20	44	524634P
36	48	30	20	48	524636P

Application Context

The 6-point short socket excels where standard sockets fail: engine valve cover bolts, intake manifold fasteners, alternator mountings, and transmission pan bolts in modern vehicles. The short length eliminates knuckle strikes in tight bays; the 6-point profile grips fastener corners without slipping. Pneumatic impact wrenches deliver rapid fastening cycles—proper socket selection reduces technician frustration and cycle time.

Why Resellers Choose This Range

Stock these as a foundational impact socket line. Mechanics buy replacements frequently; damaged sockets drive repeat orders. The 8–36mm spread covers 95% of automotive fastener applications in a single product family, simplifying your inventory management and increasing customer convenience.

---

Stock this range for reliable, fast-moving inventory with strong profit margins.
