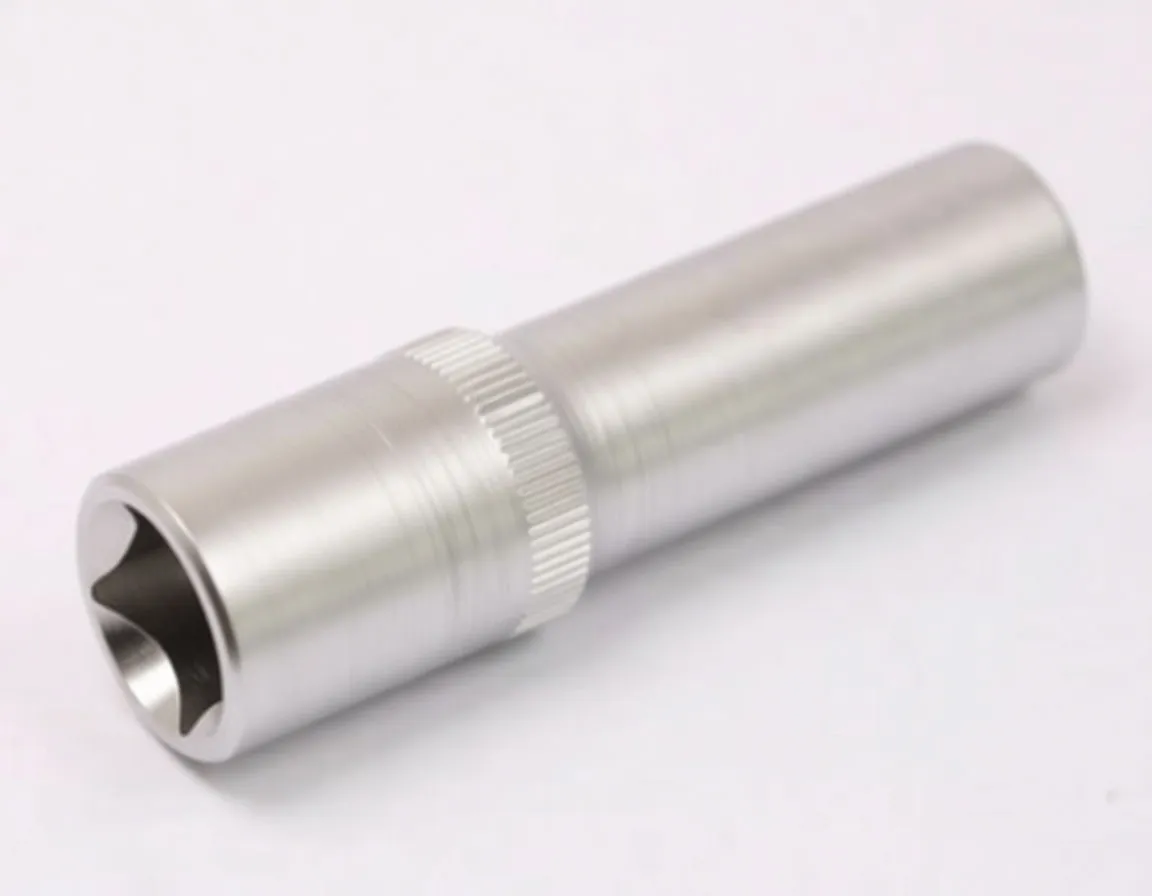

1/2-Inch Drive E-Type Short Hand Socket, E10 to E24 Sizes

Brief Overview

This is a genuine 1/2-inch drive E-type short hand socket series, purpose-built for mechanics and technicians who work with external Torx (E-type) fasteners. The short length makes these sockets ideal for confined spaces and close-quarter assembly work where a standard socket won't fit. Chrome-plated finish delivers durability and corrosion resistance on the shop floor. The knurled grip band provides secure finger control during hand-powered applications. For shops requiring a full range of Torx fastening solutions, consider pairing these with smaller-drive E-type sockets to cover all assembly scenarios across your service bay.

Key Features

• E-Type Drive Profile: External Torx (E-type / star-shaped) recess for maximum contact and reduced cam-out risk
• 1/2-Inch Square Drive: Compatible with standard 1/2-inch ratchets, extensions, and power tools
• Short Length Design: 77 mm overall length (standard across most sizes) — fits tight engine bays and close-tolerance assemblies
• Chrome-Plated Steel: Corrosion-resistant finish withstands workshop humidity and occasional water spray
• Knurled Grip Band: Mid-body knurling ensures secure hand control when applying torque manually
• Chamfered Drive End: Smooth entry onto drive squares; prevents rounding and wear
• Eight-Size Range: E10 through E24 covers the majority of Torx fastening applications

Business Advantages for Resellers

• Proven Demand: E-type sockets are non-negotiable in modern automotive repair shops — essential inventory for technicians working on late-model vehicles with Torx-head screws
• High Turnover: These are wear items that need regular replacement due to cam-out damage; establish recurring orders and predictable revenue
• Bulk Margin Opportunity: Purchase multi-packs or complete sets to offer your customers better per-piece pricing and increase average transaction value
• Low Hold Cost: Chrome-plated hand sockets have indefinite shelf life — no obsolescence risk, minimal inventory management overhead
• Complementary Sales: Bundle with ratchets, extensions, and additional drive-size socket sets to increase order size and customer satisfaction

Technical Specifications

Size	D1 (mm)	D2 (mm)	T (mm)	L (mm)	Part Number
E10	13.5	22	10	77	34610
E12	15	22	10	77	34612
E14	17	22	10	77	34614
E16	19	22	10	77	34616
E18	21	22	12	77	34618
E20	24	22	13	77	34620
E22	26	23	14	77	34622
E24	28	24	16	77	34624

D1 = Socket opening diameter (outer edge of E-type recess)
D2 = Drive end (square drive mounting diameter)
T = Socket depth / wall thickness at recess
L = Overall socket length

Applications & Fit

• Automotive Assembly: Torx-head fasteners on engine covers, intake manifolds, sensor mounts
• Precision Machinery: Industrial equipment with E-type fasteners in tight access areas
• Electronic Equipment: Enclosure screws and internal hardware where short sockets prevent interference
• Hand-Powered Work: Ideal for field service or low-torque applications where air/electric tools are unavailable

Call to Value

Stock this essential eight-size range now. E-type sockets are a staple of modern repair shop inventory — high velocity, reliable demand, and excellent margin potential. Offer your customers complete coverage from E10 to E24 and position yourself as the trusted source for precision fastening solutions.
