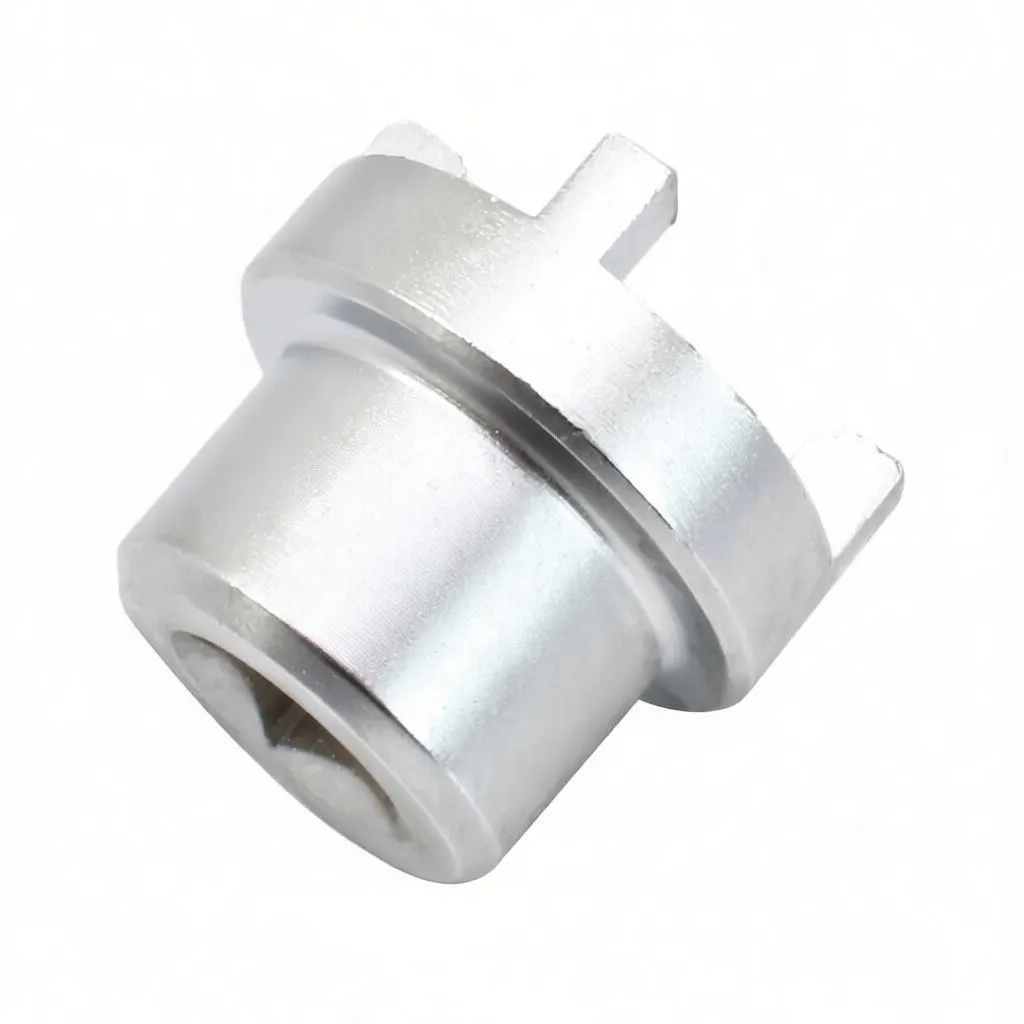

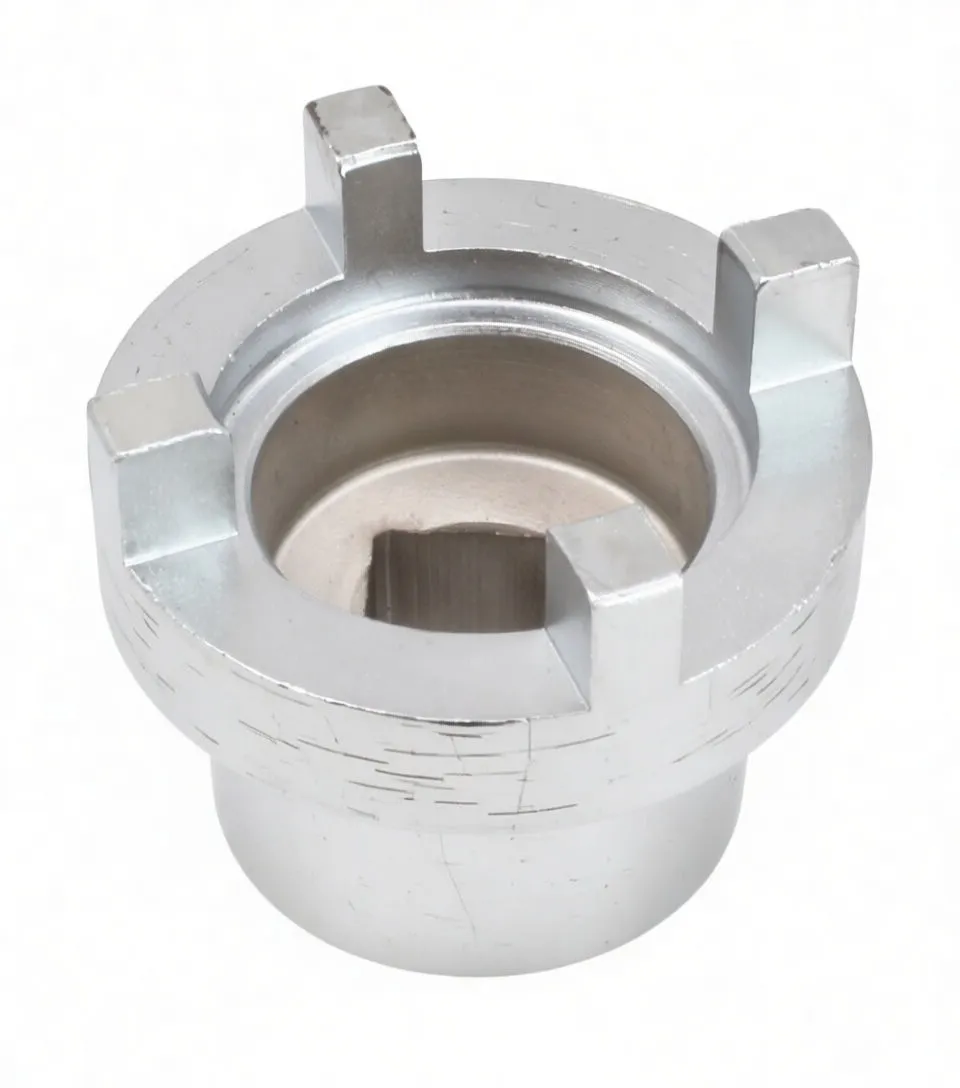

Top view of silver cylindrical swingarm pivot tool with four lugs and ASTA A-P692 markingAngled image of swingarm pivot tool showing four tabs and internal cavity, ASTA marking partially visibleSide view of ASTA A-P692 swingarm pivot tool showing four lugs, cylindrical body and square drive recess

1/2-Inch Drive Swingarm Pivot Socket Tool, Suzuki SV/DL/GSX-R Models

Precision swingarm pivot nut socket for Suzuki motorcycles. Hardened Cr-V steel with four-lug engagement, 1/2-inch drive. Essential for swing arm service.

Request Quote

Description

1/2-Inch Drive Swingarm Pivot Socket Tool

Brief Overview

This is a specialized swingarm pivot nut socket designed specifically for Suzuki motorcycle swing arm service. The four-lug engagement pattern grips the pivot nut securely without rounding, eliminating the frustration of stripped fasteners during removal or installation. Pair this with a flexible 1/2-inch drive extension or complementary swing arm locking tool to streamline your swing arm overhaul workflows.

Key Features

  • Four-Lug Engagement Pattern: Positive grip on Suzuki-specific pivot nut geometry; eliminates cam-out and fastener damage
  • Hardened Cr-V Steel Construction: Engineered for repeated torque cycles without deformation or wear
  • Chrome-Plated Finish: Corrosion resistance and professional appearance for shop and customer-facing work
  • 1/2-Inch Square Drive: Standard compatibility with air impact wrenches, torque wrenches, and ratchet handles
  • Recessed Cup Design: Cups the pivot nut properly, ensuring centered force delivery and preventing lateral stress

Vehicle Compatibility

  • Suzuki SV650 (2003–present)
  • Suzuki SV1000 (2003–2007)
  • Suzuki DL650 V-Strom (2004–present)
  • Suzuki DL1000 V-Strom (2002–present)
  • Suzuki GSX-R750 (2000–present)
  • Suzuki GSX-R1000 (2001–present)
  • Suzuki GSX-R1100 (1997–2002)

Why This Matters for Your Shop

Reduced Comebacks: The engineered four-lug pattern fits the OEM pivot nut precisely. No rounding, no customer returns for re-work.

Speed & Efficiency: Swing arm overhauls demand specialized tooling. This socket eliminates the temptation to use improvised sockets or impact-damaged alternatives, cutting labor time per job.

Margin on High-Ticket Service: Swing arm replacement is a premium service. Having the correct specialist tool signals competence to customers and justifies your labor rate.

Reseller Advantage: Suzuki riders are brand-loyal and their bikes are built to last 50,000+ miles. Swing arm service is recurring work in your territory. Stock this tool and capture every Suzuki shop in your region.

Technical Specifications

Specification Detail
Drive Size 1/2-Inch Square Drive
Material Chromium-Vanadium Steel (Cr-V)
Finish Chrome-Plated
Engagement Type Four-Lug Cup Socket
Compatible Brands Suzuki (OEM pivot nut pattern)
Hardness Grade Hardened Steel (suitable for impact use)
Overall Design Recessed cup with protruding lugs

Application Summary

This is a purpose-built tool for professional motorcycle mechanics and Suzuki specialists. It addresses a specific pain point: the OEM Suzuki swing arm pivot nut is notoriously difficult to access and remove without the correct socket. Generic 12-point or 6-point sockets fail because they don't match the nut's geometry. This tool succeeds because it's engineered to the actual fastener design.

Stock this for your Suzuki clientele. Every swing arm overhaul, every fork service that requires swing arm removal, and every frame-off restoration will need it. At the 1/2-inch drive size, it integrates seamlessly into your existing air tool and ratchet inventory.

Bulk orders welcome. Distributor pricing available for volume commitments.
