1/4-Inch Drive 72-Tooth Curved Ratchet Handle, 145mm Length
Compact 72-tooth curved ratchet for precision work in confined spaces. Chrome-plated with ergonomic rubber grip and reversible direction lever.
Request QuoteDescription

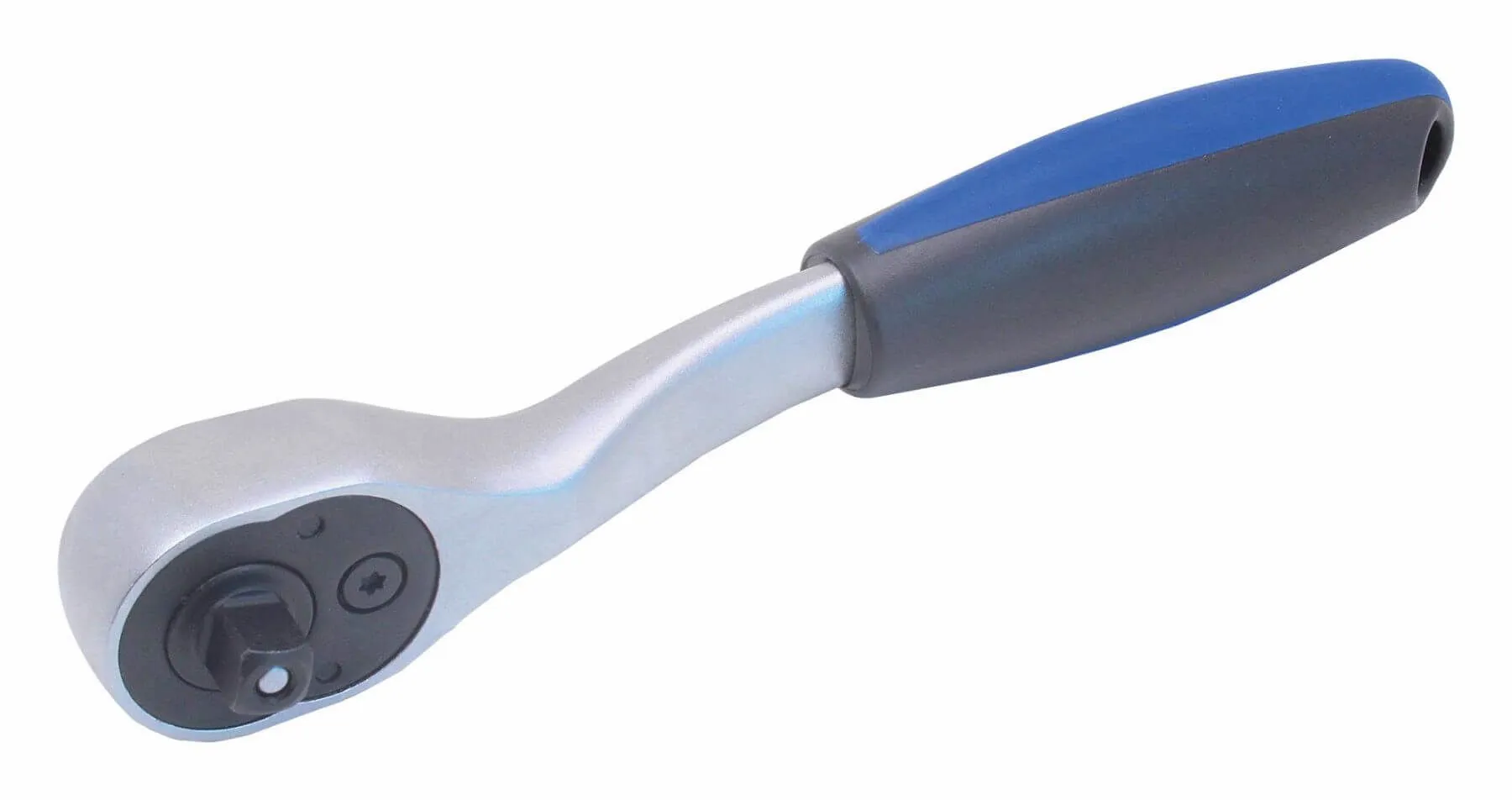

1/4-Inch Drive 72-Tooth Curved Ratchet Handle
Brief Overview
This compact 1/4-inch drive curved ratchet is engineered for detailed assembly work, electronics maintenance, and precision fastening in tight working spaces. The 72-tooth mechanism delivers fine control with minimal swing arc—ideal for situations where space constraints prohibit larger tools. The curved neck design enhances accessibility in recessed or confined areas. If you service multiple drive sizes, consider complementing your stock with larger 3/8-inch or 1/2-inch curved ratchets to cover the full range of professional applications.
Key Features
- 72-tooth ratchet mechanism – Fine 5° incremental engagement; minimal back-swing required in confined spaces
- Curved neck design – Improved reach and angle access compared to straight handles
- 1/4-inch square drive – Fits all standard 1/4-inch drive sockets and accessories
- Chrome-plated metal construction – Corrosion-resistant finish suitable for daily shop use
- Reversible direction lever – Black plastic switch on ratchet head for quick forward/reverse selection
- Spring-loaded ball retainer – Secure socket seating; prevents accidental socket ejection
- Ergonomic two-tone grip – Black and blue molded rubber handle reduces hand fatigue during repetitive work
- Compact dimensions – 145mm overall length (5.7 inches); weighs 128g for minimal user strain
Business Advantages for Resellers
Turnover & Margin: This size tier is a high-velocity SKU in professional shops. 1/4-inch drive tools sell consistently due to their universal use in electronics, automotive assembly, and precision maintenance. Stock this alongside longer-reach 1/4-inch ratchet variants to capture multiple customer preferences.
Customer Retention: Mechanics and technicians working on compact assemblies (instrument clusters, engine bay electronics, small engines) depend on this exact tool. A well-stocked 1/4-inch drive range keeps customers coming back.
Bundle Opportunity: Pair with 1/4-inch socket sets to create entry-level starter kits for apprentices and DIY professionals entering the market.
Technical Specifications
| Specification | Value |
|---|---|
| Drive Size | 1/4 inch square |
| Ratchet Teeth | 72 |
| Tooth Engagement | 5° |

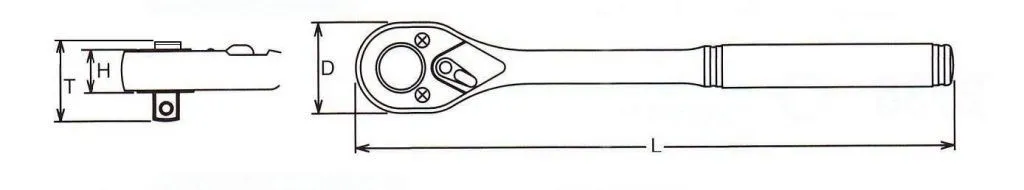

| Overall Length (L) | 145 mm |
| Head Height (H) | 13 mm |
| Head Width (D) | 25 mm |
| Throat Depth (T) | 23 mm |
| Weight | 128 g |
| Material | Chrome-plated steel (head & neck) |
| Grip Material | Molded rubber (black/blue) |
| Direction Control | Reversible lever switch |
| Socket Retention | Spring-loaded ball |
Application Context
Ideal for:
- Electronics and instrument panel assembly
- Automotive engine bay work (modern compact engines)
- Precision machinery maintenance and repair
- Medical equipment servicing
- Hobby model building and restoration
- Any application requiring controlled fastening in confined spaces
Not suitable for:
- Heavy-duty fastening or shock loads (use larger drive sizes)
- Continuous high-torque applications
Closing Statement
This 1/4-inch curved ratchet is a must-stock item for shops serving precision assembly and electronics sectors. Its compact size, reliable 72-tooth mechanism, and ergonomic design make it a daily workhorse that commands consistent reorder demand. Stock confidently—your customers will return for replacements and additional drive size options.
