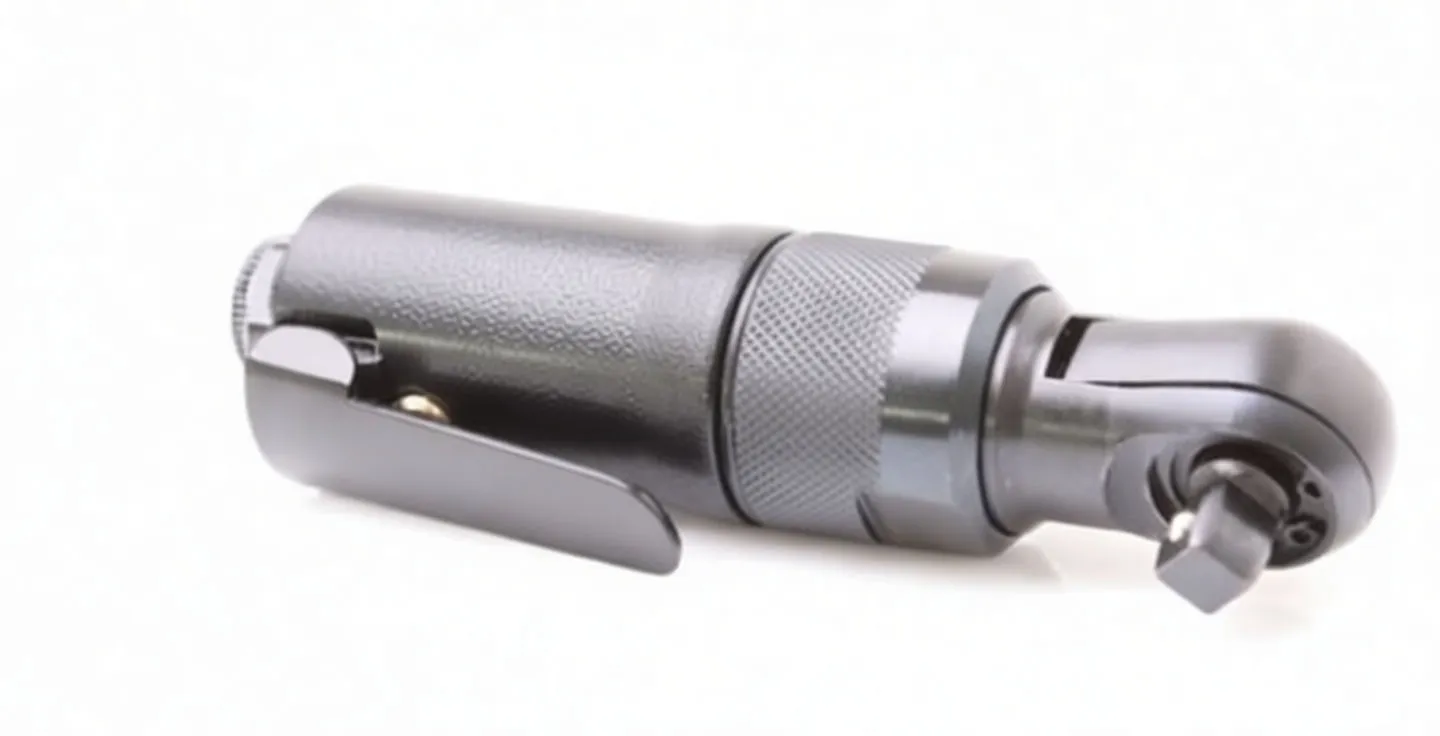

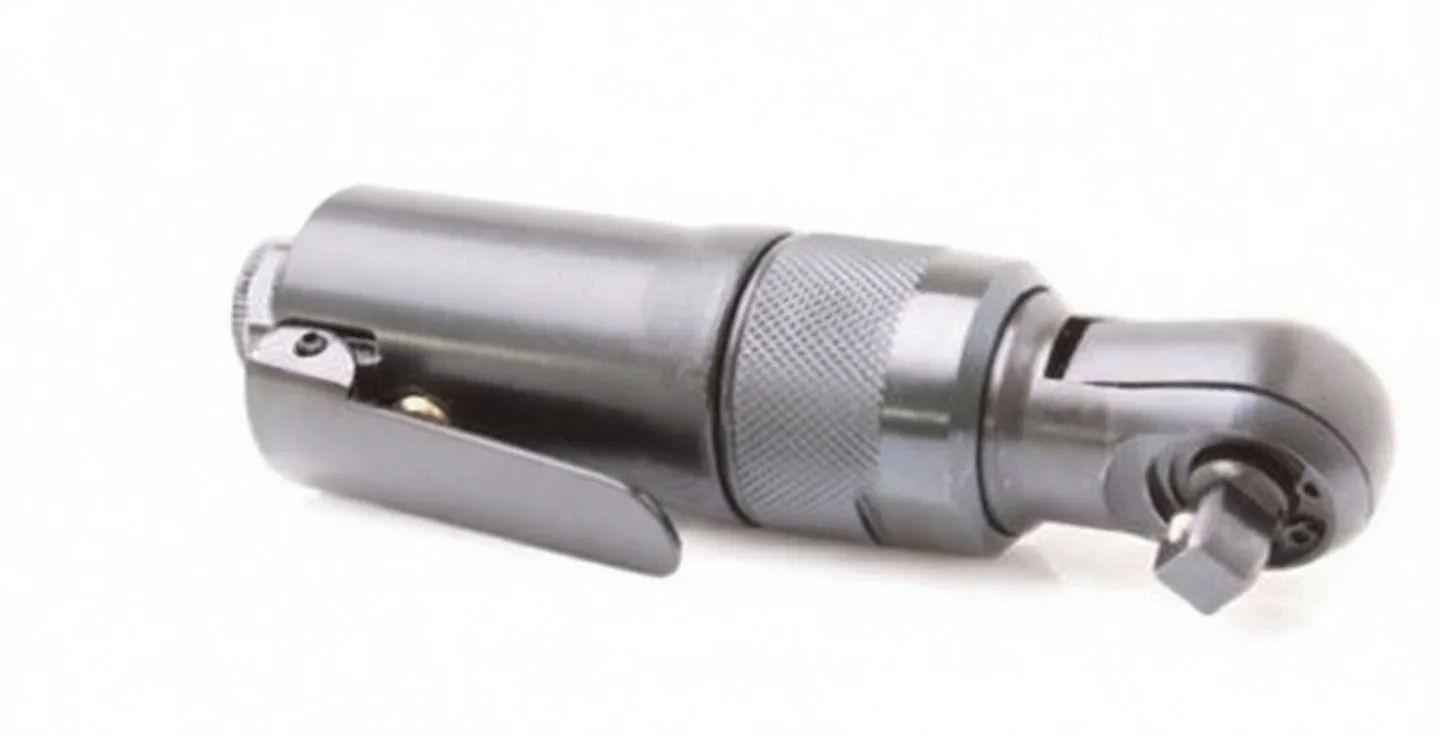

Low-angle view of a compact dark metal reversible air ratchet wrench showing knurled grip, throttle lever and stamped model numbersSide view of a compact reversible pneumatic ratchet wrench with knurled collar, side throttle lever and 'Sata' logo on the bodyClose-up of the ratchet head and square drive of a compact pneumatic ratchet wrench showing knurled grip and product label

1/4-Inch Drive Reversible Pneumatic Ratchet Wrench, 270 RPM, 27 ft-lbs Torque

Compact pneumatic ratchet wrench with reversible drive for tight-space fastening. Smooth, controlled operation at 270 RPM with 27 ft-lbs torque.

Request Quote

Description

1/4-Inch Drive Reversible Pneumatic Ratchet Wrench, 270 RPM, 27 ft-lbs Torque

Brief Overview

This compact pneumatic ratchet wrench is engineered for precision fastening work in confined spaces where standard air tools cannot reach. The reversible 1/4-inch square drive delivers controlled power at 270 RPM with a maximum torque output of 27 ft-lbs, making it ideal for assembly work, trim fastening, and detail-oriented applications. The mild, smooth start mechanism ensures precise control without sudden engagement, while the small footprint allows technicians to work in hard-to-access areas. For shops requiring multiple drive sizes, consider pairing this tool with high-torque impact solutions for comprehensive air tool coverage.

Key Features

  • Reversible Drive: Right and left-hand rotation selectable via direction control mechanism
  • Compact Design: 134mm length engineered specifically for confined work spaces
  • Controlled Start: Mild, smooth engagement prevents over-torquing delicate fasteners
  • Composite Body: Non-conductive, textured grip housing provides secure handling and comfort during extended use
  • Rear Exhaust: Air discharge directed away from work area, keeping operator and work surface clear
  • Lightweight: 0.50 kg (1.1 lbs) for reduced operator fatigue
  • Vibration Control: 2.5 vibration level minimizes hand fatigue during repetitive fastening

Technical Specifications

Specification Value
Drive Size 1/4" Square Drive
Maximum Torque 27 ft-lbs
Operating RPM 270
Tool Length 134 mm
Net Weight 0.50 kg
Air Consumption 160 L/min
Noise Level 86 dB(A)
Vibration Level 2.5 m/s²
Rotation Reversible (Bi-directional)
Air Inlet Rear-mounted with adjustment

Business Advantages for Resellers

High-Turnover Category: Compact pneumatic ratchets are essential staples in every professional shop. This tool addresses a specific market segment—technicians working on detailed assembly, sensor installation, and precision fastening in confined engine bays and tight work areas.

Repeat Orders: Unlike larger impact wrenches, these compact ratchets experience regular wear from precision work and represent a reliable consumable accessory category that drives consistent reorder volume.

Bundle Opportunity: Pair this 1/4-inch drive tool with ultra-compact composite-housing alternatives to offer shops a complete tight-space fastening solution, increasing average transaction value.

Low Inventory Risk: Lightweight (0.50 kg) and compact design means efficient warehouse management with minimal shelving overhead compared to larger air tools.

Application Profile

  • Engine Assembly & Sensor Work: Ideal for installing O₂ sensors, temperature sensors, and trim fasteners in confined engine bay spaces
  • Precision Fastening: Controlled 27 ft-lbs torque prevents stripping of delicate fasteners in electronics and trim assemblies
  • Detail Work: 270 RPM provides smooth, manageable operation for hand-guided fastening without sudden torque spikes
  • Confined Spaces: 134mm length reaches areas inaccessible to standard 1/2-inch drive ratchets and impact tools

Reseller Value Statement

This pneumatic ratchet wrench fills a critical gap in the tool lineup for shops handling detailed work—it's neither a heavy-duty impact tool nor a manual hand tool, but rather the specialized solution technicians demand for precision fastening in tight spaces. The reversible drive, smooth engagement, and lightweight design make it a profitable stock item that supports higher-margin service work. Stock this tool to capture orders from shops upgrading their pneumatic systems with specialized equipment.
