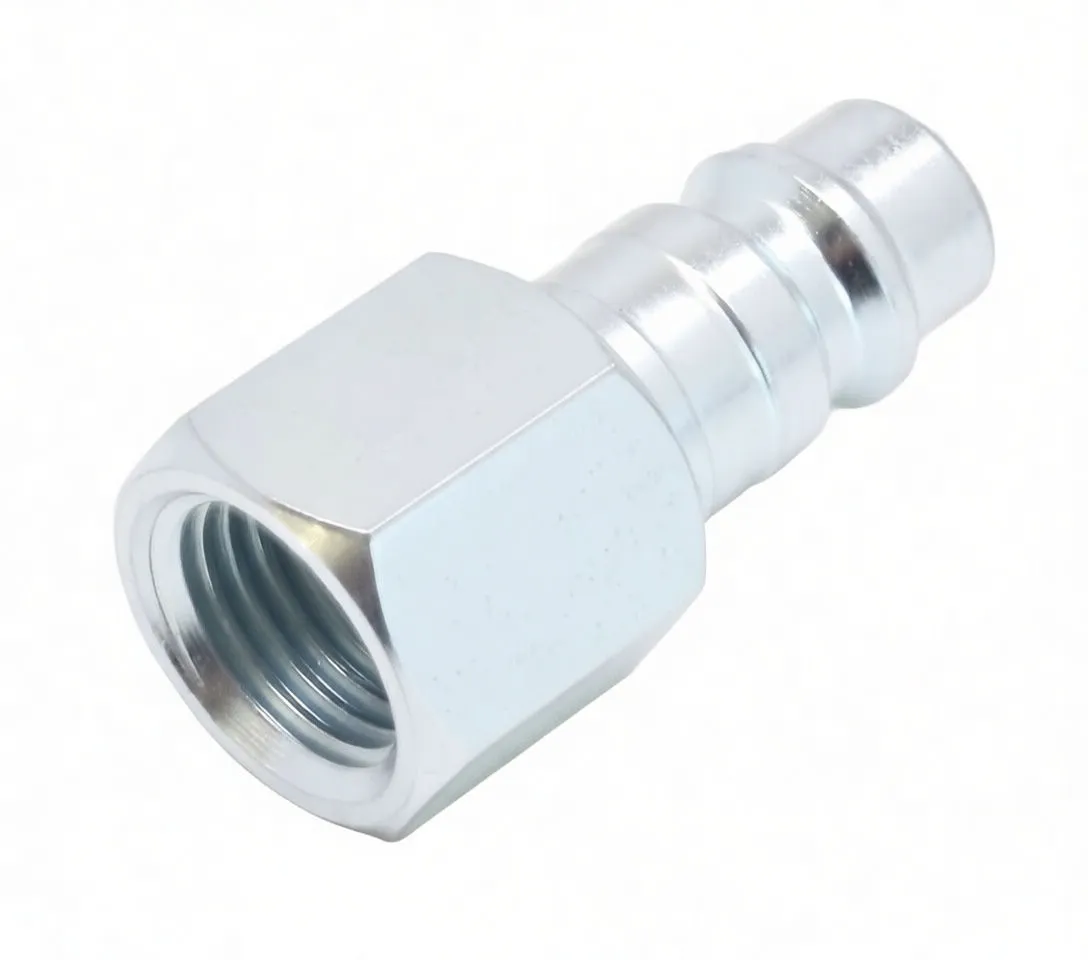

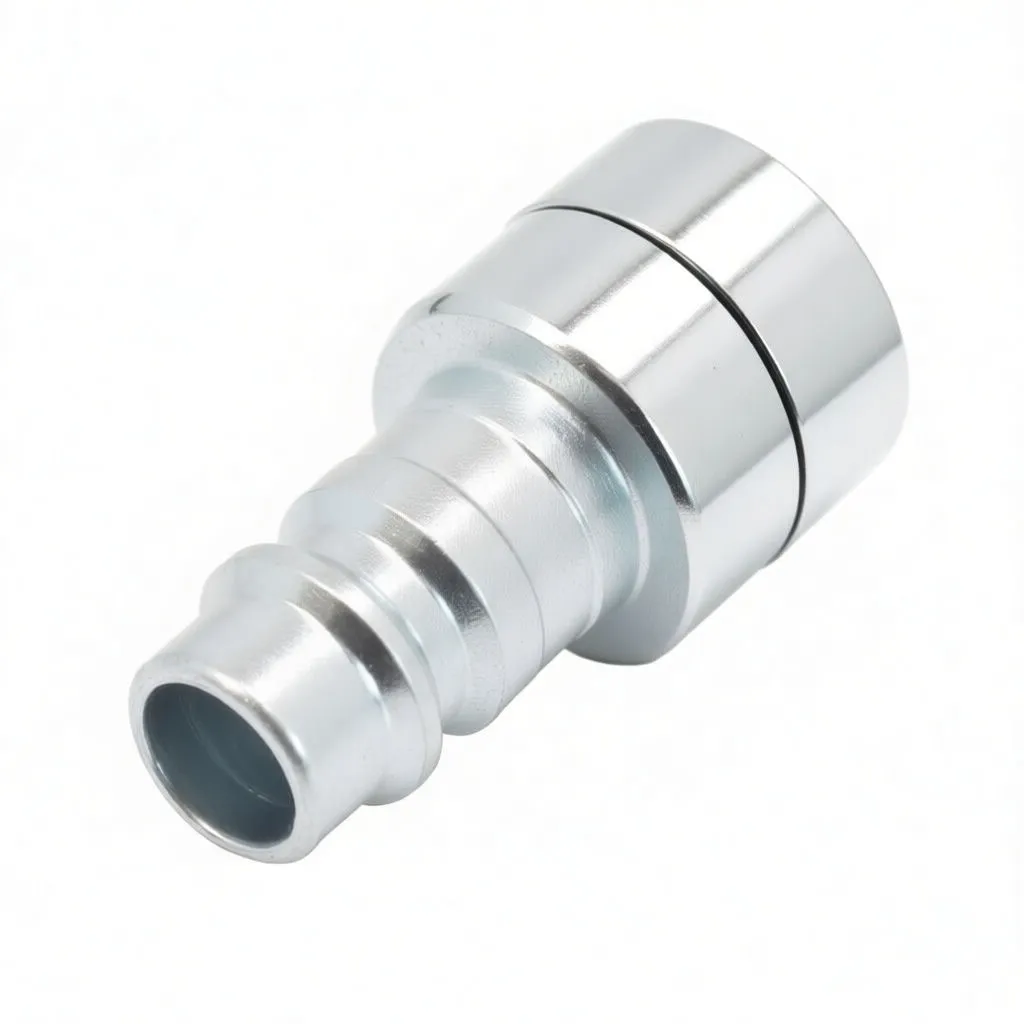

Angled side view of metal 1/4" PT female plug with barbed hose tail and hex female nutPerspective view showing internal threads of the hex nut and barbed tail of the female plugTop view into barbed tail and hex nut of metal 1/4" PT female plug

1/4-Inch PT Female Plug with Barbed Hose Tail, Zinc-Plated Steel

Reliable 1/4-inch PT female plug with dual-barb hose retention; zinc-plated steel construction for pneumatic and fluid line connections.

Request Quote

Description

1/4-Inch PT Female Plug with Barbed Hose Tail, Zinc-Plated Steel

Brief Overview

This 1/4-inch PT female plug is a straightforward, no-frills hose connector designed for secure, leak-free connections in pneumatic and low-pressure fluid systems. The barbed tail grips hose without requiring clamps, while the internal female threads accept standard 1/4-inch PT male fittings. Zinc-plated steel construction ensures corrosion resistance in workshop and field environments. If you're building modular pneumatic circuits, consider pairing this with a matching male coupling or compatible quick-disconnect adapter for versatile system configurations.

Key Features

  • Barbed Hose Tail: Two prominent annular barb rings with tapered lead-in for positive hose retention without additional clamps
  • 1/4-Inch PT Female Thread: Standard internal threads accept male PT connectors
  • Hexagonal Nut Design: Six flat faces provide secure grip for wrenching; chamfered edges for durability
  • Zinc-Plated Steel: Corrosion-resistant finish suitable for compressed air, water, and light hydraulic applications
  • Smooth Bore: Clear internal passage minimizes flow restriction
  • Compact Design: Direct barb-to-nut layout saves space in tight manifold installations

Business Advantages for Resellers

  • High-Volume Demand: Barbed connectors are consumable replacements in pneumatic shops; customers repeatedly repurchase when hose gets damaged or replaced
  • Stackable Inventory: Small footprint allows deep stock without warehouse burden
  • Wide Application Range: Compatible with standard 1/4-inch PT systems across automotive, manufacturing, and compressed air distribution
  • Competitive Margin: Low material cost per unit with consistent turnover
  • Cross-Sell Opportunity: Naturally pairs with hose, clamps, and quick-disconnect couplings

Technical Specifications

Specification Detail
Thread Size 1/4-inch PT (Pipe Thread)
Thread Type Female (internal)
Connection Type Barbed hose tail
Barb Count Two primary annular barbs + tapered lead-in
Material Steel (zinc-plated)
Finish Bright zinc/nickel plated
Nut Style Hexagonal, 6-point
Bore Condition Through-passage (clear flow path)
Pressure Rating Suitable for compressed air and low-pressure fluid systems
Assembly Method Push-on barbed connection (no clamp required)

Closing Statement

Stock this plug as a foundational component for any shop handling pneumatic assembly or hose replacement work. The barbed design eliminates the need for separate clamps, reducing labor time and material cost—a strong selling point for your end customers. Pair with complementary fittings to build complete connector solution packages and increase average order value.
