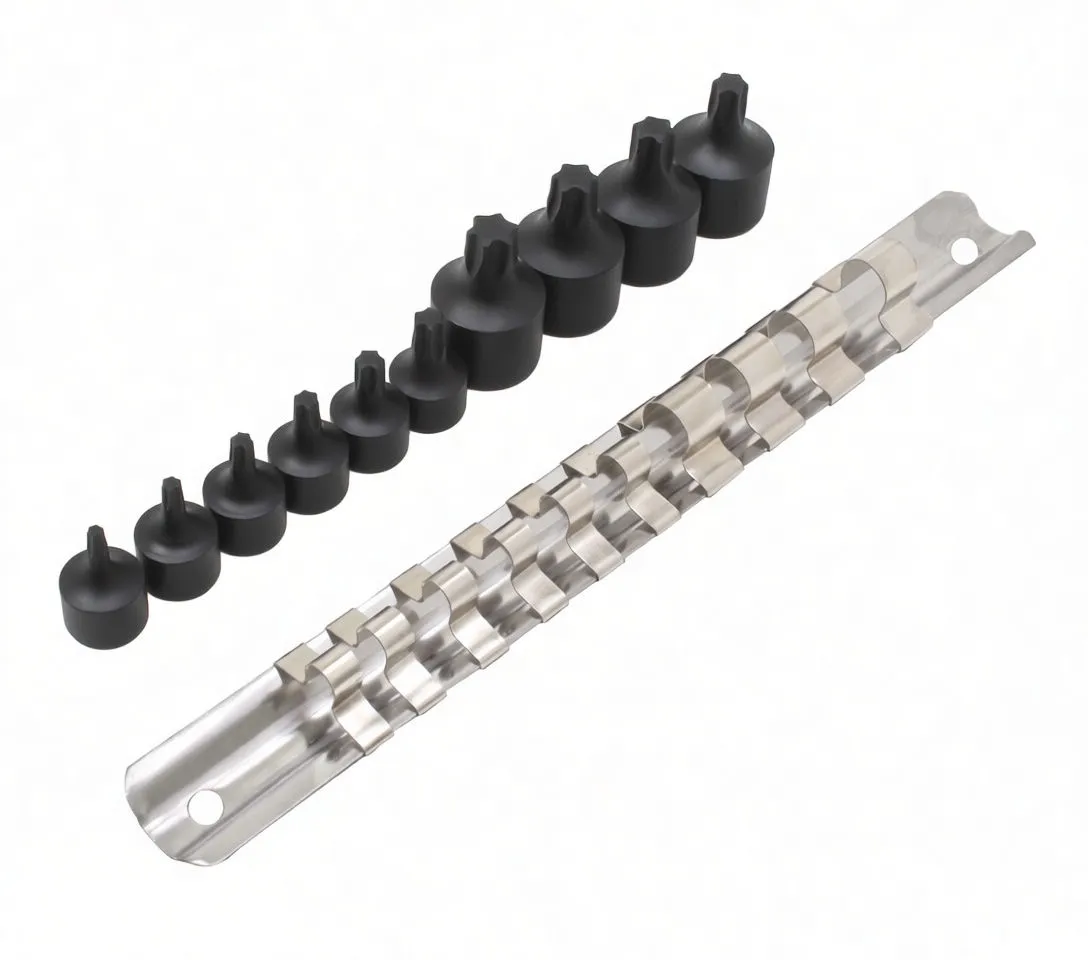

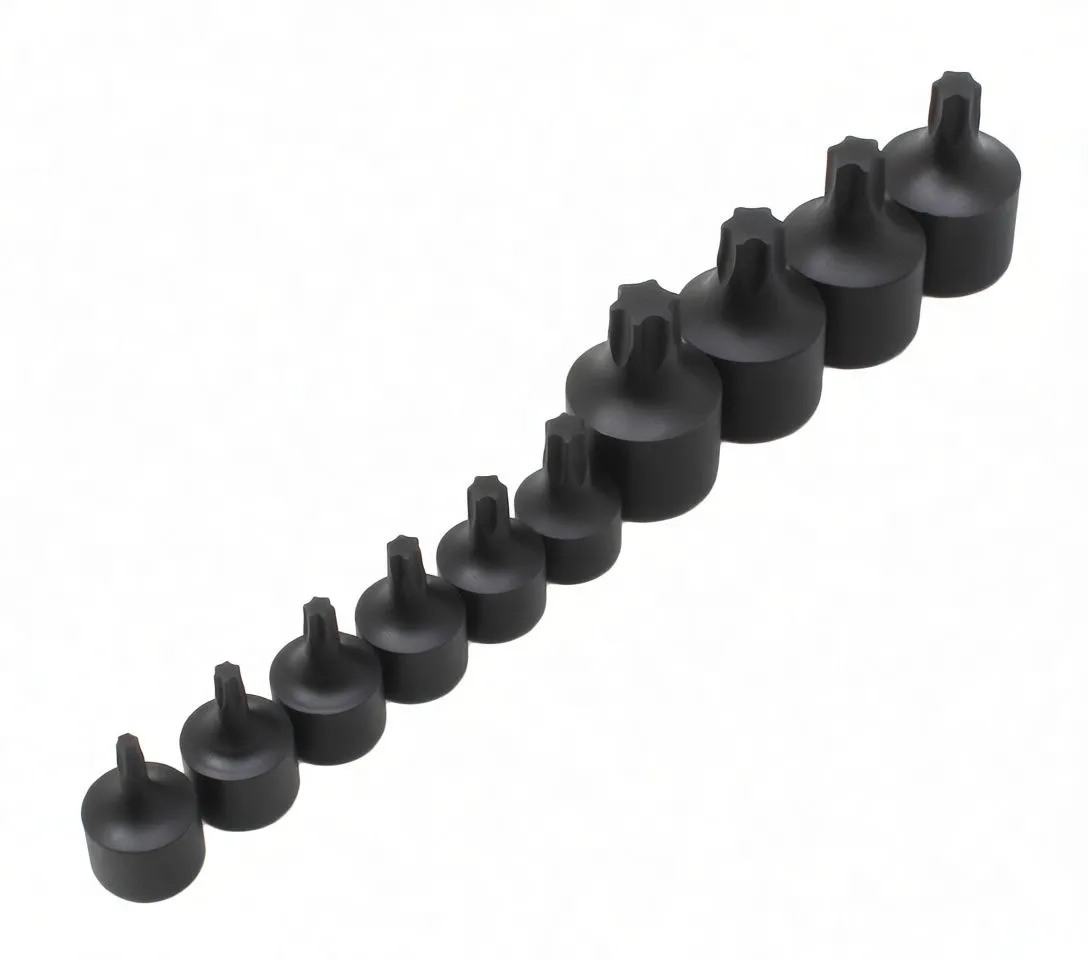

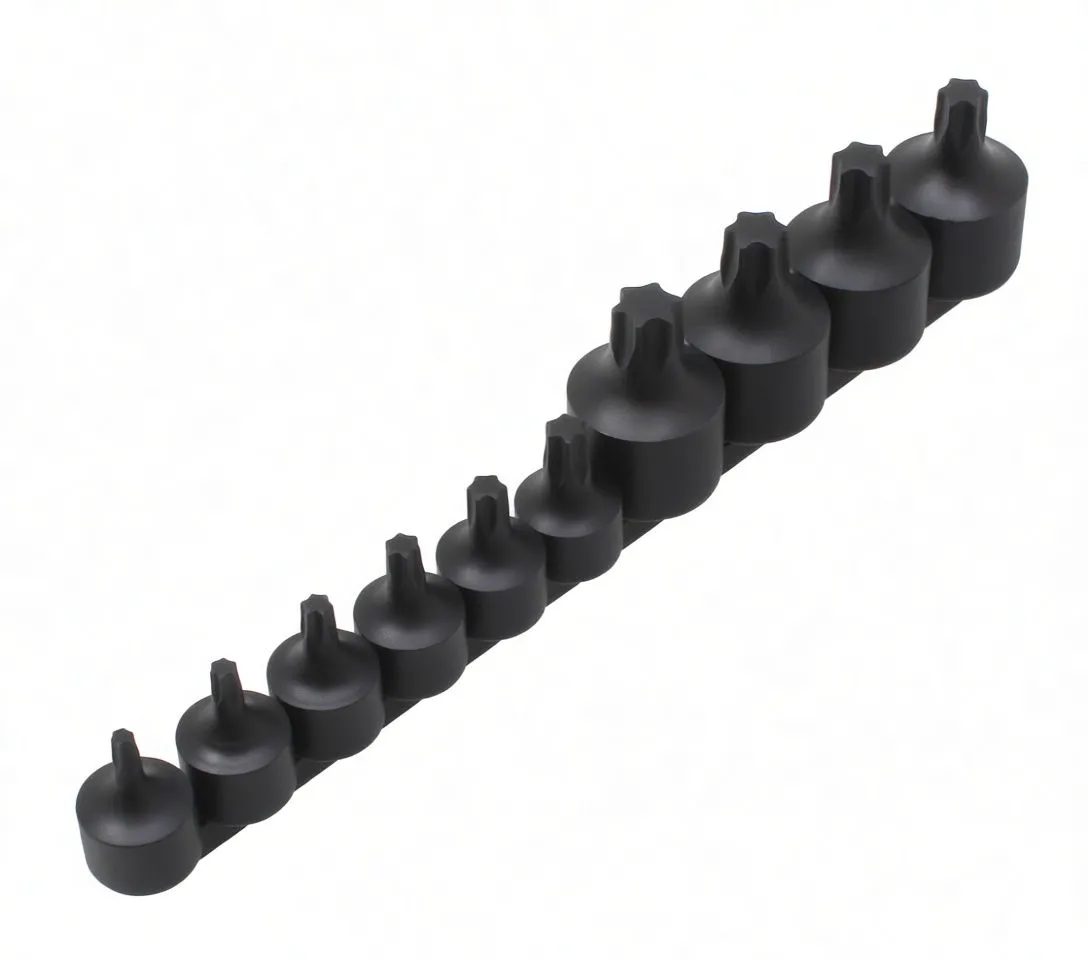

Ten black stubby Torx impact sockets lined next to a stainless steel mounting railAngled view of black Torx impact sockets clipped into a metal rail, tips upRow of ten stubby Torx impact sockets showing tip sizes and side markingsClose-up of Torx tip and square female drive recess, with printed size and 'S2' markingsAngled underside view of black Torx impact sockets seated on a metal rail, showing side markings

10-Piece 1/4" and 3/8" Drive TORX Stubby Impact Bit Socket Set, S2 Steel

Low-profile TORX impact sockets in 10-piece set with dual drive sizes for tight-access work and maximum durability.

Request Quote

Description

10-Piece 1/4" and 3/8" Drive TORX Stubby Impact Bit Socket Set, S2 Steel

Brief Overview

This 10-piece TORX impact socket set combines a dual-drive design (1/4" and 3/8") with a stubby, low-profile construction that delivers proven performance in confined spaces. The set covers essential TORX sizes across both drives, making it ideal for automotive technicians and industrial maintenance crews working in tight engine bays and machinery compartments. If you frequently work with larger TORX profiles, consider complementing this set with larger-format TORX sockets or SAE stubby socket alternatives for expanded coverage.

Key Features

  • 10-Piece Configuration: T10, T15, T20, T25, T27, T30 (1/4" drive) + T40, T45, T47, T50 (3/8" drive)
  • S2 Tool Steel Construction: High-impact resistance rated for pneumatic impact tools
  • Stubby, Low-Profile Design: 20mm height (1/4") and 28mm height (3/8") — ideal for restricted-access applications
  • Direct Load Transfer: Reduced working height (8mm for 1/4", 9mm for 3/8") minimizes deflection and extends socket life
  • Organized Storage: Stainless-steel mounting rail with individual retention clips keeps sockets ordered and accessible
  • Professional Grade Markings: White-printed size and material designations for quick identification

Business Advantages for Resellers

Stock One Set, Solve Multiple Job Categories:

  • Dual drive system eliminates the need to stock separate 1/4" and 3/8" TORX sets
  • Stubby design creates recurring demand from shops that lack overhead space
  • S2 steel durability ensures customer confidence and reduced returns
  • Mounted rail presentation increases perceived value and shelf appeal

High-Velocity Applications:

  • Automotive repair (engine assembly, fuel injector removal)
  • Industrial maintenance (machinery adjustment, fastener access)
  • Agricultural equipment service
  • Any environment where precision and space are constraints

Technical Specifications

Specification 1/4" Drive 3/8" Drive
Socket Sizes T10, T15, T20, T25, T27, T30 T40, T45, T47, T50
Total Height 20mm 28mm
Working Height 8mm 9mm
Material S2 Tool Steel S2 Tool Steel
Impact Rating Yes (pneumatic tools) Yes (pneumatic tools)
Quantity 6 sockets 4 sockets
Storage Stainless-steel rail with clips Included with set

Application Notes

Optimal Uses:

  • Engine bay work with minimal overhead clearance
  • Fuel injector and glow plug removal (automotive)
  • Machine repair requiring restricted-access fastener handling
  • Assembly line and production environments where speed matters

Not Recommended For:

  • Manual hand ratchets (design optimized for impact tools)
  • Torque-critical applications requiring high precision

Closing Statement

This 10-piece set represents a practical, professional solution for shops that prioritize accessibility and durability. The combination of stubby geometry, S2 steel reliability, and organized storage makes this a high-turnover product for resellers serving automotive and industrial segments. Order in bulk to meet workshop demand and establish a reputation for stocking tools that perform where others cannot fit.
