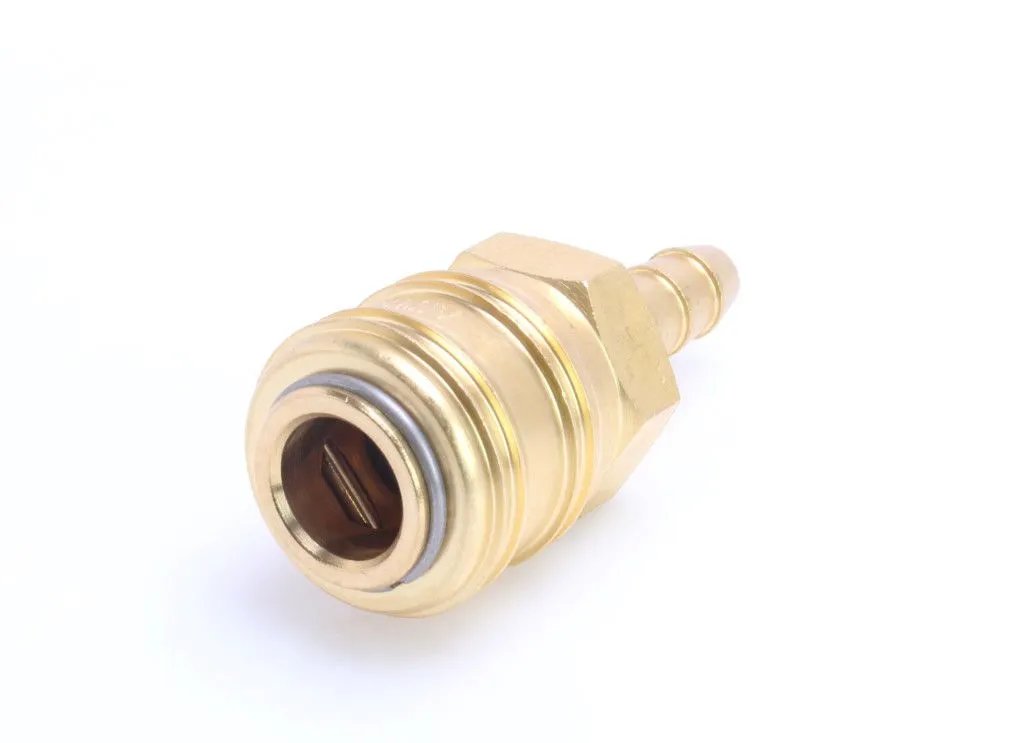

10mm Brass Quick Connector with Barbed Hose Tail

Brief Overview

This 10mm brass quick-connect coupler is engineered for straightforward, leak-resistant connections in pneumatic and fluid transfer systems. The one-piece brass construction combines durability with corrosion resistance, making it suitable for workshop and industrial compressed air applications. The integrated barbed hose tail secures hose firmly without additional clamps, while the precision-machined quick-connect body ensures reliable disconnects. For systems requiring different bore sizes, consider pairing this connector with complementary 8mm quick-connect couplings or 12mm connectors to standardize your hose inventory.

Key Features

• Barbed Hose Tail (10mm): Three stepped ridges grip flexible tubing securely without requiring additional hose clamps
• Brass Construction: Polished, corrosion-resistant body withstands regular workshop use and light industrial environments
• Hexagonal Wrench Flats: Allows controlled tightening with standard wrenches to prevent over-tightening and ensure proper seal
• Internal Valve Seat: Built-in check valve minimizes fluid/air loss during disconnection
• Elastomer O-ring Seal: Factory-installed sealing ring at the mating face ensures consistent, leak-free connections
• Single-Piece Machined Body: Rigid construction resists vibration-induced loosening in pressurized systems

Business Advantages for Resellers

This coupling addresses a core need in every professional shop: reliable, repeatable connections without downtime. The 10mm bore is the most common pneumatic line size across automotive workshops and light manufacturing, making it a high-turnover stock item. The brass construction strikes the balance between cost and durability—affordable enough to stock in volume, robust enough that customers won't need frequent replacements. Bundle with 8mm and 12mm variants to offer complete connector solutions and increase average transaction value.

Technical Specifications

Specification	Value
Hose Bore Diameter	10mm
Material	Brass (polished)
Sealing Component	Elastomer O-ring
Connection Type	Barbed hose tail + quick-disconnect coupler
Hex Flats	Yes (wrench-compatible)
Internal Valve	Check valve (standard)
Pressure Rating	Standard pneumatic/light fluid transfer
Configuration	Single-piece coupler with separate O-ring seal

Closing Statement

Stock this 10mm connector as a reliable, repeatable sale. Mechanics and shop managers know the 10mm size intimately—it's the foundation of compressed air systems. With the barbed tail eliminating the need for additional hose clamps and the quick-disconnect design speeding up tool changeovers, you have a product that solves real workflow problems and commands steady, predictable demand.
