11-Piece Clutch Alignment and Adjustment Set

Overview

This is a purpose-built clutch alignment kit designed for professional technicians who need reliable, repeatable clutch disc centering across a wide range of vehicle applications. The kit contains everything required for proper pilot bearing and crankshaft hole alignment—a critical step in clutch installation that directly impacts driveline smoothness and component longevity. Whether you're servicing standard passenger vehicles or light commercial delivery vans, this set covers the most common bore sizes encountered in European and global automotive applications. For shops handling dual-clutch systems or specialized VAG platforms, consider pairing this with a dual-clutch seal ring tool kit for maximum coverage.

Key Features

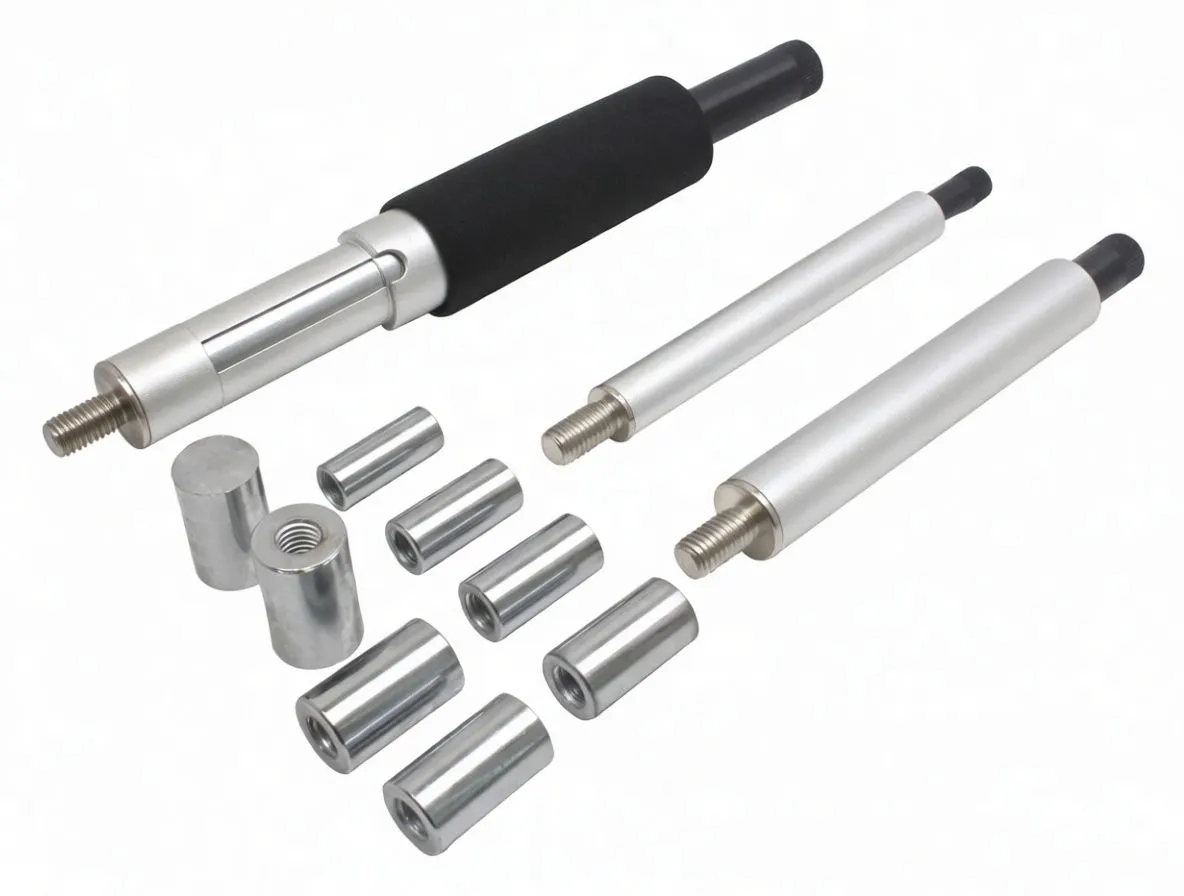

• 8 Centering Sleeves – Diameters ranging from 12.1 mm to 20.1 mm, covering crankshaft pilot holes and bearing bores across most passenger car and delivery van platforms
• 3 Telescoping Centering Pins – Adjustable range pins (14.9–27.2 mm and 22.8–36.0 mm) for precision alignment on larger bore applications
• Dual Material Construction – Carbon steel sleeves for durability; aluminum components for weight balance and corrosion resistance
• Slotted Expansion Design – Allows fine-tuning of fit and controlled centering without damage to clutch friction surfaces
• Threaded Studs – Enable secure attachment to installation fixtures or engine blocks

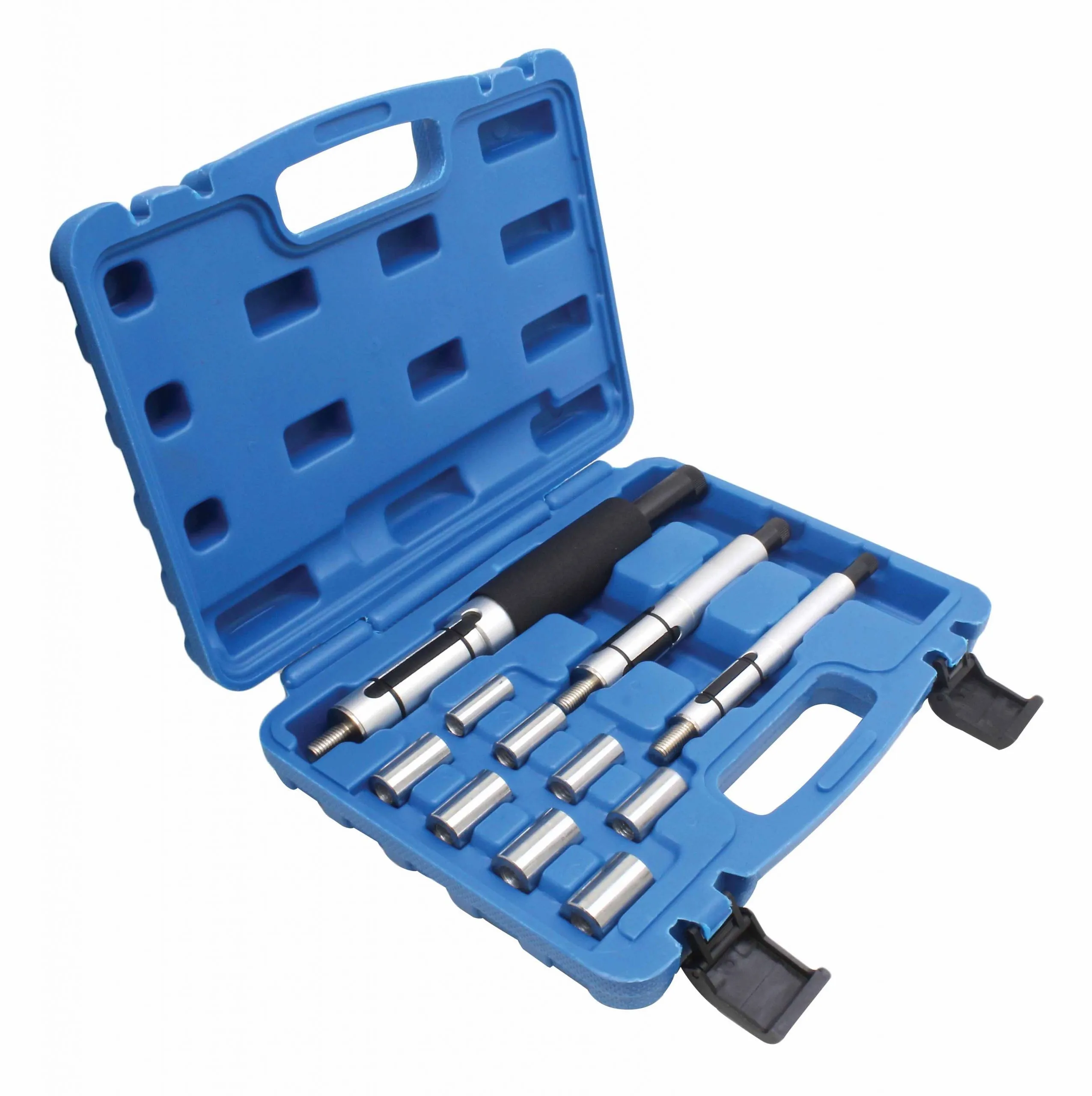

• Professional Carrying Case – Molded blue hard-plastic case with custom compartments keeps all components organized and protected on the job site
• Black End Caps & Grip – Protective caps minimize marring; foam-grip handle on primary centering rod improves control during installation

Business Advantages for Resellers

• High-Frequency Service Work – Clutch replacement remains a bread-and-butter repair for independent shops; this kit positions you as equipped to handle the full range of domestic and imported vehicles
• Margin Protection – Professional alignment tools command strong margins when bundled with clutch jobs; reduces callbacks and warranty claims from misalignment issues
• Inventory Efficiency – One kit replaces the need for multiple single-purpose mandrels; reduces SKU count while covering broader vehicle range
• Customer Confidence – Visible use of precision alignment tools reassures customers that work meets OEM standards
• Recurring Revenue – Clutch work is frequent and predictable; this kit pays for itself quickly in a busy shop

Technical Specifications

Feature	Detail
Total Pieces	11 (8 sleeves + 3 adjustable pins)
Centering Sleeve Range	12.1 mm – 20.1 mm (8 diameters)
Adjustable Pin Range (Range 1)	14.9 – 19.7 mm
Adjustable Pin Range (Range 2)	19.8 – 27.2 mm
Adjustable Pin Range (Range 3)	22.8 – 36.0 mm
Primary Material	Carbon steel sleeves; aluminum adapters
Fastening	Threaded male studs (for fixture attachment)
Expansion Mechanism	Slotted design for controlled radial adjustment
Case Type	Molded blue hard plastic with custom foam inserts
Condition	Ready to use; no assembly required
Vehicle Application	Passenger cars and delivery vans (broad European and global coverage)

Application Notes

This kit is optimized for manual clutch disc centering during flywheel and pressure plate installation. The stepped sleeve diameters address the most common OEM pilot bearing and crankshaft bore sizes. Technicians working on vehicles with non-standard clutch specifications or specialized self-adjusting systems may benefit from exploring dedicated SAC system clutch de-assembly kits for platform-specific applications.

Reseller Recommendation

Stock this kit prominently in your clutch and transmission section. It is a zero-regret purchase for any shop performing more than 2–3 clutch jobs per month. The compact carrying case makes it ideal for mobile mechanics and fleet service operations. Train your team to recommend it as a standard part of clutch installation—your customers will appreciate the professional finish, and your margins will reflect the value of precision tooling.

---

Ready to add professional clutch alignment capability to your inventory? This 11-piece set delivers reliability, coverage, and resale value in one compact package.
