12V Oil Transfer Pump

Brief Overview

This portable 12V oil transfer pump delivers reliable fluid handling for service stations, agricultural operations, and fleet maintenance shops. The battery-powered design eliminates dependency on fixed installations, making it ideal for mobile service calls and remote locations. If you need higher flow rates or AC power options, consider our higher-capacity diesel transfer solutions or mobile pump systems with integrated metering.

Key Features

• Battery-Powered Operation: 12V DC powered with 1.7 m battery cable and clamps—connects directly to vehicle batteries or portable power supplies
• Multi-Fluid Capability: Handles diesel, heating oil, and engine oils up to 60°C safely

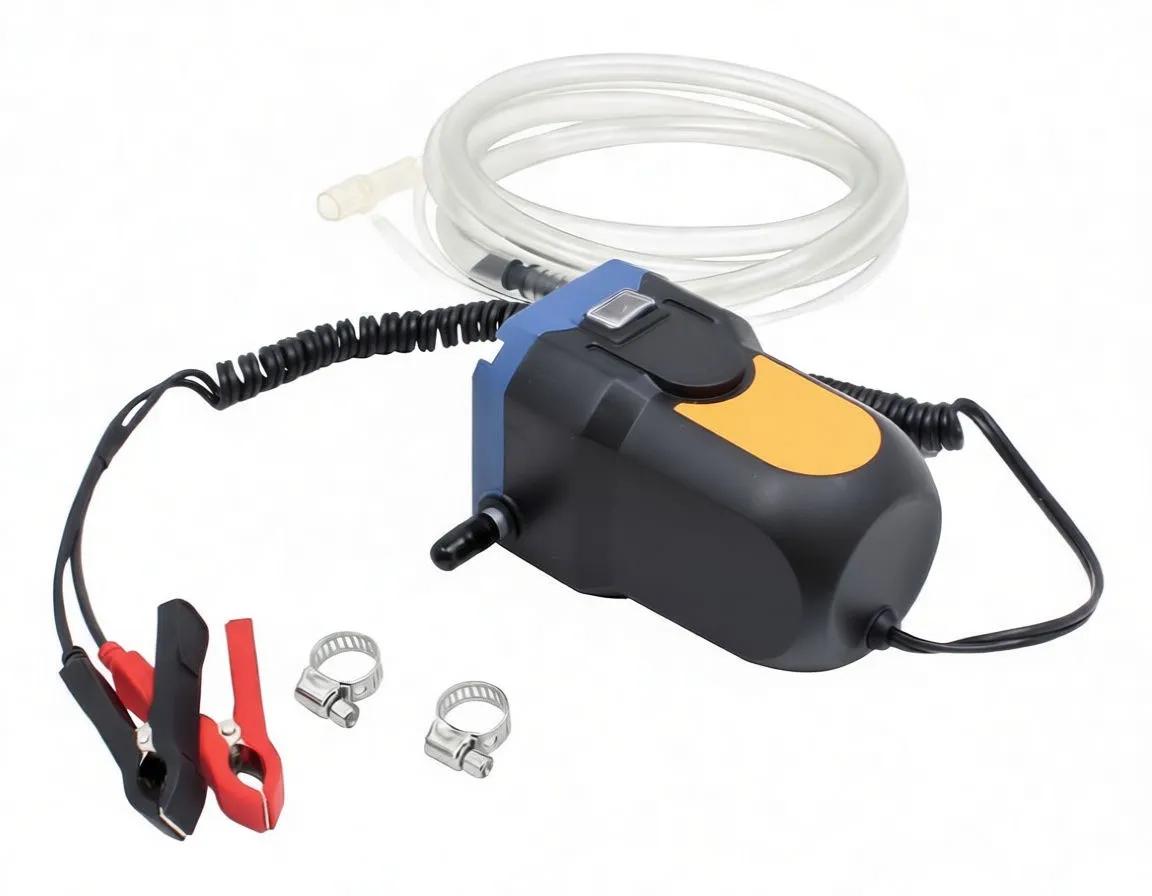

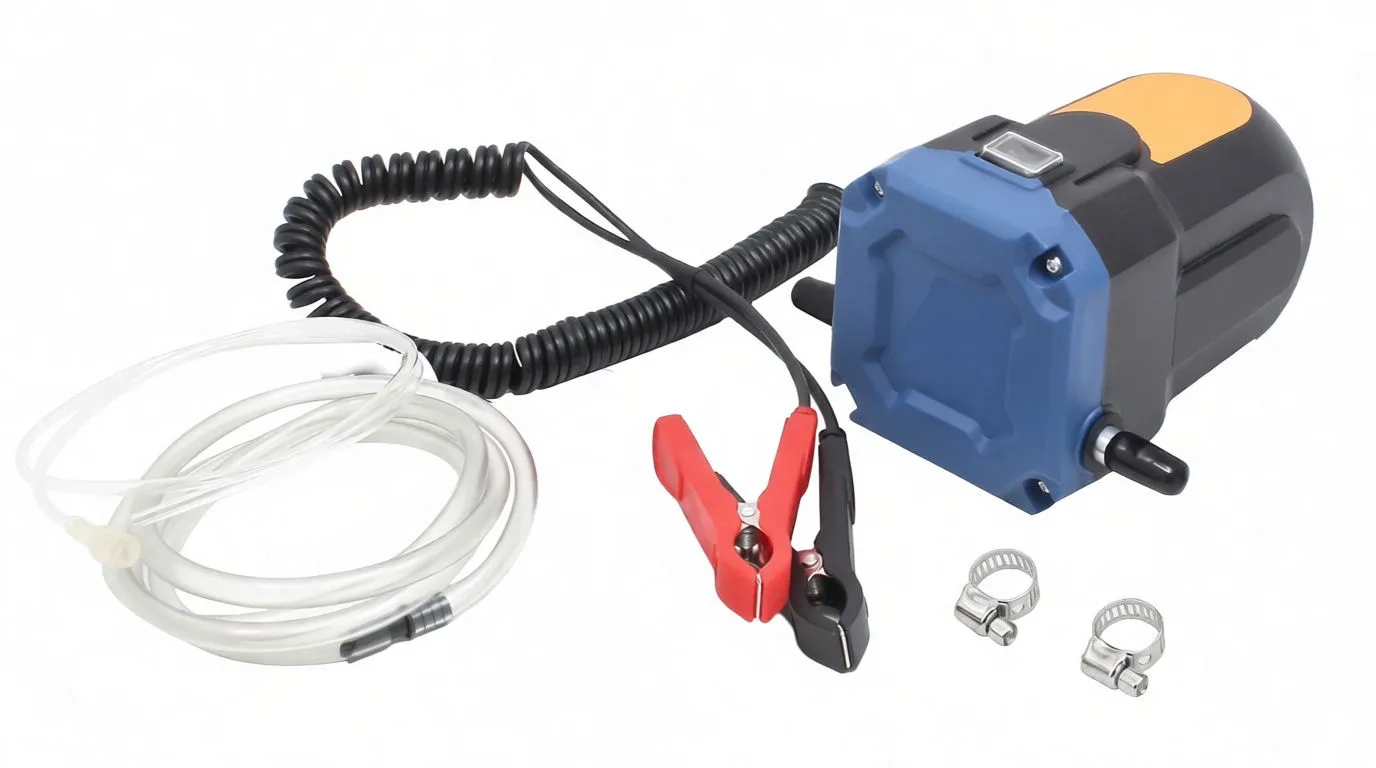

• Complete Kit Included: Supplied with 1.2 m suction hose and 2.0 m discharge hose, plus two metal worm-gear clamps
• Compact Design: Lightweight, portable construction fits easily in service vehicles or toolrooms
• Dual-Hose Configuration: Clear flexible hoses allow visual inspection of fluid transfer
• Low Power Draw: 7A maximum current at 80W—efficient operation with minimal electrical load

Business Advantages for Resellers

• High-Margin, Essential Tool: Low product cost with strong demand across automotive, agricultural, and heating oil service sectors
• Recurring Service Revenue: Supports fluid maintenance contracts for customers with scattered equipment locations
• Stock-and-Go Solution: Complete ready-to-use kit requires no assembly—immediate resale to technicians
• Broad Customer Base: Appeals to independent mechanics, fleet operators, farm equipment services, and building maintenance shops
• Low Return Risk: Simple mechanical design with minimal failure points

Technical Specifications

Specification	Value
Power Supply	DC 12V
Maximum Current	7A
Maximum Power	80W
Fuse Rating	10A
Flow Rate (Diesel/Heating Oil)	1.5 L/min
Flow Rate (Engine Oil, ≤60°C)	0.2 L/min
Working Cycle Time	30 minutes
Battery Cable Length	1.7 m (with clamps)
Suction Hose	Ø 6 mm × 1.2 m
Discharge Hose	Ø 12 mm × 2.0 m
Motor Housing	Iron construction
Wiring	Polypropylene
Motor Coil	Copper

Important Operating Limitations

This pump is not suitable for water, transmission fluid, or flammable liquids (gasoline, petrol). Restrict use to diesel, heating oil, and engine oils only. Maximum oil temperature is 60°C to protect motor efficiency.

Application Guidance

• Diesel Service Stations: Transfer fuel between storage tanks and dispensers
• Heating Oil Delivery: Portable solution for topping off residential and commercial systems
• Fleet Maintenance: Routine oil and fluid transfers at mobile service locations
• Agricultural Equipment: Service remote machinery without fixed power supply
• Building Services: Maintenance of backup heating systems and equipment reservoirs

Value Proposition for Distributors

Stock this pump as an entry-level portable transfer solution. Its complete kit and battery compatibility make it a logical first purchase for technicians upgrading from manual methods. Pair it with higher-capacity alternatives for customers with larger volume requirements, creating a tiered product strategy that maximizes both market penetration and margin.
