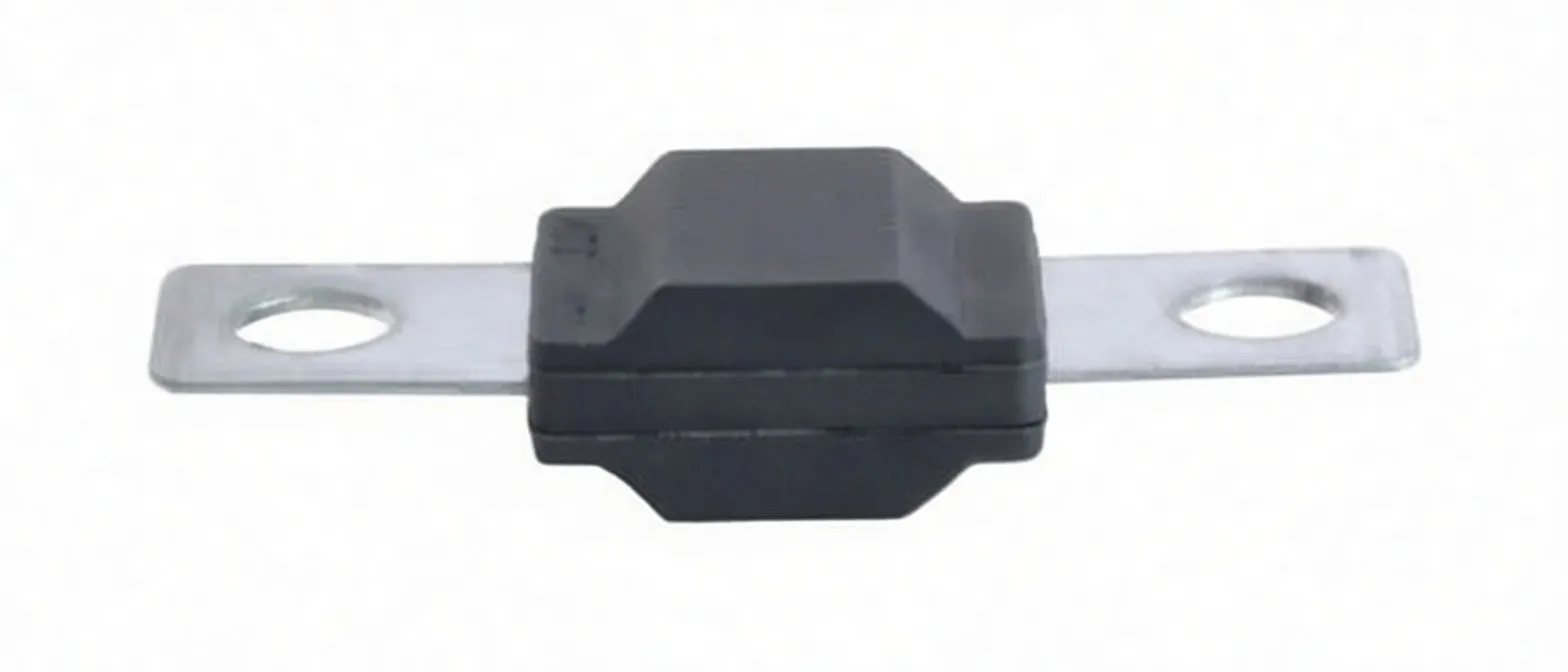

150A MIDI Fuse – 32V Electrical Protection

Brief Overview

The 150A MIDI fuse is a robust, high-capacity protection device engineered for heavy-duty electrical circuits in automotive, agricultural, and industrial applications. With a 150A rated current and 32V voltage specification, this fuse is ideal for primary power distribution in trucks, specialist vehicles, and industrial installations where substantial short-circuit protection is required. If your operation requires a broader range of amperage options, we also stock lower-capacity protection devices and higher-capacity alternatives to match any circuit specification.

Key Features

• High Amperage Rating: 150A capacity for heavy-duty circuits and power distribution
• Compact MIDI Format: Standardized 40 × 12 × 8.2mm dimensions ensure direct compatibility with existing fuse boxes
• Solid Metal Terminals: Silver-plated steel lugs with 5.3mm mounting holes for secure M5 screw connections
• Color-Coded Design: Black insulation with embossed "150" marking for quick visual identification
• 30mm Lug Spacing: Industry-standard terminal separation for reliable installation
• Low-Profile Construction: Thin 8.2mm height allows flexible mounting in space-constrained electrical enclosures

Business Advantages for Resellers

The 150A MIDI fuse addresses a critical gap in heavy electrical protection—large fleets, industrial workshops, and specialist vehicle builders require high-amperage fuses that meet OEM specifications without compromise. This model fills that demand reliably.

Stock Rotation Benefits:

• High demand in commercial fleet maintenance and truck service operations
• Essential replacement part for agricultural equipment and industrial machinery
• Recurring sales potential through fleet service contracts and industrial maintenance accounts

Margin Opportunity:

• Consistent demand from garages servicing heavy vehicles (trucks, buses, agricultural equipment)
• Customers order in volume—multiple ratings for mixed fleet operations
• Low storage cost due to compact design; high inventory efficiency

Cross-Selling Strategy: Bundle with complementary fuse ratings. Mechanics maintaining mixed vehicle fleets need several amperage options in stock.

Technical Specifications

Specification	Value
Rated Current	150A
Voltage Rating	32V DC/AC
Fuse Type	MIDI (Automotive)
Total Length	40 mm
Body Width	12 mm
Body Height	8.2 mm
Lug-to-Lug Distance (Center)	30 mm
Mounting Hole Diameter	5.3 mm (Ø)
Terminal Material	Tinned/Plated Steel
Mounting Method	M5 Screw
Insulation Color	Black
Marking	Embossed "150A" and "32V"

Applications

• Heavy-Duty Vehicles: Trucks, delivery vans, specialist commercial vehicles, camper conversions
• First Assembly & Replacement: OEM applications and field replacements in automotive production and service
• Industrial Power Distribution: Fuse box protection in machinery and equipment
• Agricultural Equipment: Protection in tractor and farm vehicle electrical systems
• Industrial & Commercial Installations: General circuit protection where high-amperage capacity is required

Why This Specification Matters

At 150A, this fuse protects high-power circuits without nuisance tripping—critical for vehicles with substantial alternators, auxiliary systems, or industrial equipment. The 32V rating is ideal for 12V/24V automotive and industrial systems operating near maximum capacity. The MIDI form factor is non-negotiable for mechanics who service vehicles designed with this standardized fuse type; a socket that doesn't fit costs them time and frustration.

The M5 screw terminals provide vibration-resistant, corrosion-resistant connections superior to spring clip designs in harsh environments (trucks, construction sites, agricultural equipment).

Stock It for Demand

Professional garages, fleet maintenance operations, and industrial workshops treat fuses as consumable stock items—they fail, they're replaced. A 150A MIDI fuse generates repeat orders from the same customer base across multiple service intervals. Position this rating prominently alongside your 80A, 100A, and 125A inventory to capture complete fleet protection sales.

---

Ready to stock high-amperage electrical protection? Order in bulk and lock in distributor margins on an essential, fast-moving automotive and industrial safety component.
