15m Retractable Air Hose Reel with Wall Bracket and Positive Latch

Brief Overview

This 15-meter retractable air hose reel combines durable polypropylene construction with a positive latching mechanism that automatically locks the hose at any desired length. The wall-mounted design with 180° swivel bracket and safety lock keeps compressed air systems organized and easily accessible in any workshop or industrial setting. If your shop requires additional capacity, consider pairing this with a larger 20-meter auto-rewind reel or exploring alternative spring-driven designs for specific pressure or hose material requirements.

Key Features

• Automatic Positive Latch: Locks hose at any desired length—no manual clamps or secondary restraints required
• 180° Wall Swivel Bracket: Full rotation mounting allows flexible hose positioning and reduces strain on connections
• Safety Lock Mechanism: Prevents hose drift in either direction during operation or shutdown
• 1.4m Lead-In Hose Included: Pre-fitted with brass 3/8" BSP male thread for immediate installation
• Impact-Resistant Housing: Polypropylene construction resists tool strikes and weathering in busy shop environments
• Compact Wall-Mount Profile: Dimensions 445 × 190 × 400 mm minimize floor space consumption

Why Resellers Choose This Product

This reel addresses a critical pain point in compressed air management: hose control and workspace organization. The automatic positive latch eliminates the need for external clamps or tie-downs, reducing labor time on job sites and improving safety by preventing tripping hazards. The 180° swivel bracket adds resale appeal by adapting to various workshop layouts—a feature customers specifically request when upgrading pneumatic infrastructure.

At 7.3 kg with straightforward wall mounting, this reel is lightweight enough for DIY installers yet robust enough for heavy industrial use. The 20 BAR working pressure rating covers standard shop air systems (most operate at 6–8 BAR), making this a low-risk, high-confidence product for your inventory.

Technical Specifications

Specification	Value
Hose Length	15 m
Internal Diameter	3/8″
External Diameter	10–15 mm
Working Pressure	300 PSI / 20 BAR
Connection	Brass 3/8″ BSP Male Thread
Lead-In Hose	1.4 m included
Operating Temperature Range	Up to 60°C
Housing Material	Impact-Resistant Polypropylene
Mounting Type	Wall-Mount with 180° Swivel Bracket

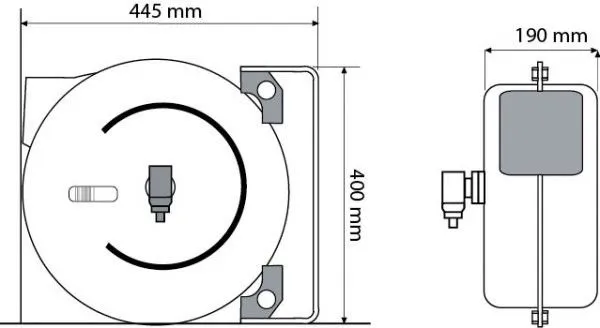

Overall Dimensions (L × W × H)	445 × 190 × 400 mm
Weight	7.3 kg
Model	A-PREEL53

Closing Statement

Stock this reel as a cornerstone product for any compressed air system upgrade or new shop build-out. The combination of automatic locking, swivel mounting, and modest price point makes it an easy upsell to customers managing multiple pneumatic tools. Order in bulk to support seasonal contractor demand during spring and summer peaks.
