26-Piece Bearing & Bush Removal/Installation Set with Press Sleeves and Pulling Spindles

Brief Overview

This is a professional-grade universal bearing and bush removal/installation kit designed for garage shops, mobile technicians, and fleet maintenance operations working across light and heavy commercial vehicles. The set combines 20 graduated press sleeves with 4 threaded forcing rods and accessories to handle bushes, bearings, seals, and bearing races efficiently. Whether you're supporting general automotive work or need specialized solutions for specific platforms, this kit provides a solid foundation—and can be paired with model-specific bearing tool sets for targeted applications on high-volume vehicles.

Key Features

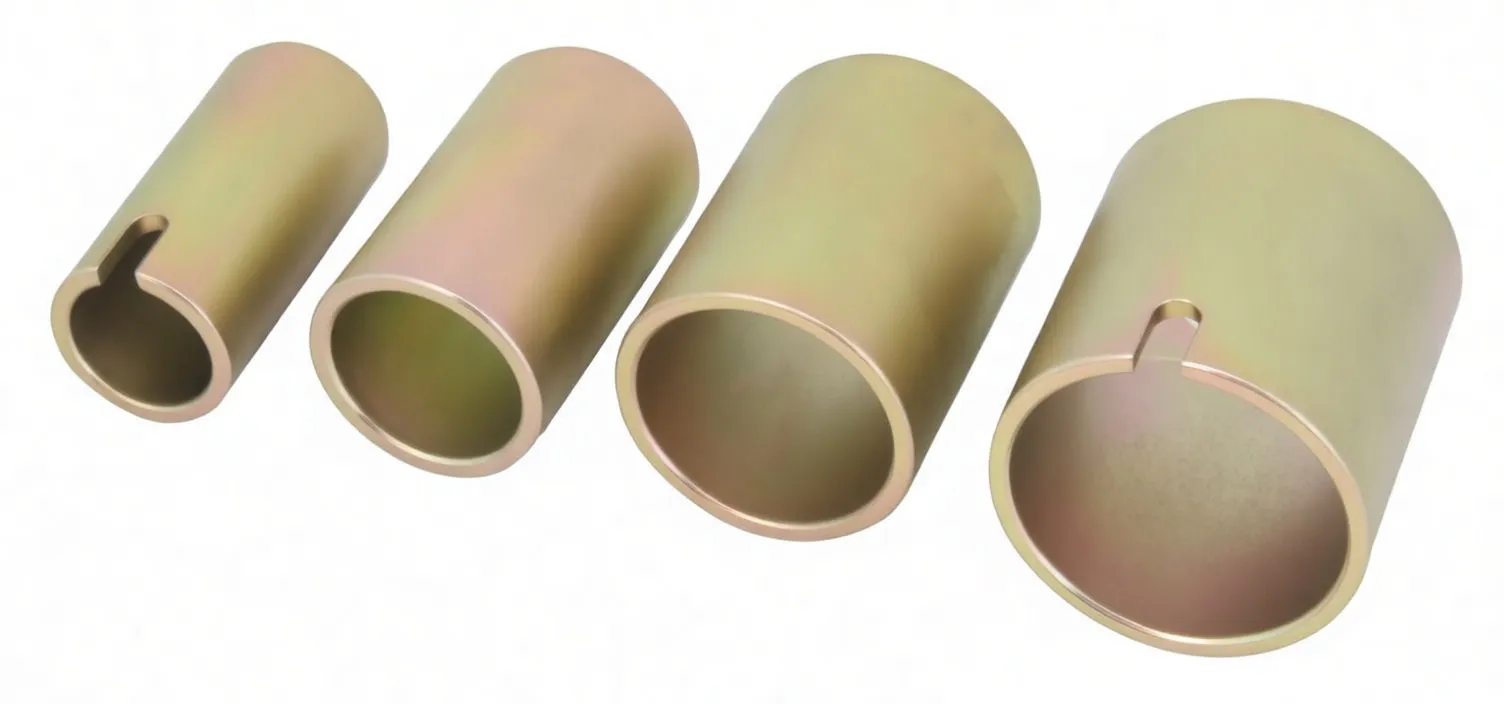

• 20 Graduated Press Sleeves – Inner diameters from 34mm to 72mm; outer diameters from 44mm to 82mm for precise bearing and bush sizing

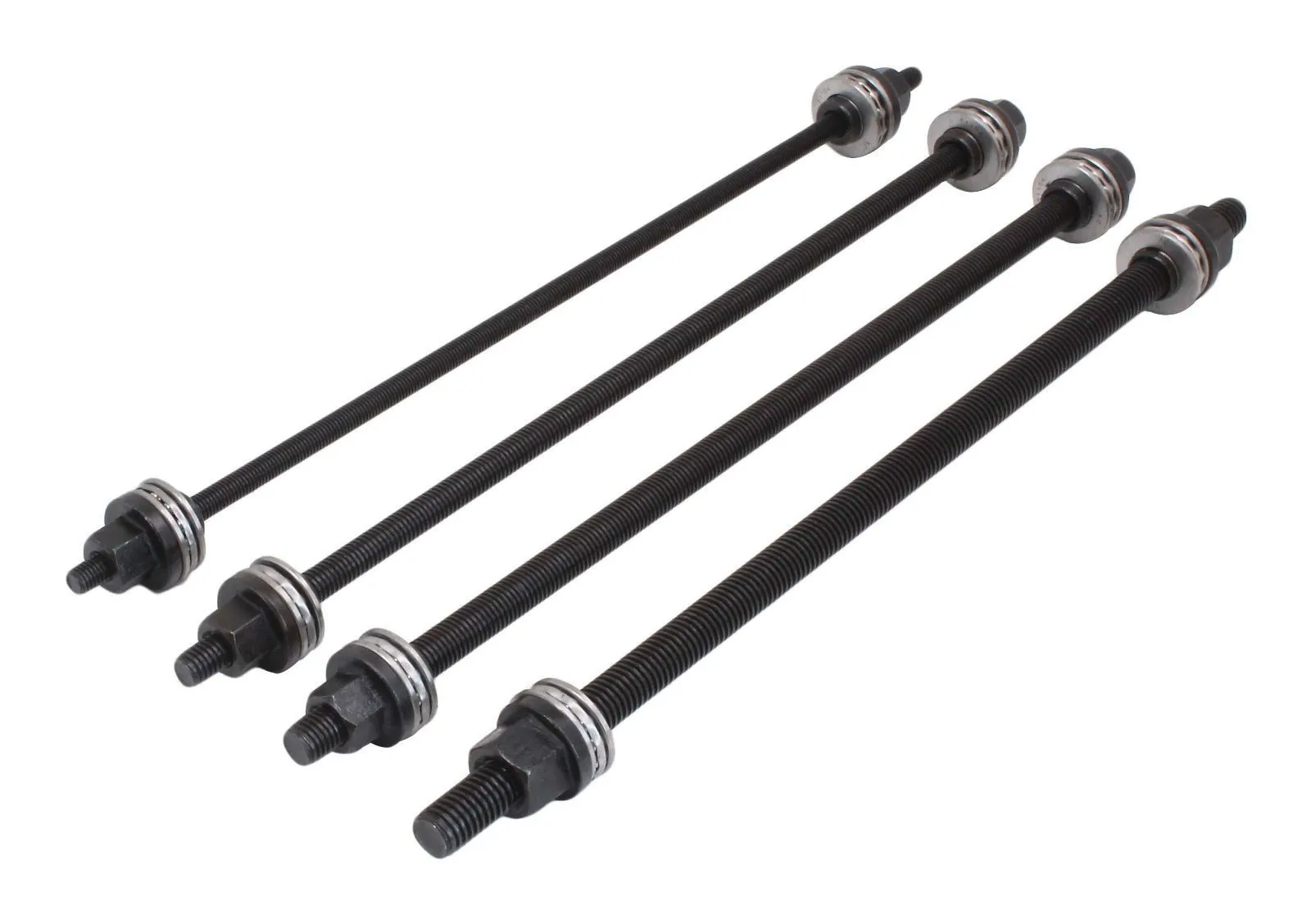

• 4 Pulling Spindles with Nuts – M10, M12, M14, and M16 threaded sizes for universal threaded assembly compatibility
• Double-Sided End Caps – Two rubber or plastic pressure plates to distribute load and protect components during press operations
• Dual-Finish Sleeves – Gold/zinc-plated and silver galvanized finishes for corrosion resistance and durability in workshop environments
• Slotted Rim Design – Each sleeve features alignment notches for safe, controlled engagement with bearing and bush applications
• Press-Compatible Design – Works seamlessly with standard workshop hydraulic or pneumatic presses

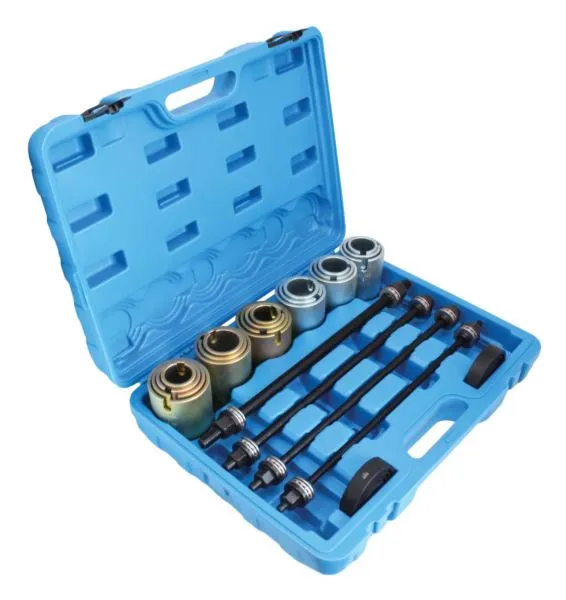

• Complete Carrying Case – Molded blue plastic case with foam-tray inserts and integrated handle for job-site portability and organization

Technical Capabilities

Supported Component Types:

• Silent bearings
• Hydraulic bearings
• Bearing bushes
• Ball bearings
• Shaft seals
• Rubber bearings
• Bearing races

Vehicle Application Range:

• Cars (light automotive)
• Light Goods Vehicles (LGVs)
• Heavy Goods Vehicles (HGVs)

Business Advantages for Resellers

• High-Frequency Demand: Bearing and bush work is routine across all vehicle categories; this kit addresses a consistent maintenance need in every shop's workflow
• Reduces Tool Inventory Fragmentation: One universal set replaces multiple specialized pullers, improving shelf efficiency and reducing dead inventory
• Margins on Complementary Sales: Pair with shop press packages, hydraulic systems, or specialized bearing removal kits to increase average transaction value
• Professional Presentation: Supplied in a protective carry case, lending credibility to technician visits and mobile service operations
• Proven Durability: Multi-finish sleeve construction and threaded spindle design ensure long service life and minimal warranty returns

Technical Specifications

Specification	Detail
Press Sleeves Included	20
Pulling Spindles	4
Spindle Thread Sizes	M10, M12, M14, M16
Sleeve Inner Diameter Range	34–72 mm
Sleeve Outer Diameter Range	44–82 mm
End Plates	2 (rubber/plastic, double-sided)
Material Finish	Gold/zinc-plated and silver galvanized steel
Carrying Case	Molded blue plastic with foam-tray insert and handle
Press Compatibility	Hydraulic and pneumatic workshop presses

What This Means for Your Workshop

This kit eliminates the need for ad-hoc puller solutions or multiple single-purpose bearing tools. Technicians can quickly select the appropriate sleeve size, thread the spindle, and execute bearing or bush removal and installation work with proper load distribution. The graduated sizing covers the majority of common automotive applications, and the threaded spindle design ensures secure engagement with standard workshop presses.

Ready to stock a tool that moves monthly in every automotive shop. Bulk orders qualify for distributor pricing.
