27-Piece Silent Bearing & Bush Removal/Installation Set with Press Sleeves and Spindles

Brief Overview

This is a systematic bearing and bushing removal/installation system designed for professional workshops handling silent bearings, hydraulic bearings, ball bearings, shaft seals, and rubber bushings across cars, light commercial vehicles, and heavy goods vehicles. The kit integrates seamlessly with any standard workshop press and pairs effectively with specialist tools like universal hub bearing removal kits for comprehensive bearing service capability.

With 22 precision press sleeves covering a 34–80mm internal diameter range and 5 universal pulling spindles (M10–M18), this set eliminates the need for multiple single-purpose tools and reduces setup time on high-volume bearing jobs.

Key Features

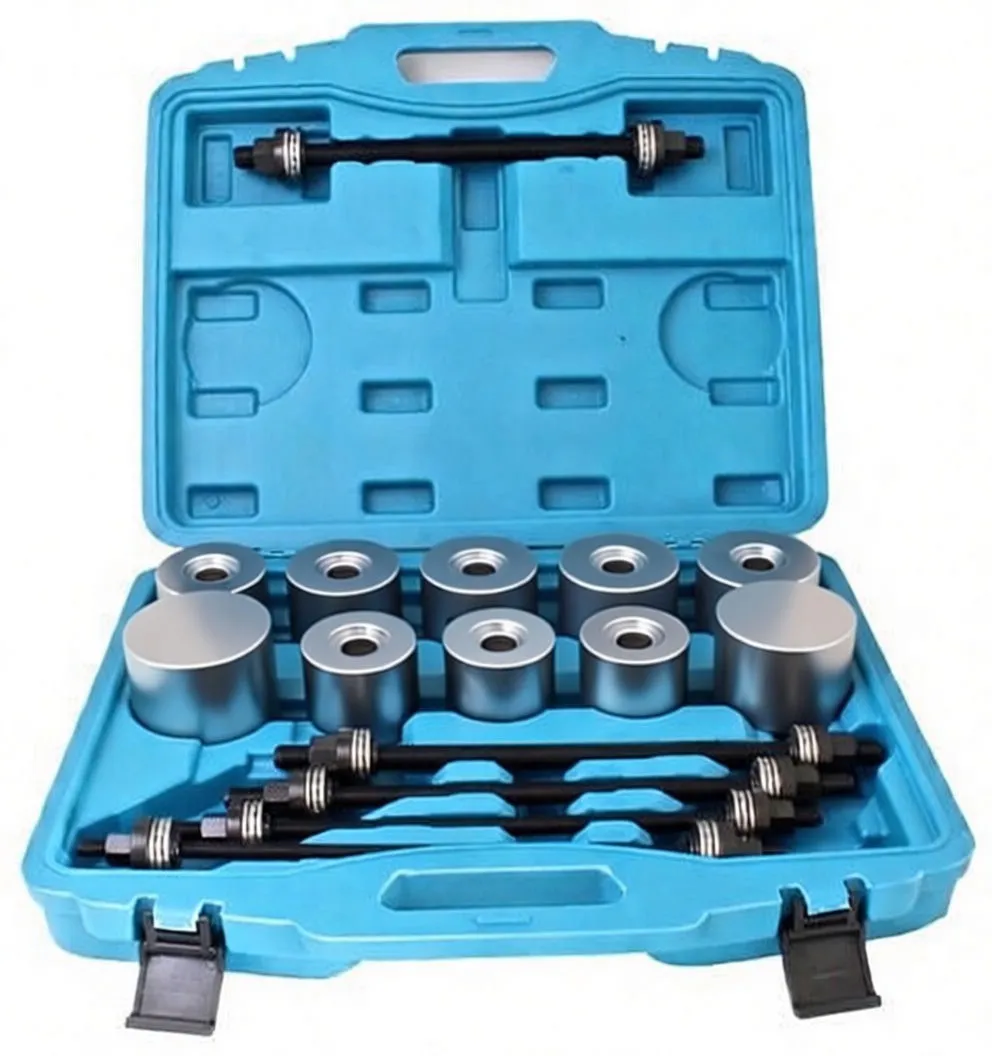

• 22 Press Sleeves with matched internal (34–80mm) and external (44–90mm) diameters for systematic bearing sizing
• 5 Universal Pulling Spindles & Nuts (M10, M12, M14, M16, M18) for flexible extraction and installation force application
• Workshop Press Compatible: Designed to work with existing hydraulic or mechanical shop presses—no dedicated equipment required
• Universal Application: Single kit handles cars, LGVs, and HGVs without limitation to specific marques or suspension designs
• Hardened Steel Construction: Black-oxide spindles and zinc-plated sleeves resist corrosion and withstand repeated high-load cycles

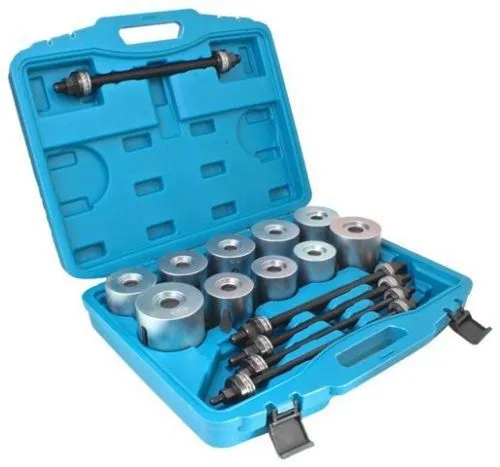

• Organized Hard Plastic Case: Bright turquoise molded carrying case with compartments for each component; integrated handle for transport between bays
• Intuitive Slotted Design: Relief slots on larger sleeves prevent interference with suspension arms and control linkages during installation

Business Advantages for Resellers

• High Attachment Rate: Bearing and bush service is a recurring revenue line in independent workshops; stock visibility drives repeat sales
• Margin-Friendly: Single kit replaces purchase of multiple single-purpose pullers, improving your cost-to-sell ratio
• Customer Retention: Workshops that own this kit reduce outsourcing of bearing work—they become loyal repeat buyers for fluid, seals, and gaskets
• Trade-Up Opportunity: Pair with VAG suspension removal tools to capture Audi, Volkswagen, and Skoda suspension specialists
• No Compatibility Risk: Universal sleeve range eliminates customer hesitation about "the right size"—your support team can confidently recommend without confirming vehicle model

How It Works

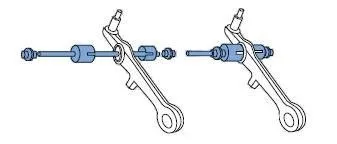

The spindle threads through the bearing bore or suspension arm, with press sleeves positioned on either side of the target bushing or bearing. Tightening the nut applies controlled, perpendicular force for precise removal or installation—eliminating hammer-and-chisel risk and reducing bearing damage. Relief slots on sleeves prevent snagging on suspension geometry during withdrawal.

Technical Specifications

Specification	Value
Total Pieces	27 (22 sleeves + 5 spindles)
Press Sleeve Internal Diameter Range	34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 75, 80 mm
Press Sleeve External Diameter Range	44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 85, 90 mm
Pulling Spindle Thread Sizes	M10, M12, M14, M16, M18
Material (Spindles)	Hardened steel, black-oxide finish
Material (Sleeves)	Steel, zinc-plated finish
Carrying Case	Molded hard plastic with integrated handle and snap latches
Case Color	Turquoise/bright blue
Applications	Cars, LGVs, HGVs; silent bearings, hydraulic bearings, ball bearings, shaft seals, rubber bushings
Workshop Press Compatibility	Hydraulic and mechanical presses

Call to Stock Value

Stock this set in your bearing service category to capture workshops upgrading from makeshift pullers. The 27-piece configuration covers 95% of standard automotive bearing and bushing diameters encountered in routine suspension, transmission, and engine service—making it an essential safety net for any shop claiming bearing competence.
