28-Piece Glow Plug Repair Tool Set for VW/Audi VAG Group Engines

Brief Overview

This comprehensive glow plug repair system is engineered specifically for Volkswagen and Audi VAG Group diesel engines, eliminating the need for costly cylinder head removal. Whether you're dealing with broken, stripped, or damaged glow plugs in VW Passat or Audi V6 TDI engines (2.5L, 2.7L, 3.0L displacement), this kit provides the precision tools to drill out, re-tap, and install replacement threads in a single shop session. Pair this with locking tools for V6 TDI engine work and professional glow plug extraction equipment to complete your VAG-specific service capability.

Key Features

• In-Engine Thread Repair: Drill, tap, and insert new threads without removing the cylinder head—saves labor hours and reduces vehicle downtime
• Dual Thread Sizes: Handles both M10 x 1.0 and M12 x 1.0 glow plug threads with matched drill bits, taps, and guide sleeves
• Precision Depth & Angle Control: Guide sleeves ensure exact drilling depth and angle for consistent, professional results
• Complete Electrode Cleaning: Reamers (4.8 mm and 5.8 mm) allow bore cleaning and prep for new glow plugs
• Helicoil Inserts Included: 10 threaded inserts (M10 x 1 with external M12 x 1 thread) restore original thread integrity
• Compressed Air Compatibility: Includes injector bore adapter for pneumatic tool integration—ideal for shops with existing air systems
• Professional Extraction System: Long T-style extraction rod with brass fitting and red lever handle for safe electrode removal

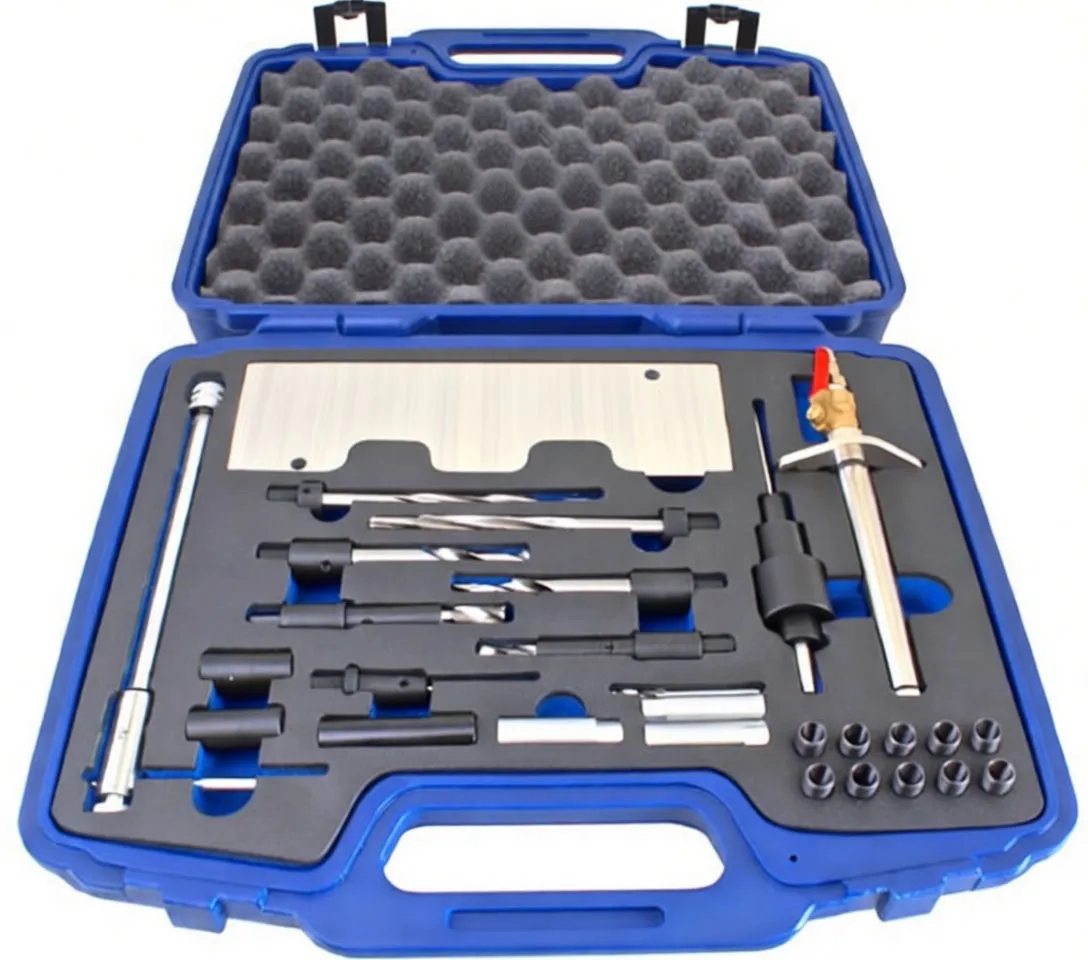

• Durable Carrying Case: Blue hard plastic case with foam-lined compartments keeps all 28 pieces organized and protected

Technical Specifications

Component	Specification
Drill Bits	9.1 mm (M10 x 1), 11.1 mm (M12 x 1)
Taps	M10 x 1.0, M12 x 1.0, M6 x 1.25 with guide sleeves
Reamers	4.8 mm (long & short), 5.8 mm (long)
Guide Sleeves	OD 17.5 mm / 38 mm length; ID 9 mm & 13 mm / 63 mm length
Threaded Inserts	10 × M10 x 1 (with external M12 x 1 thread)
Extractor Electrodes	2.5 mm, 3.5 mm, 4 mm
Tapping Holder	2.4–5.5 mm capacity, 240 mm length, 1/4" drive
Air Adapter	Compressed air compatible for injector bore
Case Material	Blue hard plastic with egg-crate foam inserts
Total Pieces	28
Target Vehicles	VW Passat, Audi V6 TDI (2.5L, 2.7L, 3.0L)

Business Advantages for Resellers

High-Margin Service Work: Glow plug thread damage is common on aging diesel engines—this kit transforms a warranty return or customer refusal into a billable repair, commanding $200–$400 labor depending on market. Your cost per job drops dramatically once the kit is amortized.

Competitive Differentiation: Most independent shops outsource glow plug work to specialists or dealerships. Stocking this kit positions you as a one-stop diesel service center, capturing jobs competitors can't handle in-house.

Repeat Revenue: VAG Group diesel owners often experience multiple glow plug failures across their ownership period. A reputation for professional glow plug service builds customer loyalty and predictable service schedules.

Professional Image: The complete, organized kit demonstrates capability and attention to detail—customers see quality tooling and are more willing to approve higher labor rates.

Minimal Training Curve: The guide sleeves and pre-matched components reduce operator error and training overhead. Your technicians achieve professional results after 1–2 applications.

Practical Application Notes

Ideal For:

• Independent diesel specialists targeting VW/Audi clientele
• General repair shops expanding diesel service offerings
• Fleet maintenance facilities servicing commercial VW/Audi vehicles
• High-volume shops where glow plug failures justify dedicated tooling

Real-World Scenario: A 2006 Audi A4 V6 TDI arrives with a broken glow plug—customer expects a $400+ dealership bill. With this kit, you drill out the damaged plug in 15 minutes, re-tap the thread in 20 minutes, and install a helicoil insert in 10 minutes. Total labor: under 1 hour at your standard rate. Dealership alternative: 4–6 hours with cylinder head removal.

Closing Statement

This kit is the industrial answer to a common, profitable repair need. For shops serious about diesel market share in the VAG segment, it's a non-negotiable investment that pays for itself on the first 2–3 jobs.
