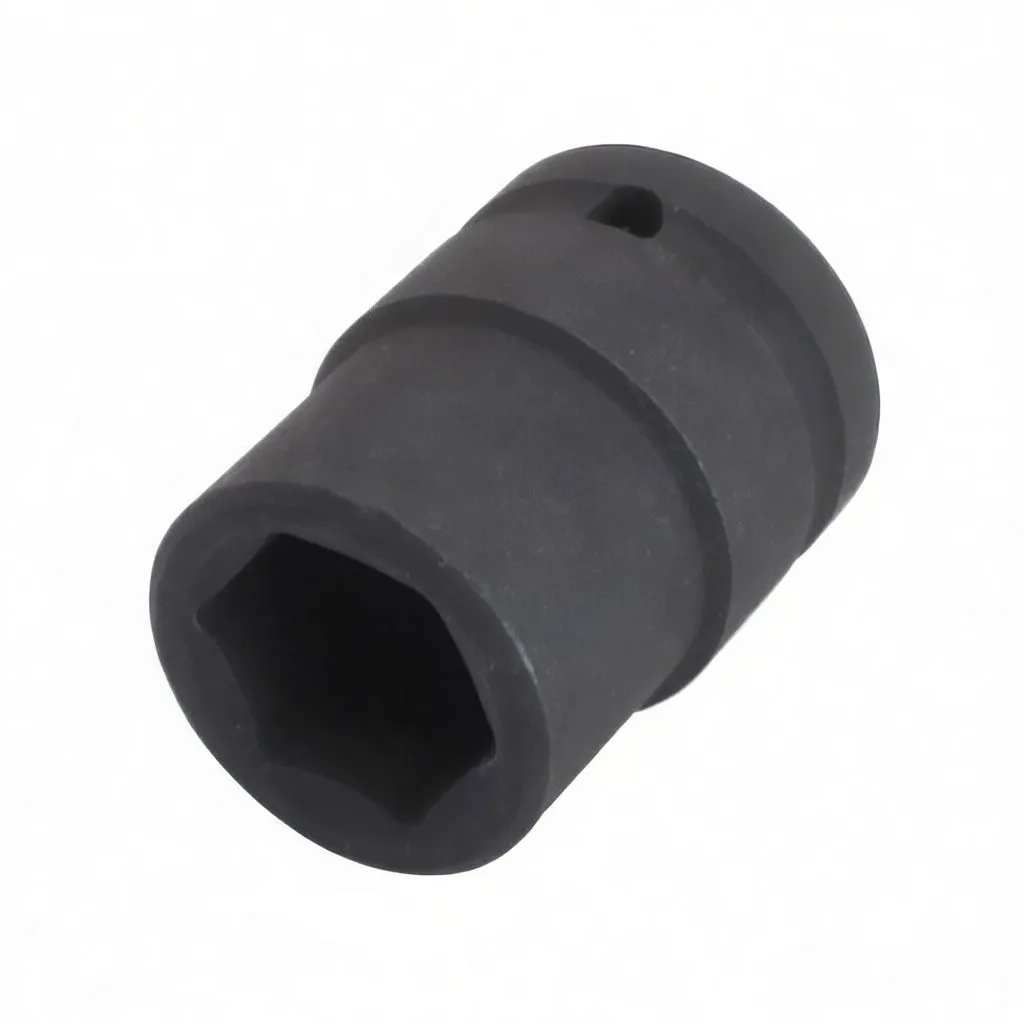

3/4-Inch Drive 6-Point Short Impact Socket

Brief Overview

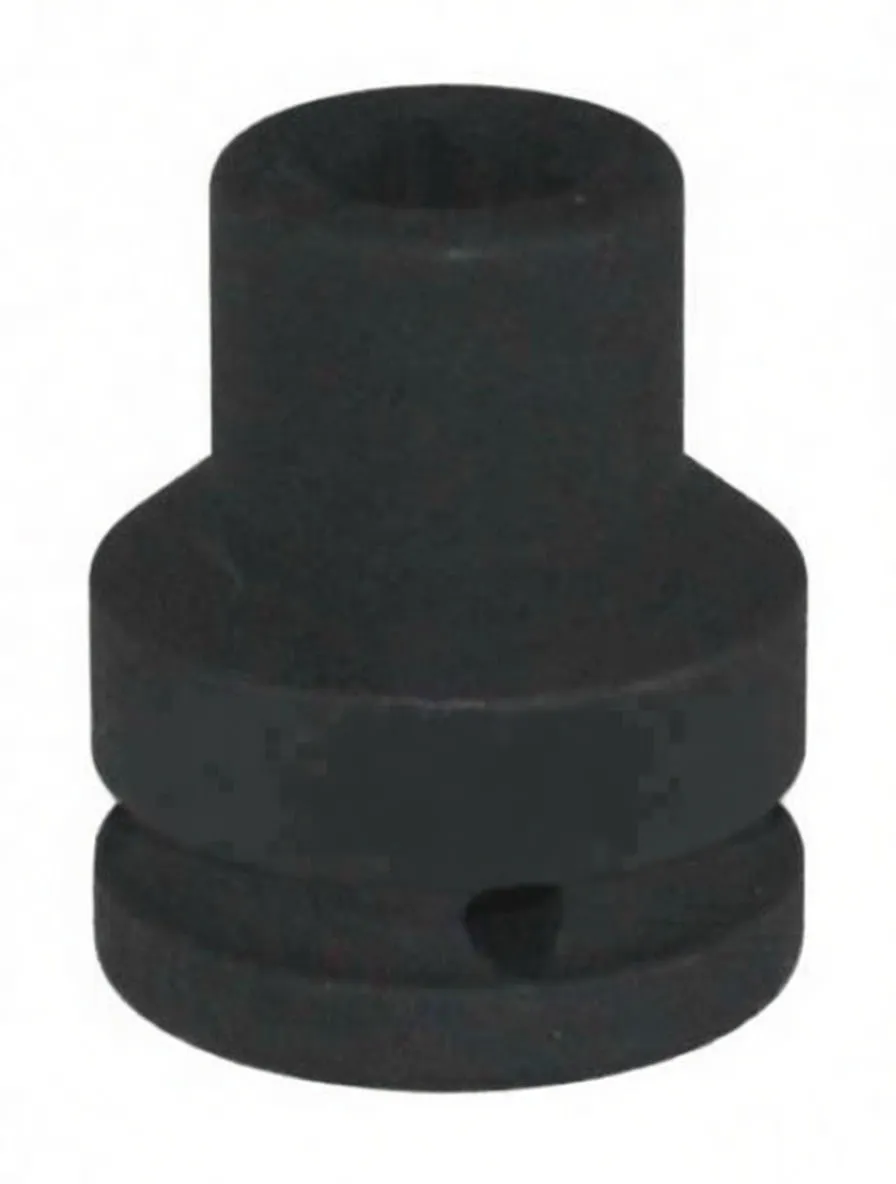

This 3/4-inch drive short impact socket is engineered for high-torque pneumatic impact wrenches in automotive, heavy equipment, and industrial maintenance applications. The 6-point design provides secure hex engagement with minimal cam-out risk, while the short body facilitates access in confined spaces. Available across a comprehensive 17–55mm size range with stepped diameters for ergonomic handling. If you require alternative profiles, consider E-Type Torx short impact sockets or 12-point variants for different fastener geometries.

Key Features

• 6-Point Hex Profile: Direct nut engagement minimizes rounding and slippage under impact load.
• Short Length Design: Optimized for confined engine bays, tight undercarriage work, and assembly stations.
• Stepped Outer Diameter: Larger body diameter at the nut end provides structural rigidity; stepped profile improves grip and reduces hand fatigue during repeated use.
• Impact-Grade Construction: Matte black finish indicates hardened chrome-molybdenum steel with shock-resistant properties.
• Retention Hole: Side-mounted detent hole accommodates a retaining pin or spring detent for socket security on the drive square.
• Chamfered Internal Edges: Reduces stress concentration and extends socket lifespan under cyclic impact loading.

Business Advantages

For Resellers & Distributors:

• High Turnover Potential: 19 size options (17mm–55mm) create multiple SKUs, maximizing shelf coverage and repeat customer orders.
• Essential Consumable Replacement: Impact sockets wear faster than hand tools; frequent re-ordering drives predictable revenue.
• Competitive Margin: Bulk purchasing unlocks wholesale pricing; resale margin potential is strong for professional-grade tools.
• Cross-Sell Opportunity: Technicians upgrading from 1/2-inch or switching to 12-point profiles represent upsell pathways.

For End-Users:

• Durability Under Load: Hardened steel withstands sustained impact from pneumatic impact wrenches (typically 800–2,000 rpm) without fracture.
• Precision Fit: 6-point geometry fits modern hex fasteners (bolts, nuts) with minimal play; reduces fastener damage on critical assemblies.
• Ergonomic Efficiency: Short length + stepped diameter = faster access, reduced wrist strain, faster job completion.

Technical Specifications

Size (mm)	Drive Diameter D1 (mm)	Hex Span D2 (mm)	Wall Thickness T (mm)	Length L (mm)	Part Number
17	30	38	14	51	526617P
19	32	38	14	51	526619P
21	34	38	14	51	526621P
22	35	38	14	51	526622P
23	36	38	14	51	526623P
24	38	38	20	53	526624P
26	38	38	20	51	526626P
27	40	40	20	53	526627P
28	44	44	20	53	526628P
30	44	44	20	53	526630P
32	48	44	21	57	526632P
33	48	44	21	57	526633P
34	48	44	21	57	526634P
36	56	44	21	57	526636P
38	56	44	21	57	526638P
41	60	44	22	57	526641P
46	66	44	25	62	526646P
50	71	54	30	72	526650P
55	78	54	32	74	526655P

Material & Construction

• Material: Hardened chrome-molybdenum steel (impact-grade alloy).
• Finish: Matte black protective coating for corrosion resistance and visual identification.
• Design: 6-point hex profile with stepped exterior body and chamfered internal edges for impact durability.

Applications

• Heavy truck and automotive assembly.
• Construction equipment maintenance.
• Industrial fastener removal and installation.
• Engine rebuilding and transmission work.
• Any pneumatic impact wrench application requiring 3/4-inch drive compatibility.

Recommended Pairing

Stock this range alongside matching 3/4-inch drive impact wrenches to offer customers a complete, friction-free solution. Bulk orders of mixed sizes reduce per-unit cost and position your shop as a one-stop supplier for impact tool systems.

---

Bottom Line: A purpose-built, professional-grade short impact socket designed to handle sustained pneumatic torque. The 19-size range ensures your inventory covers 95% of fastener applications, while the hardened construction guarantees long service life and repeat orders from professional shops.
