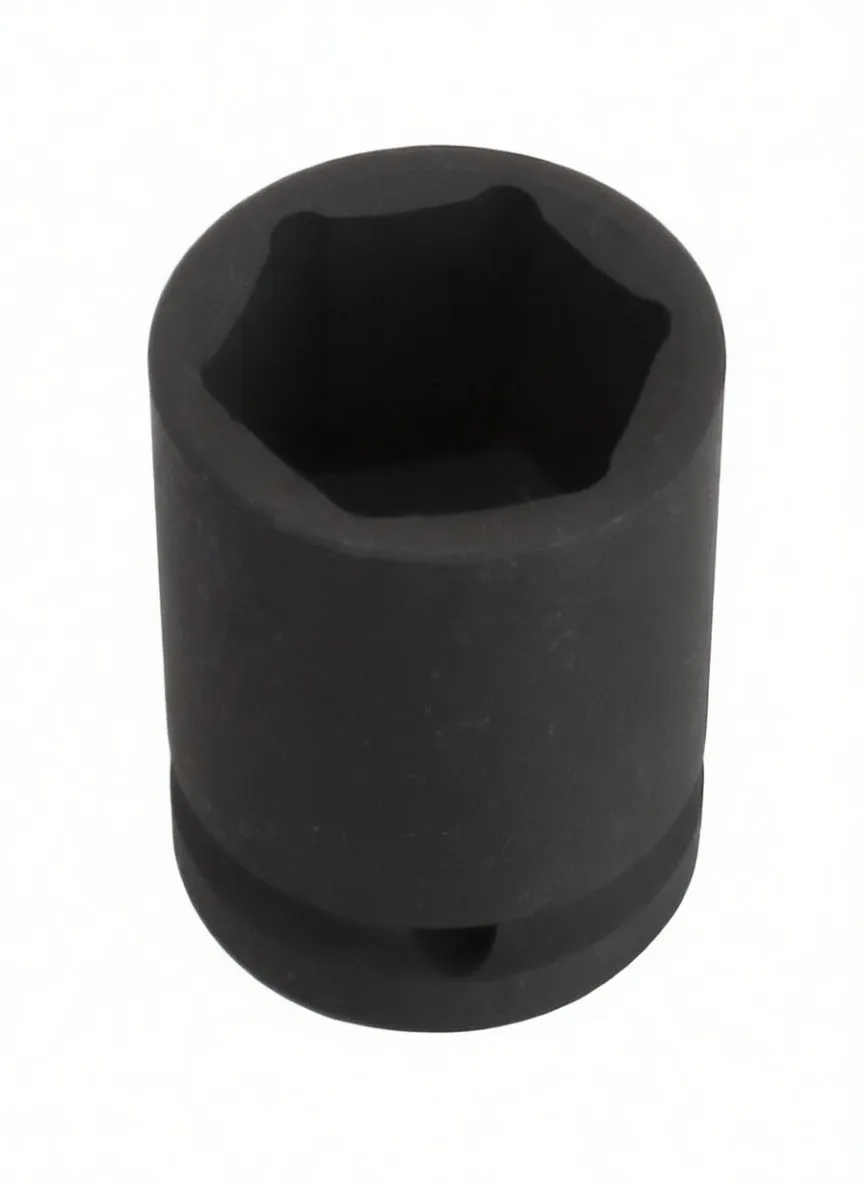

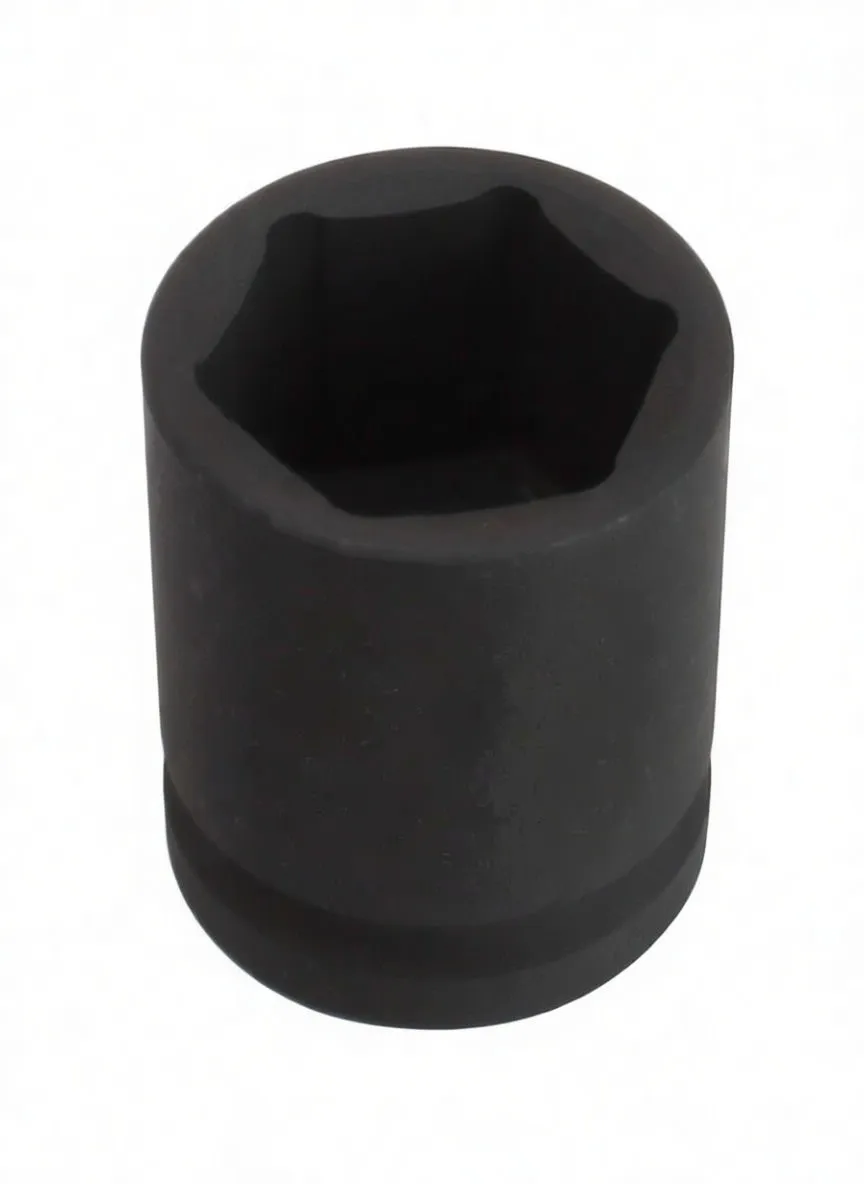

3/4″ Drive 6-Point Short Impact Socket

Brief Overview

This 3/4″ drive impact socket delivers the reliability you need for high-torque pneumatic and electric impact wrench applications. The 6-point design engages fasteners securely while the short cylindrical body fits into tight engine bays and confined work spaces—critical for transmission work, suspension assembly, and general automotive fastening. If you stock mixed socket sizes, you'll want to pair this with E-type Torx impact sockets and 12-point variants to cover all fastener profiles your technicians encounter.

Key Features

• 6-Point Internal Profile: Engages hex fasteners with minimal corner rounding and cam-out risk—essential for high-impact cycles.
• Short Socket Length: Compact 51–75mm overall length depending on size, ideal for engine bays, suspension frames, and tight transmission housings.
• Impact-Grade Construction: Matte-black oxide or phosphate finish resists corrosion; thick-walled cylindrical body absorbs shock loads without deformation.
• Detent Pin Retention: Circumferential groove and detent hole prevent socket ejection during rapid impact cycles.
• Size Range 17–65mm: 18 socket sizes from 17mm to 65mm cover common fastener diameters in automotive, industrial, and maintenance applications.

Business Advantages for Resellers

• Broad Size Coverage: 18 SKUs in a single product line simplify inventory management while ensuring technicians find the size they need.
• Pneumatic-Ready: Meets the durability standards for high-frequency impact tool use—drives repeat customer purchases and tool replacement cycles.
• Margin-Friendly Bulk Orders: Impact sockets see consistent turnover in busy shops. Order full sets or complementary ranges to maximize order value per transaction.
• White-Label Positioning: OEM quality at distributor-friendly pricing—resell under your own brand without tooling costs.

Technical Specifications

Size (mm)	D1 (mm)	D2 (mm)	T (mm)	L (mm)	Part Code
17	30	38	14	51	526617P
19	32	38	14	51	526619P
21	34	38	14	51	526621P
22	35	38	14	51	526622P
23	36	38	14	51	526623P
24	38	38	20	53	526624P
26	38	38	20	51	526626P
27	40	40	20	53	526627P
28	44	44	20	53	526628P
30	44	44	20	53	526630P
32	48	44	21	57	526632P
33	48	44	21	57	526633P
34	48	44	21	57	526634P
36	56	44	21	57	526636P
38	56	44	21	57	526638P
41	60	44	22	57	526641P
46	66	44	25	62	526646P
50	71	54	30	72	526650P
55	78	54	32	74	526655P
60	84	54	32	75	526660P
65	84	54	32	75	526665P

Socket Drive: 3/4″ square female
Point Design: 6-point hex
Impact Rating: Pneumatic and electric impact tool compatible
Finish: Matte black oxide/phosphate
Retention: Detent pin and groove system

Application Notes

• Automotive: Engine removal, transmission fastening, suspension work, wheel fastening.
• Industrial Maintenance: Heavy equipment assembly, bolt-torque applications where space is limited.
• Pneumatic Tool Compatibility: Designed for high-impact repetition cycles; verify tool torque rating against fastener grade.

Closing Statement

Stock this socket range to build a professional-grade impact tool offering that drives customer loyalty and repeat orders. The 6-point design and proven impact durability make it a staple in shops that value quality and reliability over budget alternatives.
