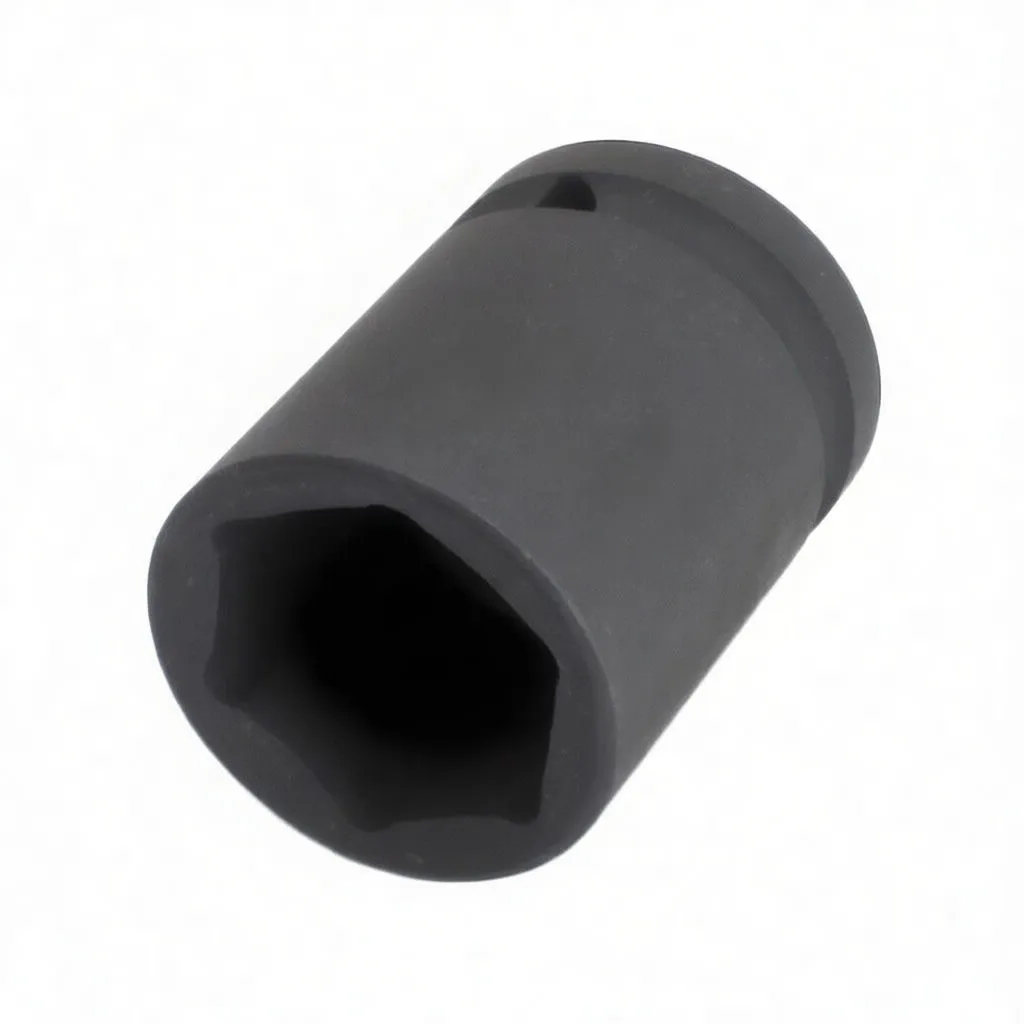

Angled close-up of dark 6-point short impact socket showing square drive recess, detent hole and ASTA logoTop view looking into 6-point hex opening of a short black impact socket with ASTA logo and detent holeDiagonal side view of short black 6-point impact socket showing hex end, ASTA marking and drive-end detent hole

3/4-Inch Drive 6-Point Short Impact Socket, 17–28mm

Heavy-duty impact socket with 6-point geometry for secure fastener grip. Available in 9 sizes from 17mm to 28mm with black oxide finish.

Request Quote

Description

3/4-Inch Drive 6-Point Short Impact Socket

Overview

Built for serious impact work, this 3/4-inch drive short impact socket delivers the durability and precision your shop demands. The 6-point design ensures positive grip without cam-out, making it the reliable choice for high-torque pneumatic and electric impact wrenches. Available as part of a broader size range, these sockets integrate seamlessly into existing 3/4-inch drive systems—pair them with complementary E-Type Torx impact sockets or standard 12-point variants to cover every fastener profile in your inventory.

Key Features

  • 6-Point Hex Geometry: Maximizes contact with fastener flats, reducing rounding and extending fastener life
  • Short Profile: Ideal for confined spaces and tight bolt access areas
  • Impact-Grade Construction: Black oxide finish resists corrosion and impact fatigue
  • Detent Hole: Integrated ball-lock retention system keeps socket secure on drive
  • Chamfered Edges: Protects drive connection and reduces wear during rapid tool changes
  • 9 Sizes Available: 17mm through 28mm covers the majority of automotive and industrial fastening applications

Business Advantages for Resellers

This socket size range (17–28mm) represents the workhorse segment of any professional socket collection. The 6-point design commands higher customer satisfaction than 12-point alternatives due to superior grip and reduced fastener damage—a key selling point when mechanics compare tool value. Short sockets are essential in high-access scenarios (engine bays, suspension assemblies), driving repeat purchases across customer bases. Stock depth in this size span ensures maximum margin turnover and positions your shop as a reliable source for impact-grade accessories.

Technical Specifications

Model Size (mm) D1 (mm) D2 (mm) T (mm) L (mm)
526617P 17 30 38 14 51
526619P 19 32 38 14 51
526621P 21 34 38 14 51
526622P 22 35 38 14 51
526623P 23 36 38 14 51
526624P 24 38 38 20 53
526626P 26 38 38 20 51
526627P 27 40 40 20 53
526628P 28 44 44 20 53

Drive Size: 3/4 inch square
Point Style: 6-Point
Socket Type: Short impact
Finish: Black oxide impact coating
Retention: Detent ball-lock system

Application Notes

Designed for impact-rated pneumatic wrenches and cordless impact drivers. Short length (51–53mm) provides clearance in engine compartments, suspension work, and brake service. 6-point geometry is particularly effective for metric fasteners commonly found in modern automotive and industrial equipment.

Ready to build inventory depth? Stock this 9-piece size progression and position your shop to serve both rapid impact applications and precision assembly work. Volume pricing available for professional distributors.
