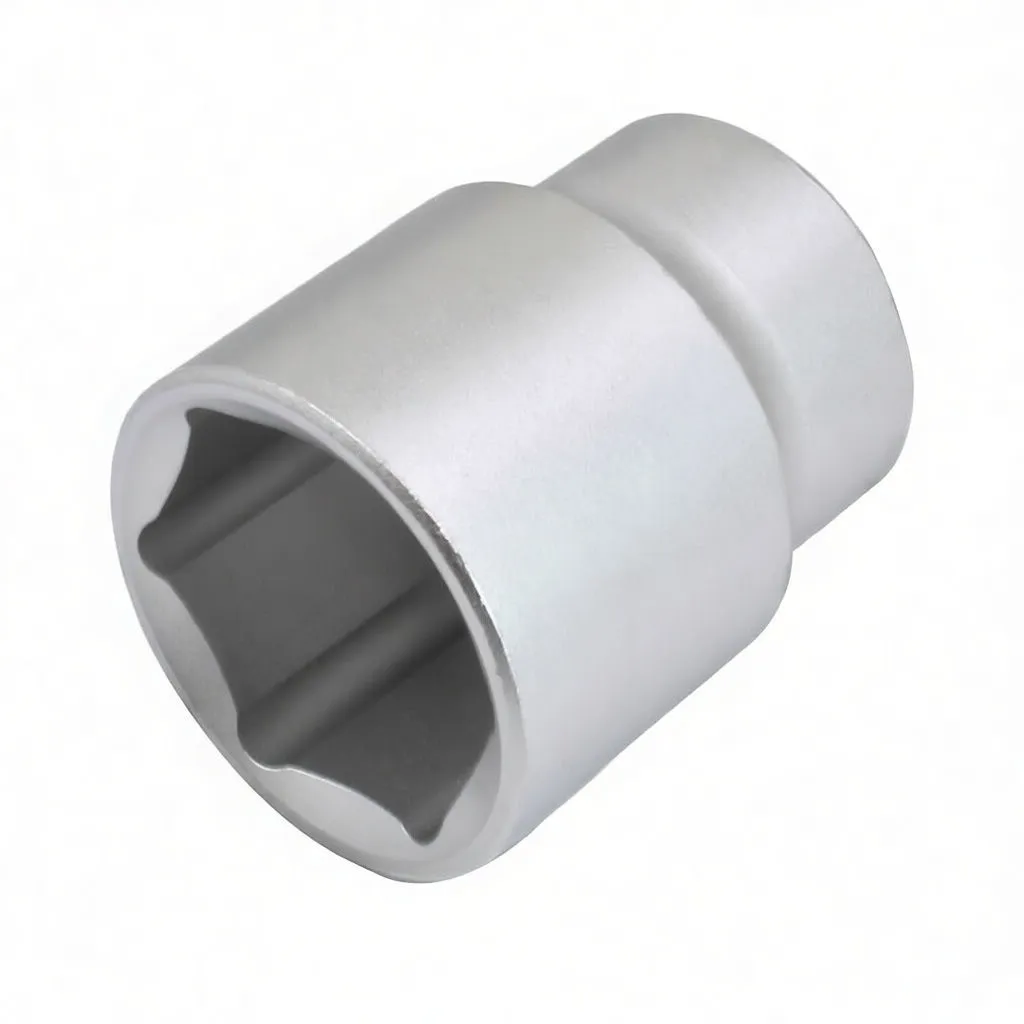

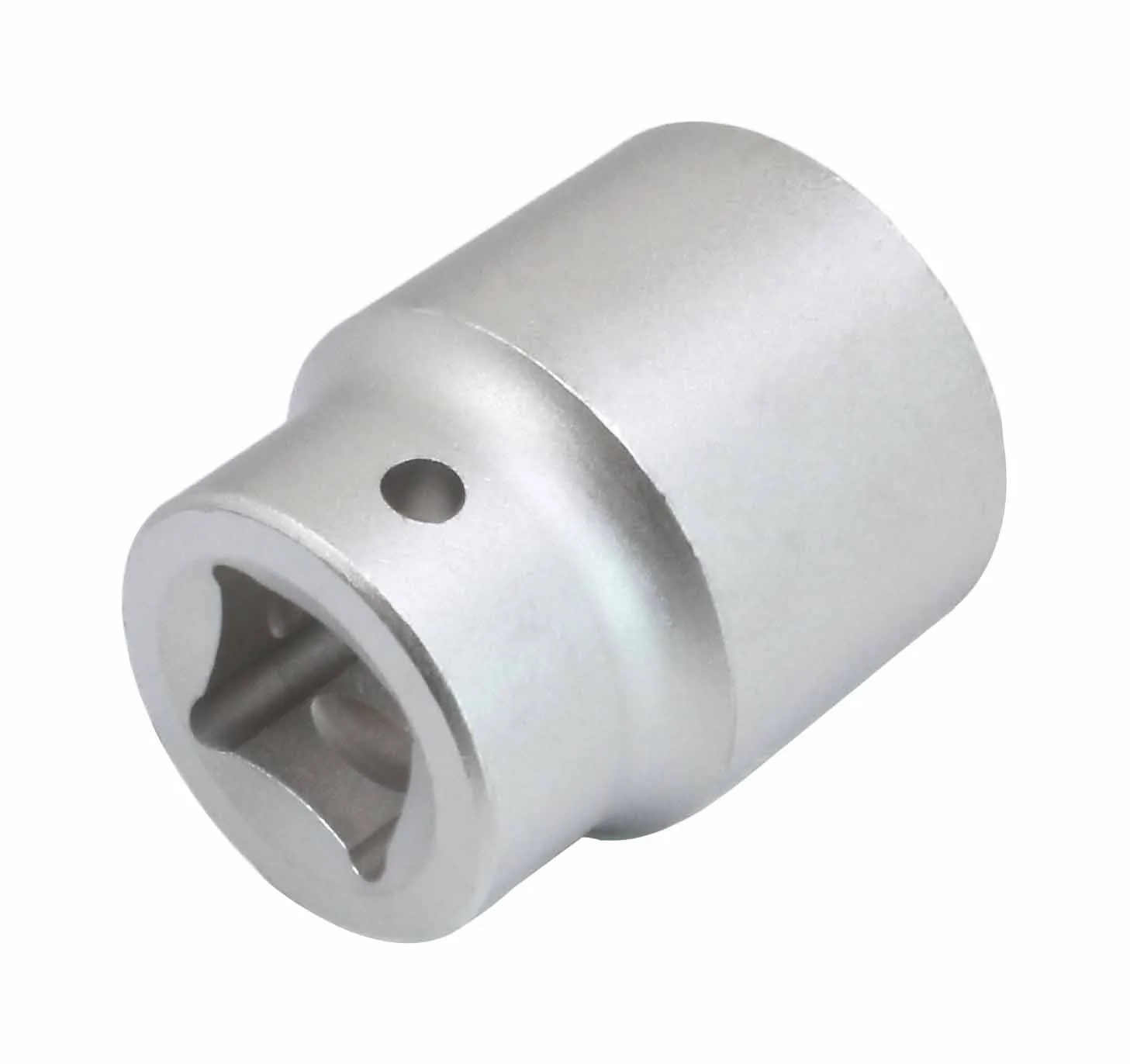

Close-up of the open end of a 6-point 30mm socket showing hex interior and embossed brand on the outer sleeveAngled side photo of a 6-point socket showing embossed brand on the outer surface and the hex openingDrive end of socket showing square 3/4" drive recess, detent hole in shoulder and 6-point opposite openingTechnical cross-section drawing of the socket with dimensions labeled L, d1, d2 and t, showing 6-point interior and drive recess

3/4-Inch Drive 6-Point Socket, 30mm

Professional-grade 30mm socket with 3/4-inch square drive, engineered for heavy fastener work and high-torque applications.

Request Quote

Description

3/4-Inch Drive 6-Point Socket, 30mm

Overview

This 30mm 6-point socket is built for industrial-grade fastening work where precision and durability are non-negotiable. The 3/4-inch square drive positions it in the professional heavy-duty category—ideal for automotive transmission work, industrial assembly, and equipment maintenance. The 6-point profile grips fastener flats securely, minimizing cam-out and rounding damage on critical bolts. If you're stocking mid-range metric fasteners for your shop or customer base, this socket pairs effectively with larger capacity 55mm sockets and smaller precision sizes like 27mm variants to complete a well-rounded inventory.

Key Features

  • 6-Point Internal Profile: Distributes force evenly across fastener flats, reducing wear and preventing rounding on damaged or stubborn fasteners
  • Chrome-Plated Steel Construction: Satin chrome finish resists corrosion and maintains professional appearance through intensive shop use
  • Precision Machined Design: Radiused contact points and tight tolerances ensure consistent engagement and minimal wobble
  • Detent Pin Lock: Integrated locking mechanism securely holds the socket on drive extensions and ratchets, preventing accidental separation during work
  • 3/4-Inch Square Drive: Accommodates professional-grade ratchets, breaker bars, torque wrenches, and power tools rated for this drive size

Technical Specifications

Specification Value
Socket Size 30mm (6-point hex)
Drive Size 3/4 inch (square)
Overall Length 54mm
Outer Diameter (D1) 42mm
Body Diameter (D2) 36mm
Wall Thickness 24mm
Material Chrome-plated steel
Finish Satin chrome
Point Configuration 6-point (hex)
Locking Feature Detent pin

Why This Socket Matters for Your Business

For Resellers & Distributors:

  • High Turnover Item: 30mm is a workhorse size in automotive and industrial maintenance; this socket consistently moves inventory
  • Professional-Grade Durability: Chrome-plated steel construction withstands repeated high-torque use, reducing customer warranty claims and returns
  • Margin-Friendly: Heavy-duty sockets command stable wholesale-to-retail margins; bulk ordering at competitive rates maximizes profitability
  • Complete System Building: Position this size as part of a broader metric socket set with smaller 24mm and 27mm options to increase basket size and customer loyalty

For End-Users (Your Customers):

  • Reliable fastening for transmission rebuilds, differential work, and large engine assembly
  • Precision 6-point engagement reduces fastener damage—critical when working on expensive bolts or specialty fasteners
  • Secure detent lock ensures safe operation on overhead or hard-to-reach applications
  • Professional satin chrome finish looks and feels like a premium tool

Call to Value

This 30mm socket is a foundational piece of any professional 3/4-inch drive set. Stock it confidently knowing it delivers consistent performance in high-demand applications. For bulk orders, confirm current pricing and lead times to lock in competitive margins.
