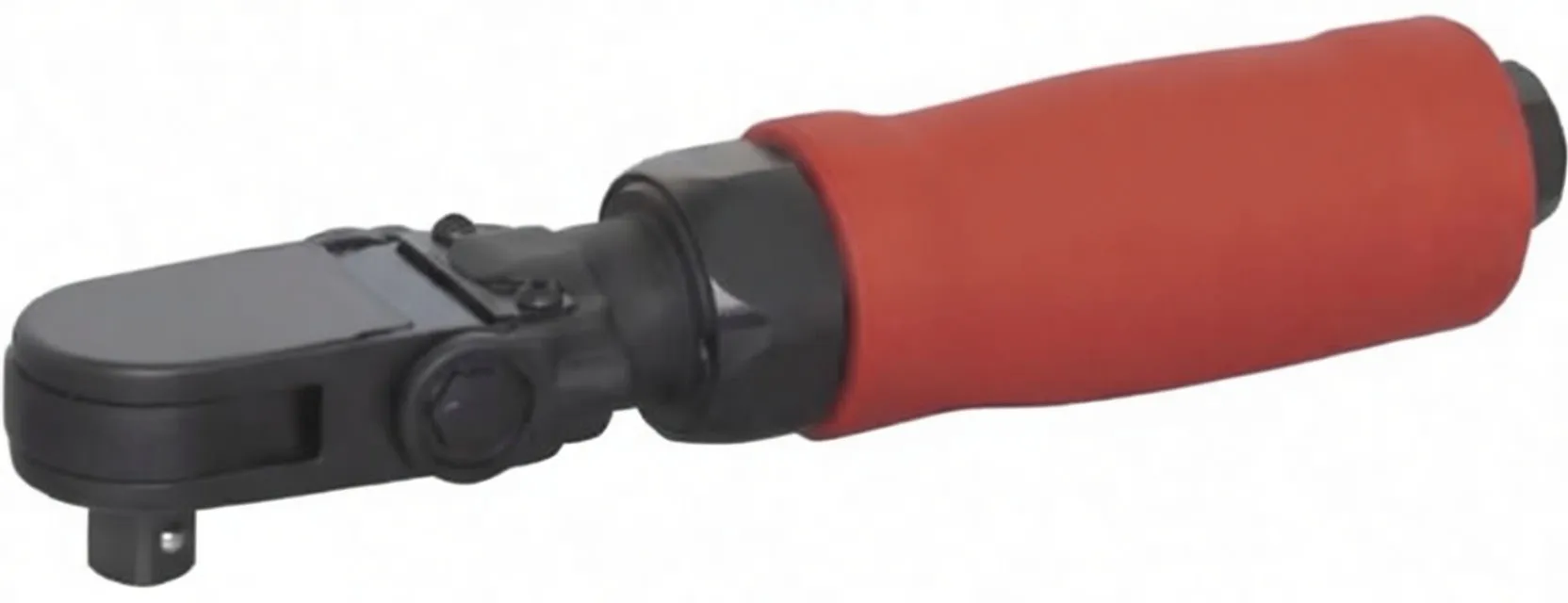

3/8-Inch Drive Air Ratchet Wrench with 9-Level Swivel Head

Brief Overview

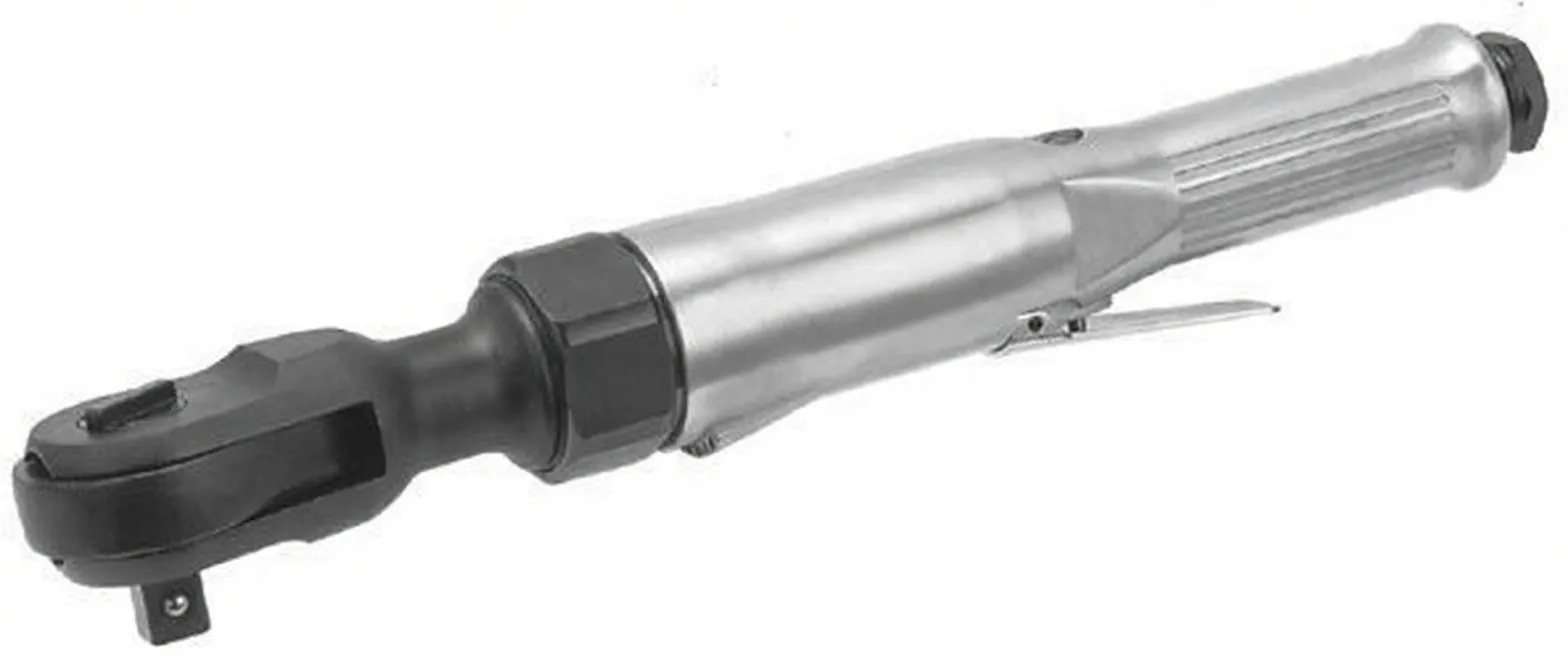

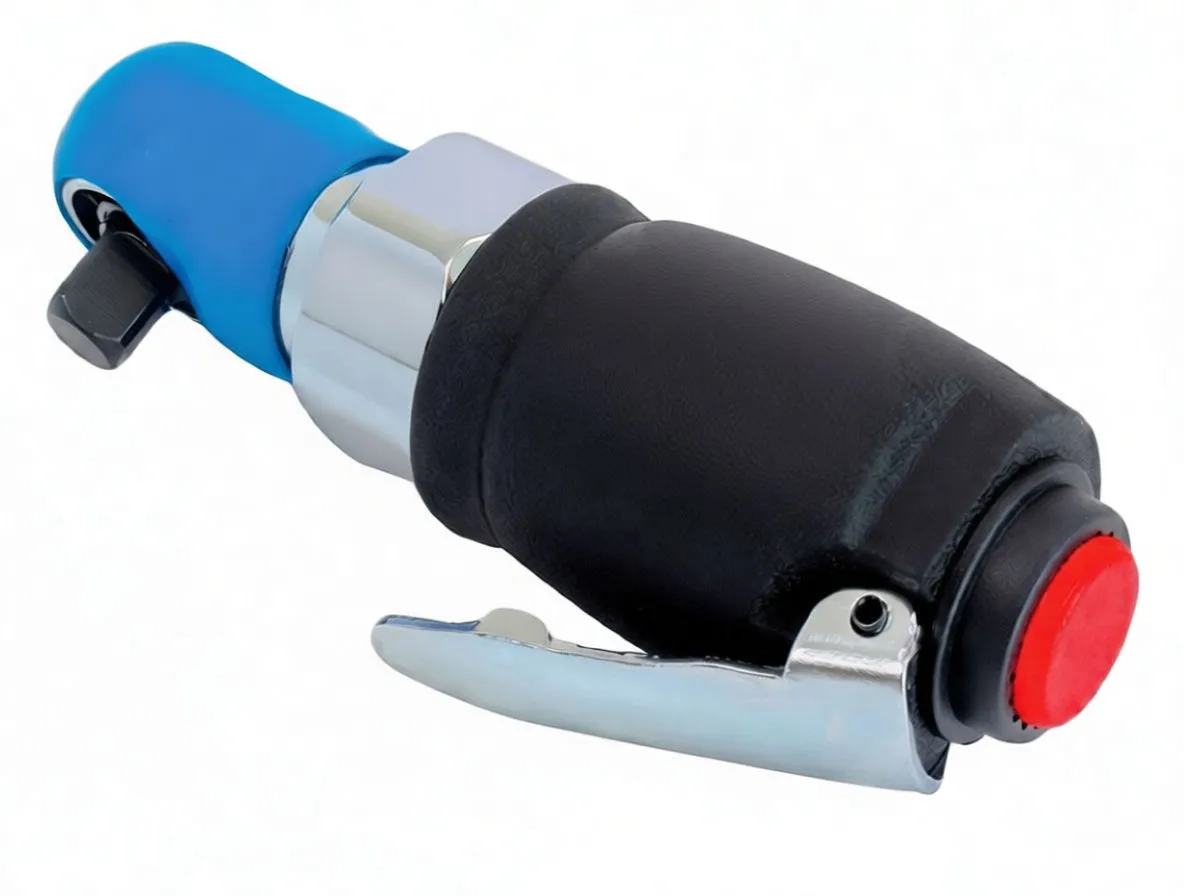

This 3/8-inch drive pneumatic ratchet wrench delivers professional-grade performance in spaces where conventional hand ratchets and fixed-head impact tools cannot reach. The patented 9-level swivel head articulates to nine distinct positions, enabling fastener work at angles and in tight engine bays, undercarriages, and industrial assembly areas. The quick-release socket lock mechanism prevents accidental socket ejection in confined spaces—a critical safety feature that reduces tool loss and downtime. If you require additional drive options, consider pairing this tool with a compact 1/4-inch pneumatic ratchet for smaller fasteners or a heavier-duty 1/2-inch drive ratchet for larger bolts requiring higher torque.

Key Features

• 9-Level Swivel Head: Articulates to nine fixed positions (0°, 45°, 90°, 135°, 180°, and intermediate angles), allowing access to fasteners in confined spaces where traditional ratchets cannot operate

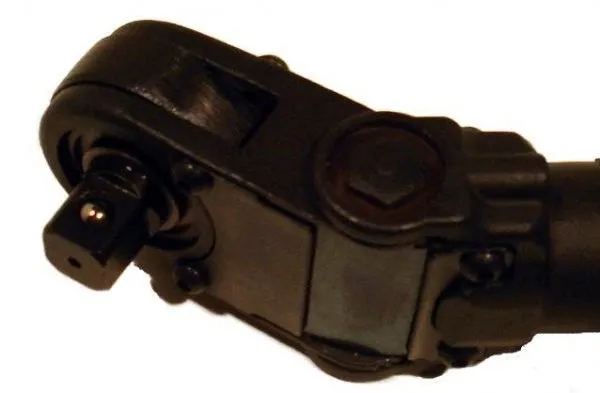

• Patented Quick-Release Socket Lock: Securely retains the socket without risk of dropping in narrow work areas; prevents socket loss and damage to surrounding components
• Lightweight & Compact Design: Weighs only 0.63 kg (1.38 lbs); ideal for extended hand-held use and overhead work
• Efficient Air Consumption: Operates on just 0.9 L/s (1.9 CFM) at 1/4-inch air inlet, minimizing compressor load and reducing operating costs
• Dual-Speed Operation: Free speed of 250 r.p.m. with adjustable forward/reverse direction selector for rapid socket changes
• Rubberized Grip Sleeve: Red textured handle reduces fatigue during prolonged operation and improves grip security
• Durable Black Metal Head & Shank: Corrosion-resistant finish withstands workshop and field environments

Technical Specifications

Parameter	Value
Drive Size	3/8 inch (9.5 mm)
Maximum Torque	30 Nm (22.1 ft-lbs)
Working Torque Range	0–25 Nm (0–18.4 ft-lbs)
Maximum Bolt Cap	10 mm (3/8 inch)
Free Speed	250 r.p.m.
Weight	0.63 kg (1.38 lbs)
Noise Level	83 dBA (94 dB power-weighted)
Vibration (a/k)	11.3 m/s² / 1.6 m/s²
Air Consumption	0.9 L/s (1.9 CFM)
Air Inlet Size	1/4 inch

Business Advantages for Resellers

• High Margin Tool: Specialized articulating design commands premium pricing compared to standard pneumatic ratchets; appeals to professional shops and OEM service centers
• Strong Repeat Revenue: Mechanics working on high-volume vehicle assembly, engine rebuild, and undercarriage repair return frequently for replacement units after wear
• Low Support Burden: Straightforward pneumatic operation with minimal maintenance; quick-release mechanism reduces customer complaints about socket retention
• Differentiated Inventory: The 9-level swivel head is a rare feature in most retail catalogs; positions your shop as a source for specialized tools that competitors lack
• Cross-Sell Opportunity: Bundle with conventional 3/8-inch fixed-head ratchets to offer customers a complete access solution (swivel for tight spaces, fixed-head for power fasteners)
• Efficient Logistics: Low weight and compact footprint maximize pallet density and reduce shipping costs on bulk orders

Ideal Applications

• Engine Bay Assembly & Disassembly: Tight access points around intake manifolds, alternators, and transmission mounts
• Undercarriage Work: Suspension fasteners, brake line connections, and exhaust mounting bolts in confined spaces
• Industrial Equipment Assembly: Compact machinery with close-tolerance fastener placement
• Precision Fastening: Where socket orientation control is critical and conventional ratchets risk bolt or fastener damage
• Field Service: Technicians who need a lightweight, versatile tool for mobile repair operations

Why This Tool Outperforms Manual Alternatives

Unlike fixed-head ratchets, the nine articulated positions eliminate the need for socket extension adapters or awkward hand angles—reducing operator fatigue and the risk of rounding fasteners. The quick-release socket lock prevents costly socket loss in narrow engine bays and confined assembly areas, protecting your mechanics' productivity and your shop's tool inventory. Low air consumption (0.9 L/s) makes this tool practical even on smaller compressor systems, expanding its utility across diverse workshop environments.

---

Stock this 3/8-inch articulating pneumatic ratchet wrench and establish your shop as the destination for specialized fastening solutions in your market.
