3/8-Inch Drive E-Type Short Hand Socket, Multi-Lobed Profile

Overview

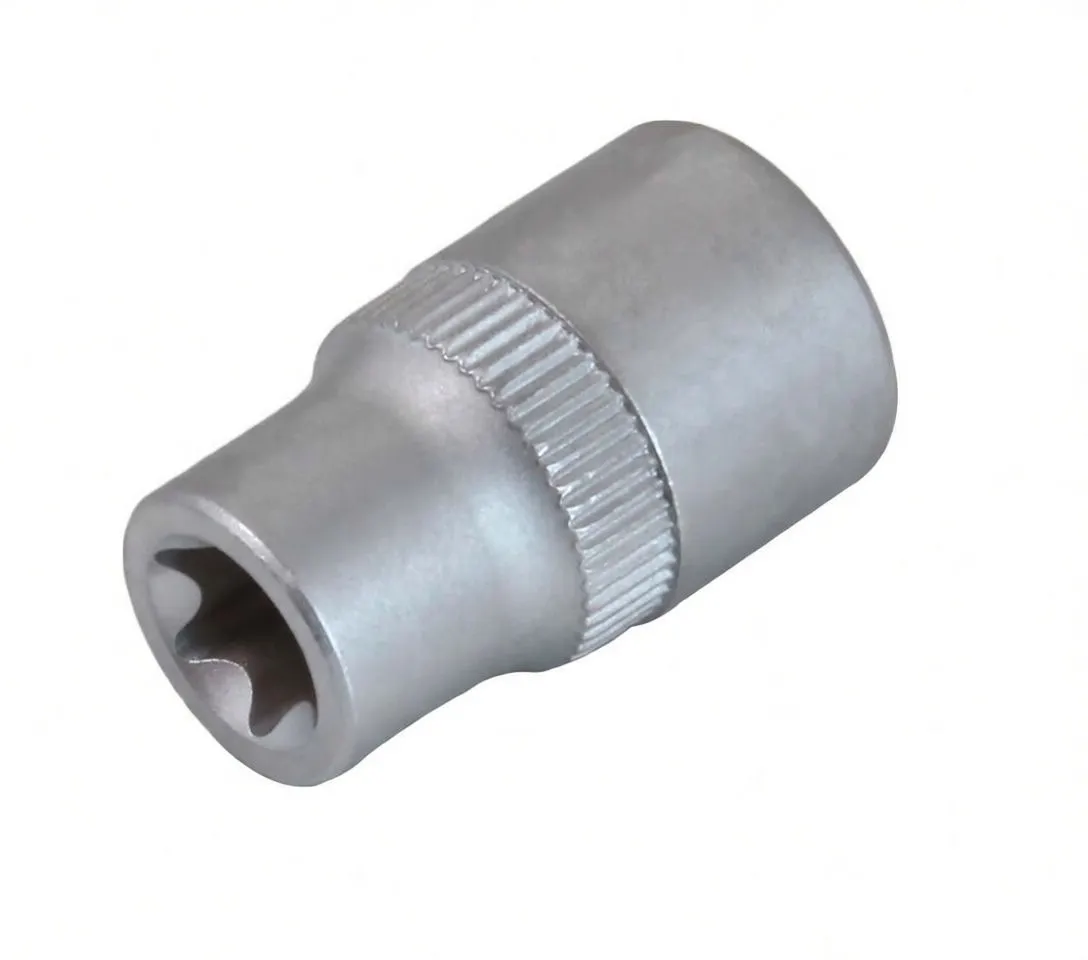

This short hand socket features a precision-engineered E-type (multi-lobed/star-shaped) internal profile, designed for controlled engagement with fasteners requiring careful handling. The compact 28mm length and knurled grip band make it ideal for confined spaces and precision assembly applications where standard sockets won't fit. Built with a matte chrome finish for corrosion resistance, this socket delivers the reliability you need for repetitive fastening tasks. Pair this with complementary E-type sockets in larger sizes to complete your precision toolkit.

Key Features

• E-Type Multi-Lobed Profile: Rounded, star-shaped interior geometry provides positive engagement without excessive force, minimizing fastener damage
• Short Compact Design: 28mm overall length fits in tight assembly environments
• 3/8-Inch Square Drive: Universal compatibility with standard 3/8" drive tools and extensions
• Knurled Grip Band: Raised knurled ring around mid-body prevents slipping during hand operation
• Matte Chrome Finish: Durable corrosion-resistant coating suitable for workshop and field environments
• Chamfered Socket Mouth: Slightly beveled entry eases fastener insertion

Specifications & Size Range

Model	E-Type Size	D1 (mm)	D2 (mm)	Wall Thickness (mm)	Length (mm)
23604	E4	6	17	5	28
23605	E5	7	17	5	28
23606	E6	8	17	6	28
23607	E7	9	17	7	28
23608	E8	10	17	7	28
23610	E10	12	17	8	28
23611	E11	13	17	8	28

D1 = Inner lobe diameter; D2 = Outer body diameter; T = Wall thickness; L = Overall length

Business Advantages for Resellers

• Niche Market Appeal: E-type sockets address precision assembly shops, electronics manufacturers, and automotive specialists who need fastener control
• Low Competition: Fewer distributors stock E-type short sockets—differentiate your catalog
• Bulk Order Potential: Precision assembly lines often standardize on E-type profiles; establish yourself as their preferred supplier
• Complementary Bundle Opportunity: Package with other short-drive E-type sockets for complete fastener solutions

Why This Socket Matters

The E-type profile is engineered specifically to prevent cam-out and fastener stripping on precision work where standard hex sockets are too aggressive. The short length removes the limiting factor in confined assembly spaces—exactly where your customers struggle with standard tooling. Stock these in your precision assembly section.

---

Ready to streamline precision fastening operations for your customers? Order in bulk and establish yourself as the trusted supplier for E-type socket solutions.
