4-Slot Standard Blade Fuse Holder, 30A, 32V DC, Panel Mount
Compact 4-slot fuse holder for standard blade fuses, 30A rated, with panel-mount terminals and clear access cover.
Request QuoteDescription

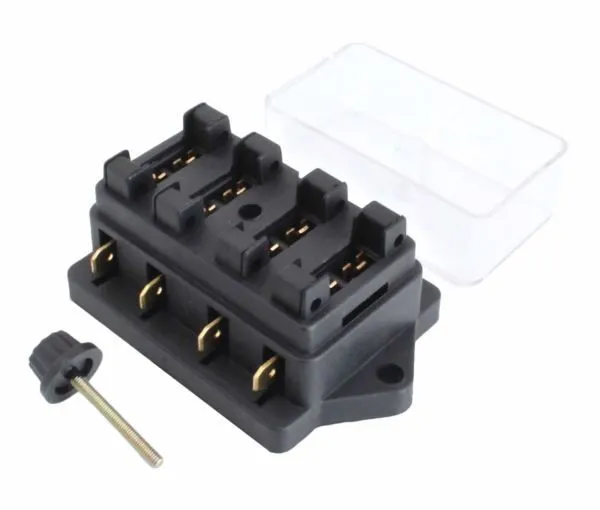

4-Slot Standard Blade Fuse Holder
Brief Overview
This is a straightforward, space-efficient fuse holder designed for automotive and industrial 12V/24V DC systems. The 4-slot configuration provides circuit-level protection for up to four independent loads while maintaining a compact footprint. If you're stocking a broader fuse management solution, consider pairing this with a comprehensive fuse assortment kit or upgrading to an 8-slot blade fuse holder for larger panel installations.
Key Features
- Four Independent Circuits: Each slot operates independently with dedicated blade contacts, allowing separate load protection.
- Gold/Brass Blade Contacts: Corrosion-resistant contact material ensures reliable electrical connection and longevity.
- Clear Polycarbonate Cover: Transparent lid provides visual inspection of fuse status without disassembly.
- Threaded Stainless Steel Fastener: Included mounting hardware (M4 screw + knurled nut) simplifies panel integration.
- Orientation Markings: Molded arrows and recesses guide correct fuse insertion, reducing installation errors.
- Flat Blade Terminals (6.3mm): Standard automotive connector provides secure, field-serviceable wiring connections.
Business Advantages for Resellers
- High Turnover Potential: Fuse holders are wear-resistant and non-consumable, making them ideal for permanent stock placement in professional shops.
- Broad Application Base: Suitable for aftermarket automotive electrical upgrades, RV installations, marine systems, and industrial control panels.
- Margin-Friendly: Low manufacturing cost with strong resale value across automotive technician and DIY markets.
- Complementary Sales: Naturally pairs with blade fuse assortments; recommend bundled promotions to drive basket size.
- Installation Simplicity: Minimal technical support required; straightforward panel mounting reduces customer service overhead.
Technical Specifications
| Specification | Value |
|---|---|
| Voltage Rating | 32V DC maximum |
| Current Rating | 30A per circuit (max) |
| Number of Slots | 4 independent fuse positions |
| Blade Terminal Type | 6.3mm male blade (standard ATC/ATL) |
| Mounting Holes | 4mm diameter, 76mm pitch |
| Overall Dimensions | 86mm (L) × 52mm (W) × 51mm (H) |
| Cover Material | Clear polycarbonate |
| Base Material | Black molded plastic |
| Contact Material | Gold/brass-plated |
| Mounting Hardware Included | Yes (M4 threaded screw + knurled retainer nut) |
| Fuse Type Compatibility | Standard blade fuses (ATC/ATL) |
Application Context
This holder is purpose-built for compact electrical systems where space is limited but multi-circuit protection is essential. Typical applications include:
- Aftermarket automotive wiring harnesses (auxiliary lighting, winches, sound systems)
- RV and marine auxiliary power distribution
- Industrial control panel auxiliary circuits
- Agricultural equipment electrical upgrades
The 4-slot configuration strikes a practical balance—enough circuits for most supplementary load management without excessive bulk. For larger installations, the 6-slot variant or 8-slot option are available within the same product family.
Reseller Value Proposition
Stock this as a margin-enhancing complement to your blade fuse inventory. The non-consumable nature of the holder itself, combined with recurring blade fuse replacement demand, creates a sustainable selling cycle. Professional automotive shops and RV service centers will appreciate the transparent cover design for quick visual diagnostics, positioning your business as a provider of complete electrical solutions rather than just components.
