40-Piece Master Diesel Injector Puller Tool Set

Brief Overview

This 40-piece master diesel injector puller set is engineered for professional diesel engine shops handling a wide range of injector brands including Bosch, Denso, Siemens, and Delphi. The comprehensive adapter range makes this system suitable for most common diesel injection systems without requiring multiple specialized tool purchases. Whether you're servicing European, Asian, or American diesel platforms, this set covers the critical injector extraction applications. For shops working exclusively with specific platforms, consider pairing this with brand-specific solutions like the Peugeot and Citroën HDi injector puller for enhanced precision on those engine families.

Key Features

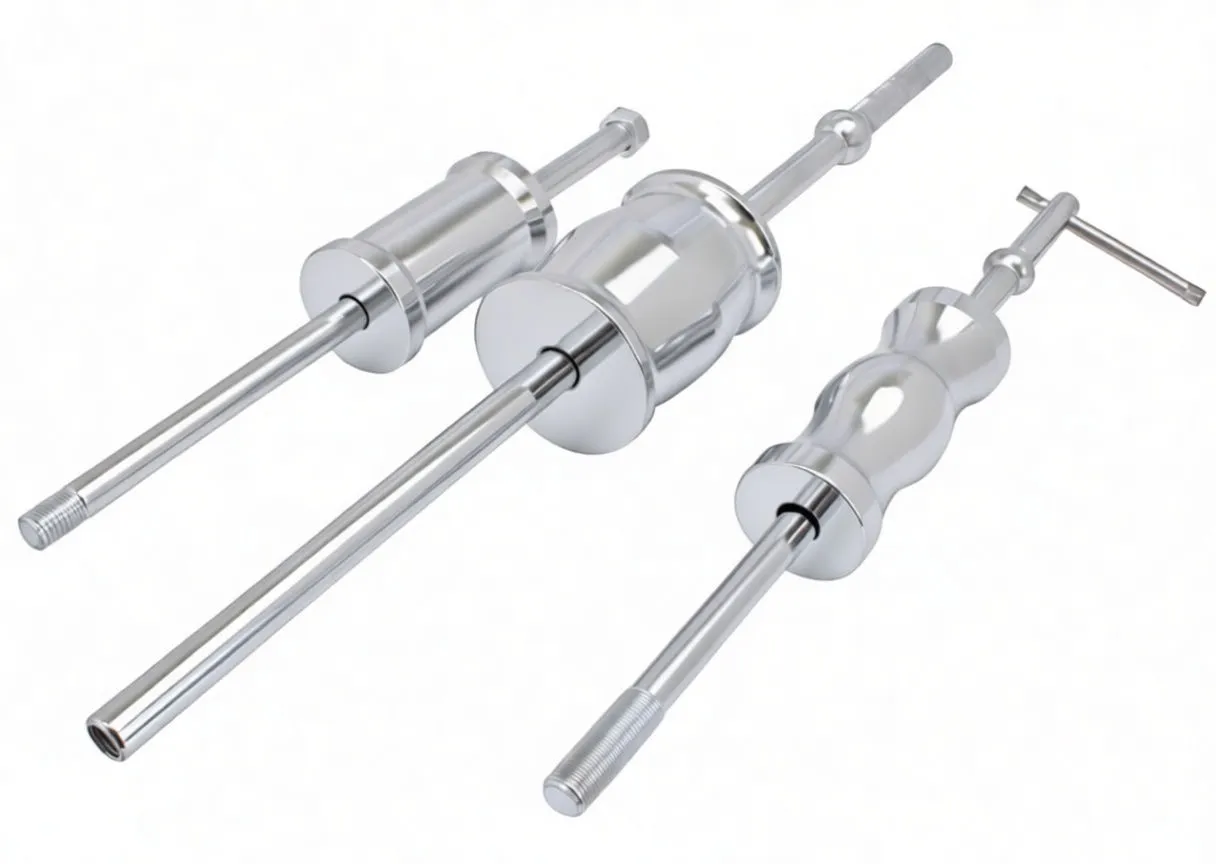

• Three precision slide hammers with graduated weights (1.6kg, 2.7kg, 5.1kg) and lengths (160mm to 600mm) for varied pulling force and access requirements
• Dual pulling claws with fork openings (13.7×18mm and 12.7×19mm) for direct injector grip without damage
• Five 1/2" drive slotted 6-point sockets (25, 27, 28, 29, 30mm) for socket-based extraction methods

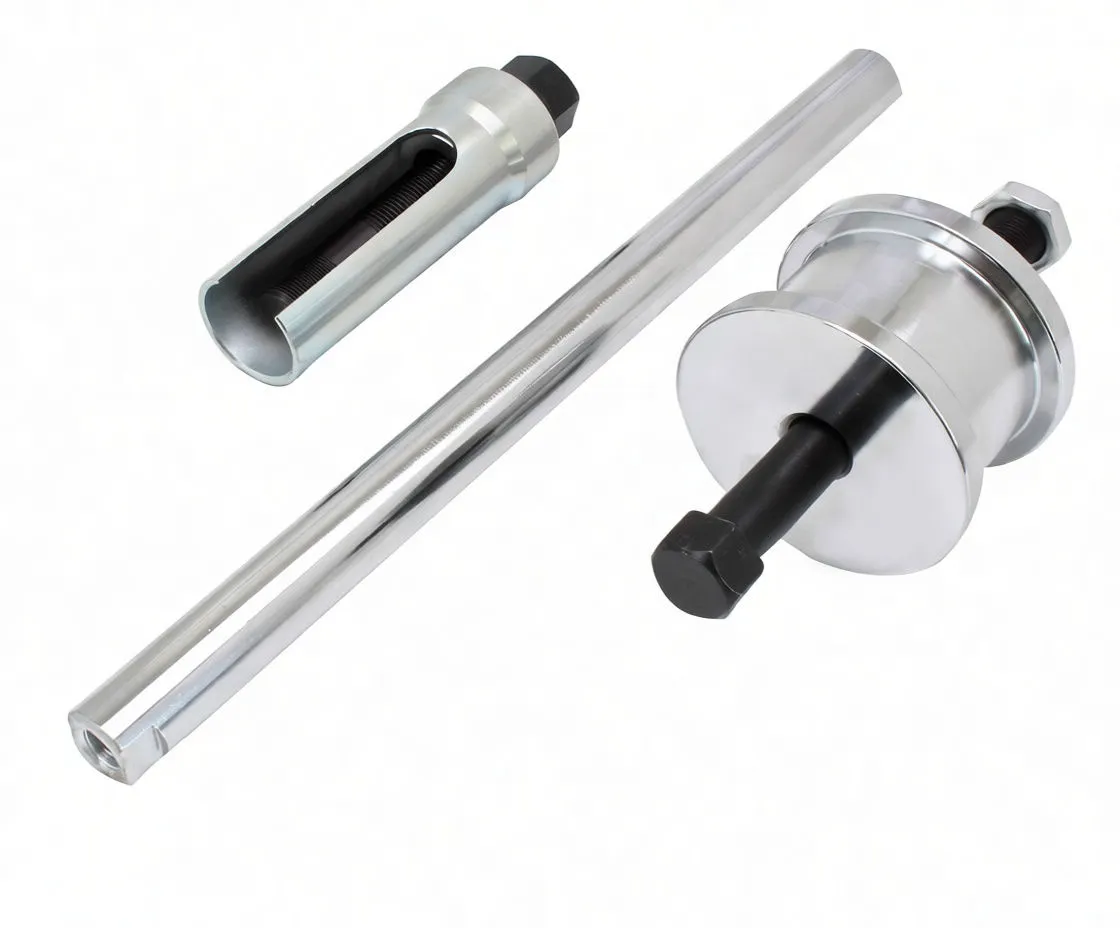

• Injector extractor sleeve assembly with 35mm OD/29mm ID for precise centering during extraction
• Six threaded adapter variations (M27×1.0 and M25×1.0 external; M27×1.0 internal, each in multiple pieces) to accommodate different injector thread patterns
• Three dedicated slide hammer adapters (inner, outer, and claw configurations) for flexible extraction approaches

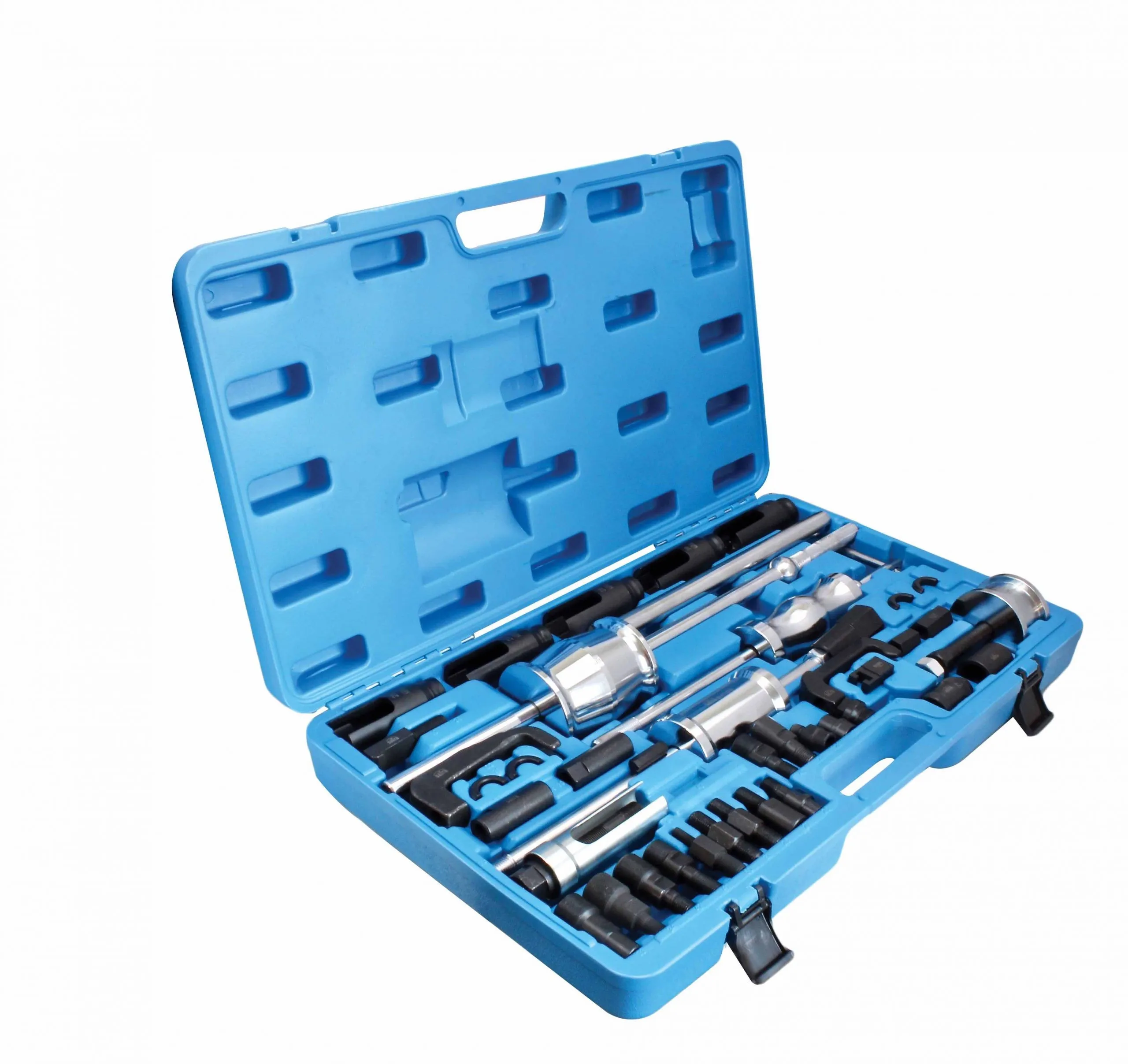

• Molded carrying case with fitted storage slots and integrated handle for jobsite portability

Why Resellers Choose This Set

Market Coverage: The 40-piece configuration covers the majority of diesel injector work without forcing customers to purchase multiple smaller kits. This translates to higher basket value per job and reduced customer frustration with tool gaps.

Adapter Versatility: Six different threaded adapter options (not just one or two) mean shops can handle European common-rail systems, older mechanical injectors, and platform-specific variants from a single investment. This versatility drives repeat purchases from diverse customer bases.

Professional Presentation: The blue molded case with organized internal layout presents as a complete, premium solution—the type of tool set that justifies margin and positions your shop as fully equipped for serious injector work.

Reduced Returns: The range of slide hammer weights (1.6kg to 5.1kg) lets technicians match pulling force to injector type and engine condition, reducing risk of injector or engine damage and associated warranty claims.

Technical Specifications

Component	Specification
Slide Hammer 1	1.6kg weight, 160mm length
Slide Hammer 2	2.7kg weight, 460mm length
Slide Hammer 3	5.1kg weight, 600mm length
Pulling Claw 1	Fork opening 13.7×18mm, 105mm length
Pulling Claw 2	Fork opening 12.7×19mm, 130mm length
Socket Set	1/2" drive, 6-point slotted, 100mm length: 25, 27, 28, 29, 30mm
Extractor Sleeve	OD 35mm, ID 29mm, M17×1.0 spindle
External Thread Adapters	M27×1.0 (3 pieces), M25×1.0 (1 piece)
Internal Thread Adapters	M27×1.0 (3 pieces)
Slide Hammer Adapters	Inner, outer, and claw extractor configurations (3 pieces)
Total Piece Count	40 components
Case Material	Molded plastic with fitted storage
Finish	Chrome-plated rods and sockets; polished steel weights

Professional Application Notes

This set is designed for fuel injection system service, not general mechanical work. The graduated slide hammer weights allow technicians to apply measured extraction force—critical for modern common-rail injectors that can cost €200–€500+ per unit. The combination of threaded adapters and direct-pull claws means shops can handle both top-side injector access (via socket adapters) and bottom-side extraction (via claw pullers) on the same engine platform.

Shops working on high-volume diesel service (fleet maintenance, commercial vehicle repair) will find the comprehensive adapter set reduces tool switching time and minimizes the risk of using incorrect extraction methods that damage expensive injectors.

Stock Confidently

This is the type of tool set that sells through steady professional demand. Diesel injector service remains consistent work, and shops that lack a comprehensive extraction system will purchase this rather than improvise with inappropriate methods. Position it as the alternative to multiple single-purpose pullers.

---

Ready to add premium diesel service capability to your inventory? Stock this 40-piece set and capture the diesel injector market.
