5-Ton Pull-Back Hydraulic Ram

Overview

This 5-ton pull-back hydraulic ram is engineered for controlled pulling and positioning tasks in automotive service, suspension work, and light-to-medium industrial applications. Built from high-strength alloy construction with integrated safety features—including an overload lock and return spring—it delivers reliable performance for workshops that need predictable, repeatable pulling force. The dual-hook configuration and side-mounted hydraulic input make it straightforward to integrate into existing shop pneumatic systems. For operations requiring greater capacity, a 10-ton alternative is also available.

Key Features

• 5-Ton Capacity: Rated for controlled pulling and positioning tasks up to 5,000 kg
• Integral Return Spring: Automatically retracts the piston rod without requiring reverse hydraulic flow
• Overload Lock: Prevents accidental over-extension and protects against sudden pressure surges

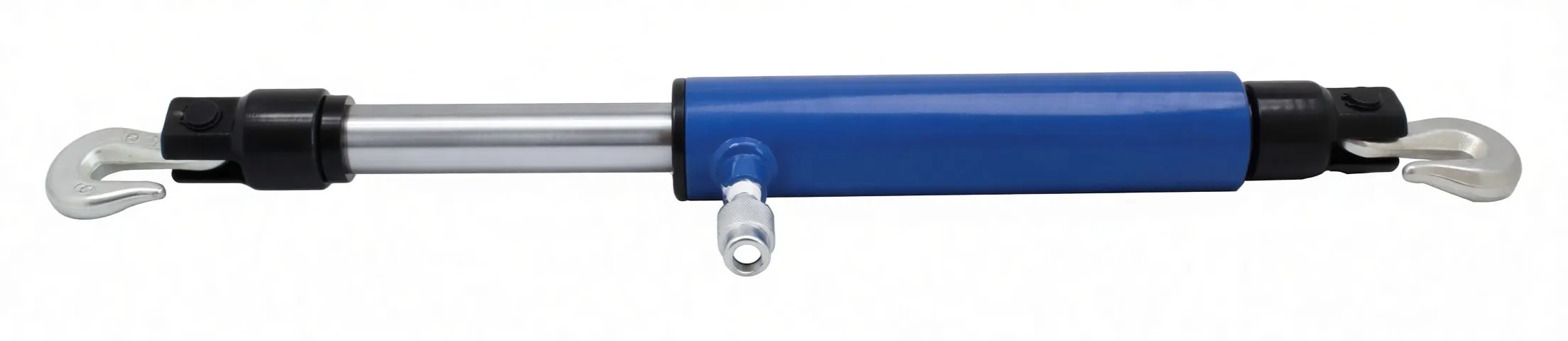

• Dual Forged Hooks: 12mm/25mm grab hooks at both ends enable versatile attachment points
• Extended Stroke: 130mm travel range allows for substantial repositioning in a single cycle
• Chrome-Plated Piston Rod: Corrosion-resistant finish ensures long service life in mixed workshop environments

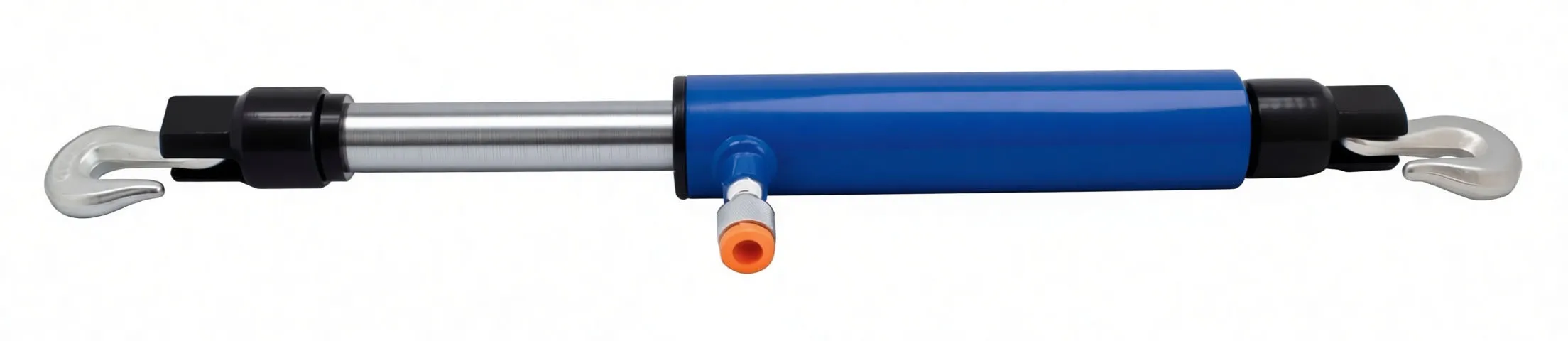

• Quick-Connect Hydraulic Coupling: Orange-capped side-mounted input for fast connection to shop hydraulic supplies
• Compact Design: 540mm collapsed length fits into tight work spaces; extends to 670mm for maximum reach

Business Advantages for Resellers

• High-Volume Appeal: Five-ton capacity covers the majority of suspension and light-industrial pulling tasks without oversizing
• Durable Design: Alloy construction and integrated safety features minimize warranty returns and repeat service calls
• Shop Integration: Side-mounted quick-coupler fits standard workshop hydraulic lines—no adapters or custom fittings required
• Margin-Friendly: Proven category with consistent demand from independent garages, dealerships, and fleet maintenance operations
• Cross-Sell Opportunity: Customers frequently upgrade to higher-capacity pulling equipment as operations expand

Technical Specifications

Parameter	Specification
Pulling Capacity	5 Tons (5,000 kg)
Extended Length	670 mm
Collapsed Length	540 mm
Stroke Length	130 mm
Piston Diameter	33 mm
Outer Diameter (Barrel)	57 mm
Grab Hook Size	12 mm / 25 mm
Hook Type	Forged silver with black clevis fittings
Hydraulic Coupling	Side-mounted quick-connect with dust cap
Material	High-strength alloy with chrome-plated piston rod
Safety Features	Return spring + overload lock

Why This Tool Matters to Your Customers

Suspension specialists and industrial maintenance teams rely on pull-back rams to safely lower, reposition, or remove components under controlled hydraulic force. The integrated return spring eliminates the need for reverse hydraulic lines, reducing setup complexity and operational errors. The overload lock provides peace of mind on high-pressure jobs where sudden pressure spikes could cause damage or injury.

This 5-ton unit bridges the gap between light-duty 2-ton pullers (insufficient for most automotive suspension) and heavy 10-ton machines (overkill for routine work). It's the workhorse capacity that pays for itself through consistent shop use.

---

Ready to stock a tool that your customers will use regularly. Order in bulk to maximize margin and keep your shelves competitive against larger distributors.
