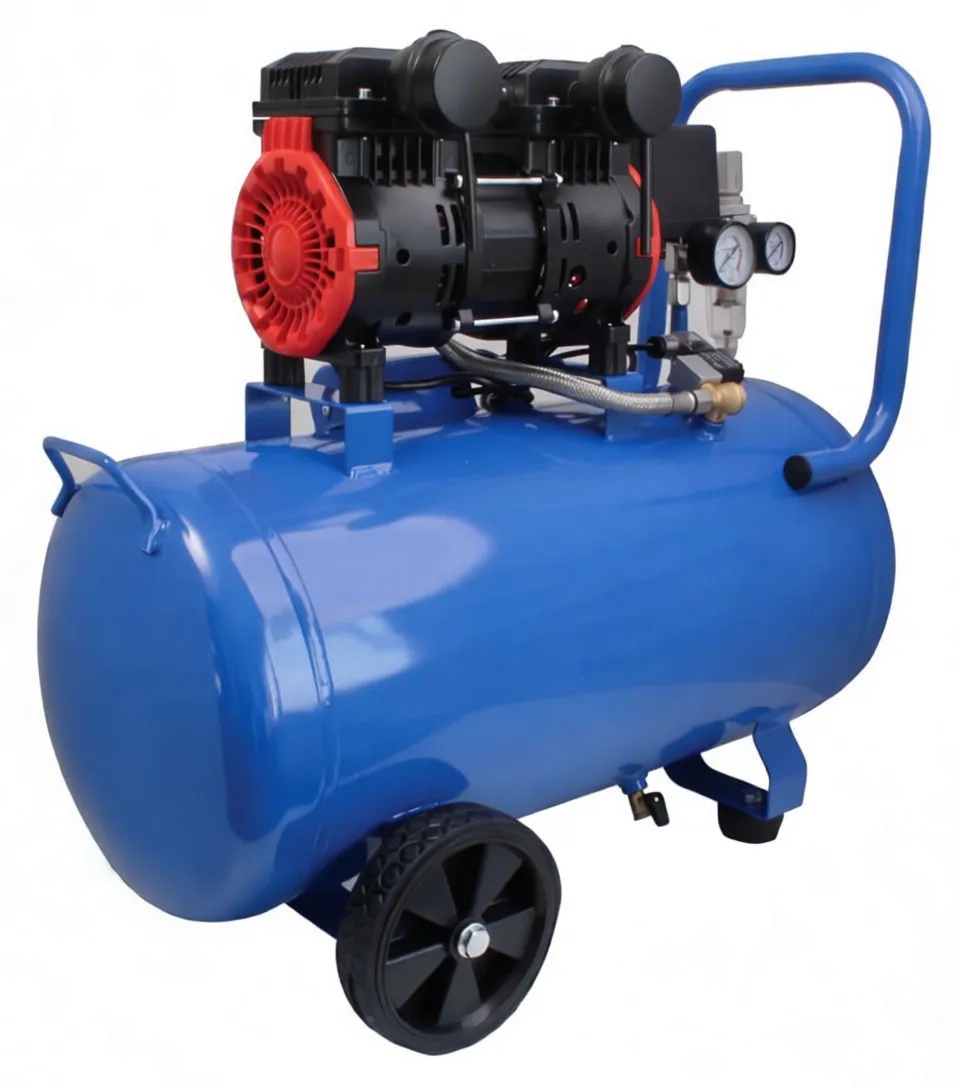

50L Direct-Driven Oil-Free Air Compressor, 10 Bar, 212 L/min, 1.1 kW

Brief Overview

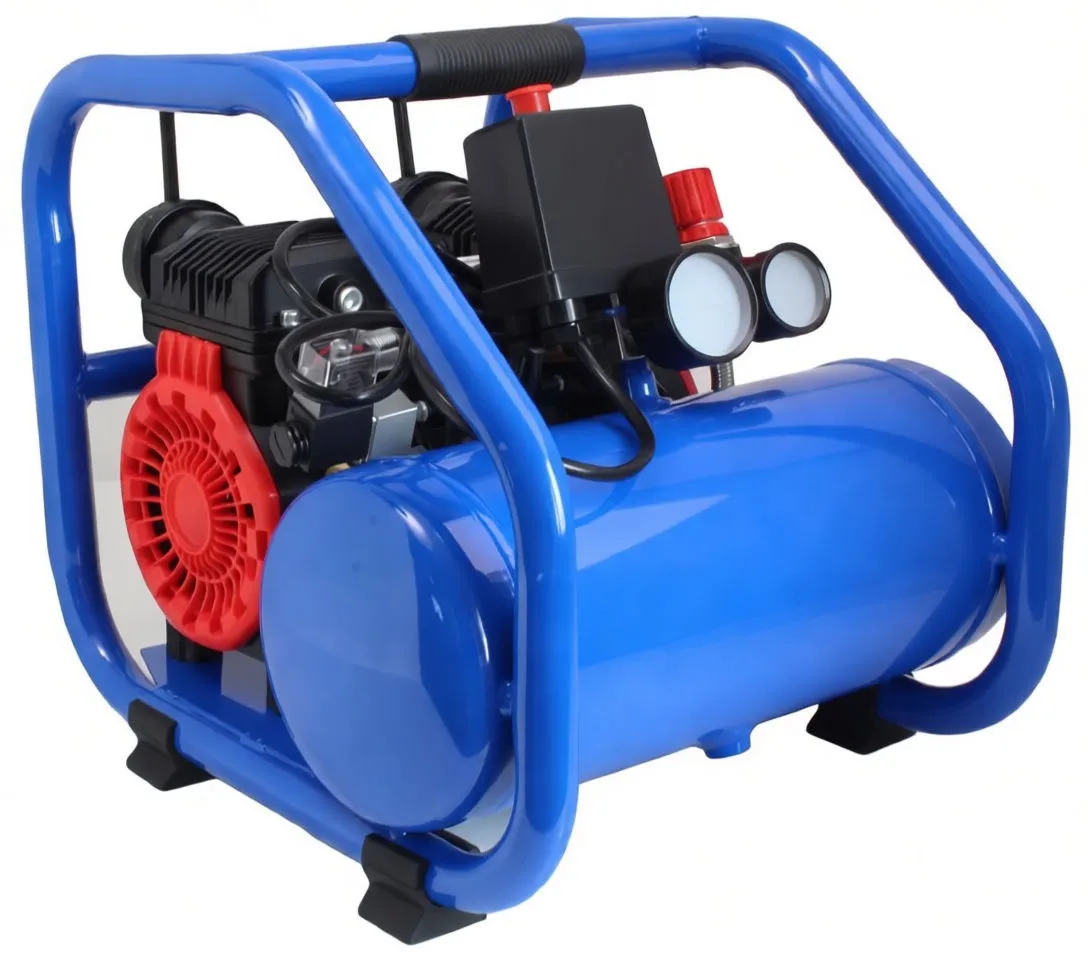

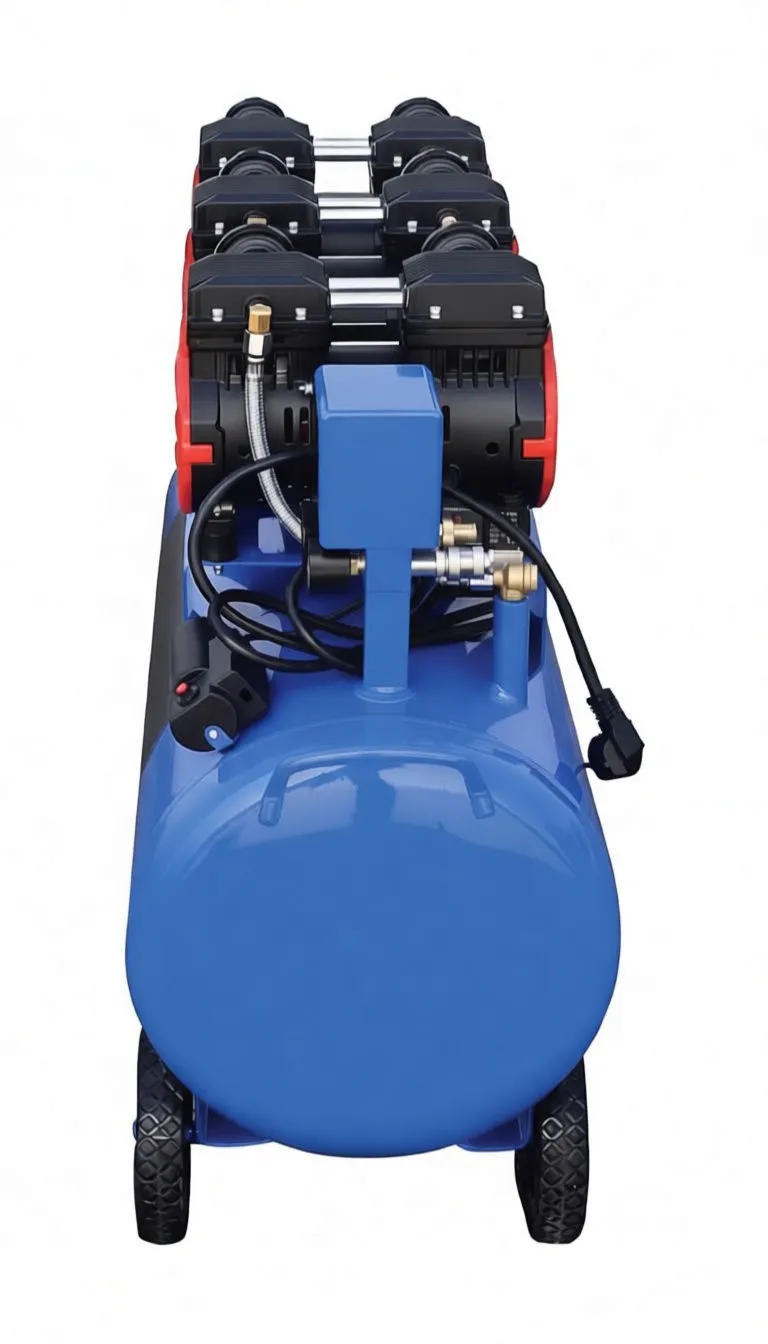

This 50-liter oil-free air compressor delivers 212 L/min of clean, dry air at 10 bar—making it a practical solution for small-to-medium workshops, mobile service units, and applications where oil-free operation is non-negotiable. The direct-driven twin-cylinder design ensures reliability with minimal maintenance, while the compact footprint and mobile wheels make repositioning between job sites effortless. For shops needing greater capacity, larger 100-liter oil-free alternatives are available, or consider the compact 6-liter version for space-constrained environments.

Key Features

• Oil-Free Operation: No contamination of air output; suitable for sensitive pneumatic tools and compressed air applications
• Direct-Driven Twin-Cylinder Pump: Robust pump design mounted directly on motor shaft; eliminates belt wear and tensioning
• 212 L/min Maximum Output: Sufficient for continuous operation of mid-range pneumatic tools (impact wrenches, sanders, nailers)
• 10 Bar Working Pressure: Standard pressure for most pneumatic hand tools
• Mobile Design: Twin plastic wheels and front support foot enable easy transport between workshop bays or job sites
• Integrated Control: Dual pressure gauges, air regulator with moisture trap, and pressure-activated stop/start mechanism
• Single-Phase 230V Input: Standard European mains connection; 4.9A current draw
• Noise Level: 83 dB: Moderate acoustic footprint for workshop environments
• Compact Dimensions: 720 × 300 × 620 mm fits tight spaces without sacrificing tank capacity

Why Resellers Choose This Model

Margin & Turnover: This capacity sits in the sweet spot of demand—larger than hobby-grade units but smaller than industrial-scale equipment. High reorder potential from small workshops upgrading from corded tools.

Customer Retention: Oil-free operation eliminates consumable oil costs and air-line cleaning, reducing total cost of ownership. Customers appreciate the minimal maintenance and stay loyal.

Versatile Application: Suitable for automotive repair, woodworking, dental clinics, and light industrial settings. Broad market appeal = broader customer base.

Competitive Positioning: Direct-driven design undercuts belt-drive maintenance costs; still compact enough for shops without dedicated compressor rooms.

Technical Specifications

Specification	Value
Air Receiver Capacity	50 L
Maximum Air Output	212 L/min
Volumetric Output (m³/h)	12.7 m³/h
Working Pressure	10 bar
Motor Power	1.1 kW (1.5 HP)
Voltage	230V, 50 Hz
Current Rating	4.9 A
Engine Speed	2,850 rpm
Cylinder Diameter	ø63.7 mm
Noise Level	83 dB
Weight	23.0 kg
Overall Dimensions	720 × 300 × 620 mm
Pump Type	Oil-Free Twin-Cylinder Direct-Drive
Tank Finish	Painted Steel (Blue)
Mobility	Twin wheels + front support foot

Application Guidance

Ideal For:

• Small automotive repair shops and mobile mechanics
• Woodworking and finishing applications (spray guns, sanders, nail guns)
• Dental and medical clinics requiring oil-free air
• Light industrial assembly and pneumatic tool operation
• Portable job-site setup where space is limited

Not Recommended For:

• High-volume, 24/7 industrial production (sustained high-duty cycles)
• Applications requiring pressures above 10 bar
• Large spray-coating operations (consider oil-lubricated alternatives for extended runtime)

Call to Value

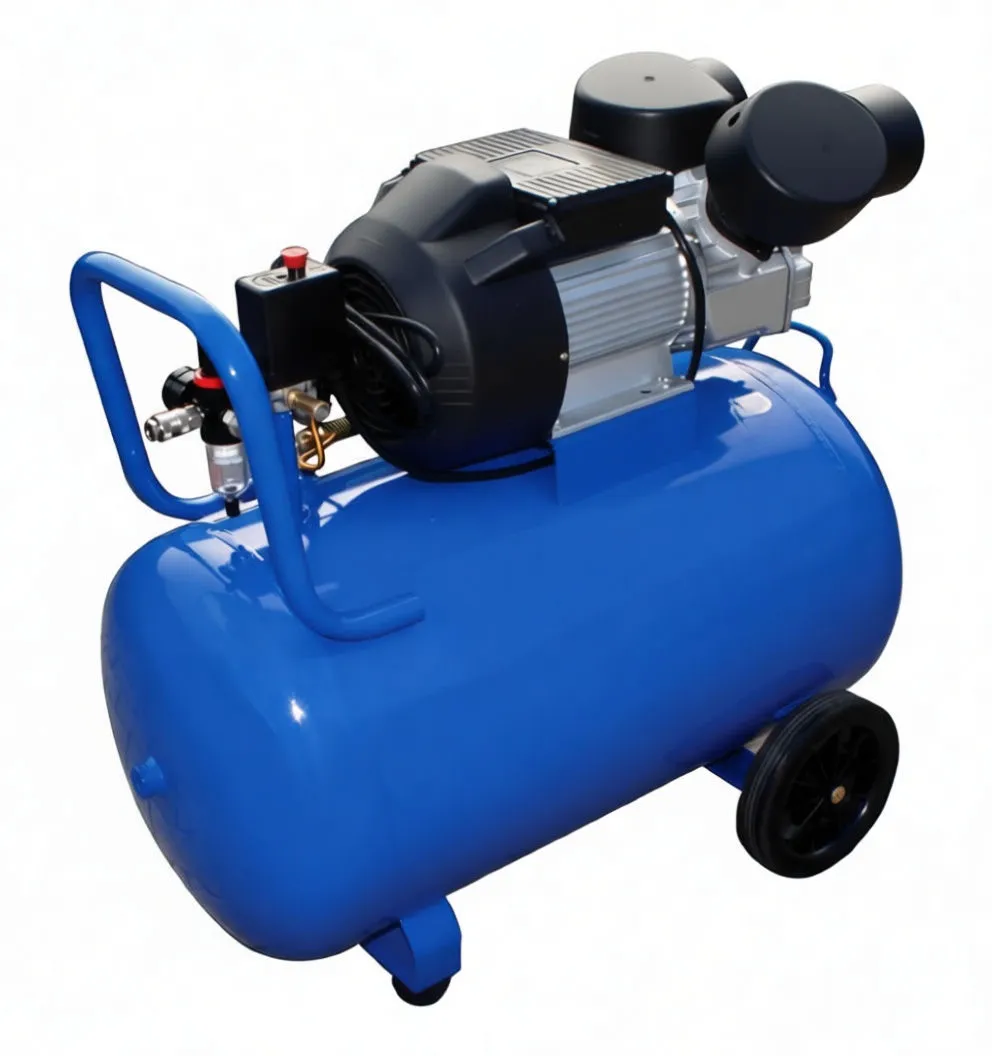

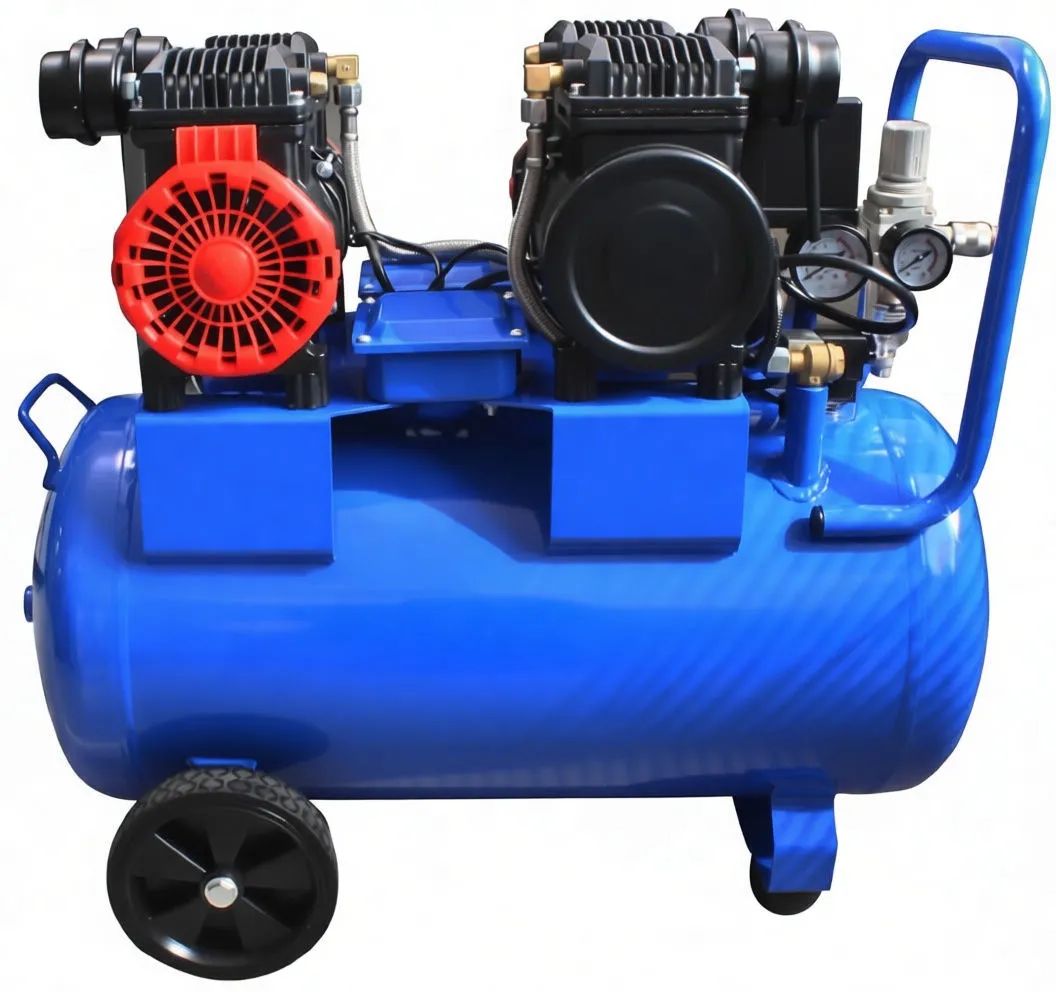

Stock this model as your entry-level oil-free offering. Its direct-driven reliability, mobile design, and clean-air output create a loyal customer base with minimal support overhead. Pair it with dual-pump oil-free compressors for customers outgrowing single-pump capacity, or recommend larger belt-drive oil-lubricated units for shops ready to scale beyond 50L.
