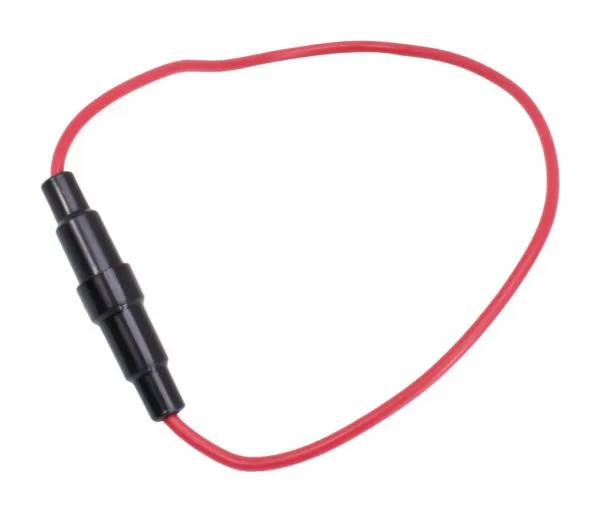

Red insulated wire loop with two black plastic fuse holder ends, one end open socket and the other with screw cap showing gold metal contactRed cable forming a loop with a ribbed black plastic inline fuse holder (three stepped sections) in the center, no visible text

5x20mm Glass Fuse Holder, Inline Design, 10A 250V AC

Compact inline fuse holder for 5x20mm glass fuses, rated 10A 250V AC with flame-retardant casing and silver-plated contacts.

Request Quote

Description

5x20mm Glass Fuse Holder – Inline Assembly

Brief Overview

This inline 5x20mm glass fuse holder delivers straightforward electrical protection for equipment requiring compact, space-efficient fuse mounting. The design integrates directly into wiring loops, making it ideal for applications where panel-mounted solutions aren't practical. If your inventory includes various fuse types, consider pairing this with 6x30mm glass fuse holders to cover a broader range of circuit protection needs.

Key Features

  • Compact Inline Design: Direct wire integration eliminates the need for panel cutouts or additional mounting hardware
  • 5x20mm Glass Fuse Compatibility: Accepts standard 5x20mm cylindrical fuses for universal compatibility
  • Flame-Retardant Casing: Black plastic housing rated for fire resistance, meeting safety standards for automotive and industrial applications
  • Silver-Plated Contacts: Ensures low contact resistance and reliable electrical connection; reduces oxidation over equipment lifetime
  • Pre-Wired Assembly: Red PVC-insulated leads terminate in screw-on cap connector on one end and open fuse socket on the other
  • Flexible Installation: The flexible wire harness accommodates various routing and mounting configurations

Business Advantages for Resellers

  • High-Velocity Stock Item: Fuse holders move consistently across automotive, industrial control, and consumer electronics channels
  • Bulk-Order Ready: Minimal footprint and low cost-per-unit make this an excellent addition to distributor inventory for OEM and aftermarket customers
  • Complementary Sales Opportunity: Pair with glass fuse assortments to create bundled kits that increase average order value
  • Reliable Margin: Durable design with minimal returns; flame-retardant housing adds perceived value justifying professional pricing

Technical Specifications

Specification Value
Fuse Type 5x20mm Glass Cylindrical
Maximum Current Rating 10A
Maximum Voltage 250V AC
Housing Material Flame-Retardant Plastic
Contact Material Silver-Plated Metal
Wire Insulation PVC (Red)
Configuration Inline with Screw-On Cap
Connection Type Direct Wire Leads

Closing Statement

The 5x20mm inline fuse holder is a dependable workhorse for circuit protection in compact installations. Its flame-retardant construction and silver-plated contacts deliver the reliability your customers expect, while the straightforward design keeps installation time and costs low. Stock this as a core item for bulk sales to automotive suppliers, industrial OEMs, and electronics manufacturers.
