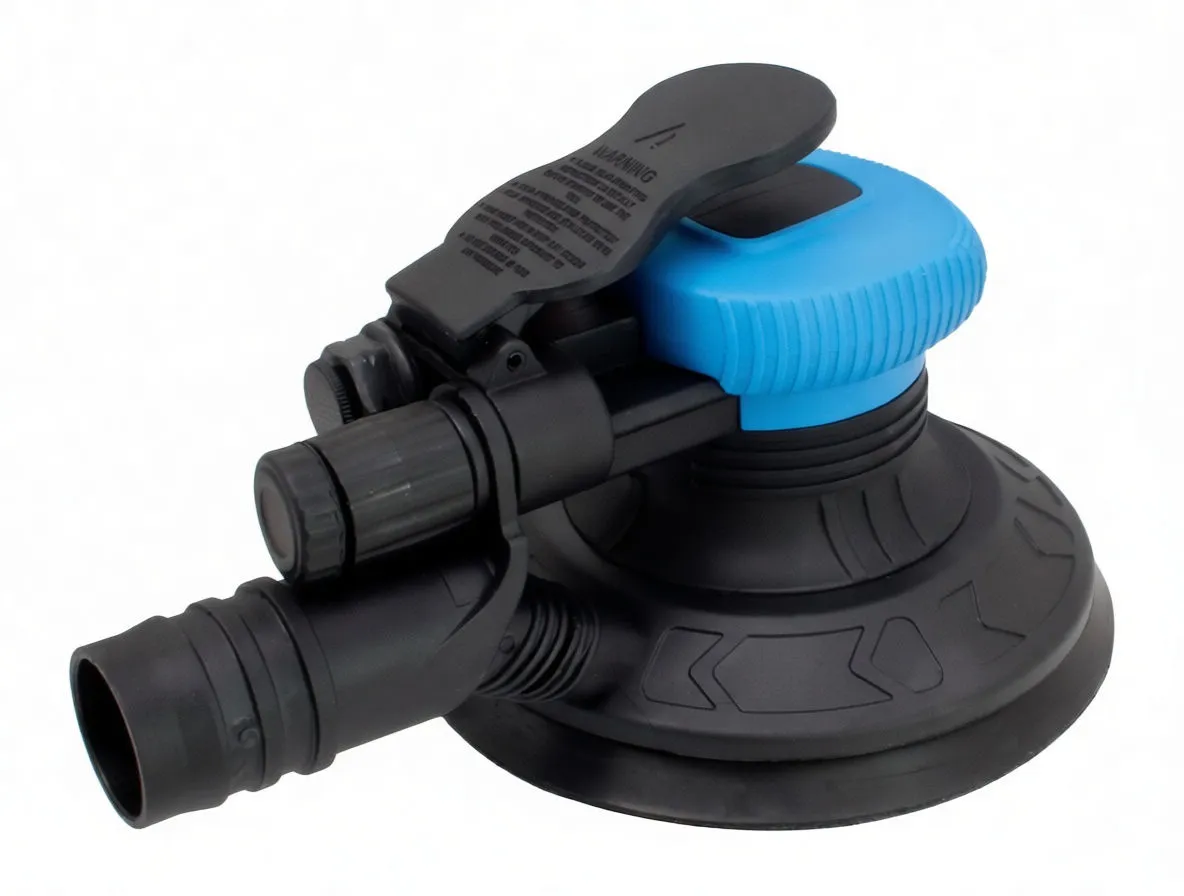

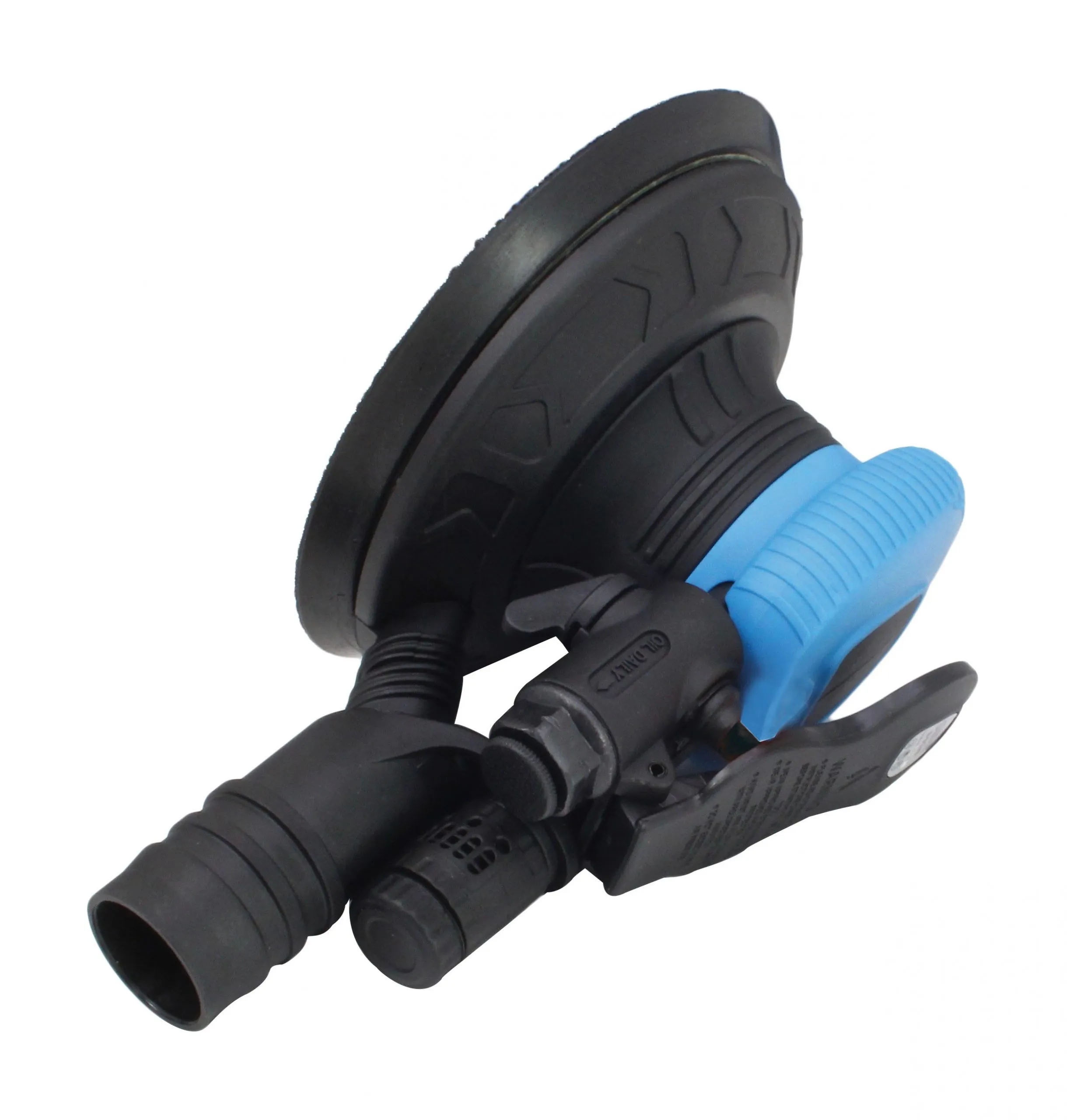

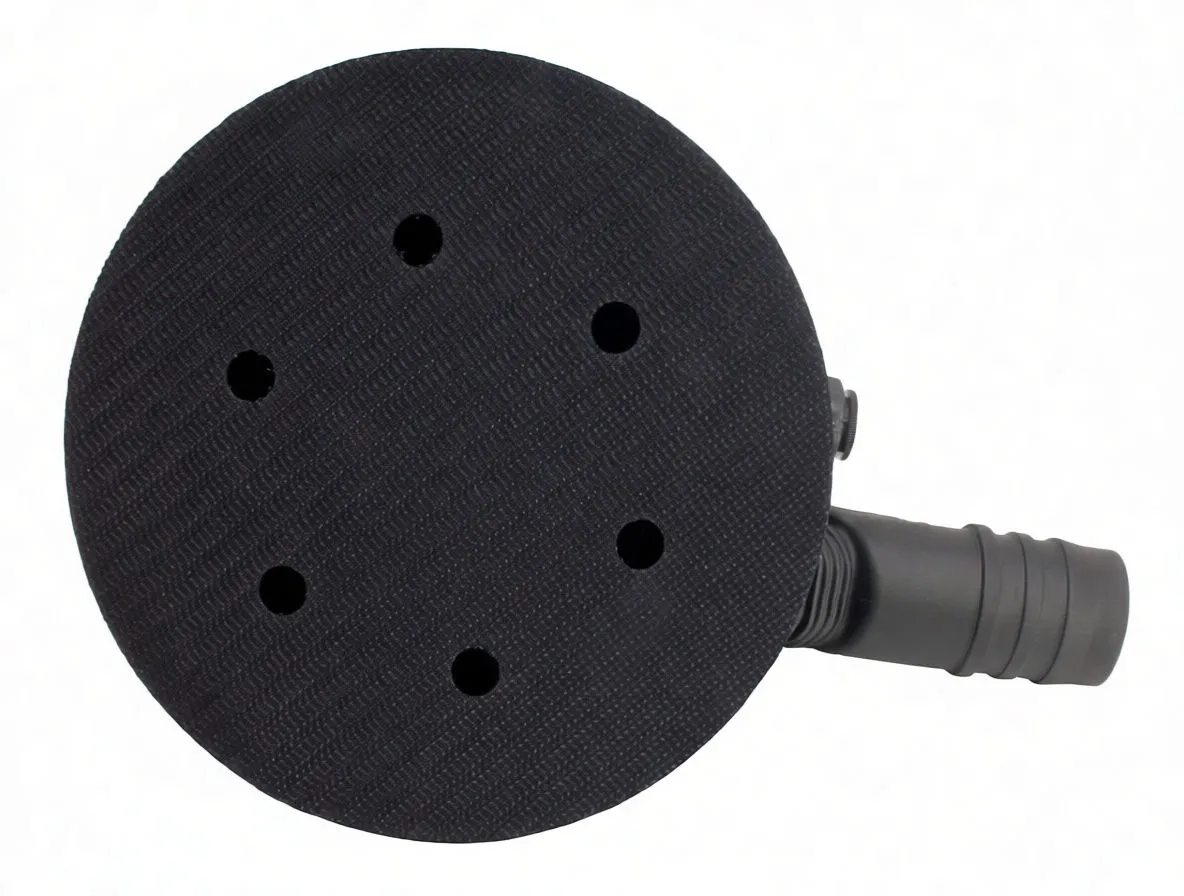

Front view of blue-and-black 6-inch central-vacuum air orbital sander with box, wrench and air fittingClose-up of round black hook-and-loop sanding pad and blue textured palm on orbital sander, showing six dust holesAngled side view showing air inlet/hose adapter, flow control knob and trigger lever on black-and-blue orbital sanderSide close-up of sander showing lever with warning text, blue grip ring, hose connector and CE labelBottom view of round sanding pad showing six dust extraction holes, textured hook-and-loop surface and hose adapter

6-Inch Central-Vacuum Air Orbital Sander, 10,500 RPM Dual-Action with Dust Extraction

Professional-grade pneumatic orbital sander with integrated central-vacuum dust collection, dual-action oscillation, and low vibration for finish work.

Request Quote

Description

6-Inch Central-Vacuum Air Orbital Sander

Brief Overview

This 6-inch central-vacuum orbital sander combines dual-action oscillation with integrated dust extraction to deliver clean, efficient sanding across automotive refinishing, woodworking, and industrial finishing applications. The tool connects directly to a central vacuum system, eliminating the need for portable dust collection and reducing airborne particulate on the shop floor. For shops looking to expand their pneumatic finishing arsenal, consider pairing this unit with smaller palm sanders for precision edge work or straight-line sanders for panel preparation.

Key Features

  • Dual-Action Oscillation: True orbital motion (5mm amplitude) combined with rotational movement delivers consistent scratch-free finishes on flat and contoured surfaces
  • Central-Vacuum Integration: Six suction holes on the hook-and-loop pad connect to any standard central vacuum system—no independent dust collector required
  • Oil-Free Motor: Clean pneumatic operation without internal lubrication contamination; ideal for high-finish applications where air quality matters
  • Soft Start Function: Smooth engagement prevents pad chatter and extends sanding pad life
  • Composite Housing: Lightweight yet durable construction reduces operator fatigue during extended use
  • Counterweight Balancing: Mass-tuned to the 150mm disc eliminates vibration patterns associated with unbalanced pads
  • Low Vibration Design: 6.3 m/s² vibration level meets ergonomic standards for extended work shifts
  • Pad Thread Standard: 5/16″-24 connection accepts industry-standard hook-and-loop discs; 1/4″ pneumatic inlet (NPT) fits most shop air systems

Business Advantages for Resellers

Shop Efficiency Gain: Central-vacuum connectivity eliminates purchasing, maintaining, and storing separate dust collection units—a significant cost savings pitch for multi-tool shops.

Recurring Revenue: Hook-and-loop sanding pads are consumable items with consistent replacement cycles. Positioning this sander drives pad inventory turnover.

Professional Market Positioning: Low noise (85 dB Lpa / 96 dB Lwa) and dust-free operation appeal to high-end automotive detailers and furniture refinishers who charge premium rates—your customers justify bulk orders through client pricing.

Pneumatic System Compatibility: Shops with existing air compressor infrastructure integrate this tool without additional equipment investment, reducing buyer hesitation.

Technical Specifications

Specification Value
Sanding Disc Diameter 150 mm (6 inches)
Oscillation Amplitude 5 mm
Motor Speed 10,500 RPM
Overall Length 220 mm
Weight 0.88 kg
Air Consumption 84 L/min
Vibration Level 6.3 m/s²
Noise Level (Sound Pressure) 85 dB Lpa
Noise Level (Sound Power) 96 dB Lwa
Pad Mounting Thread 5/16″-24
Air Inlet Thread 1/4″ NPT
Housing Material Composite polymer
Motor Type Oil-free pneumatic

Reseller Positioning

Position this sander to shops upgrading from portable dust collectors to centralized systems, or to high-volume refinishing operations where downtime for dust-bag changes cuts into billable hours. The dual-action orbital motion and central-vacuum integration make this a specialist tool rather than a general-purpose sander—focus your pitch on quality-conscious buyers in automotive, cabinetry, and boat refinishing markets where surface finish is non-negotiable and profit margins support tool investment.

Stock this unit alongside replacement sanding pads, pneumatic regulators, and vacuum-hose adapters to capture the full accessory margin and position your company as a complete dust-control solution provider.
