Product Description

Brief Overview

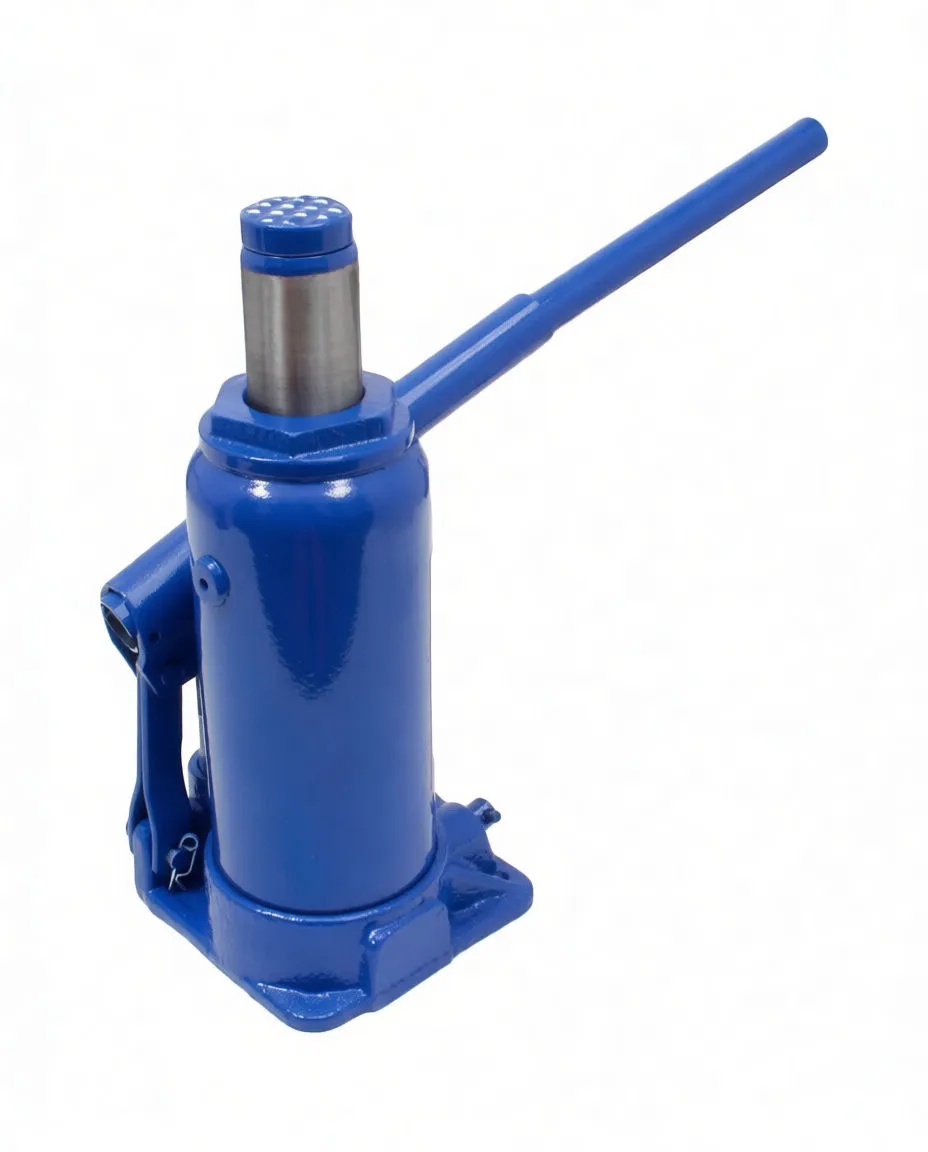

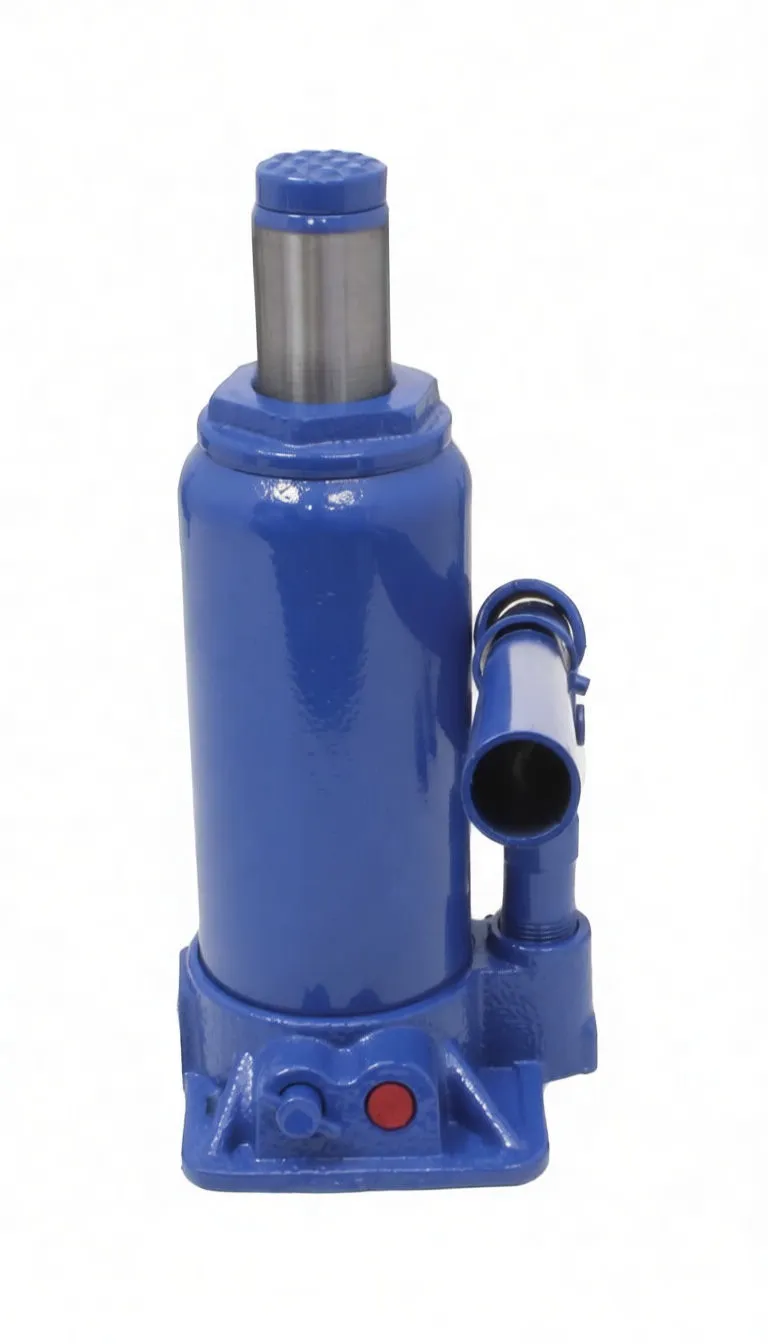

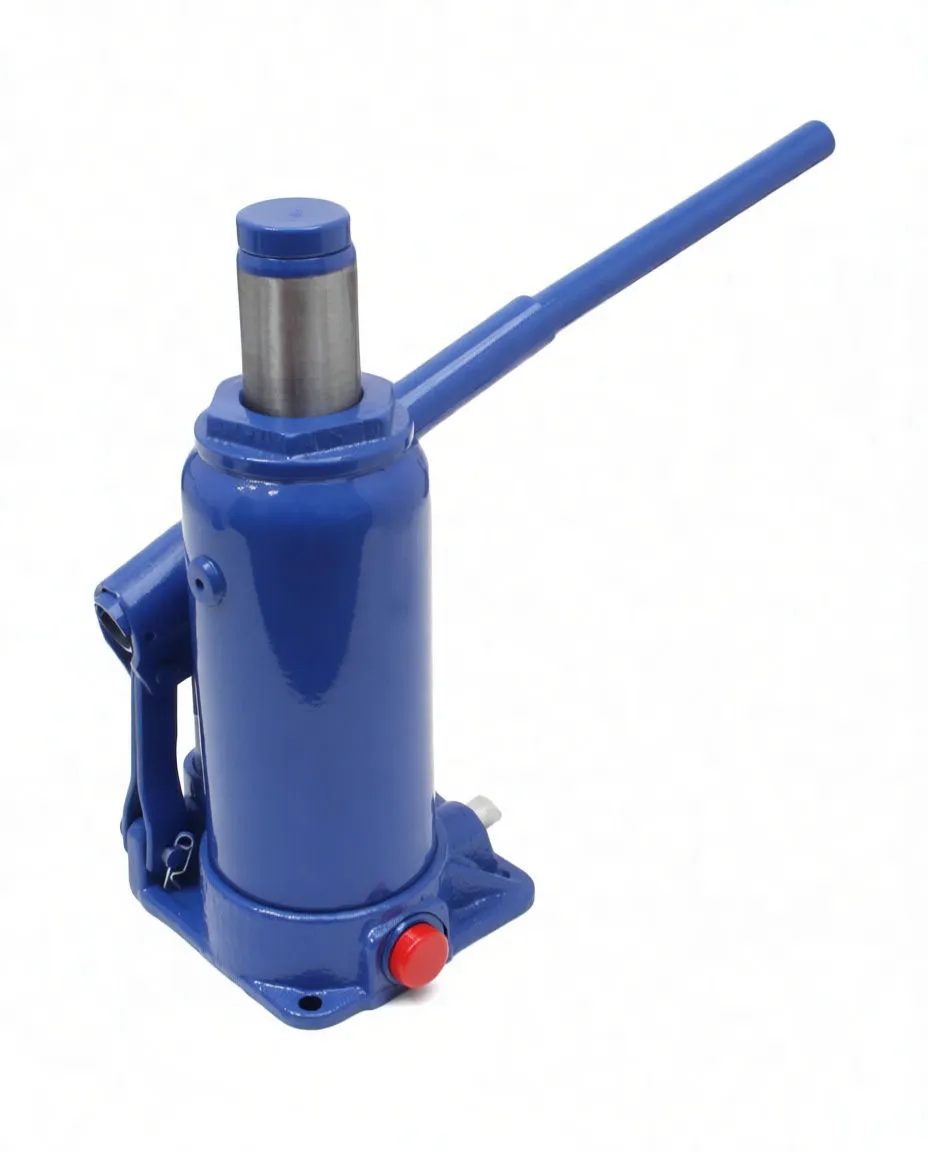

This 6-ton hydraulic bottle jack delivers reliable lifting capacity for standard automotive work across diverse vehicle platforms. Built with precision-engineered hydraulic components and a compact footprint, it's an essential addition to any professional workshop inventory. For shops requiring additional lifting capability, consider pairing this with a higher-capacity 10-ton jack or a mobile gearbox lifting solution to cover the full spectrum of vehicle maintenance tasks.

Key Features

• Controlled Descent: Precision release valve prevents sudden piston drop, ensuring operator safety and controlled load lowering
• Adjustable Saddle Height: Built-in piston screw allows fine-tuning of lift height to accommodate vehicles with varying suspension geometry
• High-Performance Hydraulic System: Premium-grade control valves meter hydraulic fluid flow for smooth, responsive operation
• Compact, Portable Design: Lightweight at 3.77 kg with small overall dimensions—stores easily in workshop corners or vehicle trunks
• Reinforced Cast Base: Ribbed iron construction provides stable, non-slip foundation under load
• Detachable Pump Handle: Two-piece handle design improves maneuverability in tight spaces
• Safety-First Engineering: Integrated safety valve protects against overload conditions; clearly marked load rating prevents misuse

Business Advantages

Stock Confidence: The 6-ton capacity covers the majority of compact and mid-size vehicles, making it a high-turnover SKU for automotive service centers and independent mechanics.

Competitive Margin: Affordable entry-level lifting solution with strong resale appeal to budget-conscious shop operators and DIY enthusiasts upgrading from scissor jacks.

Redundancy & Cross-Sell Opportunity: Customers often purchase multiple units for different work bays. Pair with higher-capacity models to maximize transaction value.

Durability & Warranty Support: Robust hydraulic engineering and straightforward design minimize warranty claims while building customer loyalty through reliable performance.

Technical Specifications

Specification	Value
Lift Capacity	6 tons (60 kN)
Minimum Height	200 mm
Maximum Height	385 mm
Lift Stroke	125 mm
Piston Adjustment Range	60 mm
Weight	3.77 kg
Finish	Blue enamel with chrome-plated piston rod
Base Type	Cast iron with reinforcing ribs
Handle Configuration	Two-piece detachable pump lever
Release Mechanism	Precision ball valve with manual knob control
Safety Features	Integral overload relief valve; controlled descent function

Real-World Application Notes

This 6-ton jack is purpose-built for routine automotive service: tire changes, brake work, suspension inspection, and fluid servicing on standard sedans, coupes, and light SUVs. Its modest lift height (200–385 mm) suits vehicles on standard suspension; trucks with lifted or air suspensions may require the 10-ton capacity model for proper positioning.

The adjustable piston screw is not a fine-tuning device but rather a height-matching feature—it compensates for different vehicle ride heights so the saddle contacts the designated lift point cleanly without side-loading.

Why Resellers Choose This Jack

Shops stock multiple units because the 6-ton size is non-redundant—it doesn't overlap heavily with floor jacks or pneumatic hoists. Low acquisition cost + high reliability = fast inventory turns and minimal return requests. The controlled lowering feature is a genuine safety plus that differentiates it from cheaper alternatives and justifies a modest retail premium.

---

Critical Safety Reminder for Resale: Always include the load-rating warning with each unit. Exceeding 6 tons voids manufacturer responsibility and creates liability exposure for your business.
