60A MIDI Bolt-Down Fuse

Brief Overview

This 60A MIDI fuse is a critical component for protecting mid-to-high amperage electrical circuits in automotive, agricultural, and industrial applications. The bolt-down lug design ensures secure, vibration-resistant mounting in fuse boxes, distribution panels, and power distribution systems. Available in a complete range from lighter 30A protection to heavy-duty 200A capacity, these fuses allow you to stock a full circuit protection lineup for your customers.

Key Features

• 60A Rated Current – Ideal for main power feeds, starter circuits, and high-load auxiliary systems
• 32V DC Rated – Suitable for 12V and 24V vehicle electrical systems with safety margin

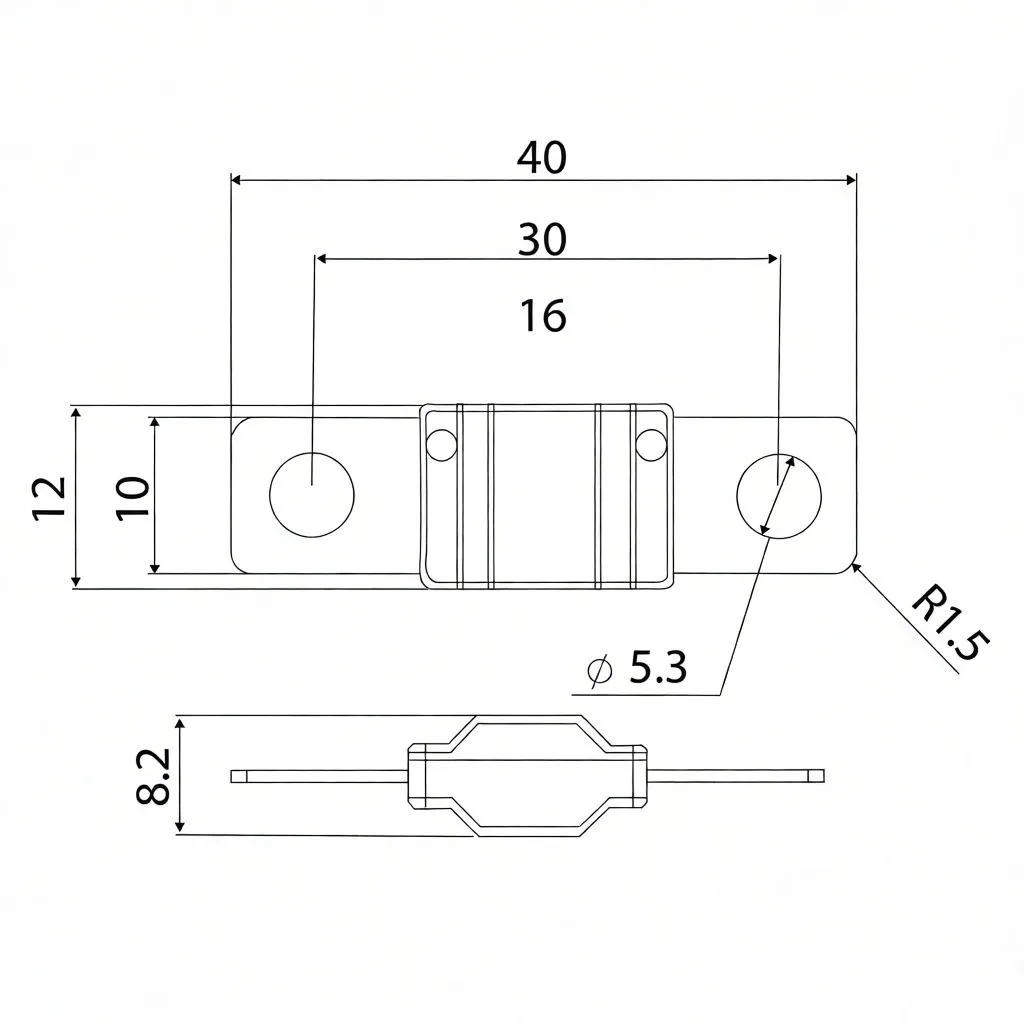

• Bolt-Down Lug Terminals – M5 screw mounting with 5.3mm holes, 30mm hole spacing for secure installation
• Color-Coded Yellow – Instant visual identification of amperage rating
• MIDI Form Factor – Compact 40mm length × 12mm width × 8.2mm height; fits standard fuse box slots
• Industrial-Grade Construction – Molded plastic insulated body with plated metal terminals; designed for harsh operating environments

Business Advantages

For Distributors & Resellers:

• High-Volume Demand – MIDI fuses are the standard in automotive electrical systems; this amperage is particularly common in truck and commercial vehicle circuits
• Consumable Revenue Stream – Fuses are replacement items with recurring purchase cycles
• Complete Range Available – Stock multiple amperage ratings (30A through 200A) to serve diverse customer base without special orders
• Margin-Friendly – Low unit cost with consistent markup opportunity across all amperage variants
• Minimal Storage Footprint – Compact dimensions allow high-unit density in standard shelving

Technical Specifications

Specification	Value
Rated Current	60A
Voltage Rating	32V DC
Fuse Type	MIDI Bolt-Down
Length	40 mm
Width	12 mm
Height	8.2 mm
Terminal Hole Diameter	Ø 5.3 mm
Hole Spacing	30 mm (center-to-center)
Mounting Hardware	M5 Screw
Color	Yellow (60A identifier)
Terminal Material	Plated metal (corrosion-resistant)
Insulation Material	Molded polymer

Application Context

Primary Use Cases:

• Main power distribution in trucks, vans, and commercial vehicles
• Starter motor circuit protection
• Battery isolator and distribution panel circuits
• Agricultural equipment electrical systems
• Industrial control panel power feeds
• Replacement fuse for OEM applications

Why 60A? The 60A rating bridges medium-to-high load circuits. It protects systems that draw sustained currents in the 40–60A range (e.g., diesel starter motors, winches, high-capacity alternators) while allowing brief inrush currents without nuisance trips.

Value Proposition for Your Customers

Your end-users benefit from:

• Proven Reliability – MIDI fuses are an established standard with decades of field performance
• Safety Compliance – Protects circuits against overcurrent and short-circuit faults, reducing fire and equipment damage risk
• Easy Replacement – Bolt-down terminals eliminate soldering; simple M5 screw installation reduces downtime
• Cost Predictability – Inexpensive insurance against catastrophic electrical failure

Call to Action

Stock the full MIDI fuse range to position yourself as a one-stop electrical protection supplier. This 60A rating is a high-turnover item in any automotive, agricultural, or industrial distribution channel. Pair with complementary amperage options to maximize shelf space efficiency and customer satisfaction.
