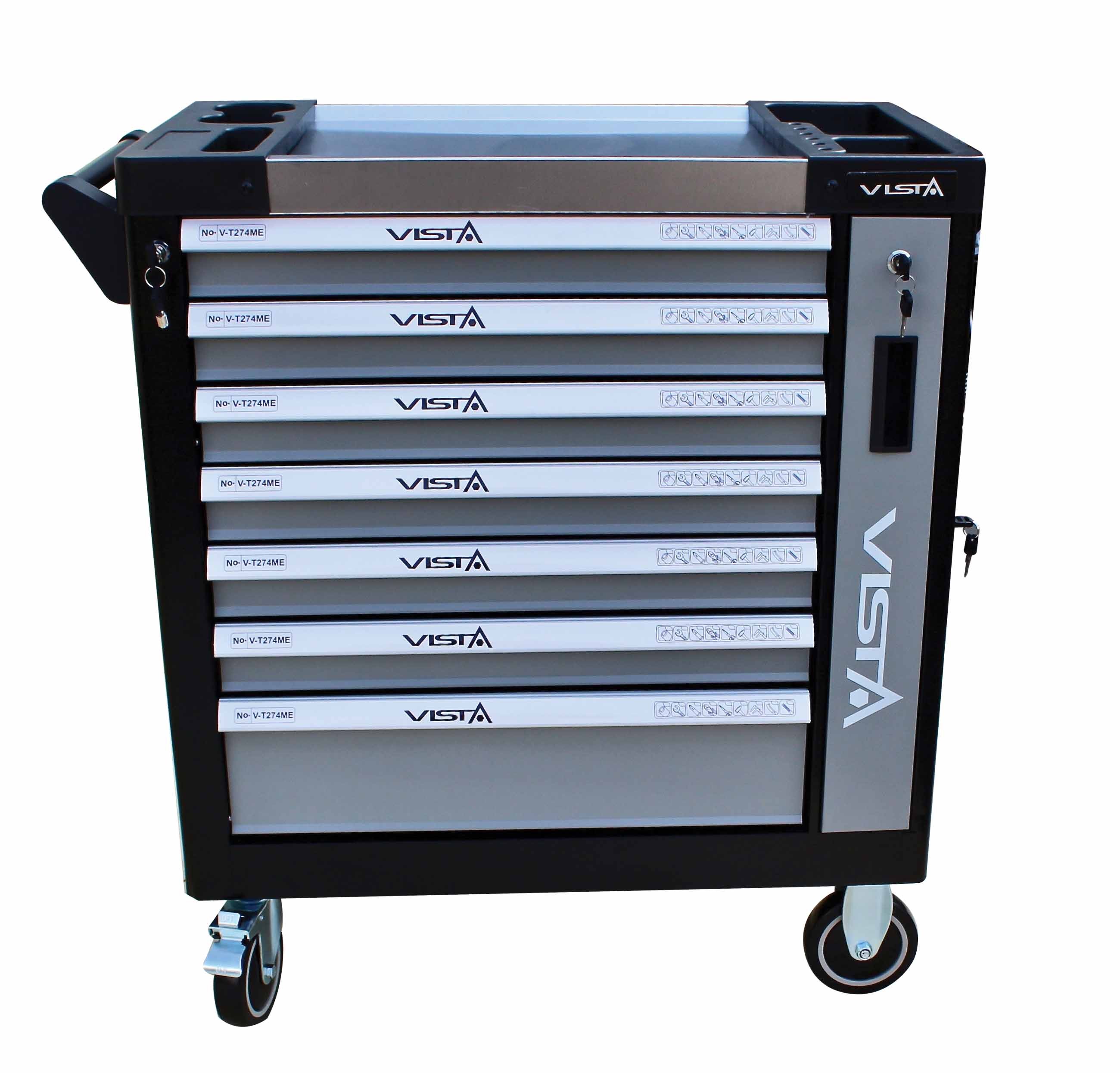

7-Drawer Mobile Tool Cabinet with Stainless Steel Top, 274-Piece Tool Set

Brief Overview

This is a complete mobile workstation solution for professional mechanics, technicians, and maintenance teams. The cabinet combines robust storage capacity with a comprehensive hand-tool collection, delivered ready to deploy on the shop floor. Ideal for resellers targeting independent repair shops, fleet maintenance operations, and automotive service centers. If your clients need additional capacity, a 12-drawer workshop cabinet is also available for larger operations.

Key Features

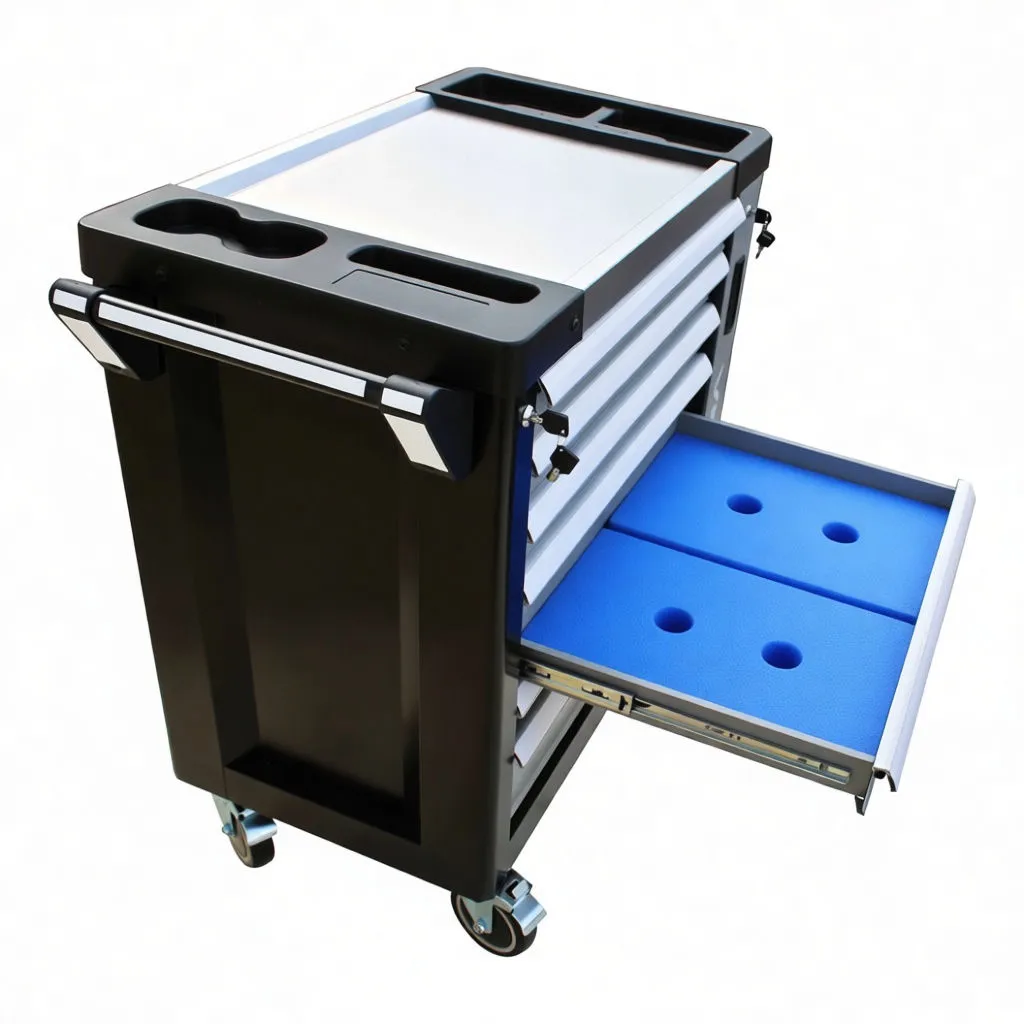

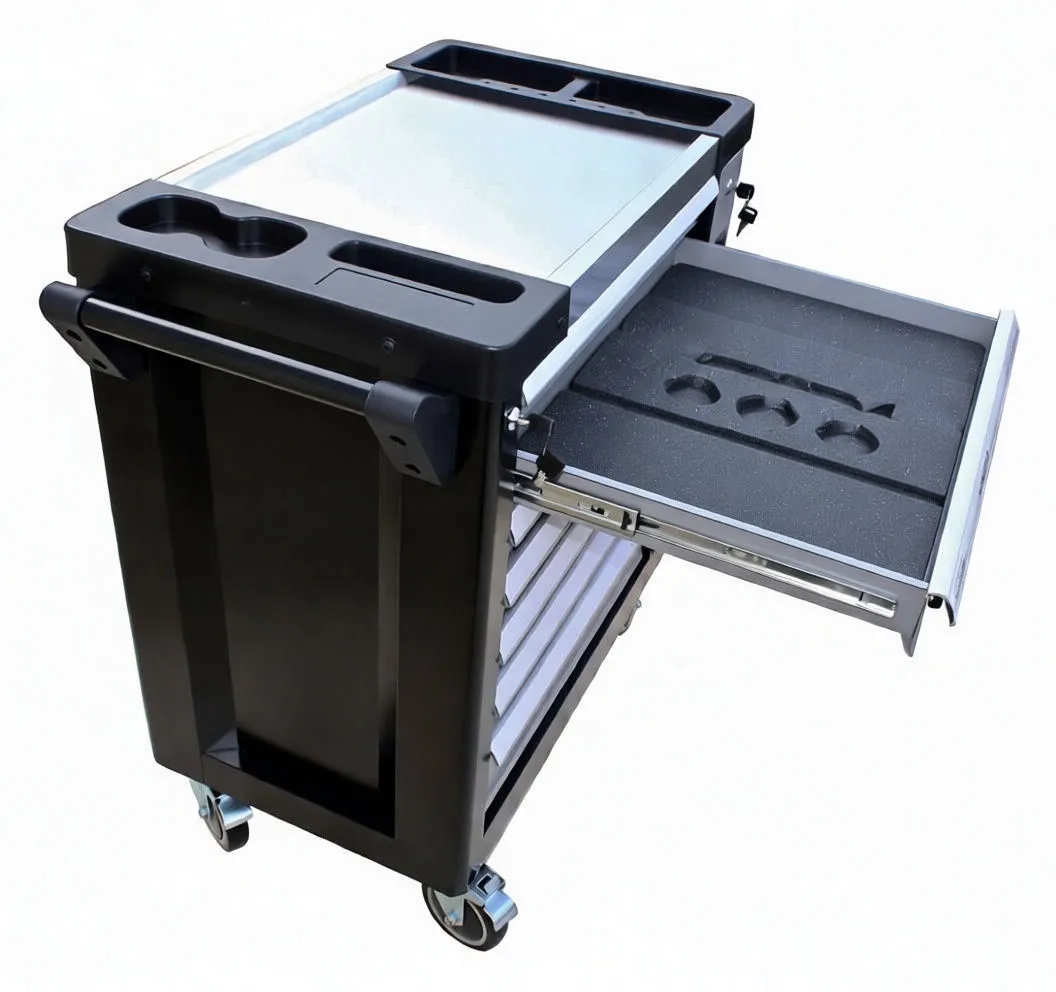

• 7 large drawers with stainless steel work surface and molded top tray with recessed compartments

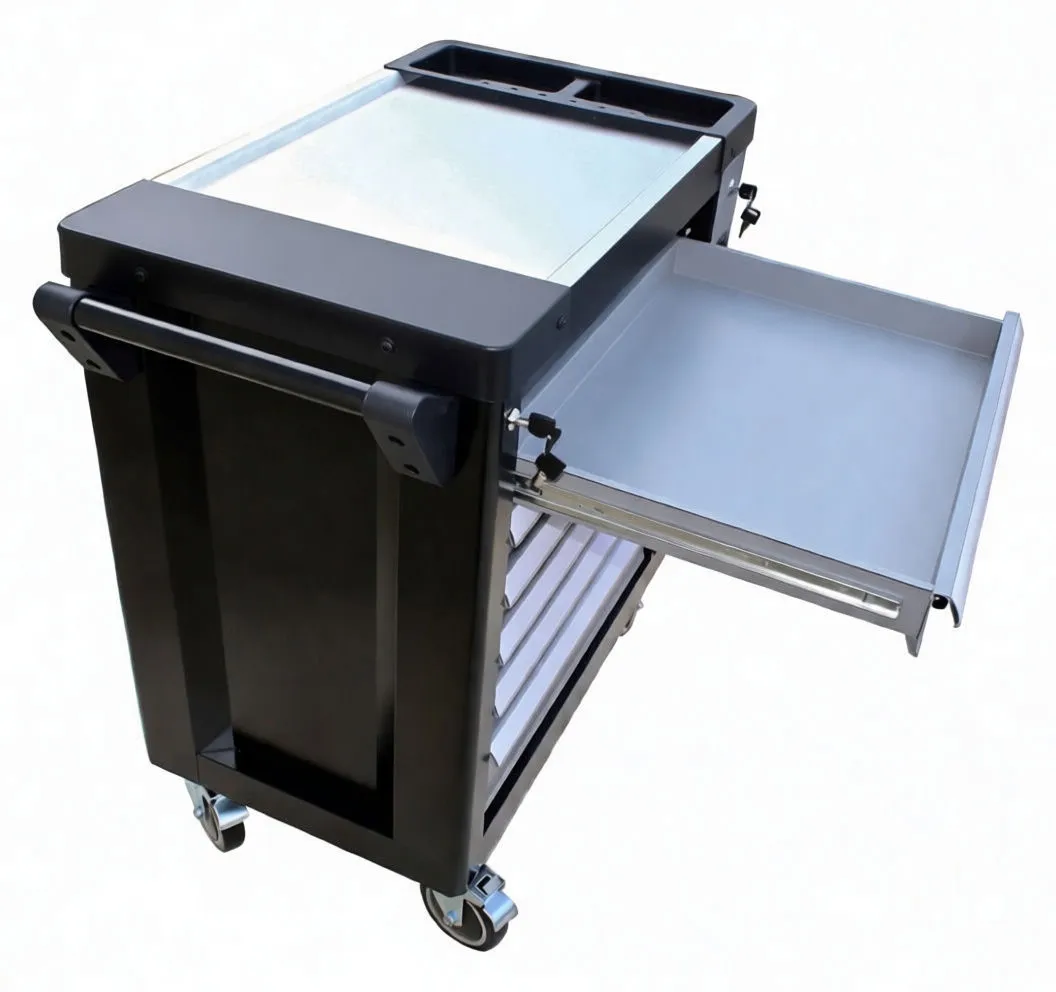

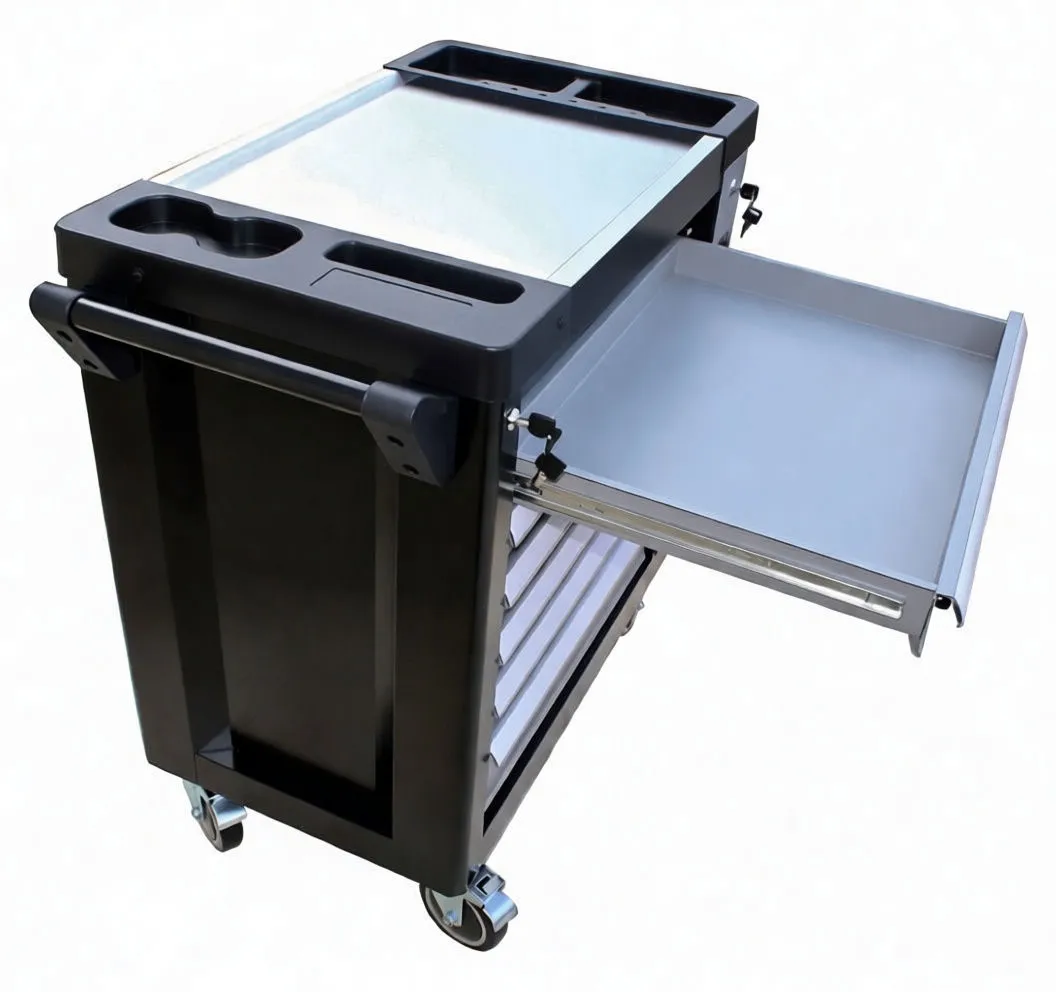

• Ball-bearing metal drawer slides on all drawers with smooth, reliable operation
• Central locking system with two keys, plus independent key-lock for the pull-out side compartment

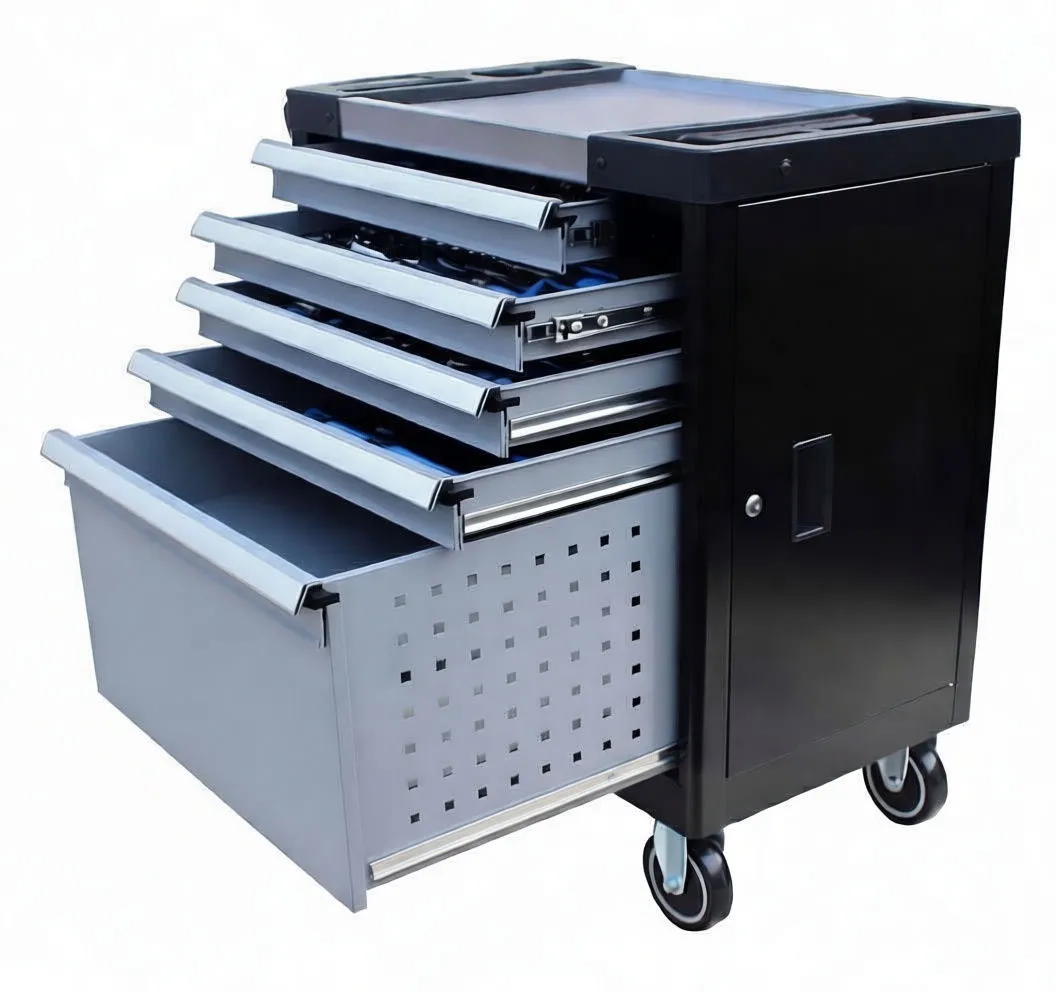

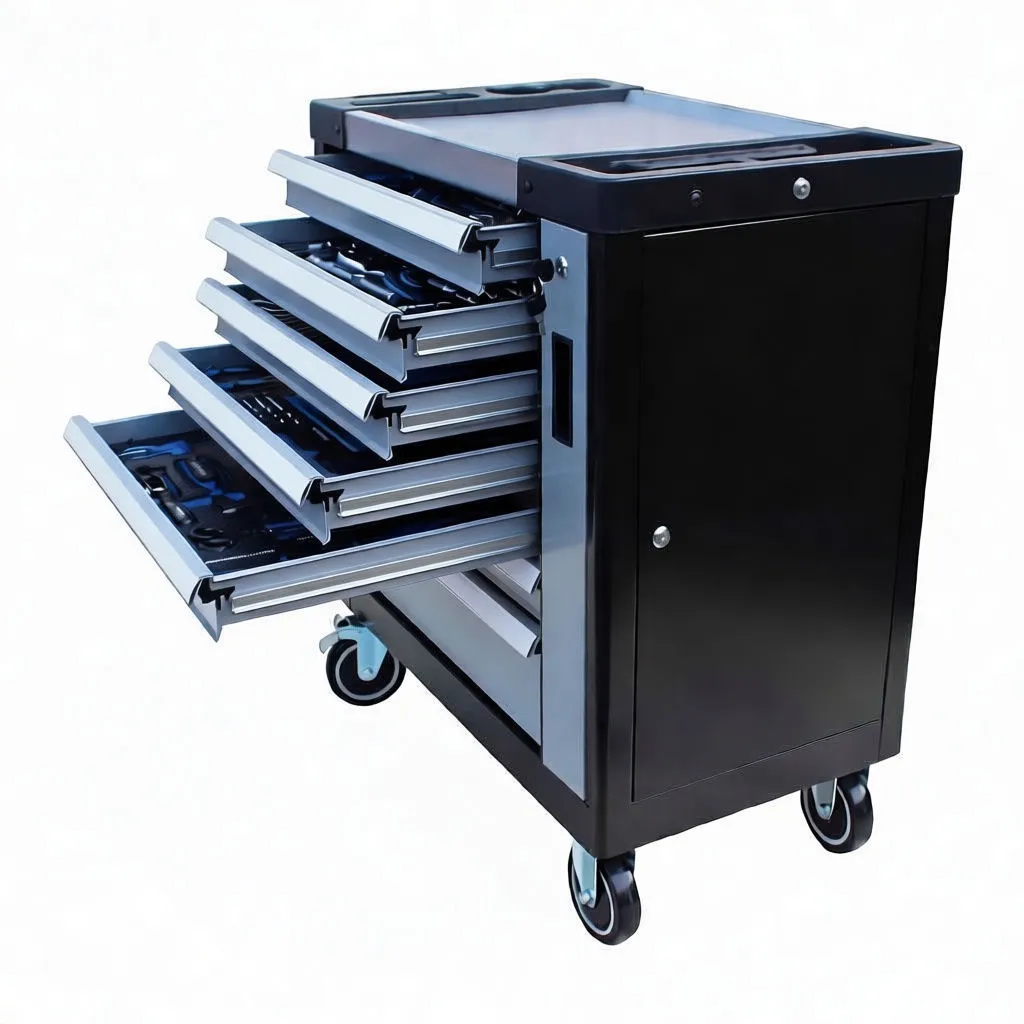

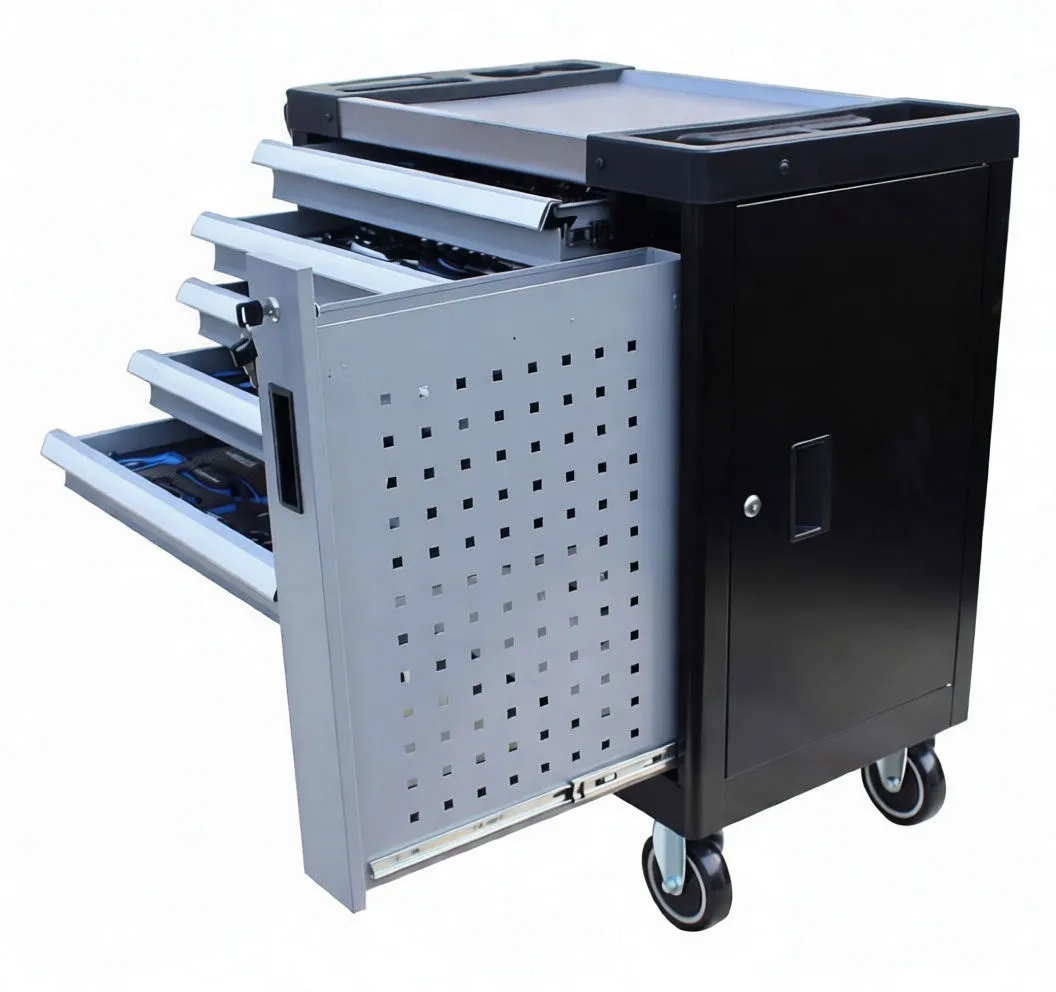

• Pull-out perforated panel storage on right side (pegboard-style) for hook-mounted tool organization

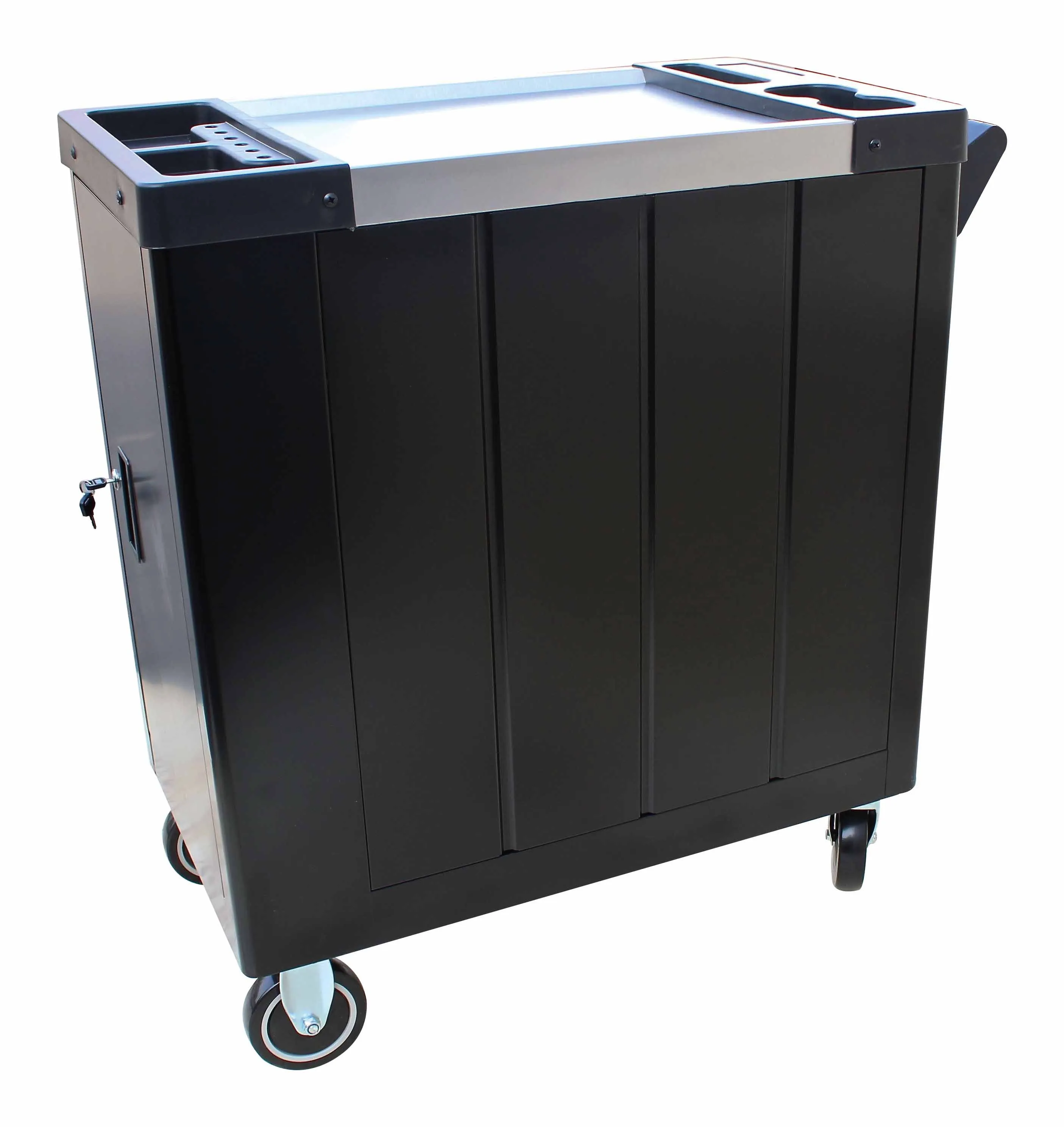

• Heavy-duty mobile base: 5-inch wheels (two fixed, two swivel with brake) in polypropylene for durability
• Durable construction: 0.7 mm sheet metal cabinet with reinforced hinges and ergonomic side handle
• 274-piece hand-tool assortment pre-organized in custom foam inserts across all drawers

Drawer Organization & Tool Content

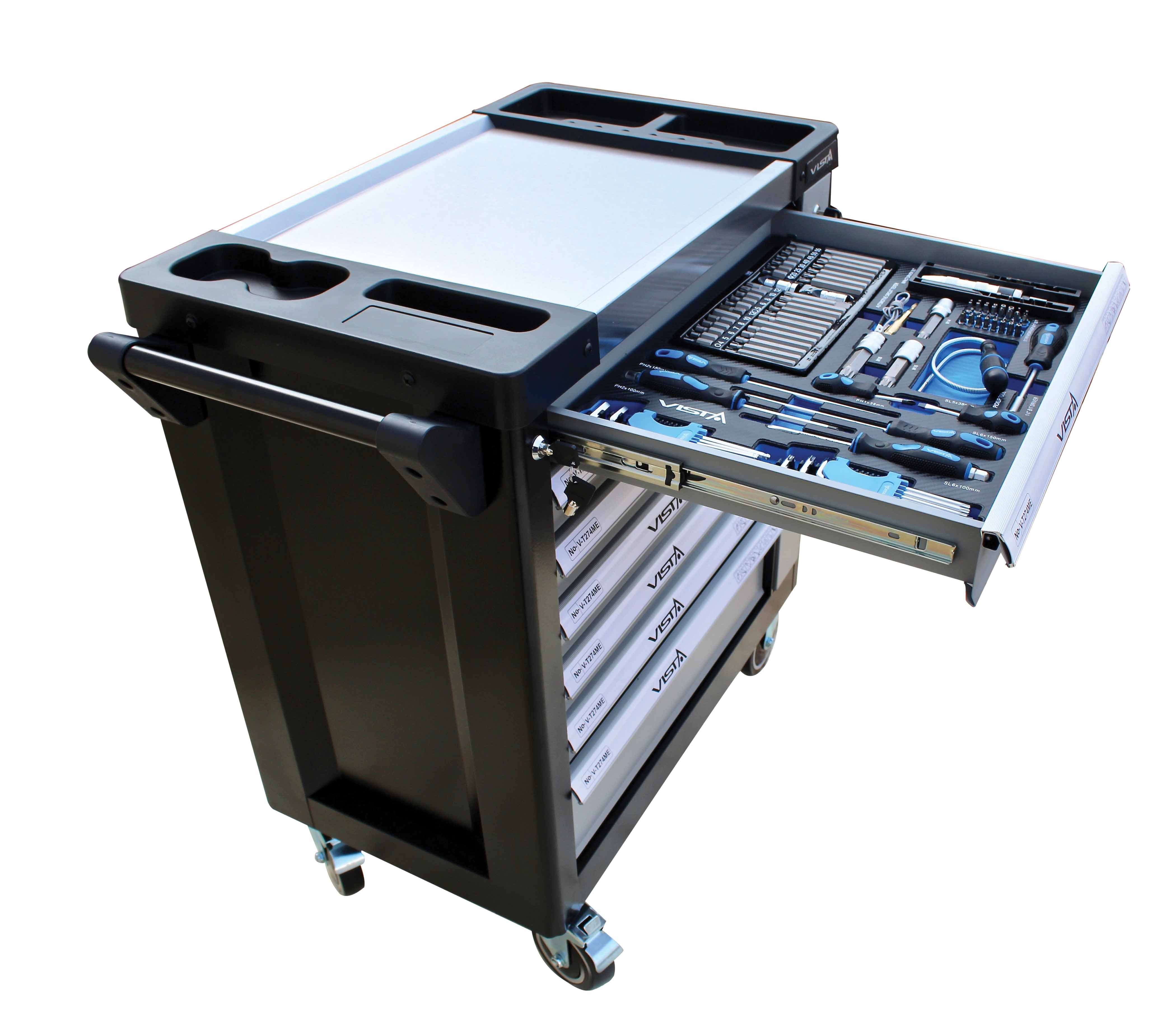

Drawer 1 – Screwdrivers, Bits & Small Tools (117 pcs)

• Hex L-keys with ball: 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10 mm
• Torx L-keys with hole: T10–T50 (full range)
• Flat-blade and Phillips screwdrivers (multiple sizes and handle types, including striking variants)
• 40-piece bit set with adapters (hex, Torx, XZN in both 30mm and 75mm lengths; 3/8" and 1/2" adapters)
• Magnetic pick-up tool (400 mm, 6.5 mm head)
• 1/4" bit driver and impact driver with bits
• Cable tester
• 1/2" XZN socket wrenches (M14, M16, M18 – 100 mm long)

Drawer 2 – Socket Wrenches & Ratchets (70 pcs)

• Two 72-tooth ratchet wrenches (1/4" and 1/2" drives)
• Extensions: 1/4" (52 mm, 100 mm), 1/2" (125 mm, 250 mm, 450 mm)
• Sliding handles and flexible extensions
• Joints and adapters (1/4", 1/2", 1/2"×3/8", 1/2"×3/4")
• Spark plug sockets: 3/8" (14 mm), 1/2" (16, 21 mm)
• E-Torx E24 long socket
• 1/4" short and long sockets: 6–14 mm (complete range)
• 1/2" short sockets: 8–32 mm (17 sizes)
• 1/2" long sockets: 13–24 mm (8 sizes)
• E-Torx short sockets: 1/4" (E6, E7, E8), 1/2" (E10–E24)

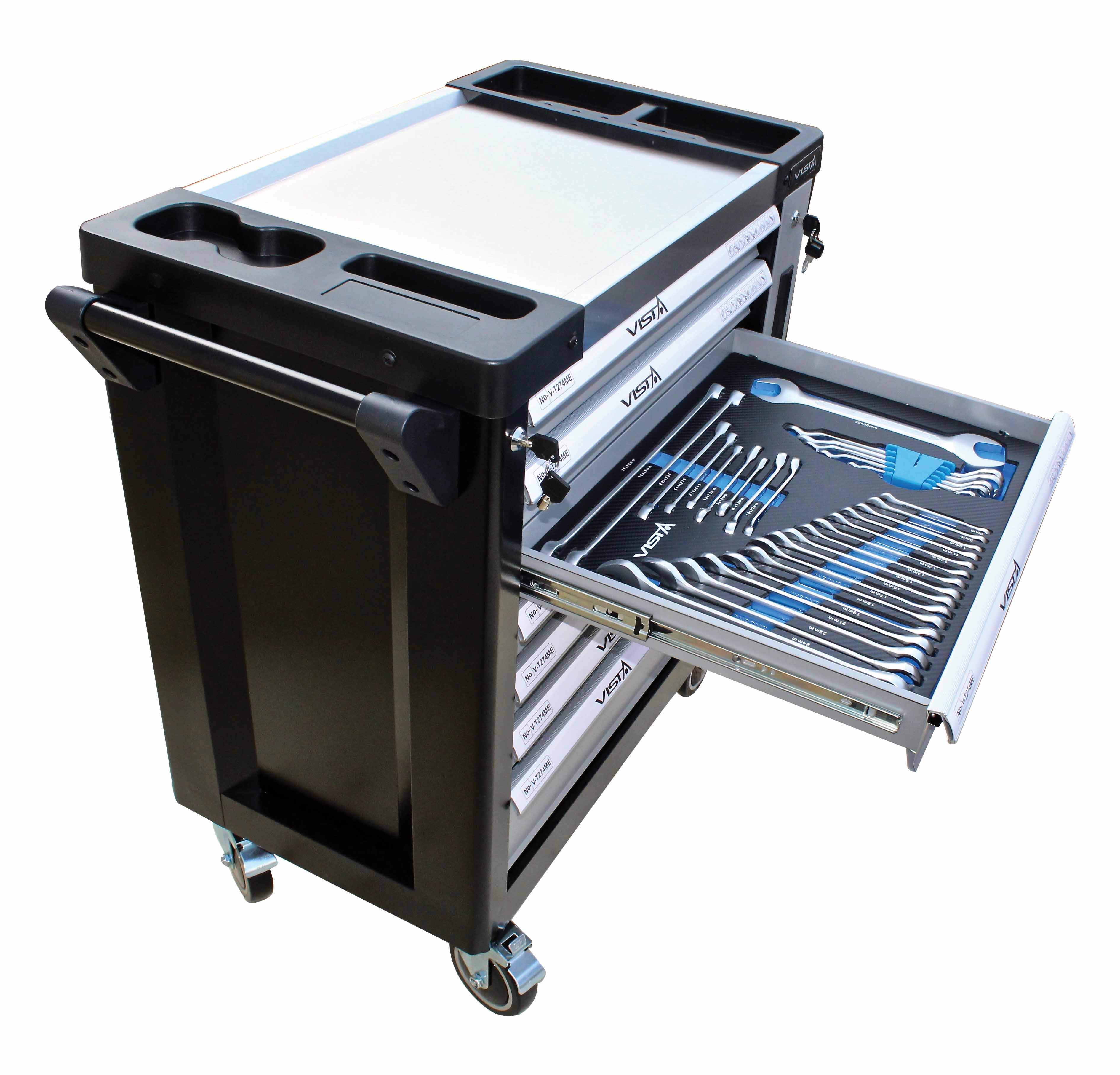

Drawer 3 – Combination & Ring Wrenches (32 pcs)

• Open-end wrenches: 8–27 mm (16 sizes)
• Flat-end brake wrench: 32×36 mm
• Brake line wrenches: 10×12 mm, 11×13 mm
• Ratchet ring wrenches: 8×10 mm, 12×13 mm
• E-Torx ring keys: E10×E12, E14×E18, E20×E24
• Long ring wrenches for tensioners: 16×18 mm, 17×19 mm
• Offset ring wrenches: multiple sizes (8×10 to 17×19 mm)

Drawer 4 – Files, Drills, Punches & Specialized Tools (42 pcs)

• Files: flat, half-round, round, triangular (310 mm)
• HSS metal drills: 4, 5, 6, 8, 10 mm
• 150 mm caliper
• Wire brush
• 500 g hammer
• Chisels: 14, 16, 20 mm
• Punches: 3, 4, 5 mm; center punch (4 mm)
• Standard screwdriver set
• M3–M12 tap and die set
• 1/2" stud and nut extractor (sizes 8.5–19 mm)

Drawer 5 – Hand Pliers & Gripping Tools (14 pcs)

• Front pliers (210 mm)
• Long straight pliers (180 mm)
• Universal pliers (180 mm)
• Side cutters (180 mm)
• Adjustable wrench (250 mm)
• Cable-tie pliers
• Scissors (145 mm)
• Straight and bent internal/external circlip pliers (150 mm)
• Bent internal circlip pliers with 90° angle for brake work
• Morse pliers (220 mm)

Drawers 6 & 7 – Additional Storage Foam-lined compartments ready for client-specific tool additions or consumable organization.

Business Advantages for Resellers

• Complete package reduces client barriers to entry: No need to assemble multiple individual tool sets or sourcing tool organizers separately.
• High perceived value: 274 tools in a professionally finished cabinet represent strong margin potential when positioned as a complete shop solution.
• Mobility & flexibility: The 5-inch wheeled base appeals to shops with limited fixed workbench space or multi-location operations.
• Durable cabinet construction: 0.7 mm sheet metal, ball-bearing slides, and central locking system ensure long-term durability and customer retention.
• Expandable system: Clients can upgrade or expand with foam tool tray inserts or complementary storage solutions.
• Ready-to-stock format: Arrive pre-assembled with organized foam inserts—minimal preparation before resale.

Technical Specifications

Specification	Value
Cabinet Dimensions (without wheels)	770 × 460 × 740 mm
Dimensions with wheels	770 × 460 × 895 mm
Large drawer dimensions (1 pc)	535 × 395 × 130 mm
Small drawer dimensions (6 pcs)	535 × 395 × 60 mm
Foam insert dimensions (7 sets)	525 × 390 × 25 mm
Sheet metal thickness	0.7 mm
Drawer slides	Ball-bearing metal guides
Wheel size	5 inches
Wheel configuration	2 fixed, 2 swivel with brake
Wheel material	Polypropylene (PP)
Work surface	Stainless steel top tray with compartments
Locking system	Central lock (2 keys) + side compartment key lock
Side storage	Perforated pull-out panel (pegboard-style)
Handle style	Ergonomic side push handle
Tool count	274 pieces total
Number of drawers	7 (1 large, 6 standard-depth)

Applications

• Independent automotive repair shops: Full-service facilities need organized, mobile tool storage for multiple work bays.
• Fleet maintenance operations: Rolling carts enable tool mobility across service lines and reduce downtime.
• Diesel and heavy equipment service: The deep socket and wrench range supports commercial vehicle maintenance.
• Manufacturing and plant maintenance: General-purpose hand-tool coverage for multi-trade maintenance teams.
• Technical training centers: Pre-stocked cabinet reduces onboarding friction for apprentices and technicians.

Why This Cabinet Delivers Value

The combination of professional-grade storage hardware (ball-bearing slides, central locking, heavy-duty wheels) with a substantive 274-piece tool collection creates a turnkey solution that shops can deploy immediately. The stainless steel top surface resists corrosion and cleaning damage, extending cabinet life in harsh shop environments. The perforated side panel offers flexibility for client-specific tool organization without requiring cabinet modification.

For resellers, this cabinet commands strong margins while delivering clear ROI for the customer—fewer separate purchases, faster shop readiness, and reduced tool loss due to organized storage and locking mechanisms.

---

Ready to stock this solution? Bulk orders qualify for volume pricing. Contact our distribution team for wholesale terms.
