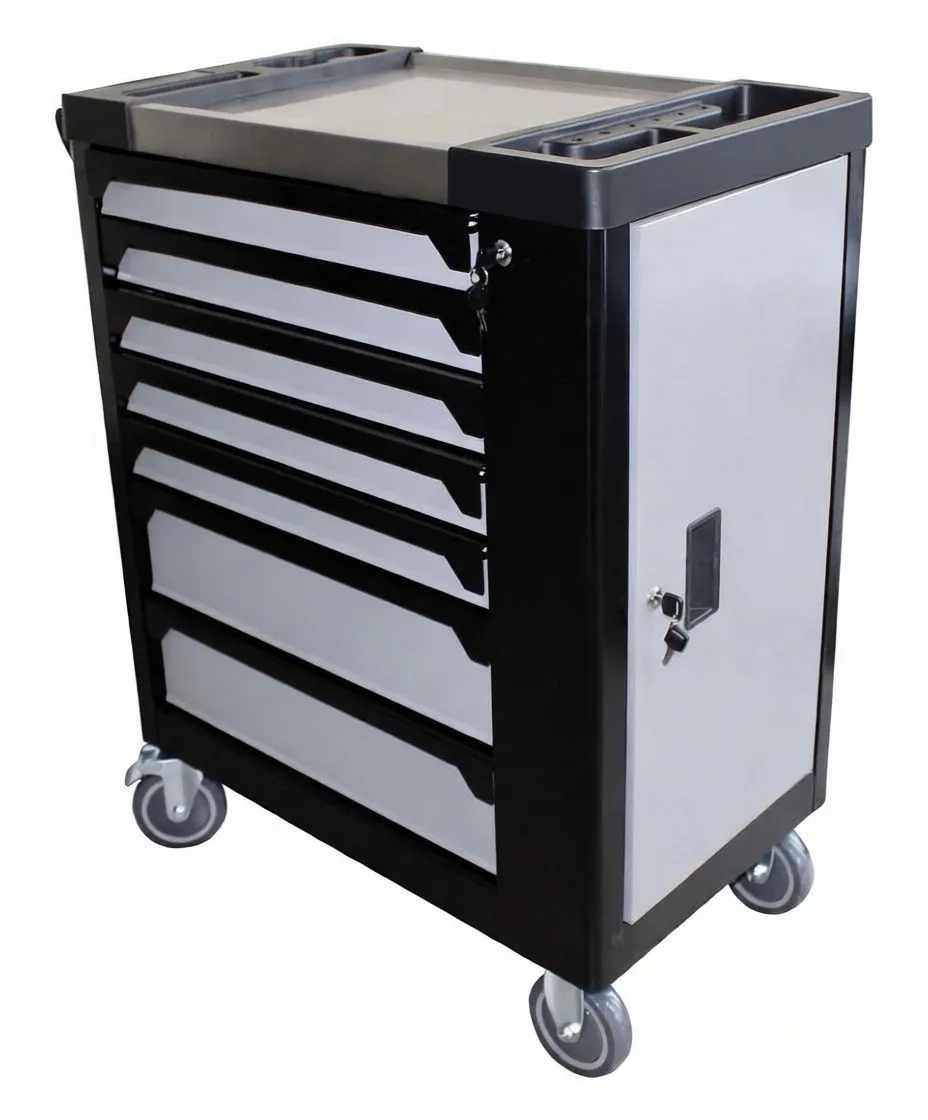

7-Drawer Mobile Tool Cabinet with Stainless Steel Top and 484-Piece Tool Set

Brief Overview

This is a complete, ready-to-deploy tool storage and accessory solution designed for professional shops, service centers, and resellers who need to move inventory quickly and reduce SKU complexity. The cabinet combines robust storage architecture with a comprehensive pre-assembled tool kit covering socket work, screwdriver applications, wrenches, pliers, precision bits, and specialized accessories.

Unlike purchasing storage and tools separately, this unit arrives configured and ready for immediate resale or workshop deployment. If you're managing a smaller operation or need additional capacity, consider pairing this with an expanded 10-drawer cabinet system or upgrading to a 12-drawer configuration with 356 pieces for larger inventory requirements.

---

Key Features

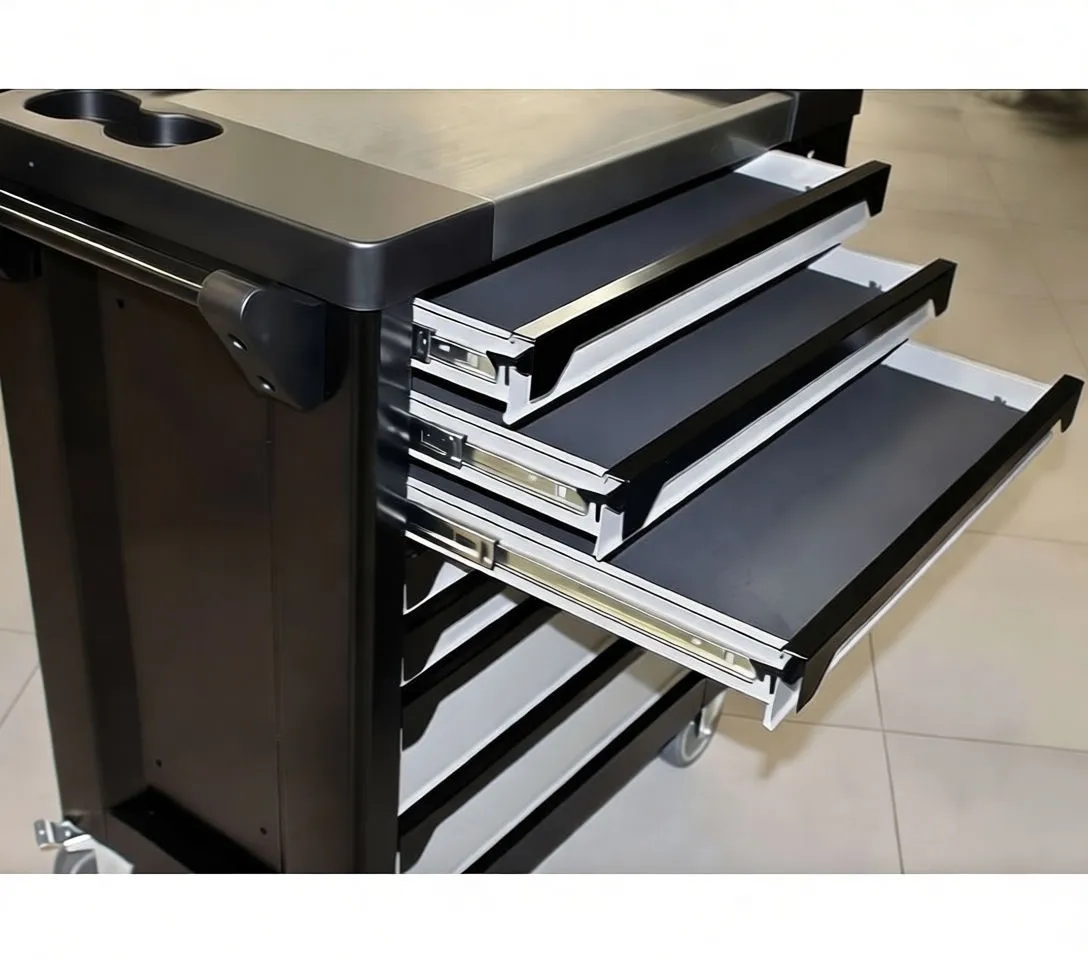

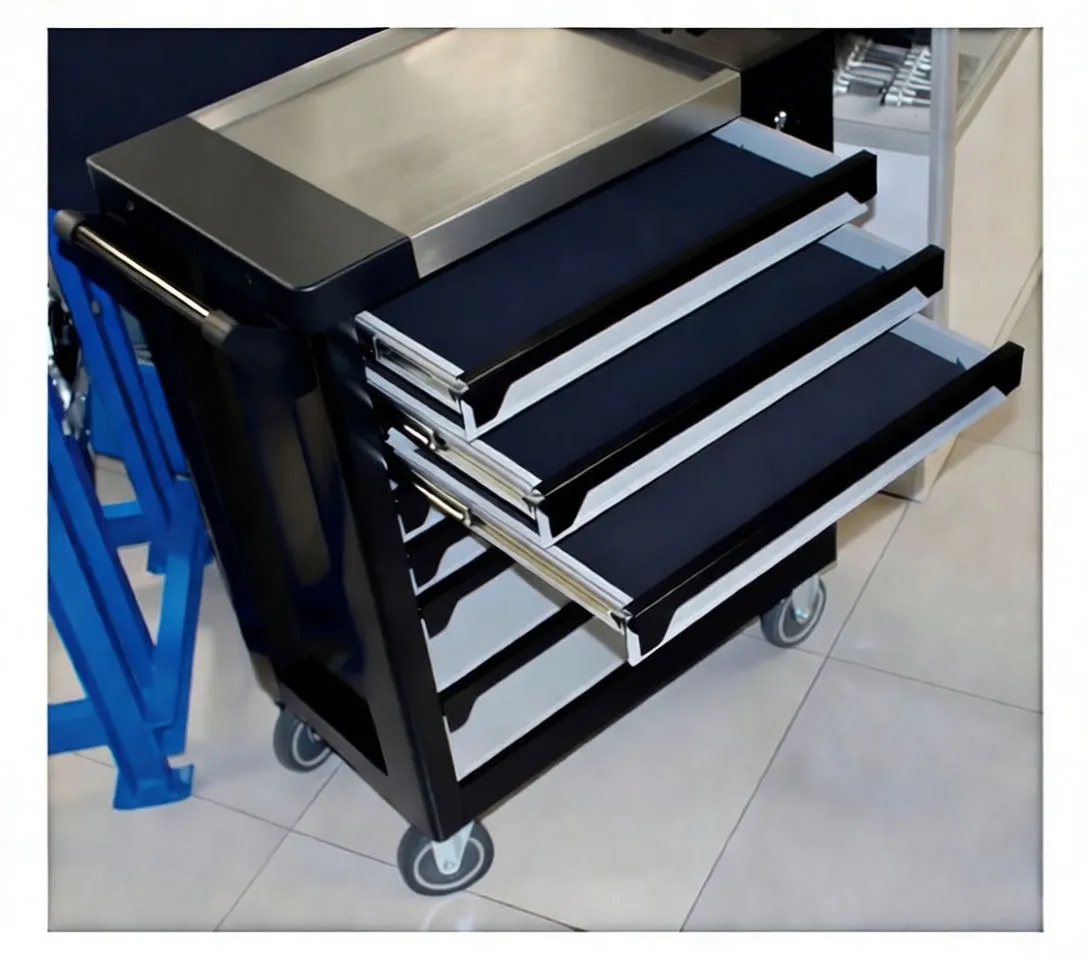

• 7-Drawer Configuration: 2 deep drawers (140mm) + 5 shallow drawers (60mm) optimized for different tool types
• Stainless Steel Top Surface: Corrosion-resistant work surface; durable against fluid spills and workshop conditions
• Central Locking System: Two-key central lock secures all drawers simultaneously; side cabinet also keyed
• Mobile Design: 5-inch wheels (2 fixed, 2 swivel with brake); PP material rated for workshop floor use
• Foam-Lined Organization: Pre-cut foam inserts (525×395×30mm) in all 7 drawers; tools arrive positioned and protected
• Dimensions: 770×460×805mm (cabinet); 770×460×965mm with wheels deployed
• Drawer Guides: 400×45mm metal slides supporting smooth operation under loaded conditions
• 0.7mm Sheet Metal Construction: Lightweight yet rigid; resistant to denting in typical workshop environments

---

Integrated 484-Piece Tool Kit

Set 1: Socket Wrench Set (81 pieces)

• Ratchet Wrenches: 1/4″, 3/8″, 1/2″ drives (72-tooth)
• Extensions & Joints: Full range across all three drives
• Socket Coverage:
  • 1/4″: 13 short + 11 long sockets (4–14mm)
  • 3/8″: 10 short + 11 long sockets (6–19mm)
  • 1/2″: 17 short + 9 long sockets (8–30mm)

Set 2: Bit & Socket Set (103 pieces)

• Screw Bits: SL flat (8, 10, 12mm), PH (3, 4), PZ (3, 4)
• TORX Bits: T40–T70 range
• HEX Bits: H7–H14
• Socket Configurations:
  • 1/4″ sockets with SL, PH, PZ, TORX, XZN, HEX, and 5-KT variants
  • 1/2″ extended sockets (28–274mm) with multiple bit types
  • 1/2″ impact socket (XZN M18)
• 3/8″ Adapter included for drive compatibility

Set 3: Open-End Wrenches (14 pieces)

• Sizes: 8–22mm (continuous range, 8mm–13mm, then 14–17mm, 19mm, 21mm, 22mm)

Set 4: Screwdriver Set (22 pieces)

• TORX Drivers: T6×75 through T40×150 (11 pieces)
• Impact Screwdrivers: PH and SL flat variants (8 pieces)
• Precision Screwdrivers: PH0×100, SL3×100 (2 pieces)

Set 5: Accessory Kit (138 pieces)

• HEX Keys: L-type with ball, 1.5–10mm (9 pieces)
• Cutting Tools: Hacksaw 150mm, replaceable knife blades (10×18mm)
• Measurement: Tape measure 2.5mm×5m, 230mm spirit level
• Gripping: Magnetic telescopic gripper (600mm, 1.6kg capacity), electrical connectors (100×3.2m)
• Specialized Tools: Crimping pliers (AWG 10–22), pin pullers (200/230mm)

Set 6: Hand Tools (17 pieces)

• Hammer: 300g (300mm)
• Pliers: Curved/straight long nose, universal, side cutters, internal/external circlip variants (6 pieces)
• Wrench: 200mm adjustable
• Punches: 3–10mm diameter, 150mm length (6 pieces)

---

Business Advantages for Resellers

Simplified Inventory Model Instead of sourcing 7 SKUs (cabinet + 6 tool sets) separately, you manage one complete package. Reduces procurement complexity and warehouse organization overhead.

Higher Perceived Value The 484-piece count and pre-assembled state position this as a premium entry-level professional package. Customers perceive better value than buying components individually.

Faster Turnover Complete tool kits move quicker than empty storage. This appeals to small shops, field service teams, and technicians setting up independent operations.

Competitive Pricing Advantage Bulk procurement and integrated supply chain allow you to offer better margins than competitors selling fragmented kits.

Ready-to-Display The cabinet arrives fully organized with foam inserts and visible tool arrangement. Minimal setup required for retail or wholesale showroom presentation.

---

Technical Specifications

Specification	Details
Cabinet Dimensions (W×D×H)	770×460×805mm
Dimensions with Wheels	770×460×965mm
Large Drawer Dimensions (2×)	530×390×140mm
Small Drawer Dimensions (5×)	530×390×60mm
Foam Insert Size (7 sets)	525×395×30mm
Metal Drawer Guides	400×45mm
Sheet Metal Thickness	0.7mm
Wheel Size	5″ (PP material)
Wheel Configuration	2 fixed, 2 swivel with brake
Locking System	Central lock (2 keys) + side cabinet lock
Top Surface	Stainless steel
Handle Type	Ergonomic molded handle
Total Tool Count	484 pieces

---

Why This Cabinet Works for Your Shop

For Resellers:

• One SKU replaces multiple purchases
• Strong margin potential on premium positioning
• Attracts small-to-mid-size workshop and field-service buyers
• Reduces customer decision paralysis (everything is already selected)

For End-Users:

• No guessing on tool coverage; socket, wrench, and bit gaps are minimized
• Professional-grade storage reduces tool loss and damage
• Locking system protects high-value items from unauthorized access
• Stainless top surface extends cabinet lifespan in corrosive environments

---

Stock Recommendation

Order in multiples of 3–5 units for optimal inventory rotation. The 484-piece configuration appeals to both new shops and those upgrading from basic toolboxes, ensuring consistent demand across customer segments.

This cabinet positions you as a one-stop supplier for professionals who want to invest in proper tool organization without the complexity of sourcing six different vendors.
