8-Slot Standard Blade Fuse Holder

Brief Overview

This is a robust, modular fuse distribution system designed for 12/24V automotive and marine electrical systems. The eight-slot configuration provides flexible circuit protection with two independent fuse banks, each protected by a snap-on clear cover for safety and accessibility. If your shop handles larger vehicle electrical systems, you may also consider pairing this with a compact 4-slot unit or a 6-slot fuse holder for mixed-capacity applications. The gold-plated blade terminals ensure reliable low-resistance connections across all circuits.

Key Features

• Dual-bank design: Four fuse slots per clear plastic cover—easy to identify and service individual circuits
• Gold-plated blade terminals: 6.3mm male connectors provide low contact resistance and corrosion resistance
• 32V DC rated: Suitable for standard 12V and 24V vehicle electrical systems
• 30A circuit maximum: Handles the full range of standard automotive blade fuses (5A to 30A)

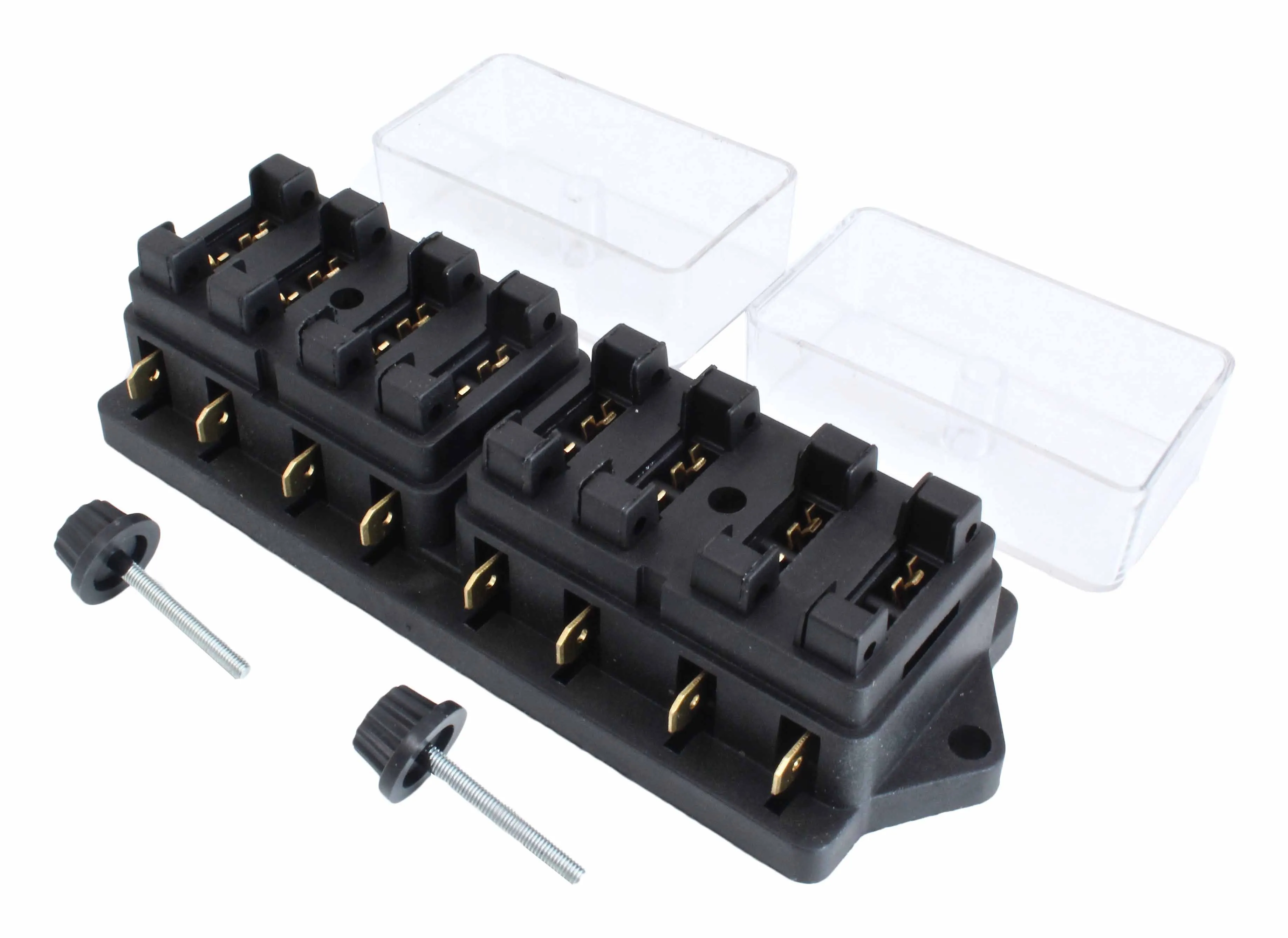

• Clear snap-on covers: Quick visual inspection without disassembly; two thumb-screw fasteners for secure closure
• Molded mounting ears: Integrated 5.5mm screw holes (14.3mm pitch) for panel or chassis mounting
• Compact footprint: 154mm L × 52mm W × 51mm H (excluding terminals)—fits tight electrical compartments

Why Resellers Choose This Product

Stock Efficiency: One eight-slot unit replaces multiple smaller holders, reducing SKU complexity while meeting customer demand for expandable electrical systems.

Margin Opportunity: Standard blade fuse holders command steady turnover in the aftermarket. Pair this with a blade fuse assortment kit to drive add-on sales.

Installation Speed: Snap-on covers and thumb-screws mean faster installation labor—your technicians appreciate reduced assembly time.

Versatility: Works equally well in trucks, boats, RVs, and industrial 12/24V systems. Appeals to multiple customer segments.

Technical Specifications

Specification	Value
Voltage Rating	32V DC (max)
Current Rating (per circuit)	30A (max)
Number of Fuse Slots	8 (two banks of 4)
Blade Terminal Type	6.3mm male blade
Terminal Material	Gold-plated for low resistance
Mounting Hole Diameter	5.5mm
Mounting Hole Pitch	14.3mm
Overall Dimensions (exc. terminals)	154(L) × 52(W) × 51(H) mm
Cover Type	Clear plastic snap-on (2 covers, thumb-screw fastened)
Base Material	Molded black plastic with integrated mounting ears
Fuse Compatibility	Standard automotive blade fuses (ATC/ATO)

Closing Value Statement

This eight-slot holder is the professional's choice for systems requiring modular circuit protection without the bulk of multiple single-unit holders. The clear covers, reliable gold terminals, and proven design make it a high-confidence stock item that generates repeat orders from shops and installers who value efficiency and reliability.
