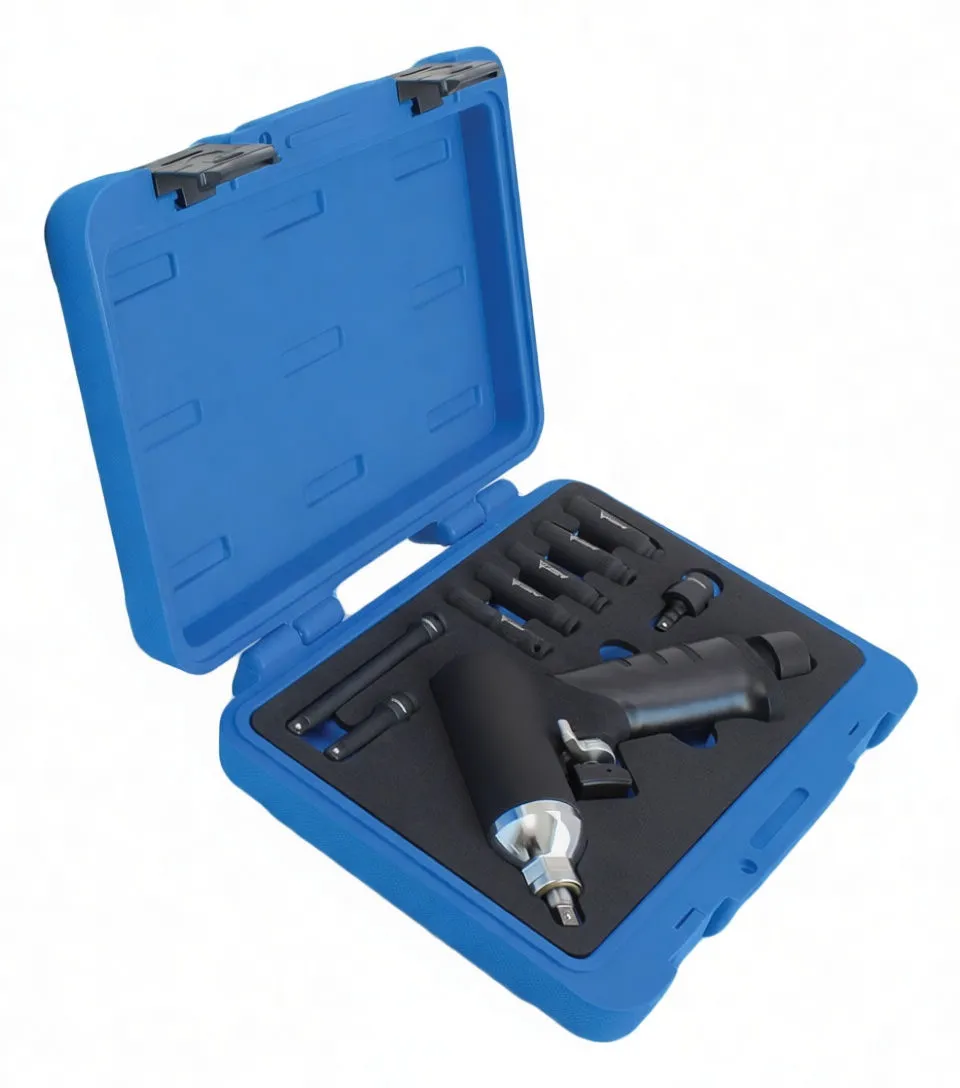

9-Piece 1/4-Inch Drive Impact Glow Plug Socket Set

Brief Overview

This 9-piece impact glow plug socket set combines a dedicated 1/4-inch drive pneumatic impact wrench with a precision-engineered socket collection designed specifically for glow plug extraction and installation. Whether you're dealing with stubborn, carbon-fouled plugs or performing routine maintenance on diesel engines, this set delivers controlled torque across the critical 10–40 Nm range. For shops handling glow plug damage beyond socket removal, complementary solutions like glow plug re-threading kits and connector pliers for glow plugs round out a complete glow plug service offering.

Key Features

• Dedicated Impact Wrench: Pneumatic 1/4-inch drive tool engineered for glow plug work—not a general-purpose wrench repurposed for this task
• Selectable Torque Control: Four precise torque settings (10, 20, 30, 40 Nm) prevent overtightening and plug damage
• Six Deep-Well Sockets: 8, 9, 10, 11, 12 mm sizes cover the vast majority of glow plug head configurations
• Dual Extension Bars: 50 mm and 100 mm extensions ensure access to recessed glow plugs in tight engine bays
• Universal Joint: Allows angled socket positioning for awkward plug locations
• Brass Air Coupling: Quick-connect pneumatic fitting with secure locking
• Professional Carrying Case: Precisely cut blue hard plastic case with foam insert—protects tools and enhances job-site portability
• High Rotation Speed: 10,000 RPM capability for efficient operation without excessive wrench vibration

Technical Specifications

Specification	Value
Drive Size	1/4" (6.3 mm)
Socket Sizes Included	8, 9, 10, 11, 12 mm
Torque Range	10, 20, 30, 40 Nm
Rotation Speed	10,000 RPM
Air Consumption	250 L/min
Working Pressure	6.3 Bar
Extension Bars	50 mm and 100 mm
Wrench Weight	800 g
Case Material	Hard plastic with foam insert

Business Advantages for Resellers

High-Frequency Service Item: Glow plug replacement and maintenance is routine for diesel engine shops. This complete set eliminates the need for customers to cobble together solutions from multiple suppliers.

Margin-Friendly Category: Glow plug service tools sit in a narrow, specialized niche where generic impact socket sets don't compete effectively. This dedicated positioning allows healthy resale margins.

Turnkey Solution: The included wrench, sockets, extensions, and case eliminate customer objections about missing components. One order fulfills the complete job requirement.

Compact, Portable Package: The carrying case makes this an easy up-sell for mobile mechanics, fleet maintenance operations, and rental tool programs.

Professional Presentation: The precision-cut foam insert and organized case elevate perceived value and justify a premium price point compared to loose socket assortments.

Application Context

This set is purpose-built for diesel engine glow plug service: extraction of burnt or seized plugs, installation of new plugs with calibrated torque control, and routine maintenance intervals. The 10–40 Nm range matches OEM torque specifications for most automotive and small industrial diesel engines. The 1/4-inch drive size is the industry standard for glow plug work—lighter than 3/8-inch drives, reducing fatigue during repetitive operations.

The selectable torque settings prevent the common failure mode of over-torquing new glow plugs, which can crack ceramic inserts or strip aluminum threads in cylinder heads.

Summary

A focused, professional-grade glow plug service set that addresses a recurring maintenance task. The pneumatic impact wrench, precision sockets, extensions, and carrying case provide everything a diesel-focused shop or mobile mechanic needs to perform glow plug work efficiently and to specification. Strong resale potential due to specialization and complete kit packaging.
