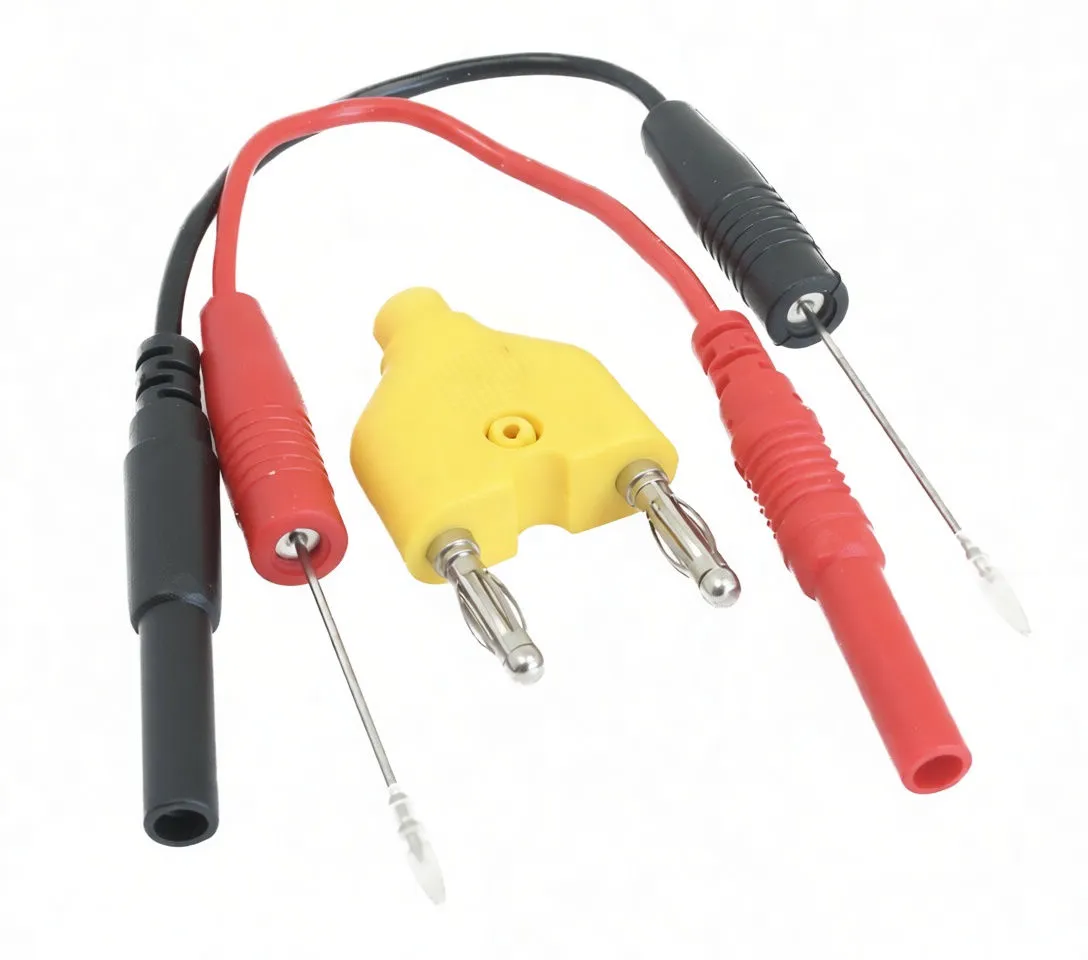

Red and black test leads with slim metal probe tips and a yellow dual banana plug adapter on a white backgroundOverhead view of red and black probe leads connected to a yellow two‑pin banana plug adapter, probes with clear caps

Airbag Simulator Resistance Dummy Test Lead – Diagnostic Connector Kit

Professional airbag circuit diagnostic tool for rapid SRS module testing and fault isolation in automotive electrical systems.

Request Quote

Description

Airbag Simulator Resistance Dummy Test Lead – Diagnostic Connector Kit

Brief Overview

This airbag simulator resistance dummy is a specialized diagnostic accessory designed for automotive technicians to isolate faults within airbag system modules. Rather than risk damage to expensive SRS components or trigger unintended deployments, this tool bridges the airbag connector terminals with a safe, controlled electrical load that allows you to test module response without the airbag itself. It's an essential addition to any shop's diagnostic toolkit for efficient SRS troubleshooting.

Key Features

  • Direct Module Testing: Connects directly to vehicle airbag connectors to simulate airbag circuit load
  • Dual Probe Configuration: Red and black insulated leads with metal probe pins for precise terminal contact
  • Polarity-Independent: Safe connection after 30-minute battery disconnect—polarity doesn't affect diagnosis
  • Quick Fault Isolation: Rapidly determines whether the fault lies in the airbag module or elsewhere in the circuit
  • Durable Construction: Strain-relief boots and protective probe caps prevent accidental shorts and extend service life
  • Compact Design: Yellow dual-banana adapter housing with silver plated pins for reliable connections

How It Works

  1. Disconnect the vehicle battery and wait 30 minutes to discharge the SRS system capacitors
  2. Connect the probe pins directly to the airbag connector terminals
  3. Reconnect the battery and activate ignition
  4. Clear any diagnostic trouble codes
  5. Monitor the warning light:
    • Light extinguishes → Fault is in the airbag module itself
    • Light persists → Continue diagnosis in the wiring harness or control module

Business Advantages for Resellers

  • High-Margin Diagnostic Tool: Low acquisition cost with strong markup potential—technicians view this as essential
  • Repeat Order Potential: Works across all makes and models with standard airbag connectors; every diagnostic shop needs multiple units
  • Reduces Service Time: Speeds up SRS troubleshooting, allowing techs to turn jobs faster and increase labor billing
  • Risk Mitigation: Prevents costly accidents (unintended deployment) and component damage—shops will stock this to protect liability
  • Professional Positioning: Position your business as a serious diagnostic supplier, not just a parts house

Technical Specifications

Specification Detail
Lead Configuration Red and black insulated conductors with metal probe pins
Connector Type Dual-banana adapter housing with silver plated pins
Probe Tip Design Metal pins with transparent protective caps
Connection Standard Compatible with standard automotive airbag connectors
Safety Feature Polarity-independent after 30-minute battery discharge
Material Insulated copper leads with strain-relief boots
Application Airbag module (SRS) circuit diagnosis and fault isolation

Final Note

This is a precision diagnostic tool, not a consumable. Built to last across thousands of diagnostic cycles. Stock multiple units—every technician in your customer base will eventually need one, and they'll remember which shop had it available when it mattered.
