Automatic LCD Intelligent Universal Battery Charger, 12V 6A with 4 Charging Modes

Brief Overview

This microprocessor-controlled automatic battery charger is purpose-built for professional workshops, fleet operations, and service centers handling diverse 12V battery types. The unit delivers intelligent, hands-off charging across lead-acid, calcium, gel, AGM, and EFB batteries in the 4–100Ah range. With four dedicated operating modes, automatic temperature compensation, and comprehensive safety protection, it eliminates guesswork from battery maintenance. If your operation requires higher amperage capacity, a 12V 8A / 24V 4A dual-voltage alternative is also available. For shops combining charging with jump-start capability, consider pairing this with a portable 12V/24V jump starter unit.

Key Features

• 4 Automatic Charging Modes: CAR/TRUCK (15–100Ah), AGM/GEL/SLA START/STOP (10–100Ah), MOTORCYCLE (2–20Ah), and PULSE REPAIR (regenerative charging for sulphated batteries)
• LCD Display with Real-Time Feedback: Charge level, voltage, operating mode, temperature, and connection status all visible at a glance
• Intelligent Temperature Management: Built-in microprocessor detects ambient temperature (winter/summer) and automatically adjusts charging voltage for optimal battery conditioning
• Universal Battery Compatibility: Works with lead-acid, calcium, gel, water, AGM, and EFB battery chemistries
• Trickle Charge Hold: In motorcycle mode, maintains charge indefinitely; automatically activates if voltage drops below 12.5V
• Comprehensive Protection Suite: Reverse polarity, short-circuit, overcharging, overheating, and overvoltage protection built-in
• Leave-Unattended Operation: Safe for indefinite connection once charge cycle completes
• Regeneration Capability: PULSE REPAIR mode can restore old, deeply discharged, or sulphated batteries to working condition

Business Advantages for Resellers

Workshop Efficiency & Reliability This charger reduces labor overhead by automating battery maintenance. Technicians simply connect, select mode, and move to the next job. The automatic cutoff and trickle-charge function eliminate over-discharge damage and battery deaths during overnight storage.

Margin & Bulk Opportunity At 6A output and broad battery compatibility, this positions well for high-turnover retail operations and service centers. The 4-mode flexibility means one unit covers motorcycles, cars, light trucks, and specialty battery types—reducing SKU complexity while maintaining customer satisfaction.

Customer Retention Through Service The PULSE REPAIR mode creates a service revenue stream: shops can regenerate customer batteries that competitors would condemn, extending equipment life and building loyalty.

Regulatory & Safety Compliance CE and RoHS certification, comprehensive protection circuitry, and LCD feedback documentation all reduce liability exposure and support warranty claims.

Technical Specifications

Parameter	Value
Input Voltage	AC 110–220V (50–60Hz)
Output Voltage	DC 13.8–15.5V
Output Current	6A (max)
Battery Voltage	12V
Battery Capacity Range	4–100Ah
Minimum Detectable Voltage	0.3V
Thermal Protection Threshold	65°C ±5°C
Efficiency	85%
Cooling Method	Fan-assisted
Dimensions	150 × 82 × 62 mm
Weight	400g
Battery Types Supported	Lead-acid, calcium, gel, water, AGM, EFB, START/STOP
Safety Features	Reverse polarity, short-circuit, overcharge, overheat, overvoltage protection
Display	LCD with real-time charge status, voltage, mode, and temperature

Charging Mode Reference

• CAR/TRUCK Mode: 15–100Ah lead-acid batteries; standard automotive charging profile
• AGM/GEL/SLA Mode: 10–100Ah AGM, gel, and EFB batteries with START/STOP capability; tailored voltage curve
• MOTORCYCLE Mode: 2–20Ah lead-acid; trickle-charge standby with auto-activation at 12.5V threshold
• PULSE REPAIR Mode: Regenerative pulsed charging for old, sulphated, or long-dormant batteries

Physical Characteristics

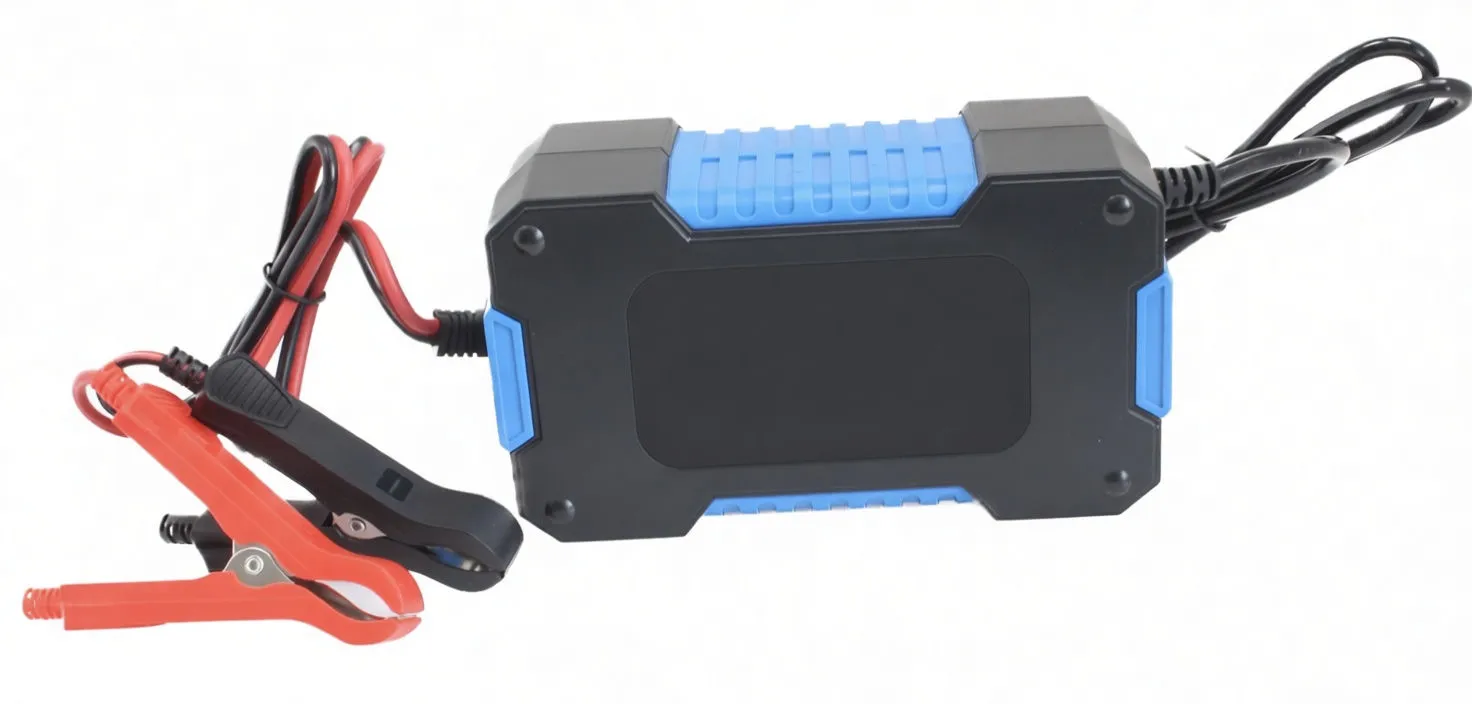

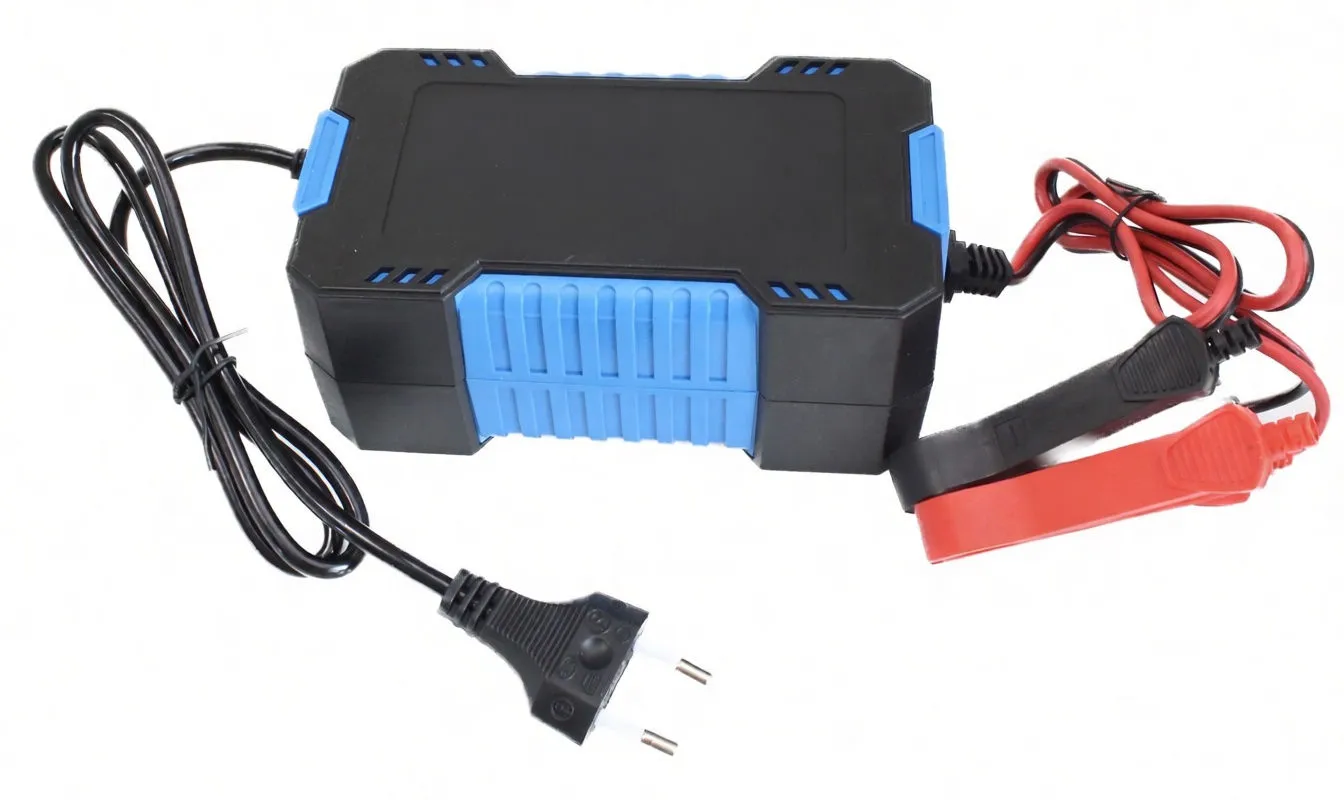

Robust black plastic housing with blue rubberized grip panels and ventilation ribs for heat dissipation. Molded corner bumpers protect against impact. Heavy-duty insulated red and black alligator clamps with secure jaw grip. Two-pin European mains plug with coiled cable; output cable fitted with professional-grade battery terminals. Compact footprint (150 × 82 × 62 mm) and lightweight (400g) enable easy storage and portability in service vehicles.

Call to Value

For professional operators managing mixed battery fleets—motorcycles, light commercial vehicles, and stationary backup systems—this automatic charger is a justified capital investment. The four-mode intelligence, regeneration capability, and automatic protection mean faster turnaround, fewer battery failures, and higher customer satisfaction. Order in bulk for fleet programs or stock as a high-margin service tool in your retail offering.
