BMW Chain-Driven Engine Locking Kit for N43 1.6/2.0L Petrol Engines

Brief Overview

This is a purpose-built timing control kit designed specifically for BMW N43 petrol engines (1.6L and 2.0L). It provides the mechanical means to lock crankshaft and camshaft positions during timing chain service, valve adjustment, and VANOS sensor calibration. The kit includes the critical VANOS alignment plate required for correct sensor positioning and balancer shaft alignment—components that cannot be substituted with generic tools.

If your shop handles other BMW engine series, we also stock timing lock kits for N46/N42 engines and diesel engine locking solutions for M47/M57 series.

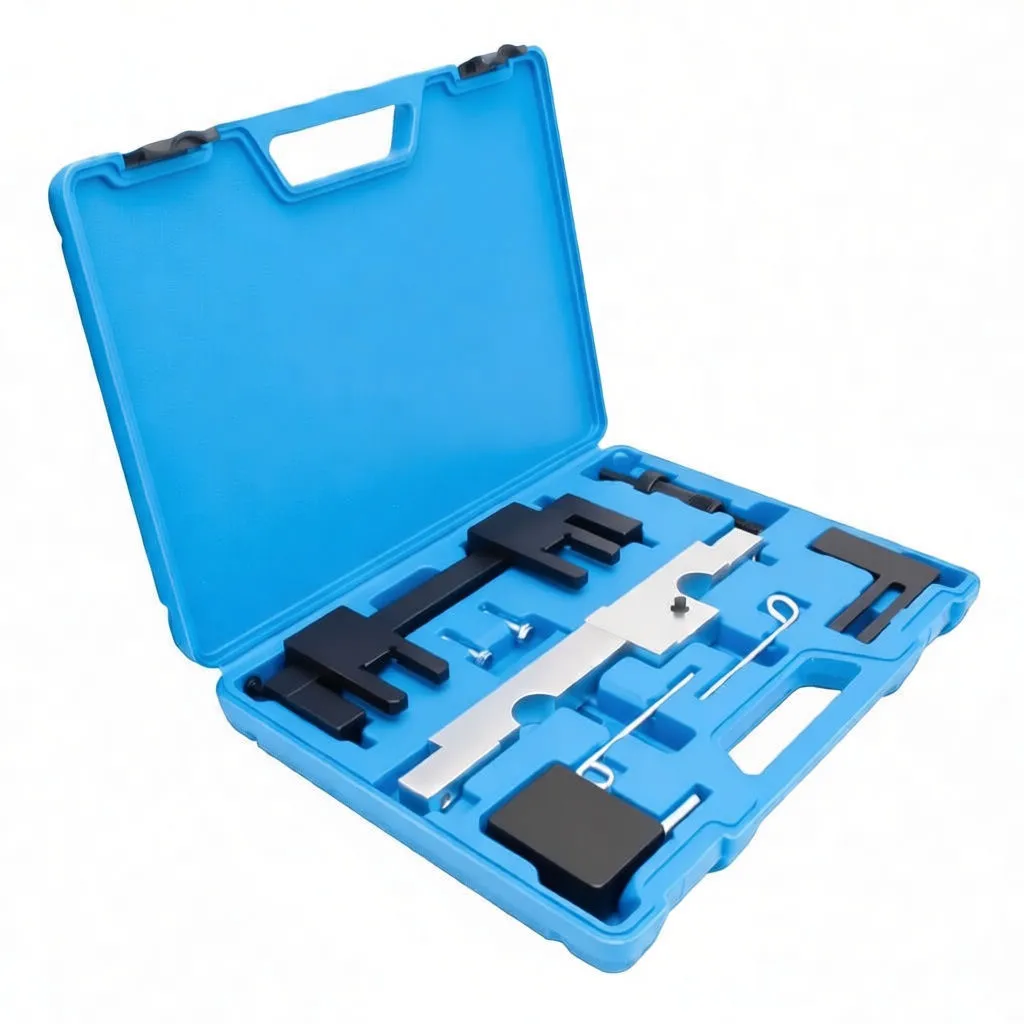

Key Components & Functions

• Crankshaft Locking Bar: Machined silver aluminum bar with two circular recesses that engage the crankshaft pulley, preventing unwanted rotation during timing work
• Camshaft Clamp Plates: Two black rectangular locators that hold camshaft sprockets in position while timing chains are serviced
• VANOS Alignment Plate: Essential component for positioning VANOS sensor and setting balancer shaft timing to OEM specification
• Threaded Puller/Tensioner: Black steel threaded tool for controlled chain tensioning and sprocket removal
• Locking Pins & Hardware: L-shaped locking pins, hex bolts, and hex key tool for securing components during setup

Why This Matters for Your Business

Technical Precision:

• BMW N43 timing work demands exact component positioning. Generic locking tools cannot replicate the OEM engagement points on these engines. This kit is engineered specifically for N43 crankshaft and camshaft geometry.
• The included VANOS plate eliminates guesswork—your technicians follow the alignment marks, not interpretation.
• Prevents costly mistakes: improper timing lock-up can result in bent valves, damaged sprockets, or timing chain slack.

Reseller Advantage:

• Mechanics working on N43 engines cannot proceed without proper locking tools. This is non-negotiable work.
• High perceived value: customers understand they need specialized equipment for BMW timing work. You can confidently position this as a required service tool.
• Durable metal and plastic construction ensures long service life and repeat customer confidence.
• Organized carrying case keeps all components secure and portable—professional presentation matters in a shop environment.

Technical Specifications

Specification	Details
Target Engine	BMW N43 1.6L / 2.0L Petrol
Primary Components	Crankshaft locking bar, camshaft clamp plates, VANOS alignment plate, threaded puller
Material	Anodized aluminum (bar), black-coated steel (clamps, puller)
Crankshaft Bar Engagement	Dual circular recesses for pulley contact

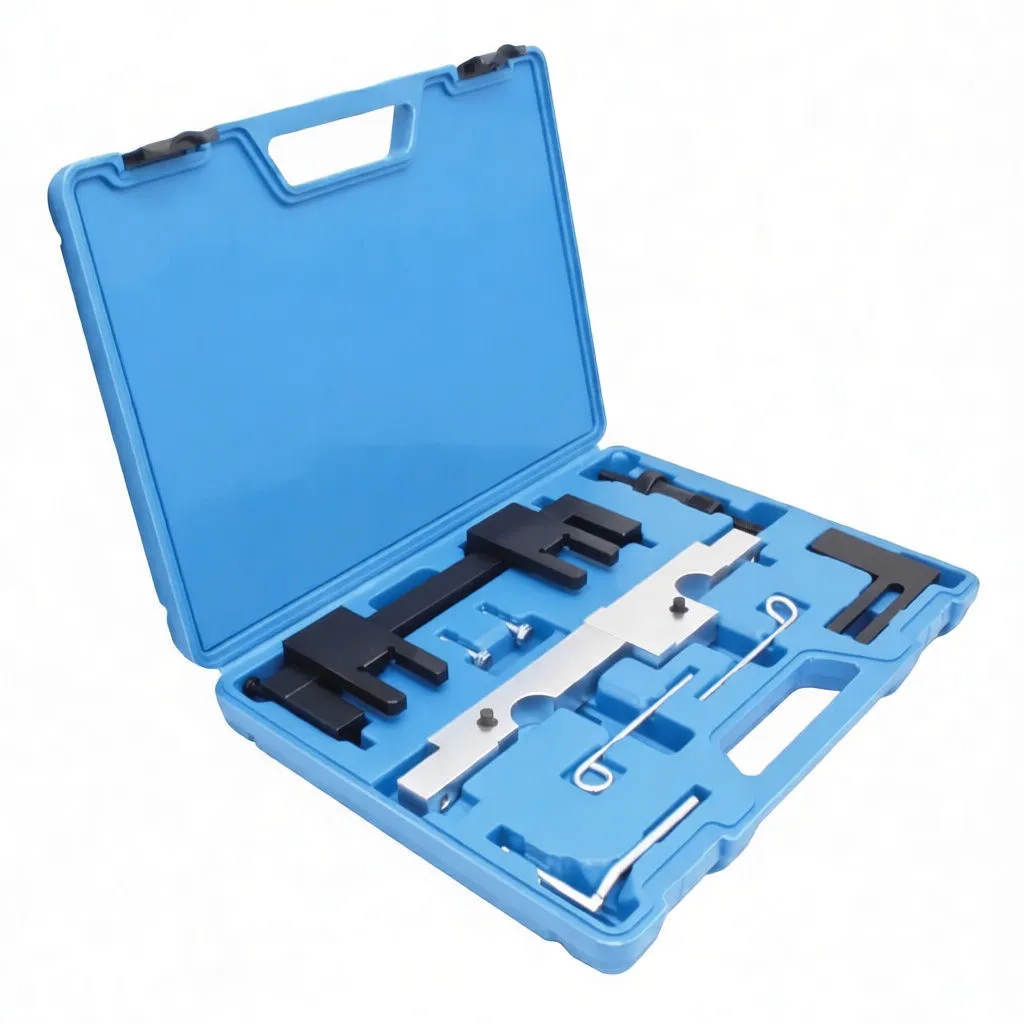

Storage	Molded foam-lined blue plastic carrying case with handle and latches
Additional Accessories	Locking pins (2), hex bolts (2), L-shaped hex key
Application Scope	Timing chain service, valve adjustment, VANOS sensor positioning, balancer shaft alignment

When Your Customer Needs This Kit

• Timing chain replacement or inspection: The crankshaft and camshaft must be locked in exact position to safely remove and reinstall chains without valve-to-piston interference.
• VANOS system servicing: The alignment plate is mandatory for correct sensor positioning on N43 engines.
• Spark plug service or valve cover removal: Securing the timing position prevents accidental cranking during extended service windows.
• Balancer shaft alignment: Required for proper counterweight positioning on N43 petrol engines.

Closing Statement

For shops servicing BMW N43 engines, this kit transitions timing work from guesswork to controlled procedure. The VANOS plate alone justifies the investment—it's a single-purpose component you cannot improvise. Stock this for N43 specialists in your area, and position it as the professional standard for this engine family.
