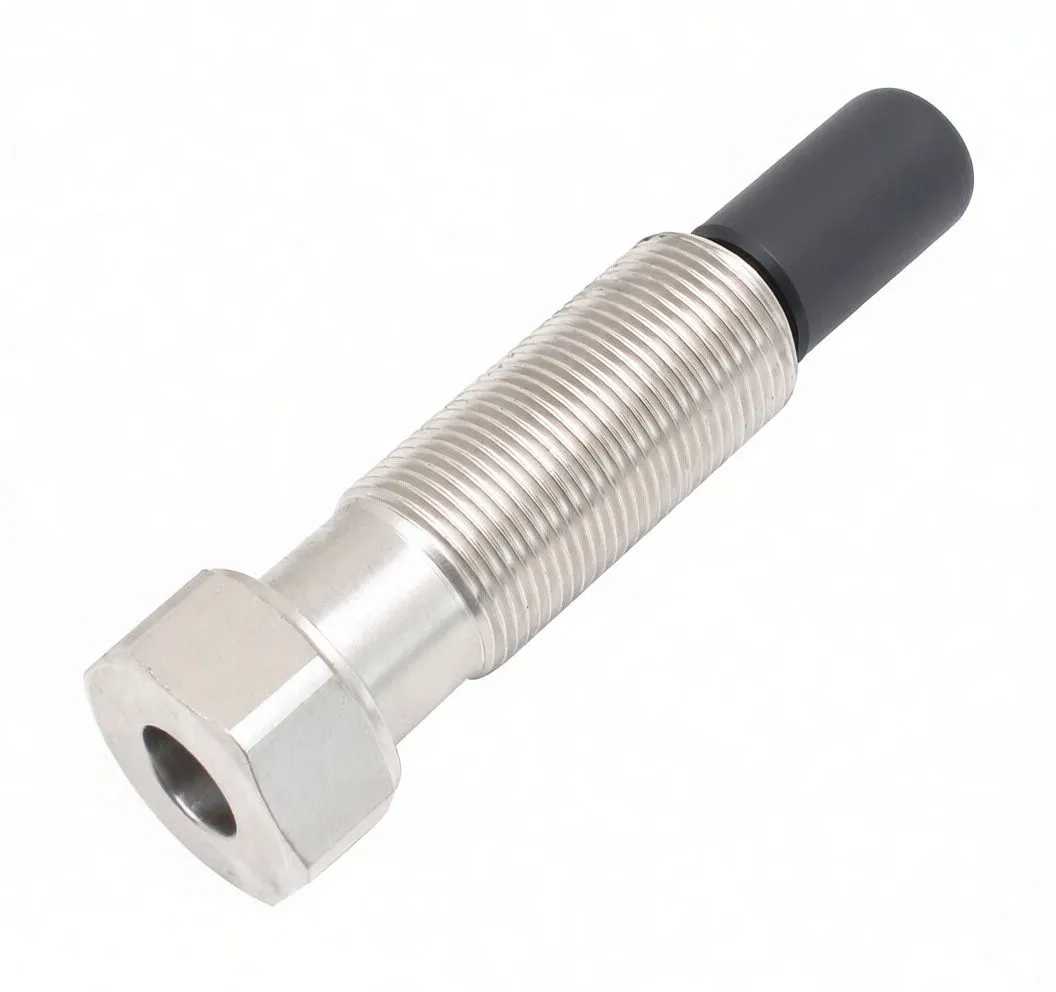

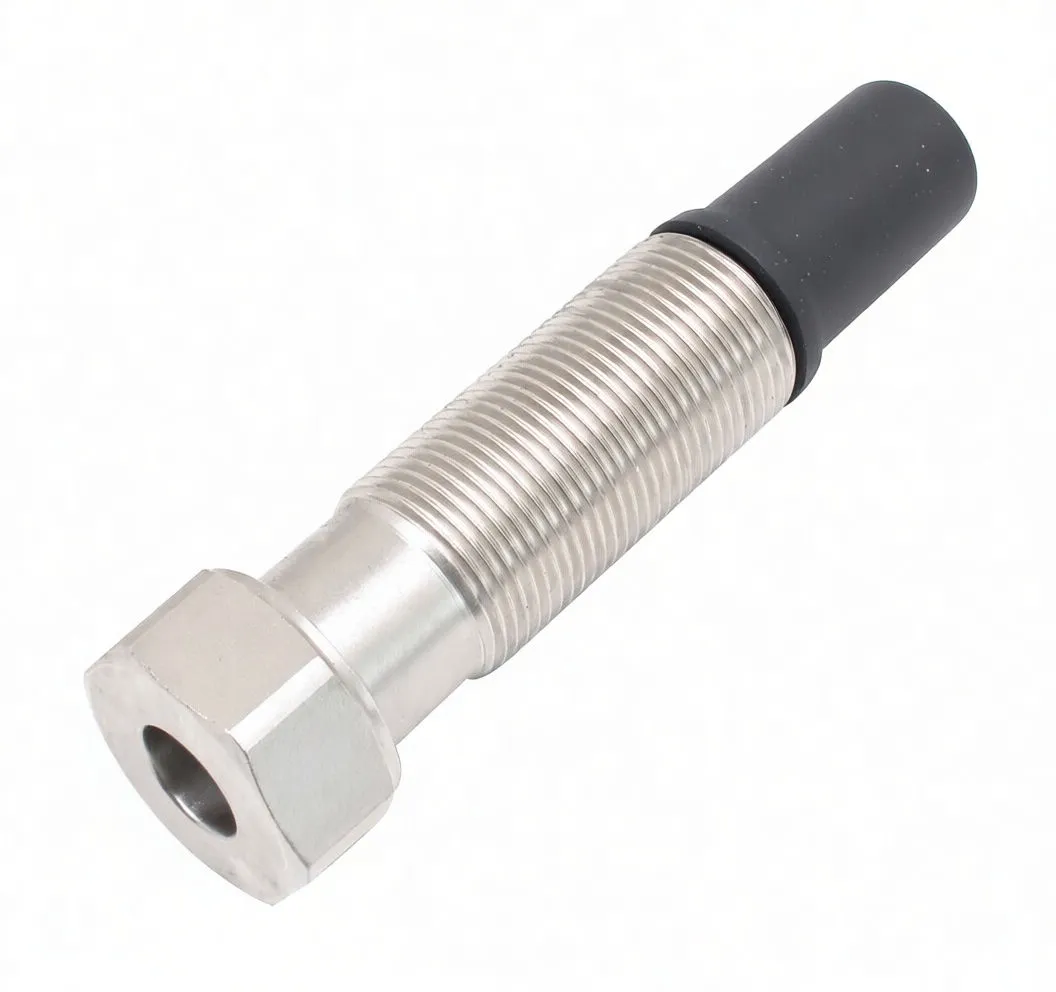

BMW N20 Camshaft Drive Chain Tension Gauge

Brief Overview

This is a specialized diagnostic tool engineered specifically for BMW N20 petrol engines, enabling technicians to measure camshaft drive chain tension and detect timing chain stretch without requiring complete engine disassembly. Whether you're running a dedicated BMW service center or a multi-brand shop with BMW clientele, this tool eliminates the need for expensive and time-consuming engine removal during chain diagnostics. Pair this with a comprehensive timing chain service kit for N20/N26 engines to offer complete diagnostic and maintenance solutions to your customers.

Key Features & Design

• Non-Destructive Inspection: Measures chain tension directly without dismantling the engine block or cam cover
• Precision Threaded Body: Fine-pitch external threads allow for controlled, incremental advancement and precise tension measurement
• Hex Head Interface: Hexagonal driving head with central recess for secure wrench grip and standardized torque application
• Tactile Feedback Plunger: Black nylon plunger tip provides clear mechanical feedback when chain stretch limit is reached
• Plated Steel Construction: Corrosion-resistant metal body with uniform matte-satin finish for durability in workshop environments
• OEM-Specification Design: Purpose-built for N20 engine specifications to ensure accurate readings and safe operation

Technical Specifications

Specification	Detail
Application	BMW N20 Petrol Engines (1.6L, 2.0L variants)
Design Type	Camshaft Chain Tension Gauge with Threaded Shaft
Head Style	Hexagonal nut head with central recess
Plunger Material	Reinforced black nylon
Body Material	Plated steel / stainless steel
Surface Finish	Matte-satin polished (metal), matte black (plunger)
Measurement Method	Non-destructive direct tension reading
Installation	Threaded insertion into chain tensioner access point

Business Advantages for Resellers

• Diagnostic Revenue: Enables technicians to charge for chain tension diagnostics without committing to full engine work—differentiates your service offering
• Preventive Maintenance Sell-In: Accurate readings justify preventive chain replacement before catastrophic failure, building customer trust
• Inventory Efficiency: Compact single-tool solution reduces shelf space while addressing a common BMW maintenance concern
• BMW-Specialist Positioning: Essential stock item for any shop positioning itself as BMW-capable, reinforcing your credibility with customers and other technicians
• High-Margin Service: Diagnostic services using specialized tools command premium labor rates in independent shops

Why This Matters to Your Customers

Timing chain stretch is a silent killer in high-mileage BMW N20 engines. Premature wear can lead to cam timing misalignment, reduced efficiency, increased emissions, and complete engine failure if undetected. This tool allows technicians to identify chain stretch early—before symptoms become catastrophic—saving customers from a €3,000+ engine rebuild. For your shop, this translates to repeat business, customer loyalty, and a reputation for proactive diagnostics.

Application & Workflow

1. Access the camshaft chain area on the N20 engine
2. Insert the threaded gauge into the designated tension measurement point
3. Rotate the hex head to advance the plunger against the chain
4. Monitor resistance and feedback as the plunger contacts the chain
5. Compare tension readings against BMW factory specifications
6. Document results for service records and customer communication

Recommended Complementary Tools

This tension gauge works best within a complete N20 timing system diagnostic toolkit. Consider stocking a flywheel holder and crankshaft locking tool to enable full timing chain service operations without requiring multiple supplier relationships.

---

Stock this tool to position your shop as a serious BMW service specialist. Accurate chain diagnostics protect customer engines and build your reputation for technical expertise.
