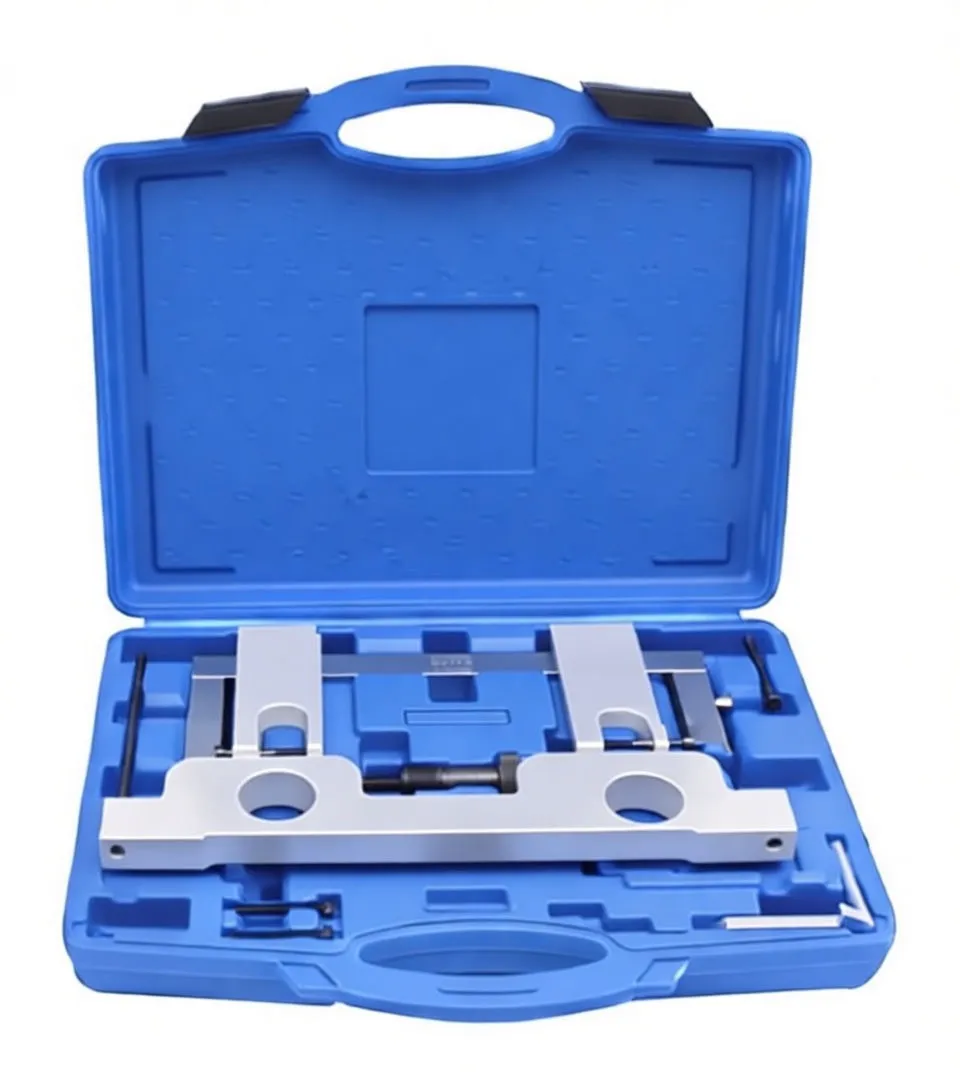

Open blue plastic case containing black and silver camshaft timing locking tools laid in molded compartmentsAngled view of blue case with black locking plate, silver crossbar and assorted bolts and pins for BMW N20/N26 timingIndividual timing tool components: black locking bar, stainless crosspiece with black blocks, alignment pin, bolts and small wrench laid out

BMW N20/N26 Camshaft Timing Lock Kit with Carrying Case

Professional camshaft timing lock tool for BMW N20/N26 engines. Essential for valve timing adjustment and TDC positioning on 1, 3, 5 Series, X1, X3, and Z4 models.

Request Quote

Description

BMW N20/N26 Camshaft Timing Lock Kit with Carrying Case

Brief Overview

This precision timing lock kit is engineered for camshaft removal, installation, and valve timing verification on BMW N20 and N26 petrol engines. Whether you're performing routine timing checks or complete valve adjustments, this tool ensures accurate top dead center (TDC) positioning across the entire N20 engine family. Pair this with a compatible balance shaft alignment tool to streamline multi-system timing work and maximize labor efficiency.

Key Features

  • Dual-Pin Locking Mechanism: Two precision-machined locating pins secure the camshaft in exact position, eliminating guesswork during installation
  • Adjustable Crossbar Assembly: Stainless steel cross-member with sliding black clamps adapts to varying engine bay configurations
  • Complete Hardware Set: Includes all long-reach mounting bolts, positioning pins, and alignment adapters required for proper installation
  • Precision-Anodized Construction: Black anodized main locking bar resists corrosion and wear through repeated use
  • Molded Protective Case: Thermo-molded blue carrying case with dedicated component cavities keeps tools organized and protects against jobsite damage

Technical Application

Engine Coverage:

  • N20, N20B20, N20B20A, N20B20B/UO, N20B2000

Vehicle Models (2010–2014):

  • BMW 1 Series (F30): 125i
  • BMW 3 Series (F30): 320i xDrive, 328i xDrive, 328i
  • BMW 5 Series (F10): 520i, 528i, 528i xDrive
  • BMW X1 Series (E84): sDrive18i, sDrive20i, xDrive20i, xDrive28i
  • BMW X3 Series (F25): xDrive20i, xDrive28i
  • BMW Z4 Series (E85): sDrive18i, sDrive20i, sDrive28i

Why This Matters for Your Shop

Labor Efficiency: Reduces camshaft installation time by providing foolproof positioning—no trial-and-error valve timing adjustments. One tool handles the entire N20 engine family across six BMW platforms.

Precision & Compliance: Meets OEM specifications for TDC positioning. Eliminates customer comebacks due to improper valve timing, protecting your reputation.

Durability & ROI: Precision-machined components withstand hundreds of service cycles. Anodized finish resists corrosion in automotive environments.

Professional Presentation: Organized carrying case demonstrates competence to customers and protects your investment on the service bay floor.

Technical Specifications

Specification Detail
Primary Application Camshaft removal/installation; valve timing adjustment
Engine Family BMW N20, N20B20, N20B20A, N20B20B/UO, N20B2000
Vehicle Coverage 6 BMW platforms (1, 3, 5 Series; X1, X3, Z4)
Positioning Method Dual precision-machined locating pins + adjustable crossbar
Material: Main Plate Black anodized steel
Material: Crossbar Stainless steel with black slide blocks
Material: Hardware High-tensile steel bolts and pins
Included Components Main locking plate, crossbar assembly, 3 mounting bolts, 2 locating pins, 1 cylindrical alignment adapter, 1 hex wrench tool, 2 small screws
Storage Thermo-molded blue carrying case with integrated handle
Finish Mix of black anodized and bare metal (precision-finished)

Why Resellers Choose This Kit

This is a high-demand specialization tool—most independent shops and dealerships need it regularly for N20 service work, but few stock it. Your ability to offer this kit positions you as a comprehensive BMW timing specialist. The complete hardware set means customers avoid expensive return visits due to missing components. At this specification level, resale margins are strong, and customer retention improves significantly.

Ready to stock the tool that keeps N20 timing work running smoothly? Order with confidence—our kit is built for professional use and backed by precision engineering.
