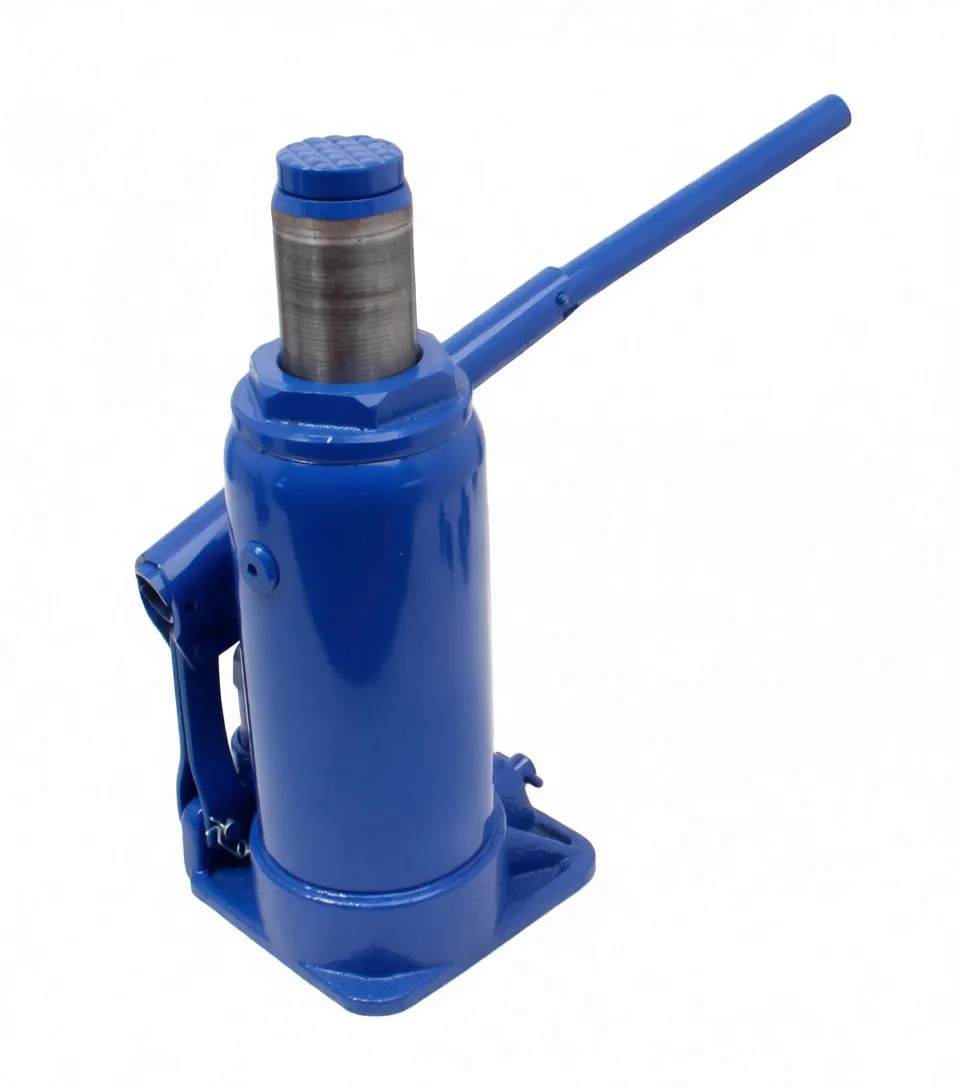

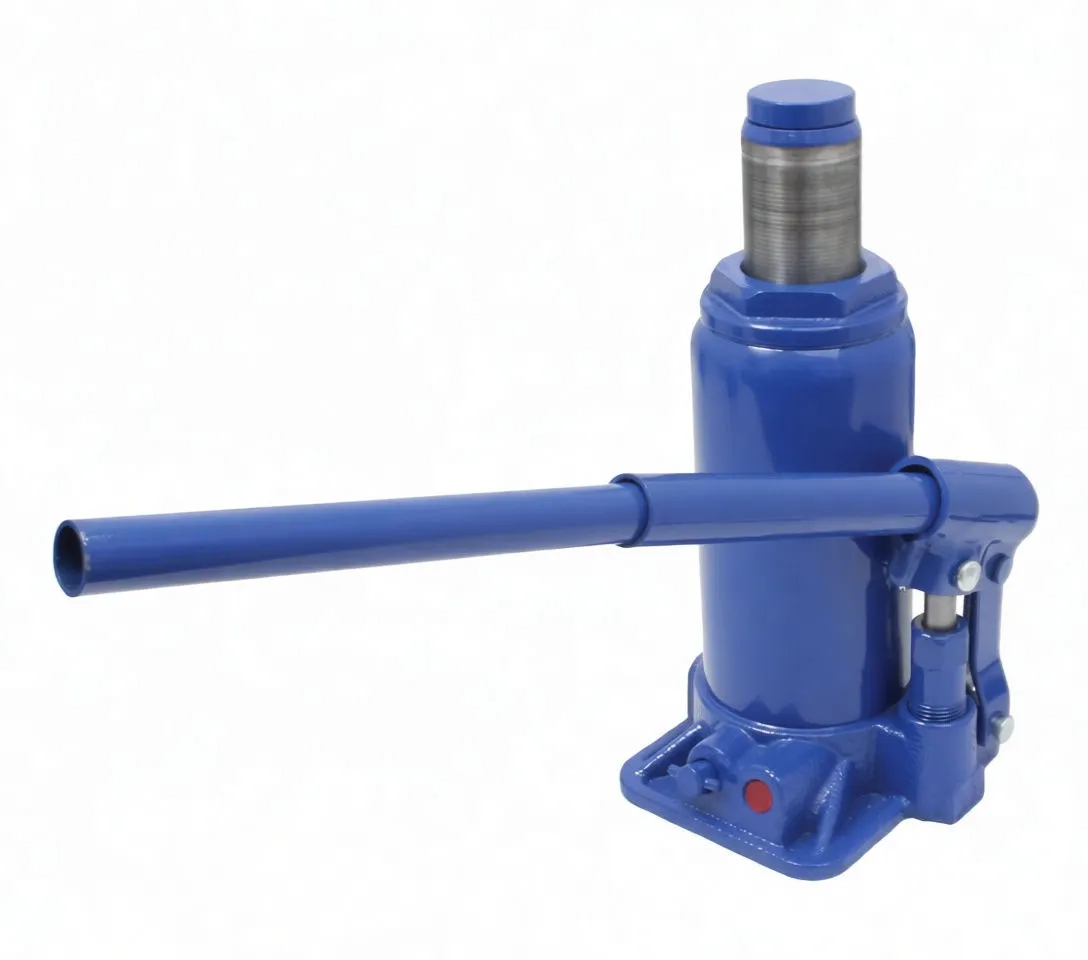

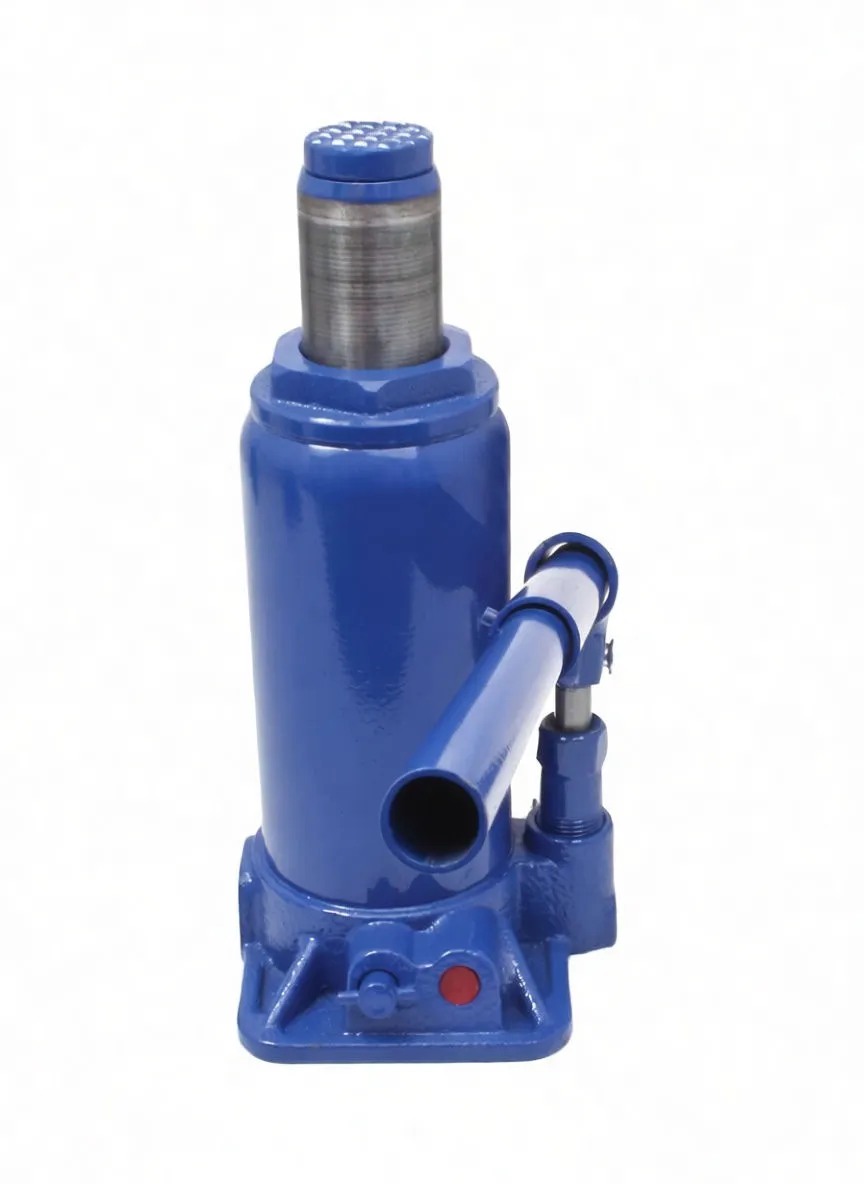

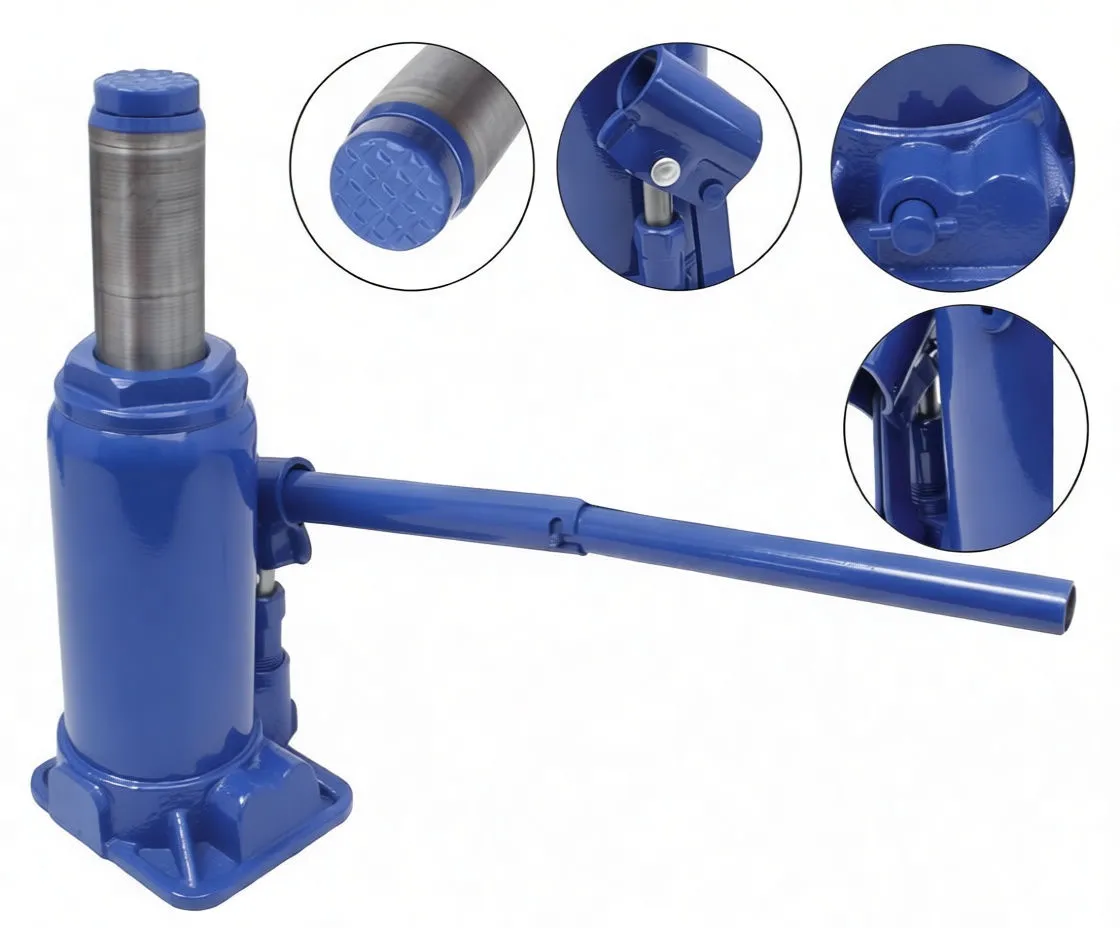

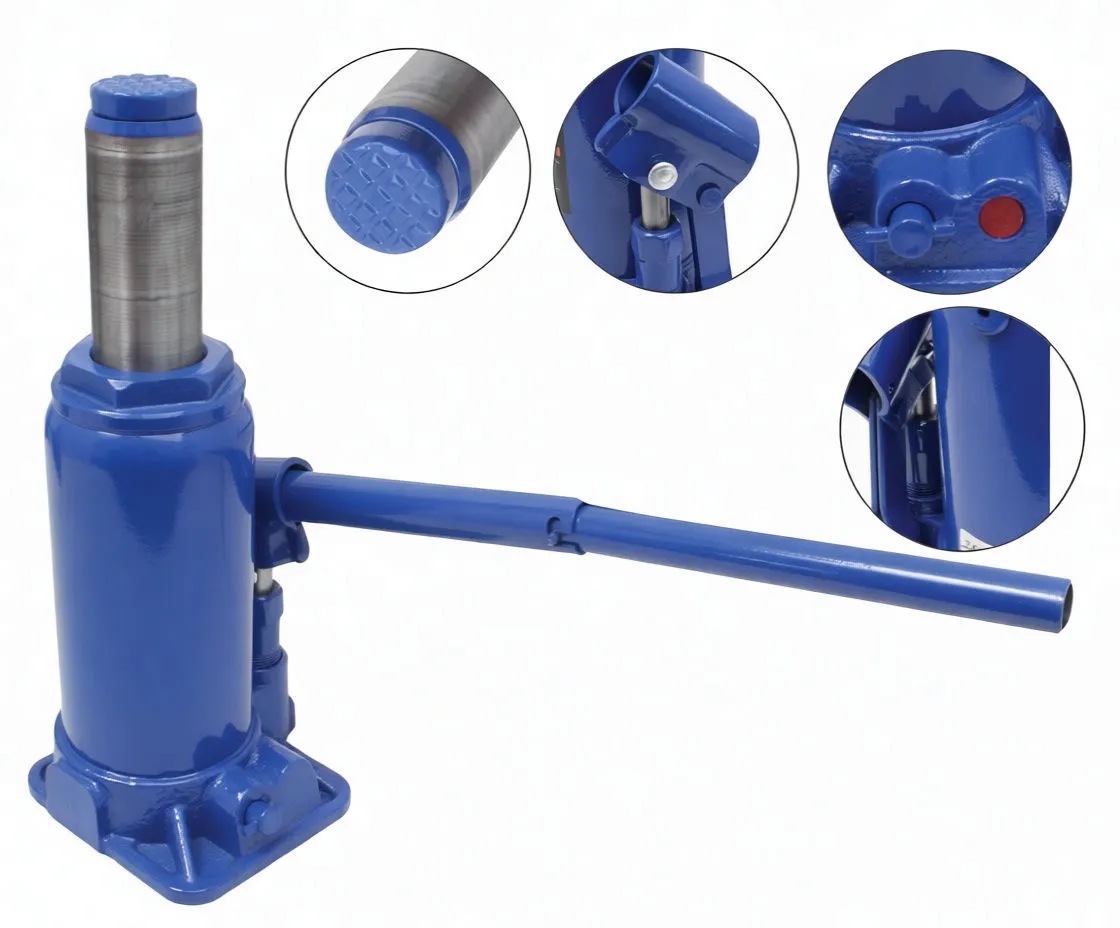

Hydraulic Bottle Jack – 10 Ton Capacity

Overview

This 10-ton hydraulic bottle jack is engineered for consistent, reliable performance across diverse workshop and garage applications. Built with precision-machined components and a controlled hydraulic system, it delivers smooth lifting with exact height adjustment. The dual-action release valve ensures controlled lowering without sudden drops—a critical safety feature for professional environments. For lighter-duty operations, consider pairing inventory with lighter-capacity lifting solutions to cover a wider customer range.

Key Features

• Precision Hydraulic Valves: Metered flow control ensures smooth, predictable piston extension without jerking or sudden movements
• Dual-Stage Release System: Controlled descent prevents rapid lowering, eliminating safety hazards during load descent
• Adjustable Height Mechanism: Screw-adjustable piston allows fine-tuning of final lift height to accommodate varied vehicle suspension geometries
• Compact, Portable Design: Weighs just 4.76 kg with detachable two-piece handle—fits easily in vehicle trunks or garage storage
• Reinforced Cast Base: Wide, ribbed foundation provides stability across uneven shop floors
• Chrome-Plated Piston Rod: Corrosion-resistant shaft maintains smooth operation over extended service life
• Textured Lifting Saddle: Gripped top surface prevents load slipping during lifts

Why This Jack Drives Reseller Value

High-Volume Demand: 10-ton capacity covers the vast majority of light-to-mid-weight vehicles (sedans, compact SUVs, small trucks). This is the most frequently purchased capacity in the 4-wheel service segment.

Repair-Resistant Design: Precision valve engineering and controlled-release mechanisms reduce warranty claims and service returns—protecting your margin.

Installer Confidence: Professional mechanics recognize smooth hydraulic response and controlled lowering as indicators of quality. This builds repeat orders and referrals.

Compact Footprint = Better Margins: Small dimensions reduce shipping costs and allow higher inventory density, directly improving your turnover rate.

Technical Specifications

Specification	Value
Lifting Capacity	10 tons (10,000 kg)
Minimum Height	200 mm
Maximum Height	385 mm
Lift Stroke	125 mm
Height Adjustment Range	60 mm
Net Weight	4.76 kg
Lifting Saddle	Textured metal/rubber hybrid (non-slip)
Piston Rod	Chrome-plated steel
Base Type	Cast iron with reinforcing ribs
Pump Handle	Detachable two-piece tubular steel with black caps
Valve System	High-precision metering + dual-stage release
Hydraulic Fluid	Standard mineral oil (pre-filled)

Application Context

This 10-ton jack is purpose-built for:

• Passenger vehicles: Sedans, hatchbacks, compact crossovers
• Light commercial: Vans, small pickup trucks
• Service workflows: Wheel changes, suspension inspection, routine undercarriage access
• Home/DIY garages: Reliable backup lifting for vehicle maintenance

Not recommended for heavy trucks, commercial vehicles, or equipment exceeding 10 tons.

Safety & Compliance

• CE-marked and compliant with European hydraulic equipment standards
• Includes visual safety pictograms on cylinder label
• Critical: Do not exceed 10-ton load capacity. Overloading voids warranty and creates serious injury risk.
• Always use on stable, level surfaces. Do not rely solely on jack for vehicle support during extended work—use jack stands.

Business Bottom Line

Stock this jack as your core lifting solution. The combination of smooth operation, controlled lowering, and compact portability creates consistent reorder demand from both professional shops and DIY customers. At 4.76 kg, shipping costs are minimal, and the robust design keeps returns low.

---

Ready to place a bulk order? Contact us for volume pricing on 10-ton and complementary lifting equipment.
