Camshaft Adjustment Tool Set for TFSI/TSI Engines – 3-Piece Adapter Kit for VAG Applications

Camshaft Adjustment Tool Set for TFSI/TSI Engines – 3-Piece Adapter Kit for VAG Applications

Overview

This is a purpose-built camshaft adjustment tool set designed specifically for TFSI and TSI petrol engine applications across the VAG (Volkswagen Audi Group) platform. The kit allows technicians to remove and adjust camshaft control valves without disassembling the timing chain—a critical advantage that reduces labor time and minimizes reassembly complexity. Whether you're stocking tools for a multi-brand European service center or running a dedicated VW/Audi specialist shop, this set covers the most common engine variants from 2007–2013 production years.

For shops handling a broader range of VAG timing work, consider pairing this with a larger timing tool set for extended VAG applications to maximize your service capability across different engine generations.

Key Features

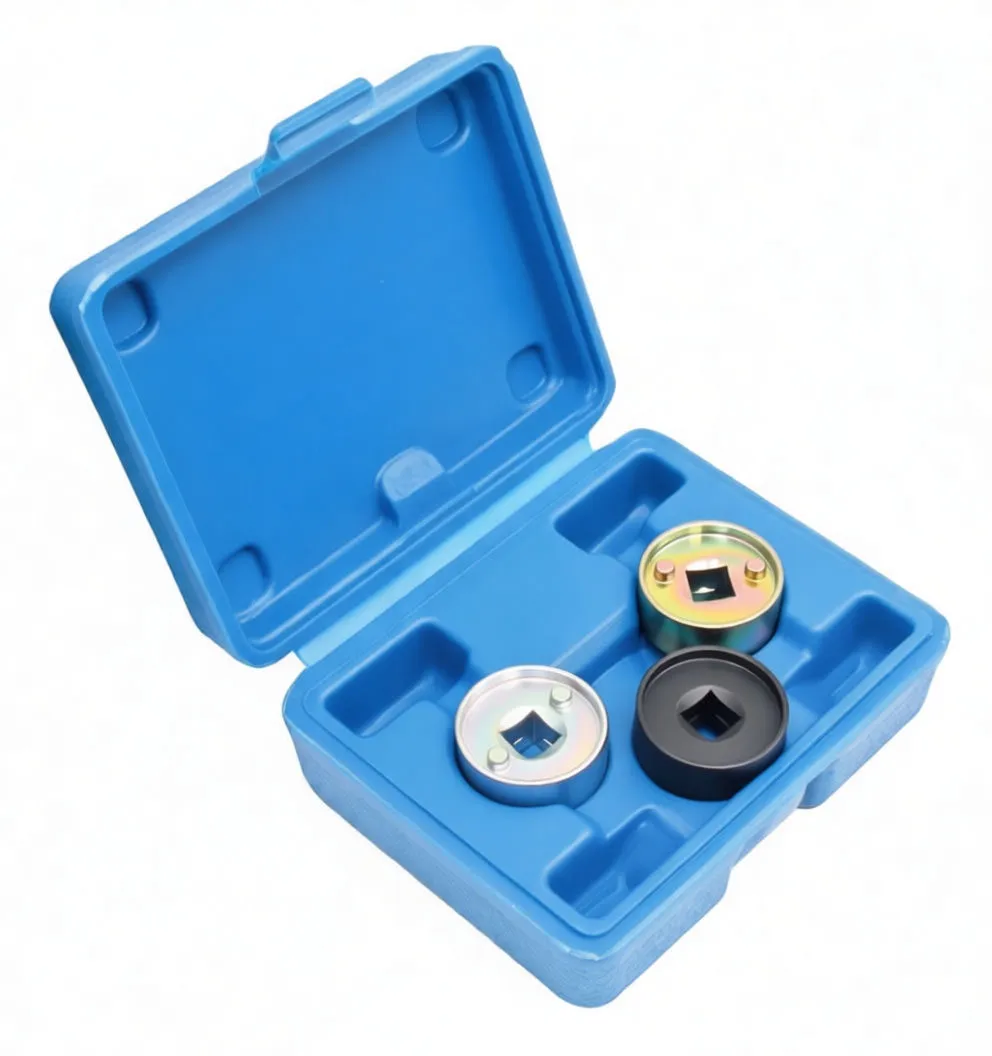

• 3-Piece Adapter Configuration: Multiple cup-style socket adapters (silver-plated, gold-plated, and black-coated) to accommodate different camshaft sprocket designs and engagement angles
• Square Drive Interface: Compatible with standard ratchet and breaker bar attachments for controlled torque application
• Locating Pins: Precision-engineered internal studs ensure accurate engagement with camshaft sprocket recesses, preventing slippage and component damage
• Chain-On Removal: Remove control valves and adjust camshaft timing without breaking the timing chain or removing associated covers
• Protective Carrying Case: Blue hard plastic case with custom-molded compartments keeps all three adapters organized, protected, and job-site ready
• Multi-Language Documentation: Instruction label on case lid provides guidance in multiple languages

Technical Specifications

Specification	Detail
Engine Types Covered	TFSI and TSI petrol engines (1.8L and 2.0L variants)
Adapter Pieces	3 (silver-plated, gold-plated, black-coated)
Drive Type	Square drive socket interface
Locating Feature	Internal pins for precise camshaft engagement
Case Type	Blue molded plastic carrying case with hinged lid
Primary Application	Camshaft control valve removal and timing adjustment

Comprehensive VAG Coverage

This tool set is engineered for the following vehicle platforms and engine codes:

AUDI: A3, A4, A5, Q5 (2007–2013); TT (2008–2013) | 1.8/2.0 TFSI/TSI

VOLKSWAGEN: Golf, Passat (2007–2013); Jetta (2007–2011); EOS (2008–2013); Scirocco (2008–2013); Sharan (2011–2013); Tiguan (2007–2013) | 1.8/2.0 TFSI/TSI

SEAT: Leon, Toledo (2007–2013); Altea (2009–2013); Exeo (2010–2013) | 1.8/2.0 TFSI/TSI

SKODA: Octavia II (2007–2013); Superb II (2008–2013); Yeti (2009–2013) | 1.8/2.0 TFSI/TSI

Supported Engine Codes: BYT, BZB, CABA, CABB, CABD, CAWB, CBFA, CCTA, CCZA, CCZB, CCZC, CDHA, CDHB, CDNB, CDNC, CDND, CFKA, CGYA, CDZD, CDAA, CDAB

Business Advantages for Distributors

• High-Demand Specialist Tool: TFSI/TSI timing work is a recurring service need at European specialist shops and multi-brand dealers. This tool directly addresses a common job requirement.
• Margin-Friendly SKU: Compact, durable, and purpose-built—low replacement rate with steady demand from independent and franchised service centers.
• Volume Opportunity: Cover four major VAG brands (Audi, VW, Seat, Skoda) across 14+ vehicle models, creating multiple touchpoints with your customer base.
• Bulk-Order Ready: This is a tool technicians will recommend to colleagues and want in stock. Ideal for bundling with other timing tools or selling as part of a camshaft service kit.
• Professional Presentation: Molded plastic case with multi-language documentation adds perceived value and reduces technical support inquiries.

Practical Advantage: Chain-On Removal

The ability to remove and adjust camshaft control valves without chain removal is a significant time-saver:

• Eliminates the need to drain coolant or remove expansion tanks
• Reduces reassembly complexity and risk of timing errors
• Allows technicians to diagnose and correct camshaft timing issues in under an hour on most applications
• Direct competitive advantage for shops competing on turnaround time

Application Notes

This tool set is optimized for camshaft control valve service—specifically the variable valve timing (VVT) control mechanisms found on TFSI and TSI engines. It is not a full timing chain removal tool; rather, it enables precise adjustment and replacement of control components while the chain remains in place.

The multiple adapter configurations accommodate the slight variations in camshaft sprocket design across different production years and engine revisions within the TFSI/TSI family, ensuring compatibility across the full 2007–2013 model range.

---

Stock this tool set to unlock a recurring service revenue stream from European specialist shops and multi-brand dealers. The VAG customer base is large, loyal, and performance-conscious—they demand tools that get the job done right.
