Camshaft Alignment Tool Set for VAG, Twin-Cam 1.4-1.6L Engines

Brief Overview

This camshaft alignment tool is engineered for timing control on VAG group vehicles with twin-cam 1.4 and 1.6-liter 16V engines. The stepped dual-pin design locks both camshaft sprockets simultaneously, preventing cam rotation during timing belt service, valve work, and engine rebuild. Compatible with a comprehensive range of VW, Audi, and Skoda models spanning two decades of production. When timing work demands precision, this tool keeps both cams indexed—critical for preventing valve-to-piston contact and costly rework. Pair this with complementary VAG timing adjustment tools for complete timing system control.

Key Features

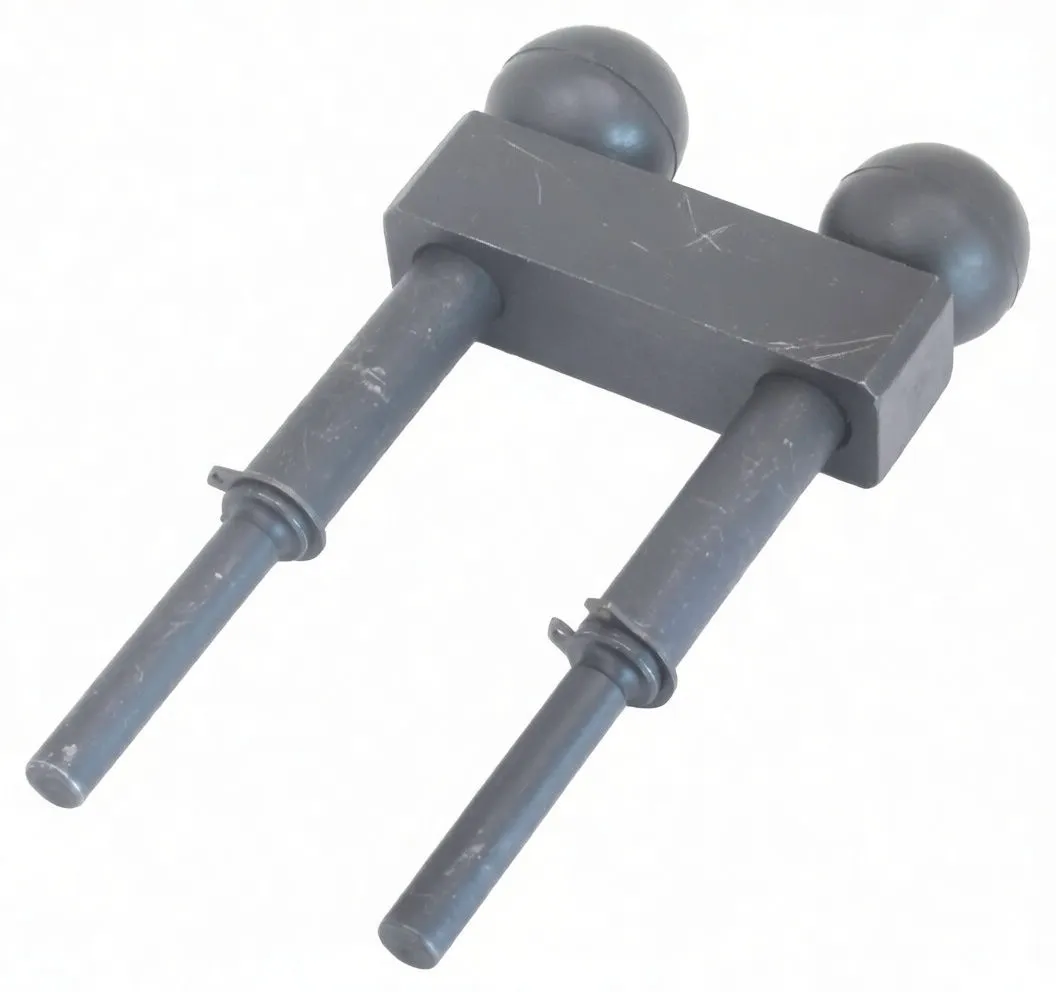

• Dual stepped-pin design – Two hardened locating pins with stepped diameters ensure precise engagement in camshaft sprocket holes
• Rectangular cross-block body – Bridges both camshaft sprockets, locking their relative position during service
• Friction collar retainers – Small circlip-style collars on each pin prevent pin drift during installation and removal
• Ergonomic ball handles – Knob handles on the block face enable secure hand grip for tool installation and removal
• Dark hardened metal construction – Corrosion-resistant finish withstands engine bay exposure and repeated use
• Direct sprocket engagement – No adapters required; pins seat directly in OEM camshaft timing holes

Supported Models & Engines

VW Models: Lupo, Polo, Beetle, Golf, Bora, Caddy (1997–2010)
Audi Models: A2 (2000–2006)
Skoda Models: Fabia, Fabia II, Octavia, Octavia II, Roomster (1999–2009)

Engine Codes: AFK, AHW, AKQ, APE, AQQ, AUA, AUB, AXO, BBY, BBZ, BCA, BKY, BUD, BXW, AAR, AJV, ARC, ATN, AUS, AVY, AZD, BCB, BAD
Displacements: 1.4 16V, 1.4 FSi, 1.6 16V, 1.6 FSi

Business Advantages

• High-volume application base – Covers three major VAG brands across a 12-year production window; strong market demand from independent shops and dealer networks
• Essential for timing work – Every timing belt replacement, cam seal service, or valve job requires this tool; unavoidable purchase for any shop handling VAG vehicles
• Reduces labor risk – Eliminates guesswork in cam alignment, preventing costly engine damage claims and repeat jobs
• Repeatable margin – Customers return for timing service annually; establishes predictable reorder revenue
• Minimal competition – Specialized tool with limited substitute options; strong resale positioning for professional shops

Technical Specifications

Specification	Detail
Application	Camshaft timing lock and alignment
Pin Design	Dual stepped-diameter hardened pins
Pin Engagement	Direct sprocket hole indexing
Block Material	Hardened metal with protective coating
Handle Type	Ball knob handles (both sides)
Compatibility	VAG twin-cam 1.4L and 1.6L 16V engines
Model Years	1997–2010 (see supported models list)
Pin Retention	Circlip-style friction collars
Finish	Dark coated metal, wear-resistant

How It Works

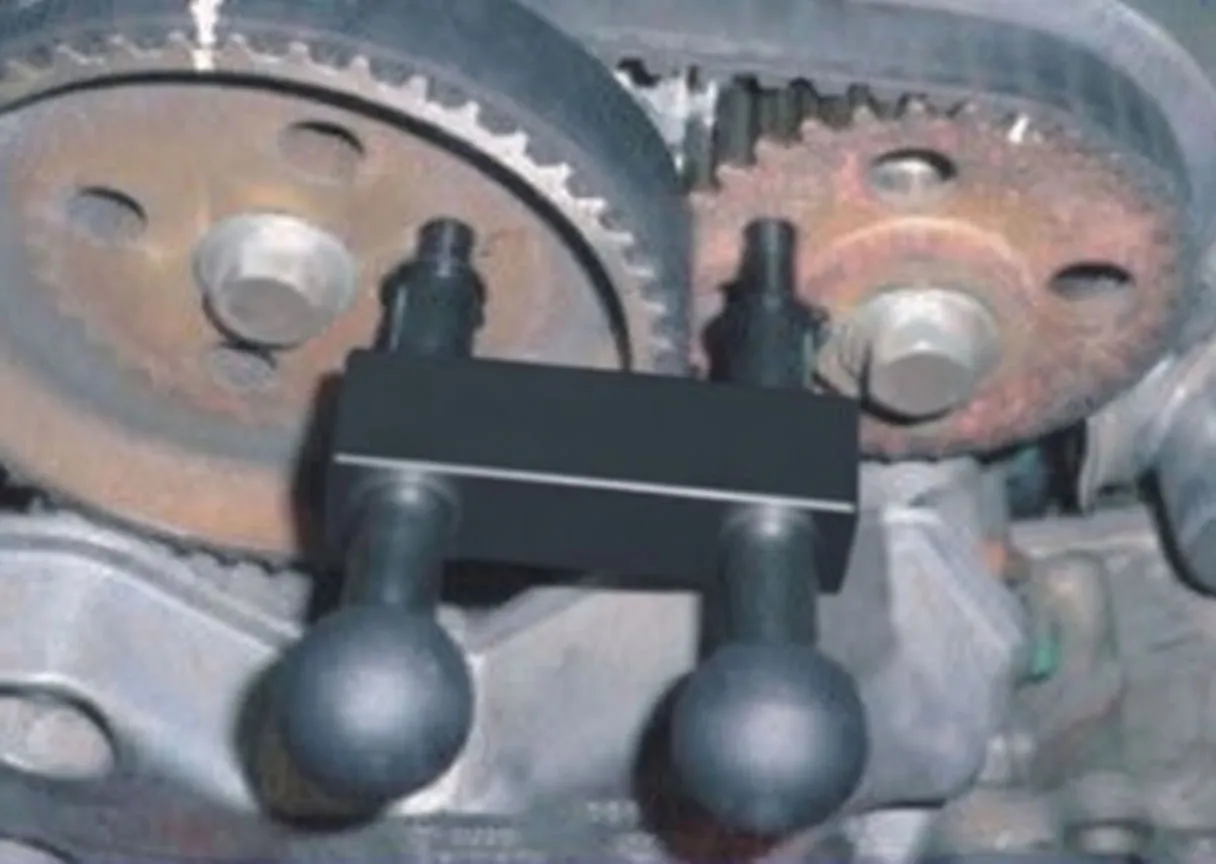

Insert the two stepped pins directly into the camshaft sprocket timing holes. The rectangular block bridges the space between sprockets, mechanically locking both cams in their OEM timing positions. Friction collars on the pins prevent slippage during belt removal and refitting. Once the timing belt is installed and torqued, remove the tool by unscrewing the ball handles and withdrawing the block. The tool provides absolute positional reference—no torque wrench or degree wheel required.

Professional Shop Value

This is a mandatory tool for any independent shop or dealer handling VAG timing work. Shops performing timing service without proper camshaft locking risk piston-to-valve contact, seized engines, and warranty claims. Positioning this tool as part of your timing service package protects your reputation and margin. Stock multiple units—shops performing 3–4 timing jobs monthly will rotate through inventory quickly, especially during seasonal service peaks.

Consider stocking expanded VAG timing tool sets for shops requiring multi-tool timing solutions.

---

Ready to order in bulk? This tool drives repeat business from professional shops. Contact us for volume pricing and distributor terms.
