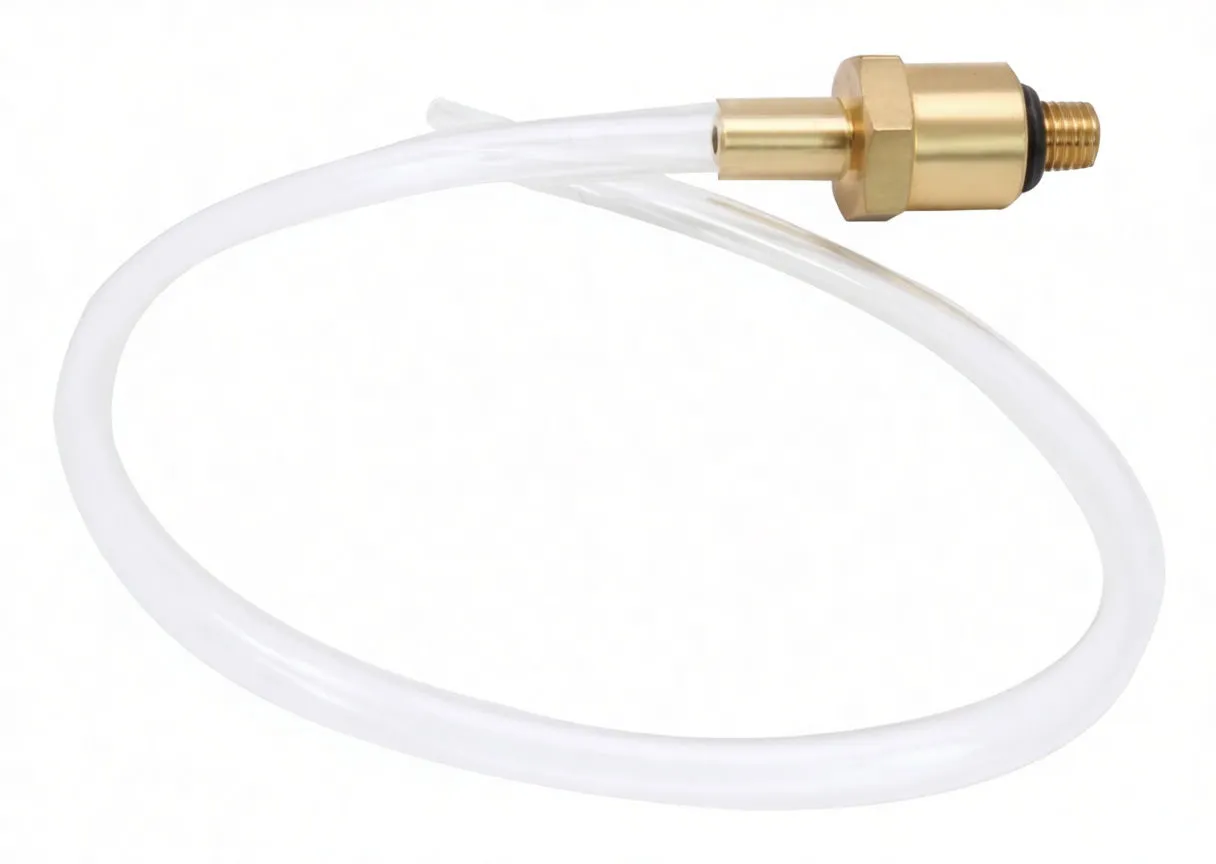

Clear flexible tube attached to a small brass fitting with hex nut and threaded tip, viewed against a white background.Loop of transparent tubing connected to a brass hex nut fitting and threaded tip with a black O‑ring, showing a faint stamp on the brass.

Carburetor Float Height Tool for Mikuni VM 22/24/26/28mm Carburetors

Precision float height measurement tool with clear tubing for Mikuni VM carburetors. Essential for accurate fuel level calibration.

Request Quote

Description

Carburetor Float Height Tool for Mikuni VM Carburetors

Overview

This float height tool is a straightforward diagnostic instrument designed specifically for Mikuni VM 22/24/26/28mm carburetors. The tool allows you to visually monitor actual fuel level inside the float chamber during operation, providing real-time feedback for float adjustment and carburetor tuning. It's an essential addition to your carburetor service toolkit, particularly when paired with a dedicated float level gauge for comprehensive float setup verification.

Key Features

  • Direct Float Chamber Access: Screws into the carburetor's drain plug hole for non-invasive installation
  • Clear Visibility: Transparent PVC tubing allows visual inspection of fuel level in real-time
  • Brass Construction: Durable brass fitting with hex nut for secure, corrosion-resistant installation
  • Sealed Design: Black rubber O-ring ensures leak-free operation during fuel flow
  • Mikuni VM Compatibility: Engineered specifically for 22, 24, 26, and 28mm Mikuni VM carburetor applications
  • Easy Installation: Simple screw-in connection; no permanent modification required

Why Resellers Choose This Tool

Recurring Service Revenue: Float height adjustment is a common maintenance task on vintage and performance motorcycles. Stock this tool and you'll turn routine carburetor service into a billable operation—mechanics will appreciate not having to improvise or purchase expensive diagnostic equipment.

Low Inventory Cost, High Turnover: Compact, durable, and universally needed by any shop servicing Mikuni carburetors. Minimal shelf space; strong repeat orders from shops performing seasonal tune-ups.

Complementary Upsell: Pair this with a carburetor adjustment tool to offer a complete tuning solution to your customers.

Technical Specifications

Specification Details
Carburetor Compatibility Mikuni VM 22/24/26/28mm
Connection Method Screw-in drain plug hole fitting
Fitting Material Brass with black rubber O-ring seal
Tubing Material Clear PVC, flexible
Installation Non-invasive; no carburetor modification required
Operating Principle Visual fuel level observation during engine operation

Application Notes

Install with the petrol tap switch in the ON position. The clear tubing must be positioned next to the carburetor so the fuel level inside the float chamber is visible. This tool is essential for verifying correct float height before and after adjustment, ensuring optimal fuel delivery and preventing lean or rich running conditions.

Stock this tool and establish yourself as a serious carburetor service provider. Mechanics will specify it by name once they experience the convenience and accuracy it provides.
