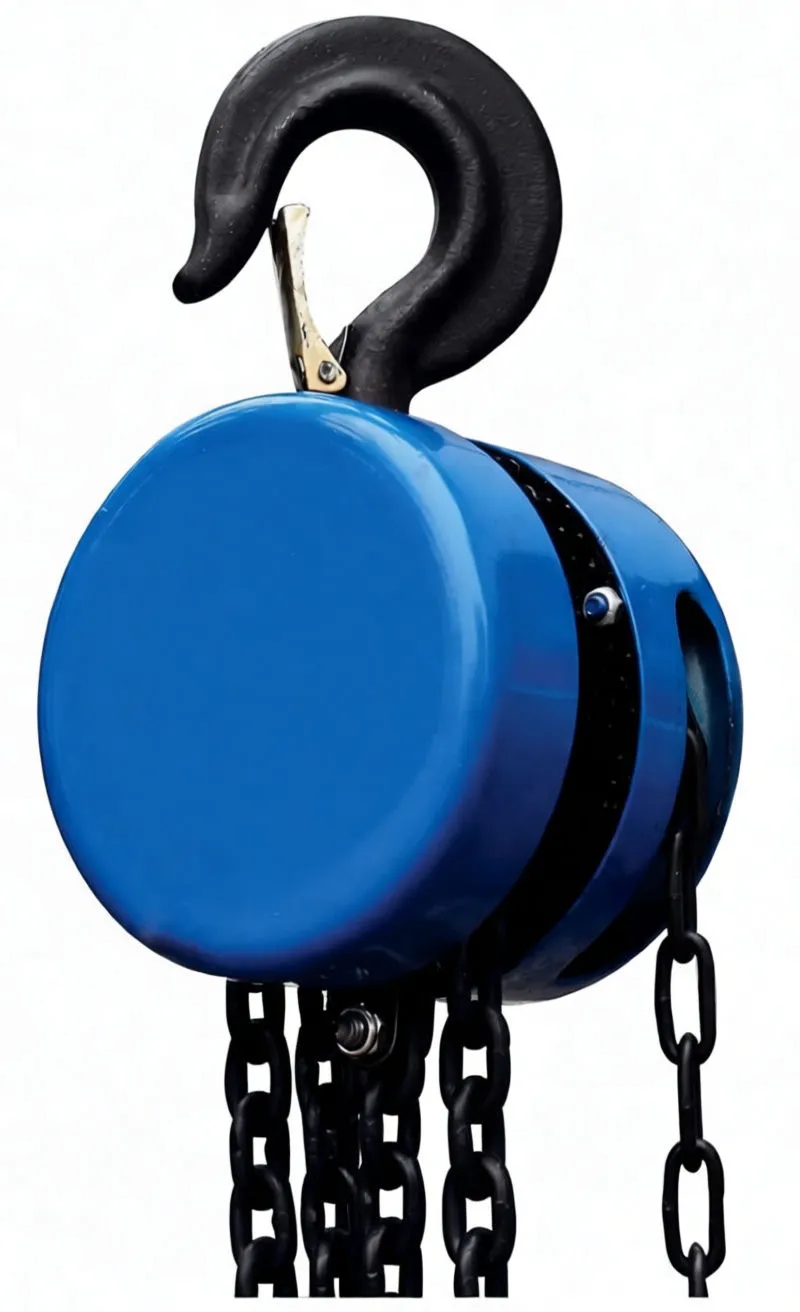

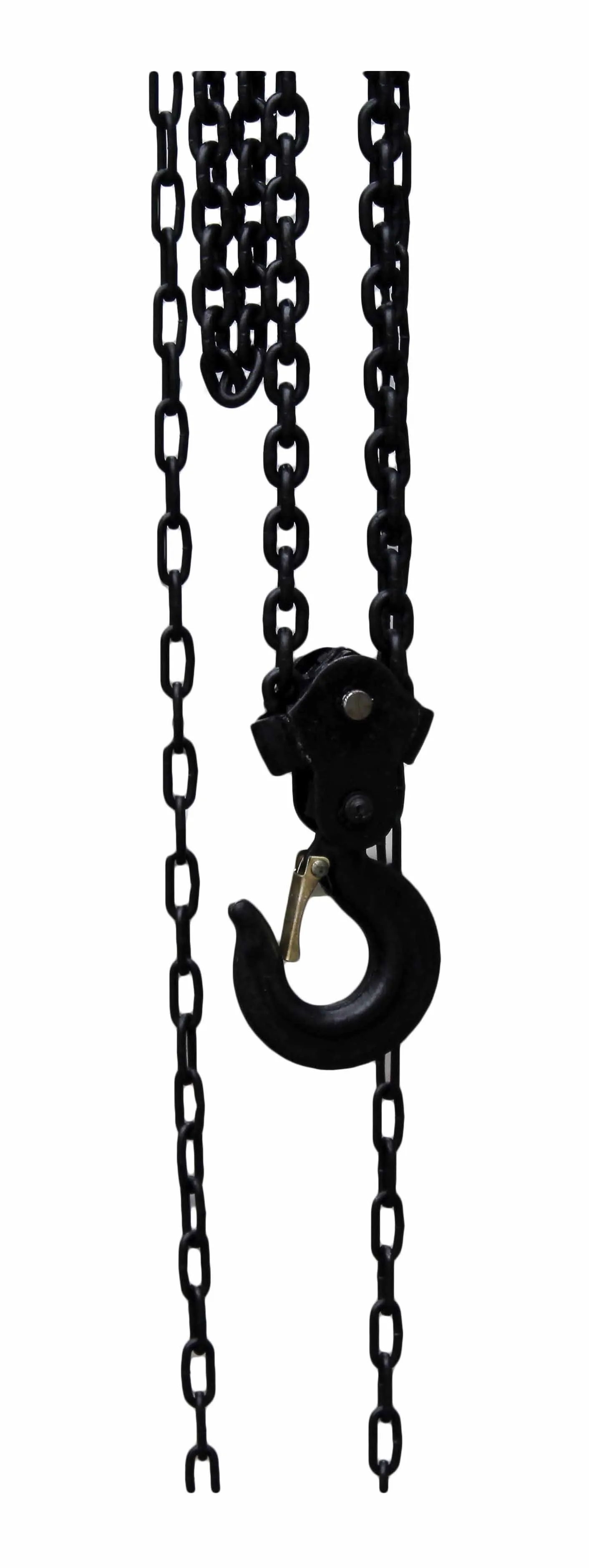

Close-up of blue chain hoist housing with top hook, safety latch, label 'saTra', and hanging black chains.Full vertical view of a blue chain hoist with long hand chain and multiple load chains hanging down from the hoist body.Close-up of lower block and load hook assembly with safety latch, pulley block and multiple black chains.

Manual Chain Hoist, 2-Ton Capacity, 2.5m Lifting Height

Professional-grade 2-ton chain hoist with soft-start mechanism for safe, precision lifting in warehouses, production lines, and workshops.

Request Quote

Description

Manual Chain Hoist, 2-Ton Capacity, 2.5m Lifting Height

Overview

This manual chain hoist delivers reliable lifting performance for heavy-load operations across production facilities, warehouses, and maintenance workshops. Engineered with a soft-start mechanism that eliminates jerks during operation, it ensures both worker safety and load precision—critical advantages when handling expensive equipment or sensitive production schedules. Whether you're repositioning machinery on assembly lines or managing inventory in high-traffic facilities, this hoist provides the control professionals demand. For operations requiring lighter lifting capacity, consider our lighter 1-ton chain hoist, or for ground-level positioning tasks, explore our compact floor jack solutions.

Key Features

  • Soft-Start Mechanism: Eliminates sudden jerks and jolts at the beginning and end of lifts, protecting both load and operator
  • High-Precision Operation: Smooth load control enables exact positioning critical for assembly work and switchboard installation
  • Versatile Installation: Integrated suspension hook allows mounting virtually anywhere—ceiling, gantry, or portable lifting frames
  • Heavy-Duty Load Hooks: Forged black suspension hooks with spring-loaded safety latches on both upper and lower blocks
  • Compact Gearbox Design: Blue-painted steel housing with sealed bearing assembly and internal chain drive system
  • Multiple Load Chains: Parallel chain configuration distributes load stress and ensures balanced lifting

Business Advantages for Resellers

This chain hoist addresses a consistent market need across three high-volume sectors:

  1. Production Line Management: Factories upgrading from manual methods to controlled lifting see measurable improvements in cycle times and safety incident reduction—key selling points to operations managers
  2. Warehouse Efficiency: The soft-start feature and precise control reduce product damage during repositioning, directly improving the bottom line for logistics operations
  3. Workshop Versatility: Its adaptability to various mounting configurations makes it an essential backup tool for any professional shop—high repeat-purchase potential

The combination of European engineering standards and straightforward manual operation means minimal training requirements and strong customer retention.

Technical Specifications

Specification Value
Lifting Capacity 2,000 kg (2 tons)
Maximum Lifting Height 2.5 m
Test Load Rating 3 tons
Minimum Hook Distance 444 mm
Operating Chain Pull (at Full Load) 314 N
Suspension Hook Type Forged steel with safety latch
Load Hook Configuration Forged steel swivel block with safety latch
Housing Material Steel with blue protective coating
Load Chain Material High-strength steel (multiple parallel strands)

Why Distributors Choose This Model

  • Proven Reliability: Soft-start engineering eliminates the mechanical stress that causes premature failure in standard hoists
  • Safety Certification: CE marking and test-load validation exceed European industrial safety standards
  • Minimal Maintenance: Sealed gearbox design reduces routine service demands—better for your customers' operational budgets
  • Strong Margin Potential: Professional-grade construction supports healthy resale pricing without customer resistance

Ready to stock a lifting solution your customers will request by name? This 2-ton hoist fills the gap between lightweight portable tools and industrial overhead systems, making it a strategic addition to any professional distributor's inventory.
