Clamping Washer Heat Shield Removal Tool for VAG, VW, Audi, and Ford Vehicles

Brief Overview

This specialized clamping washer removal tool is purpose-built for the quick and safe removal or installation of spring-loaded clamping washers found on underbody heat shields across VAG (Volkswagen, Audi, Seat, Skoda) and Ford vehicle platforms. The 1/4-inch drive quick chuck design integrates seamlessly with standard 1/4-inch drive wrenches, drivers, or cordless drills, making it an essential addition to any shop that services these vehicle lines. Pair this with camshaft and crankshaft positioning tools to round out your VAG engine service capability.

Key Features

• 1/4-inch Drive Quick Chuck: Compatible with all standard 1/4-inch drive wrenches, impact drivers, and cordless drill chucks

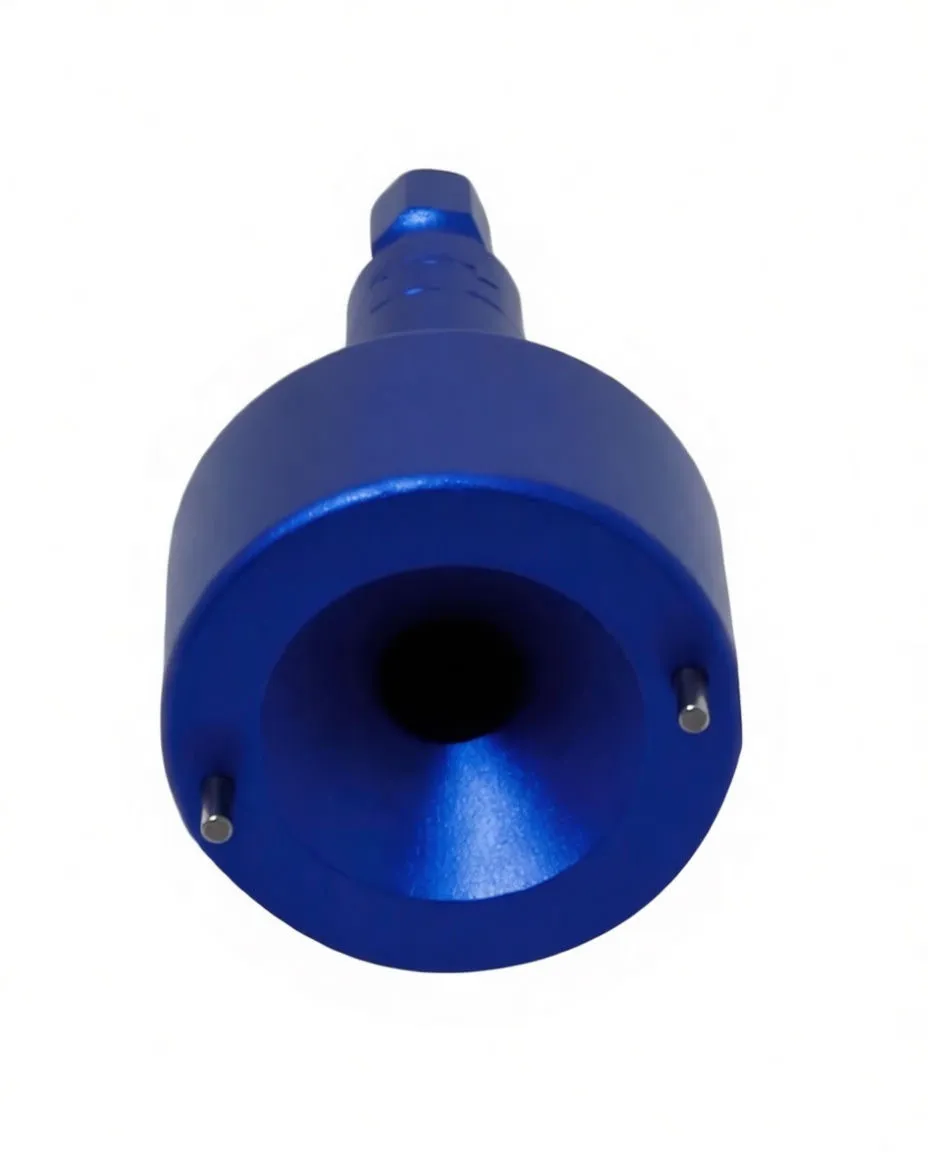

• Dual Locating Pins: Two precision-machined stainless steel pins ensure correct alignment with clamping washer geometry, preventing damage and misalignment
• Deep Recessed Cup Head: Engineered cavity design securely engages the spring washer without stripping or deforming the fastener

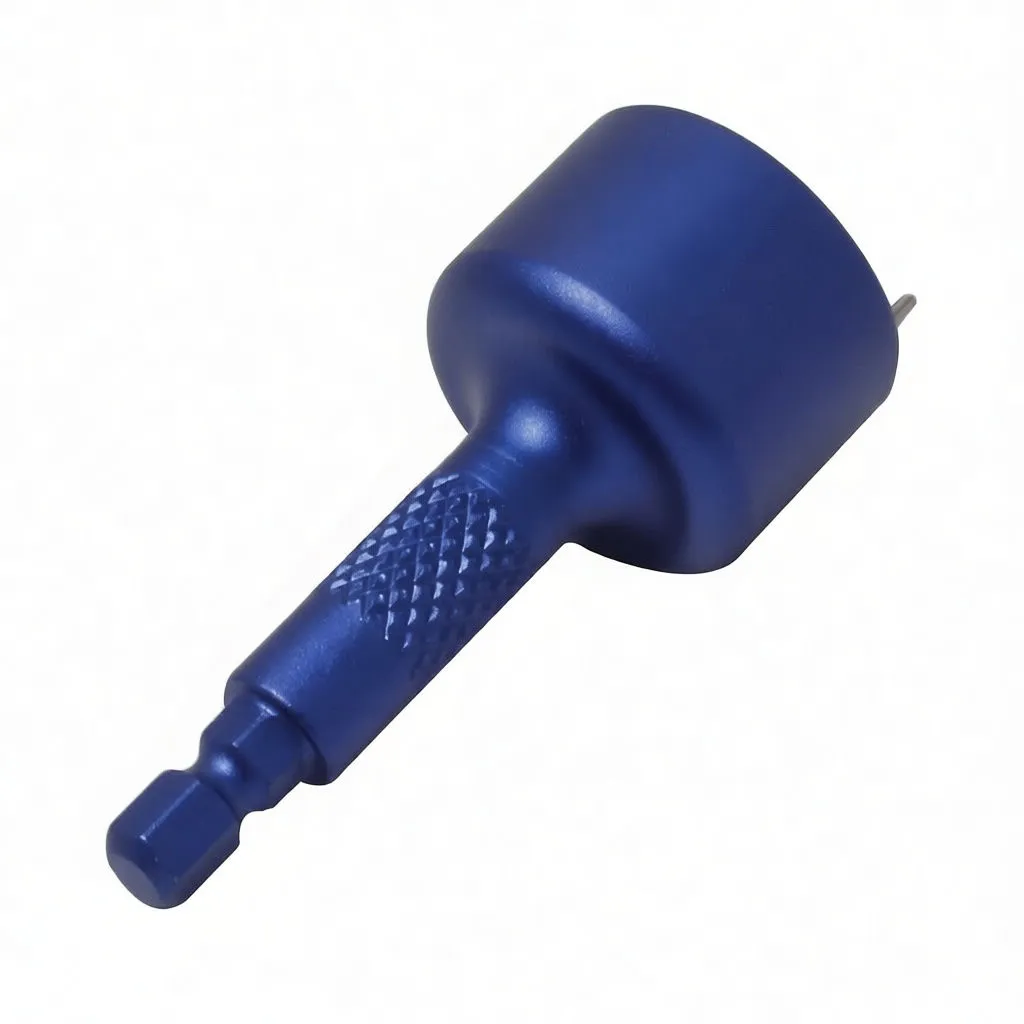

• Knurled Grip Shaft: Textured handle provides positive control during manual or powered operation
• Anodized Aluminum Construction: Durable blue anodized finish resists corrosion and wear in typical underbody environments
• OEM-Validated Design: Matches specifications for factory heat shield applications across multiple vehicle platforms

Supported OEM Applications

Audi, Seat, Skoda, Volkswagen:

• OEM Part Numbers: N90335004, N90335006, N90796501
• Compatible Clamping Disc References: 36149, 36150, 36571

Ford:

• OEM Part Number: 6715468

Extended Compatibility: These clamping washers are also found on numerous other vehicle brands, making this tool valuable for multi-brand shop operations.

Business Advantages for Resellers

• High-Turnover Item: Heat shield work is routine maintenance on VAG and Ford platforms, ensuring consistent demand
• Low Bulk Cost: Minimal storage footprint and lightweight packaging reduce carrying costs
• Margin Protection: Specialized tools command stronger margins than generic alternatives
• Customer Stickiness: Shops that invest in OEM-correct tooling return for related service items
• Multi-Platform Revenue: Single tool supports VAG (4 brands) plus Ford, maximizing portfolio utility
• Low Damage Risk: Purpose-built design eliminates customer comebacks from fastener damage

Technical Specifications

Specification	Detail
Drive Size	1/4-inch (6.35 mm)
Drive Type	Hex Quick Chuck
Head Design	Deep Recessed Cup with Dual Locating Pins
Locating Pin Material	Stainless Steel
Body Material	Anodized Aluminum
Finish	Blue Anodized (Matte/Pearl)
Grip Style	Knurled Shaft
OEM Compatibility	VAG Group (VW, Audi, Seat, Skoda) / Ford
Supported Clamping Disc Sizes	36149, 36150, 36571 (VAG)

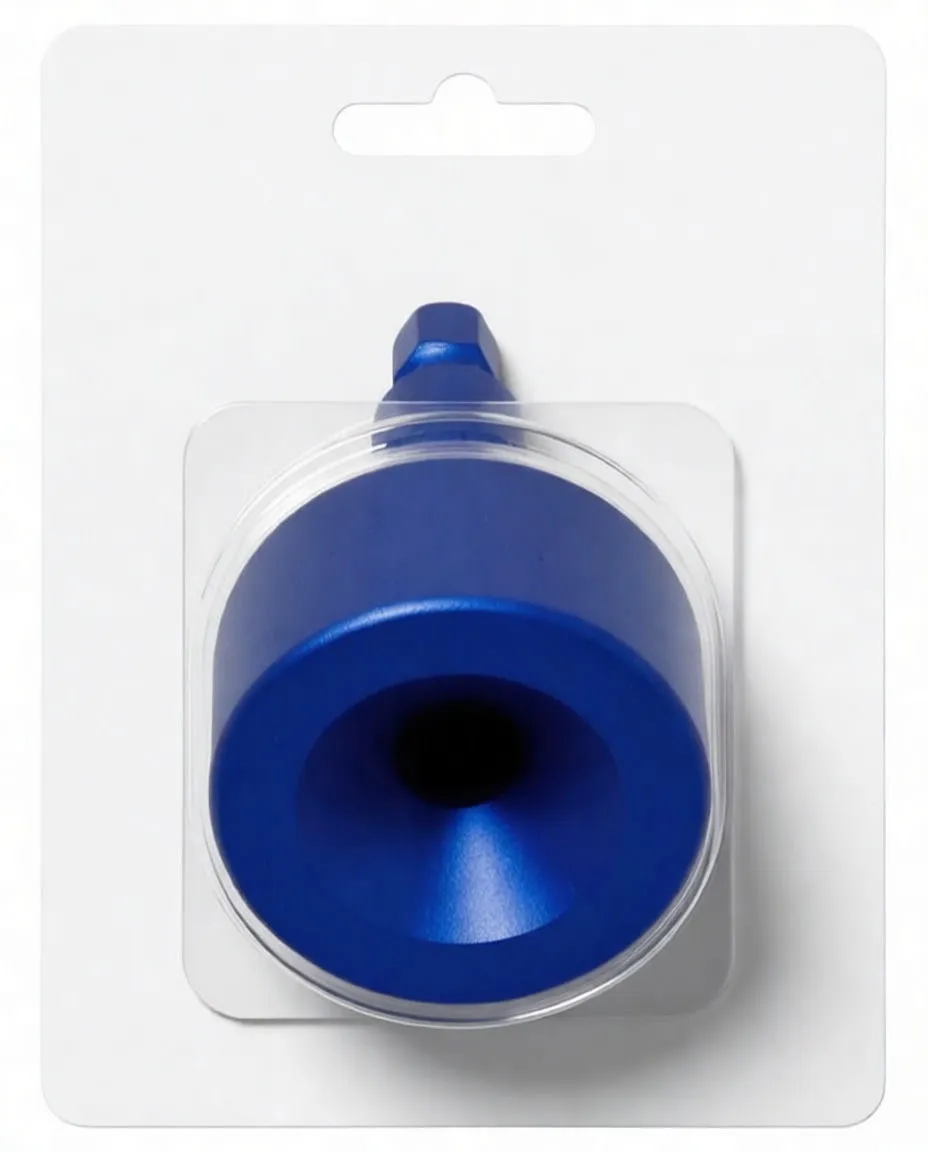

Packaging	Retail Blister with Printed Backing Card

Application Context

Heat shield clamping washers are spring-tensioned fastening devices that secure underbody thermal protection panels. Removal without the correct tool risks:

• Deformation of the washer spring geometry
• Stripping of the cup-shaped retention geometry
• Misalignment during reinstallation
• Customer complaints about rattling or loose panels

This tool eliminates these failure modes by providing a form-fitted engagement surface with dual locating pins that prevent rotation or slipping during removal or installation—whether operated manually or with pneumatic/electric drivers.

Why This Tool Matters to Your Customers

Shops performing routine underbody work (exhaust heat shield replacement, thermal wrap removal, suspension service) encounter these fasteners frequently. Having the correct tool on hand reduces labor time, eliminates comebacks, and demonstrates professional competency to vehicle owners. For technicians, it means faster work and fewer stuck or damaged fasteners.

Call to Value

Stock this tool as a foundational item in any VAG- or Ford-focused service department. At minimal cost and with high application frequency, it delivers strong turnover and positions your shop as technically equipped for OEM-correct service procedures.
