Compact Soldering Iron Station with LED Display, 18W, 90-480°C Temperature Range

Brief Overview

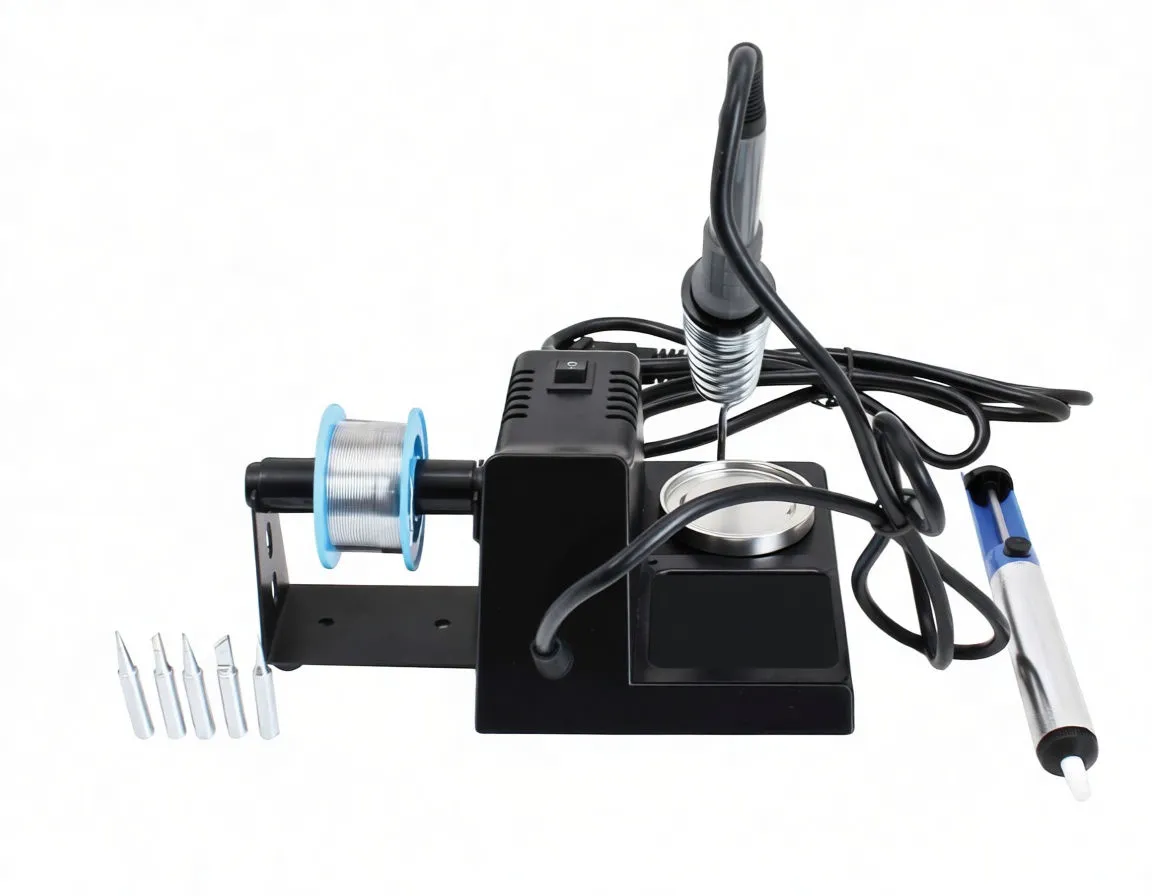

This is a fully equipped soldering station designed for professional electronics repair, PCB assembly, and precision soldering tasks. The kit arrives complete with a temperature-controlled iron, interchangeable tips, integrated solder spool holder, cleaning sponge, and a manual desoldering pump. Whether you're managing a repair workshop or restocking your retail shelves, this station addresses the complete soldering workflow in one compact unit. For shops requiring higher wattage options, consider complementary tools like electric soldering gun sets or additional interchangeable tip packs for expanded capacity.

Key Features

• Digital LED Temperature Display – Real-time temperature readout with precise control dial (TEMP knob)
• Wide Temperature Range – 90°C to 480°C accommodates everything from delicate PCB work to heavy tinning tasks
• Tight Temperature Stability – ±5°C static tolerance ensures consistent solder joints without fluctuation

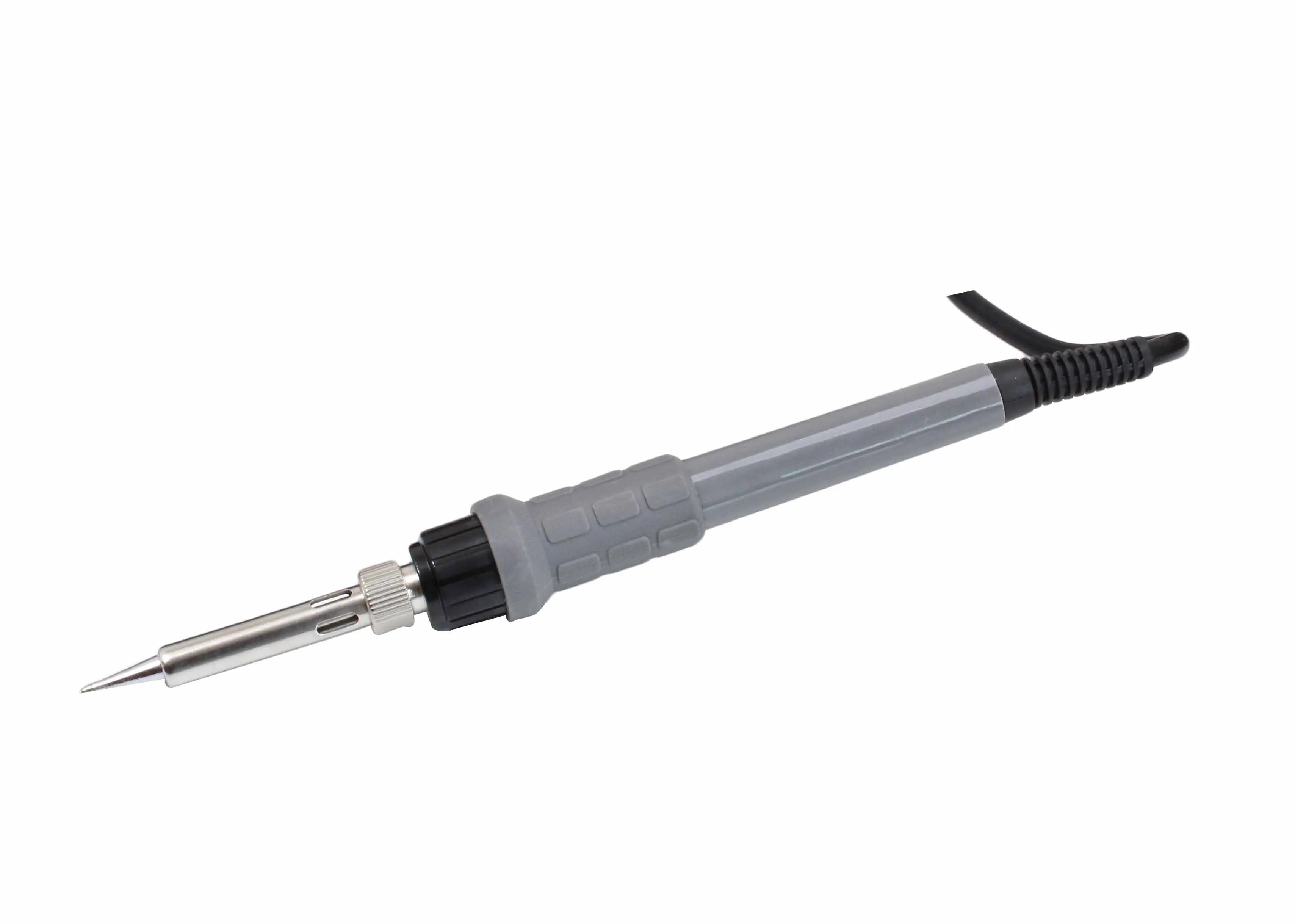

• Five Interchangeable Tips – Multiple tip geometries included; bayonet-mount system for quick tool changes

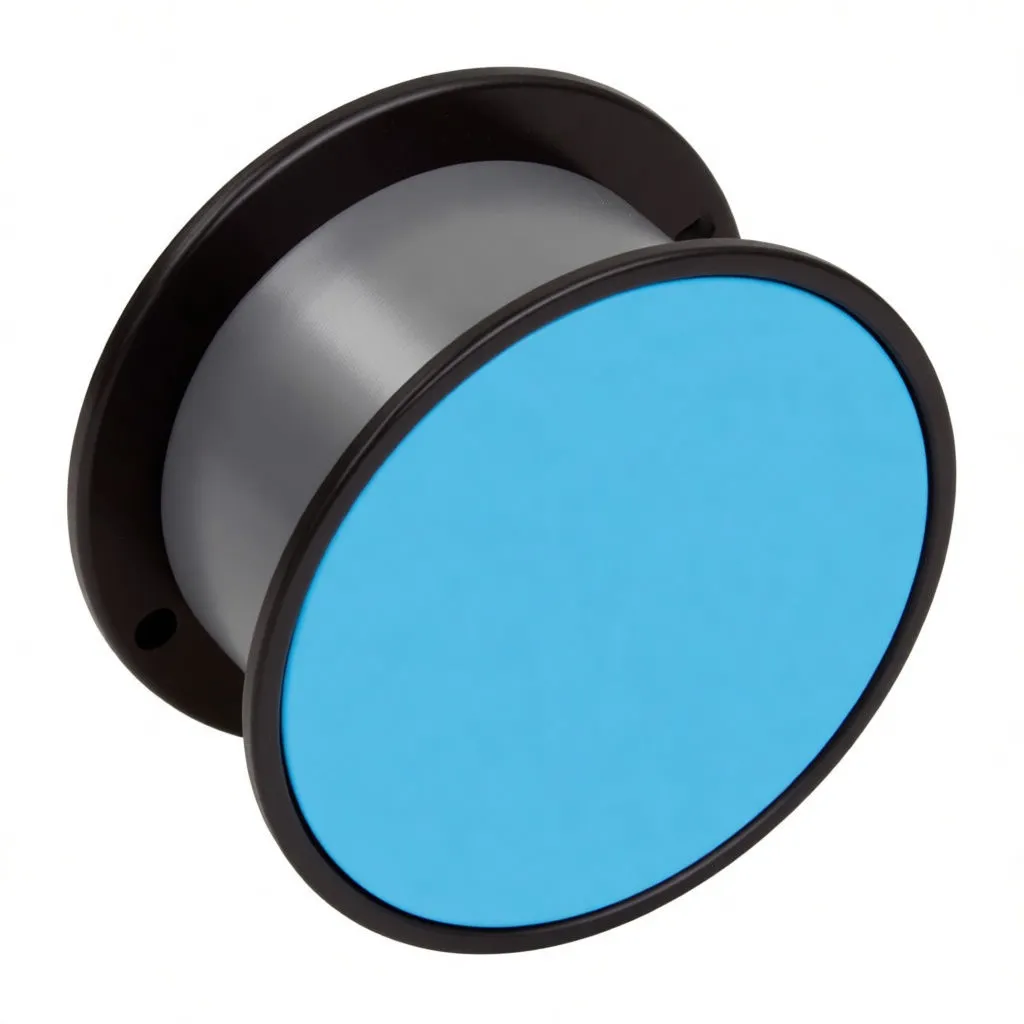

• Integrated Solder Spool Holder – Mounted directly on the base for organized workspace and reduced setup time

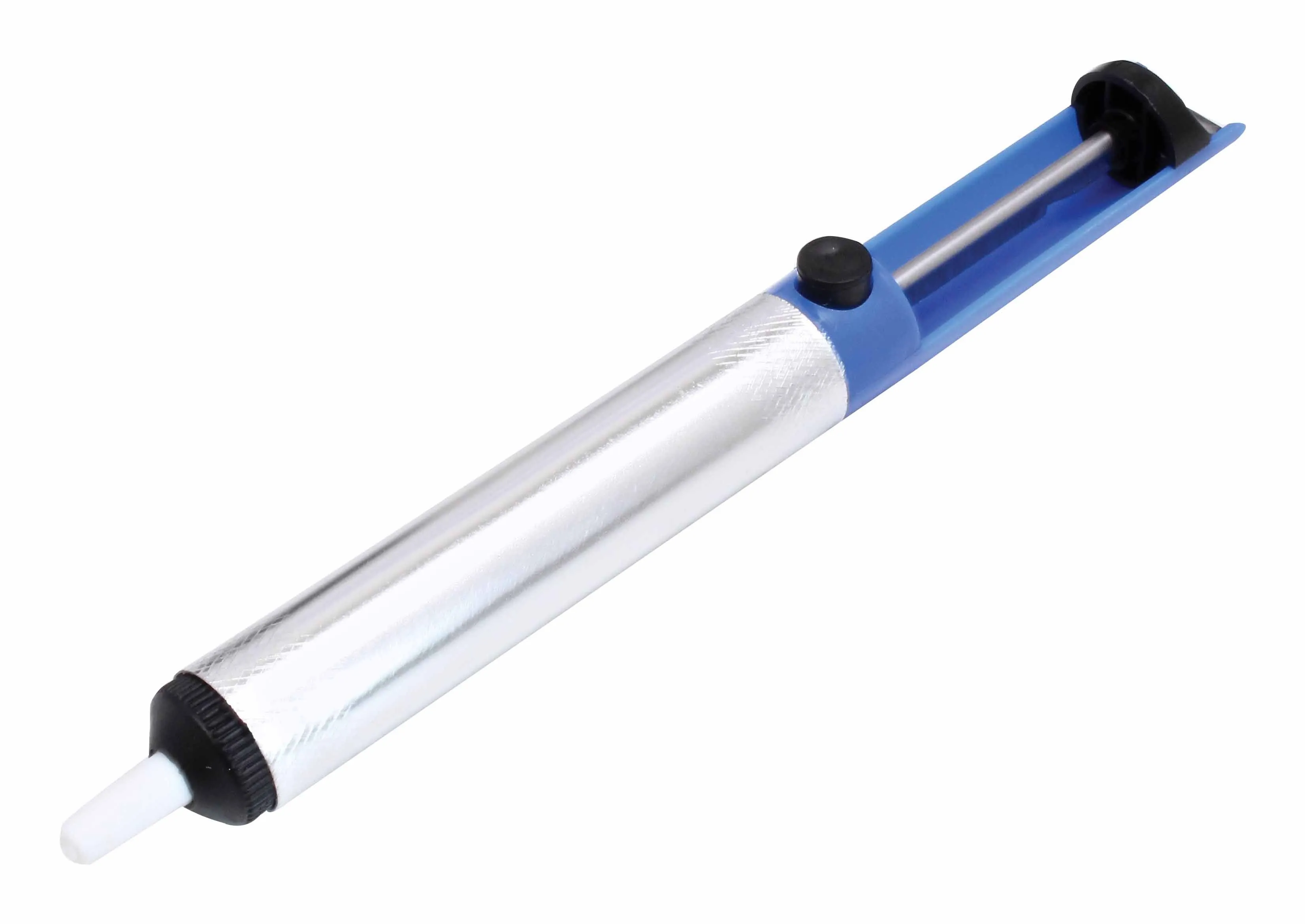

• Manual Desoldering Pump (Solder Sucker) – Silver metal construction with release button for efficient solder removal and rework
• Cleaning Sponge Pocket – Built-in sponge tray for tip maintenance between joints
• Compact Footprint – L142 × W115 × H90mm base fits tight workbenches without sacrificing functionality
• Low Impedance to Ground – <2Ω electrical safety specification protects sensitive components
• Sleep Mode – Auto-shutdown feature (10 minutes) reduces energy consumption during idle periods
• European Safety Certification – CE marked; three-pin European-style power plug included

Business Advantages for Resellers

• Complete-Kit Value: Customers receive iron, pump, spool holder, sponge, five tips, and solder wire in one purchase—eliminates the need for separate accessory orders.
• Margin-Friendly Pricing Tier: Positioned between entry-level hand tools and high-wattage industrial stations, this model captures the mid-market repair segment.
• Recurring Sales Opportunity: Replacement tips (via tip packs), solder wire, and sponges drive repeat orders.
• Technical Support Simplification: Single-unit training for your team; reduces warranty complexity compared to multi-component systems.
• Retail Shelf Appeal: Compact dimensions and complete packaging photograph well; attracts both hobbyist and professional buyers.
• Bulk Order Incentive: Standard industrial packing supports wholesale distribution and rapid turnover in high-volume repair centers.

Technical Specifications

Specification	Value
Power Consumption	18W (max 130W)
Temperature Range	90°C ~ 480°C
Temperature Stability	±5°C (static)
Impedance to Ground	<2Ω
Base Dimensions	L142 × W115 × H90mm (±5mm)
Weight	0.6kg
Operating Environment	0°C ~ 40°C (32°F ~ 104°F)
Storage Environment	–20°C ~ 80°C (–4°F ~ 176°F)
Storage Humidity	35% ~ 45% RH
Interchangeable Tips	5 included

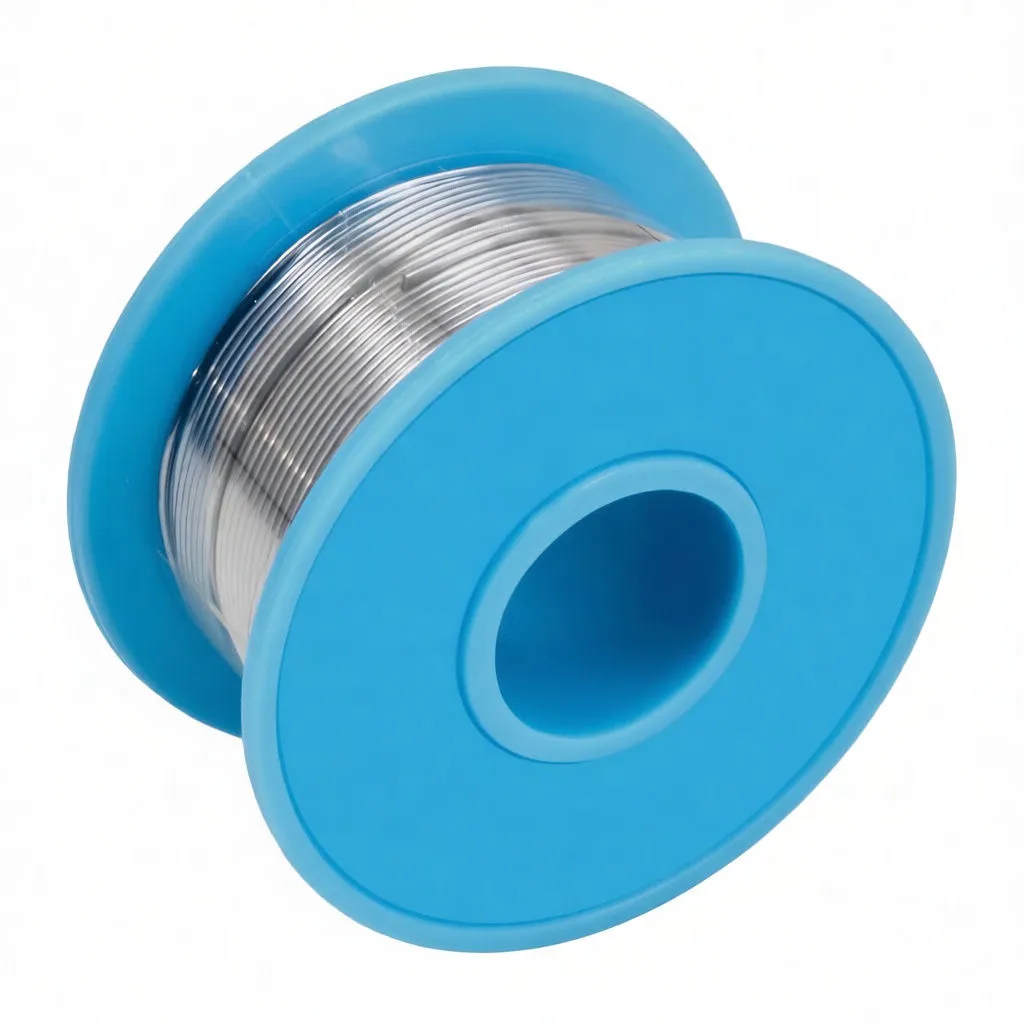

Included Accessories	Desoldering pump, solder spool, cleaning sponge, solder wire (63% tin, 37% lead)
Electrical Safety	CE certified; <2Ω ground impedance for ESD protection
Power Cord	Three-pin European plug; integrated strain relief

Application Scope

• Electronics Repair: Appliance restoration, consumer electronics rework, component replacement.
• PCB Assembly: Hand-soldering of through-hole components, prototyping, small-batch manufacturing.
• Tinning & Flux Work: Solder paste application, wire tinning, connector preparation.
• Desoldering & Rework: Pump-assisted solder removal for component replacement without thermal damage.

Why Distributors Choose This Station

The combination of digital precision, compact design, and included accessories eliminates buyer hesitation. Mechanics, electronics technicians, and repair shops appreciate the ready-to-use format; you avoid customer complaints about missing components. The tight temperature tolerance (±5°C) protects sensitive PCBs, reducing warranty returns. Low ground impedance (<2Ω) signals professional-grade ESD safety—a key selling point for shops repairing computers and telecommunications equipment.

Stock this unit for steady turnover in repair verticals, makerspace resales, and professional electronics workshops.
