Crankshaft Rotator for Volvo 6L and 12L Engines

Overview

This is a specialized crankshaft positioning tool designed specifically for Volvo 6L and 12L diesel engines. It enables technicians to manually rotate the crankshaft and accurately set the engine to Top Dead Center (TDC/GMP position)—a critical alignment requirement for timing adjustments, fuel injection setup, and engine rebuild procedures. The tool is compatible with OEM specifications 9996956 and 9996620 and supports direct work on Volvo D9A, D12, and D16C engines, as well as FM 360 8x4 configurations.

If your shop services multiple engine families, consider pairing this with our flywheel rotator for Volvo engines and multi-application crankshaft tools for other manufacturers to build a comprehensive engine setup toolkit.

Key Features

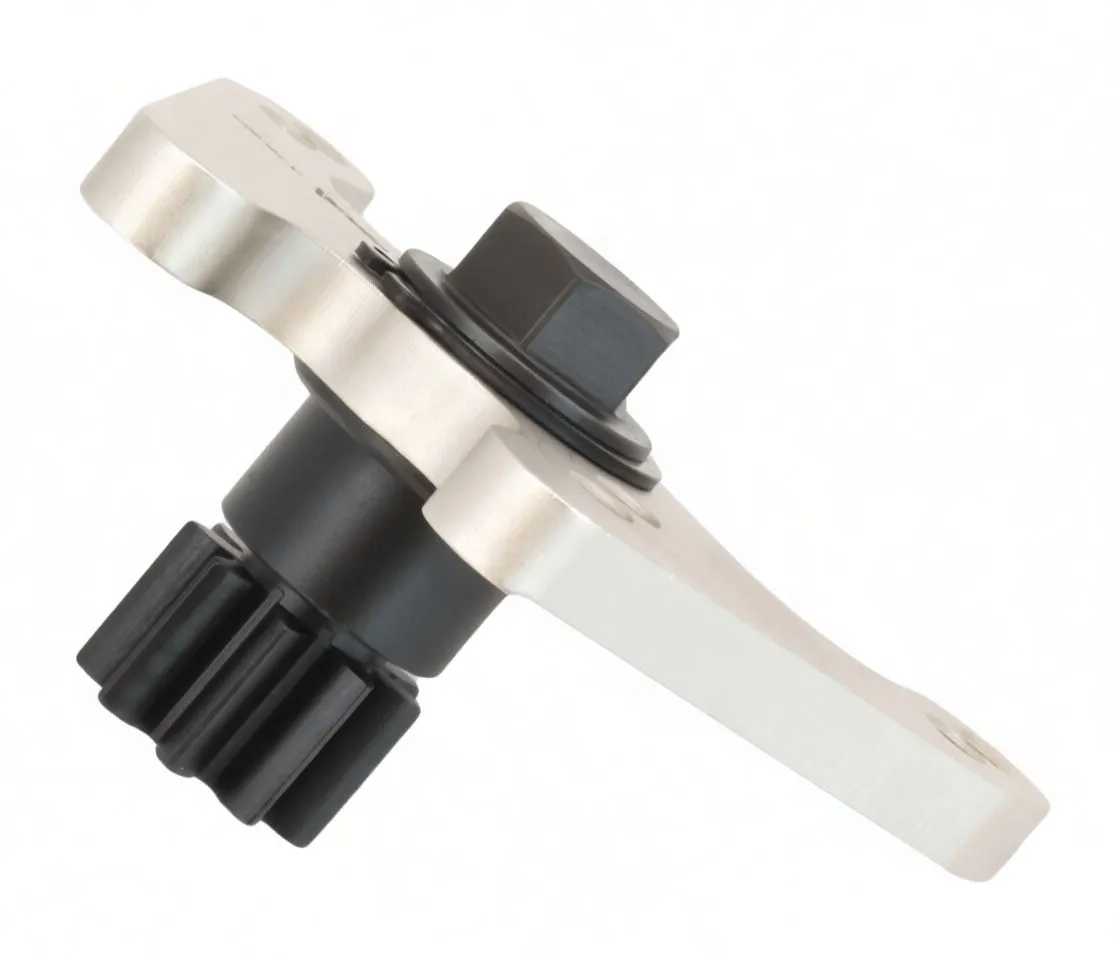

• Machined Aluminum Construction: Precision-milled aluminum plate with three reinforced mounting arms ensures durability and accuracy during repeated use
• Splined Drive Hub: Multi-tooth black spline coupling allows secure engagement with the crankshaft drive point, preventing slip during manual rotation
• OEM-Compliant Design: Built to match original Volvo specifications (9996956, 9996620) for guaranteed fitment on D9A, D12, D16C, and FM 360 engines
• Ergonomic Three-Arm Design: Balanced geometry distributes force evenly, reducing operator fatigue during TDC positioning
• Secure Fastening: Central hexagonal bolt with reinforced washer provides stable clamping to the crankshaft
• Professional Finish: Brushed silver aluminum with chamfered edges reflects industrial-grade manufacturing standards

Business Advantages for Resellers

• High-Demand Specification: Volvo heavy-duty diesel engines are widely used in commercial trucking and industrial applications; workshops servicing these platforms require this tool for compliant maintenance
• Strong Margin Opportunity: Specialized engine tools command premium pricing; limited competition in the Volvo-specific crankshaft rotator segment
• Essential for Fuel System Work: Any fuel injection or timing-related service on Volvo 6L/12L engines necessitates TDC positioning—recurring service demand
• Fleet Maintenance Appeal: Commercial fleet operators and authorized Volvo service centers are consistent bulk purchasers
• Complements Your Portfolio: Pairs naturally with flywheel tools and other engine diagnostics equipment

Technical Specifications

Specification	Detail
Designed For	Volvo 6L and 12L Diesel Engines
Engine Models	D9A, D12, D16C, FM 360 8x4
OEM Equivalents	9996956, 9996620
Primary Material	Precision-Machined Aluminum Plate
Drive Interface	Multi-Tooth Splined Hub
Fastening System	Hexagonal Bolt with Reinforced Washer
Mounting Points	Three Symmetrical Arms with Dual Holes Each
Finish	Brushed Silver (Anodized/Milled)
Application	Manual Crankshaft Rotation for TDC Positioning

Why This Tool Matters

Setting Top Dead Center is non-negotiable when working on diesel fuel systems, timing chains, or engine rebuilds. Manual crankshaft rotation using a generic wrench risks rounding the drive point and damaging expensive engine components. This purpose-built rotator distributes force through a dedicated spline interface, protecting the engine while providing the mechanical advantage needed for smooth, controlled positioning.

The three-arm design and balanced weight distribution make extended positioning work less physically demanding for technicians, improving both accuracy and workshop efficiency.

Reseller Positioning

Position this tool to commercial diesel workshops, Volvo-authorized service centers, and fleet maintenance facilities as an essential investment for compliance and cost avoidance. Frame it as a tool that protects higher-value engine work and enables faster service turnaround—two factors that drive customer satisfaction and repeat business.

Stock this alongside general-purpose engine tools and hydraulic equipment to capture the full service margin on Volvo diesel platform work.
