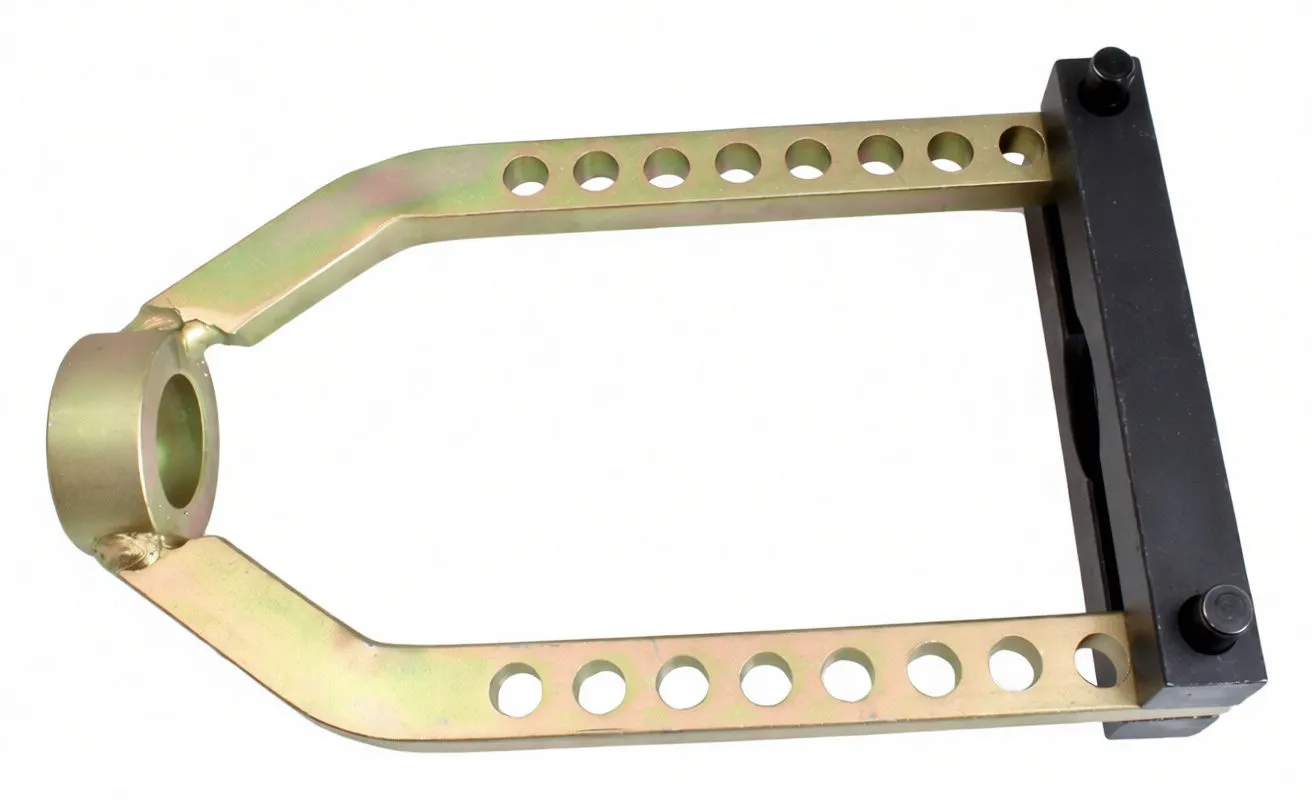

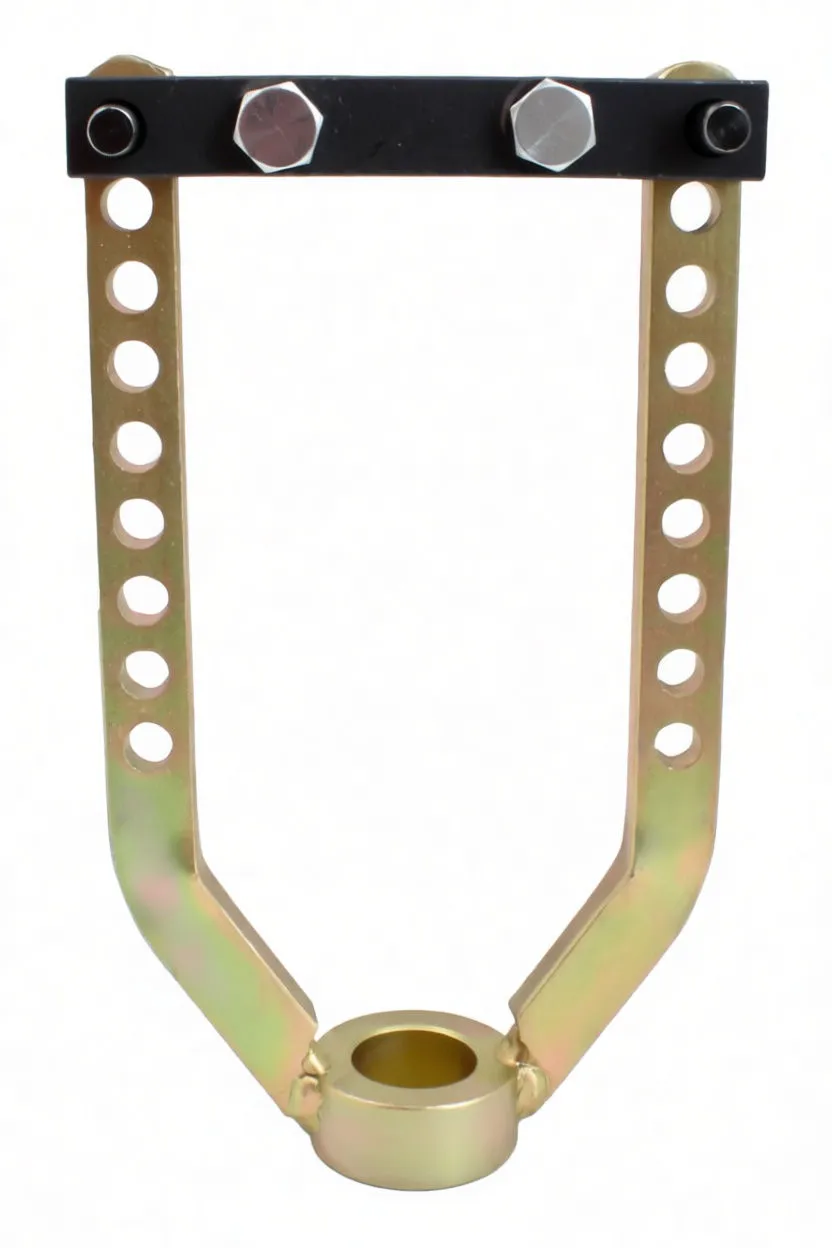

Angled close-up of a gold-plated U-shaped metal CVJ removal tool with perforated arms, a welded collar at one end and a black crossbar with bolts at the other.Side view of a U-shaped CVJ removal tool showing perforated gold arms, a welded collar and a black crossbar fastened by two hex bolts and pins.Front view of CVJ removal tool showing perforated parallel arms, welded circular collar at base and black top crossbar with two hex bolts and pins.

CVJ Removal Tool, 95mm Max Diameter, Adjustable Positioning

Precision CVJ removal tool with adjustable arms and protective collar. Removes drive shaft joints safely without transmission damage.

Request Quote

Description

CVJ Removal Tool – Professional Drive Shaft Joint Extraction

Brief Overview

This CVJ removal tool is engineered to extract constant velocity joints from drive shafts quickly and safely, eliminating the risk of costly transmission damage during disassembly. The adjustable arm design accommodates varying joint geometries, making it an essential addition to any transmission or suspension shop. Pair this with specialized tools like a caliper removal solution or alternator extraction equipment to build a complete drivetrain service toolkit.

Key Features

  • Adjustable Arm Positioning: Multiple circular holes on both arms allow precise clamping width adjustment for different CVJ sizes up to 95mm
  • Fixed Cylindrical Collar: Welded central sleeve provides stable pivot point and distributes extraction force evenly
  • Protective Clamping Assembly: Black reinforced crossbar with hex bolt fasteners and dual guide pins ensures controlled, damage-free joint removal
  • Zinc-Plated Steel Construction: Durable plating resists corrosion and wear in high-humidity shop environments
  • Grade 8.8 Fasteners: Heavy-duty bolts rated for high-stress extraction work

Why This Tool Matters for Your Shop

Operational Efficiency: Removes CVJs in minutes rather than hours of manual prying or improvised extraction methods. Shop labor time savings directly improve your bottom line.

Risk Mitigation: The designed-in protection against joint and transmission damage eliminates costly comebacks and warranty claims. One prevented transmission replacement pays for dozens of these tools.

Versatility: Adjustable positioning covers the full range of common CVJ diameters, reducing the need for multiple specialized extractors.

Professional Credibility: Customers recognize proper tool usage. Using correct extraction equipment signals competence and justifies premium labor rates.

Technical Specifications

Specification Detail
Max. CVJ Diameter 95mm
Overall Length 230mm
Arm Type Adjustable, perforated steel
Collar Design Fixed welded cylinder
Clamping System Hex bolt + guide pin assembly
Fastener Grade 8.8 (high tensile)
Surface Finish Zinc-plated steel
Adjustment Method Multi-position hole array

Your Reseller Advantage

This tool addresses a genuine market need—CVJ extraction without improvisation or risk. It's a professional solution for a common job, which means:

  • High attach rate to suspension and drivetrain work
  • Margin-friendly positioning in the $150–300 retail range
  • Durable construction means fewer returns or warranty issues
  • Professional positioning over discount tools—customers value safety

Stock this alongside transmission service kits and drivetrain tools. It's a clear value-add that justifies technician recommendations and builds customer trust.
