Diesel Injection Pump Timing Setup Kit – Universal Bosch VE, Lucas CAV, Denso, Nippon

Brief Overview

This is a specialized timing setup device engineered for diesel injection pump alignment across Bosch VE, Lucas CAV Roto, Denso, Nippon, and Kikki pump systems. The kit ships in a custom-molded storage case and supports timing work on vehicles from Audi, BMW, Fiat, Ford, Isuzu, Iveco, Land Rover, Mazda, Mitsubishi, Nissan, Renault, and VW. If your shop handles diesel fuel system diagnostics or injection pump replacement, this kit is essential. Consider pairing it with a diesel fuel system pressure tester to provide complete injection system validation to your customers.

Key Features & Components

• Analog Dial Indicator (40mm dia) – Taiwan-manufactured. Precision tolerance of ±0.01 mm across 0–5 mm range. This is the core measurement tool; gauge quality directly impacts timing accuracy and repeatability.

• Setting Plug – Determines top dead center (TDC) position on the diesel engine.

• Threaded Adapters – M8-to-M12 converter allows dial gauge mounting to pump housings and engine blocks across different fastening standards.

• Interchangeable Dial Gauge Sensors

  • M8 x 35 mm dial indicator
  • M10 x 35 mm dial gauge
  • M8 x 90 mm dial indicator
  • 40 mm sensor probe for 35 mm gauge
  • 100 mm sensor probe for 90 mm gauge

• Spring-Loaded Stylus – Ensures consistent contact pressure during measurement; reduces measurement drift.

• Angle Measurement Adapter for Lucas – Specialized mounting for Lucas pump systems to capture injection angle deviation.

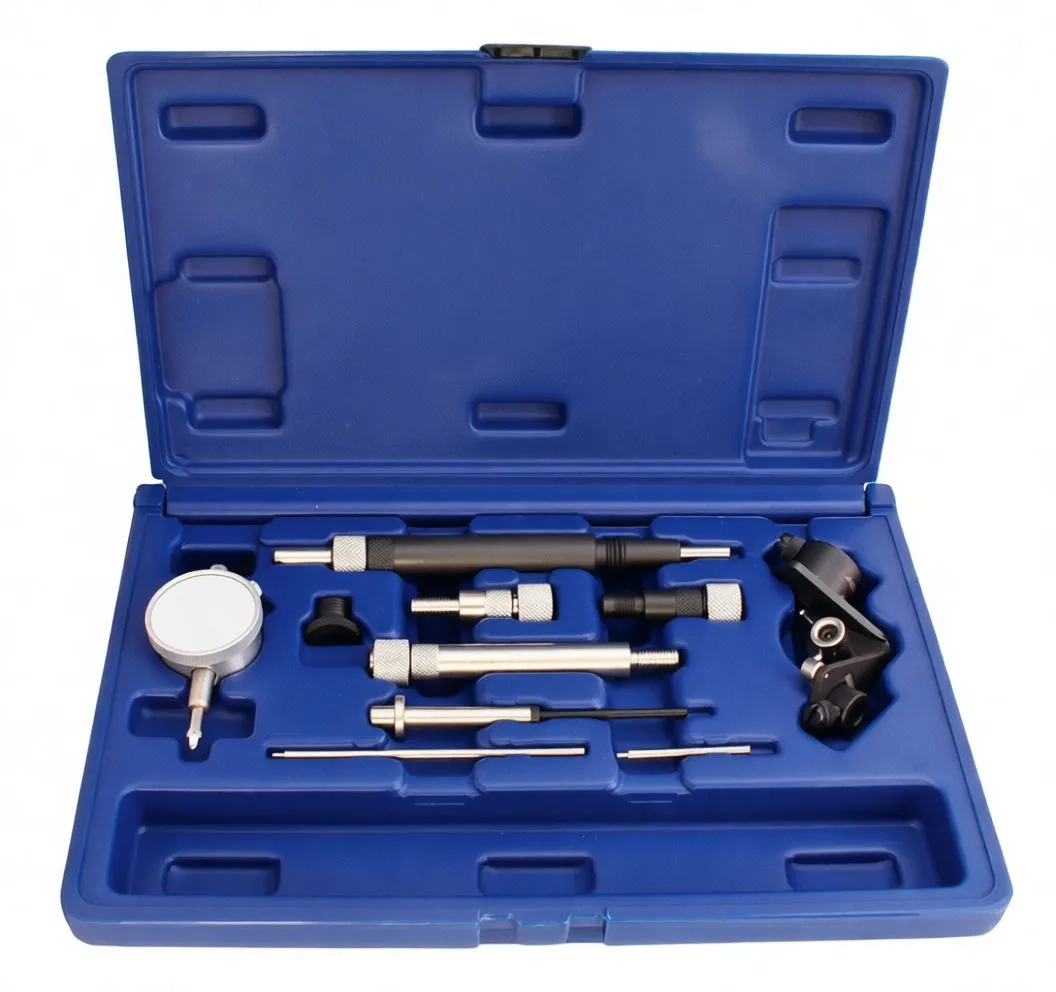

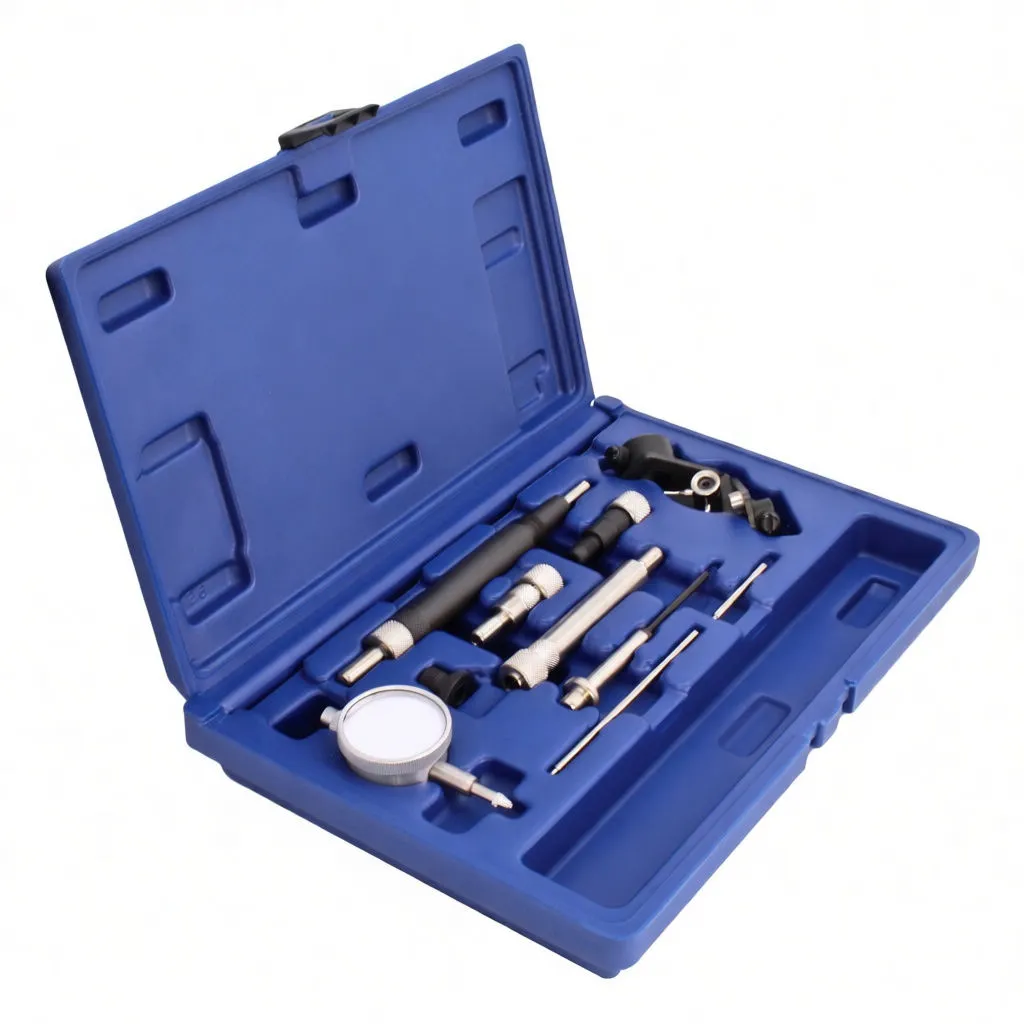

• Custom Molded Storage Case – Hard plastic with labeled compartments. Protects components during transport and storage; supports shop organization.

Business Advantages for Resellers

• High-Frequency Service Need: Diesel injection pump timing is a recurring service in independent shops and fleet maintenance facilities. Timing drift causes hard starting, black smoke, poor fuel economy, and customer returns. This device is a profit center.

• Precision = Customer Retention: The Taiwan-grade 0.01 mm dial gauge eliminates guesswork. Accurate timing reduces comebacks and builds reputation for precision work.

• Multi-Brand Coverage: Universal design supports Bosch, Lucas, Denso, Nippon, and Kikki pumps—covers the majority of European and Asian diesel vehicles. One kit handles multiple customer platforms.

• Margin Opportunity: Diesel service labor commands premium rates. Shops equipped with this tool can offer timing diagnostics and adjustment services that non-equipped competitors cannot.

• Complements Existing Service Lines: Pairs naturally with diesel injector extraction services and fuel system diagnostics.

Technical Specifications

Specification	Detail
Dial Gauge Accuracy	±0.01 mm (0–5 mm range)
Gauge Diameter	40 mm
Measurement Range	0–5 mm
M8 Adapter Compatibility	M8 x 35 mm, M8 x 90 mm indicators
M10 Adapter Compatibility	M10 x 35 mm gauge
Sensor Probe Options	40 mm, 100 mm lengths
Threaded Adapter	M8-to-M12 converter included
Storage Case	Custom-molded hard plastic with component recesses
Application	Bosch VE, Lucas CAV Roto, Denso, Nippon, Kikki pump systems
Vehicle Compatibility	Audi, BMW, Fiat, Ford, Isuzu, Iveco, Land Rover, Mazda, Mitsubishi, Nissan, Renault, VW

Why Precision Matters

Diesel injection timing tolerance is tight—often ±0.1–0.2 mm at the pump housing. Incorrect timing causes:

• Hard cold starts and extended crank times
• Increased emissions (NOx, particulates)
• Reduced fuel economy
• Engine knock and noise
• Customer dissatisfaction and warranty claims

The Taiwan-manufactured dial gauge in this kit delivers repeatability that cheaper alternatives cannot match. This directly translates to first-pass timing accuracy and fewer customer returns.

Reseller Value Proposition

Order this kit as a core diagnostic tool for any shop servicing diesel engines. Stock it for:

• Injection pump replacement jobs (timing verification post-installation)
• Diesel diagnostics (ruling out timing drift as a cause of cold-start or performance issues)
• Preventive maintenance (timing verification during major service intervals)

The complete component set eliminates the need for technicians to improvise adapters or seek third-party solutions. This kit is a self-contained, professional diagnostic solution.

---

Ready to add precision diesel diagnostics to your shop's service menu? Order in bulk and establish yourself as the go-to diesel specialist in your market.
